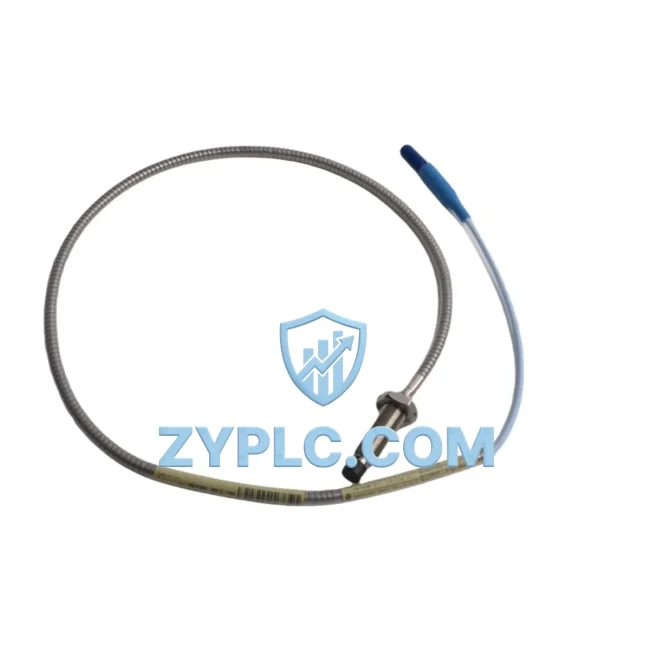

Bently Nevada 330704-000-060-50-12-00 System-Ready Proximity Probe for 3300 XL Architecture

Bently Nevada 330704-000-060-50-12-00 System-Ready Proximity Probe for 3300 XL Control Architecture

In modern rotating machinery protection and condition monitoring systems, the integrity of the vibration sensing layer is foundational to the reliability of the entire control architecture. The Bently Nevada 330704-000-060-50-12-00 is a precision eddy-current proximity probe engineered specifically for deployment within the 3300 XL Series monitoring platform — one of the most widely adopted machinery protection frameworks in power generation, petrochemical, oil and gas, and heavy industrial environments worldwide. This probe does not function as a standalone sensor; it is a system-critical component whose performance directly governs the accuracy of shaft displacement measurement, radial vibration trending, and axial position monitoring across the full control hierarchy.

The 330704-000-060-50-12-00 operates as the primary sensing element in a three-component transducer system, working in coordinated integration with the Bently Nevada 330130 extension cable and the 3300 XL 8mm Proximitor® sensor (such as the 330180 series). Together, these components form a calibrated signal chain that feeds conditioned voltage output into the 3300 XL rack-mounted monitor modules — including the 3300/16 Dual Voting Logic, 3300/20 Radial Vibration Monitor, and 3300/25 Thrust Position Monitor — enabling real-time machinery health assessment at the control layer. The probe’s Contextual Integration within this architecture ensures that every measurement is traceable, repeatable, and compatible with the rack’s signal conditioning expectations, eliminating the calibration drift and impedance mismatches that arise from cross-brand substitution.

Architecture Specification Table

Coordinated Control System Design

The 330704-000-060-50-12-00 achieves its full diagnostic value only when positioned correctly within a layered machinery protection architecture. At the sensing layer, the probe is paired with the Bently Nevada 330130-080-00-00 extension cable, which bridges the physical gap between the probe installation point and the Proximitor® housing mounted outside the machine casing. The Bently Nevada 330180-X1-05 Proximitor® sensor then conditions the raw eddy-current signal into a calibrated DC voltage, which is routed via shielded instrumentation cable to the 3300 XL rack system.

Within the rack, the conditioned signal enters monitor modules such as the 3300/20 Radial Vibration Monitor or the 3300/25 Thrust Position Monitor, where it is processed against configurable alarm setpoints — Alert, Danger, and Trip thresholds — that are managed through the Bently Nevada System 1 Evolution software platform. The System 1 environment provides the data historian, trend analysis, and alarm management layer that transforms raw vibration data into actionable machinery health intelligence.

For redundant protection architectures, the probe is commonly deployed in dual-probe configurations feeding the 3300/16 Dual Voting Logic Monitor, which implements 2-out-of-2 or 2-out-of-3 voting logic to prevent spurious trips while maintaining protection integrity. Power to the entire rack system is supplied through the 3300/05 Power Supply module, with redundant power supply configurations available for critical machinery trains. The rack backplane — the 3300 XL Rack itself — provides the physical and electrical interconnect between all monitor modules, ensuring synchronized data acquisition across all measurement channels.

At the network and integration layer, the 3300 XL system communicates with plant-level DCS platforms — including Emerson DeltaV and third-party SCADA systems — via Modbus RTU, Modbus TCP/IP, or OPC-DA/UA protocols, enabling the vibration data captured by the 330704-000-060-50-12-00 to be surfaced on operator HMI screens and integrated into plant-wide condition monitoring dashboards. This Contextual Integration across sensing, conditioning, monitoring, communication, and visualization layers is what defines the 3300 XL as a complete machinery protection ecosystem rather than a collection of discrete instruments.

Application in Layered Automation Systems

The 330704-000-060-50-12-00 proximity probe is deployed across a broad spectrum of rotating machinery protection applications in industries where unplanned downtime carries severe operational and financial consequences.

In power generation — including gas turbines, steam turbines, and hydro generators — the probe monitors shaft radial vibration and axial thrust position on main rotor bearings, providing the early warning data that enables condition-based maintenance scheduling and prevents catastrophic bearing failures. Combined with the 3300 XL rack system, it supports API 670 compliance for machinery protection in accordance with international standards for turbomachinery.

In petrochemical and refinery environments, the probe is installed on centrifugal compressors, boiler feed pumps, and reactor agitators operating in hazardous area classifications. Its IP67-rated construction and high-temperature cable assembly ensure reliable operation in environments with hydrocarbon vapors, high ambient temperatures, and aggressive chemical atmospheres.

In oil and gas upstream and midstream applications — pipeline compressor stations, LNG liquefaction trains, and offshore platform machinery — the probe’s compatibility with the 3300 XL redundant monitoring architecture supports the continuous operation requirements mandated by production uptime targets and regulatory safety frameworks.

In mining and metallurgy, the probe is applied to large ball mills, SAG mills, and kiln drive systems, where shaft displacement monitoring provides critical data for predictive maintenance programs that reduce unplanned downtime in high-throughput production environments.

In water and wastewater treatment, the probe monitors large vertical turbine pumps and blower trains, supporting the condition monitoring programs that extend equipment life in infrastructure-critical applications with limited maintenance windows.

Architecture Engineering FAQ

Q1: Is the 330704-000-060-50-12-00 directly compatible with all 3300 XL monitor modules, and does it require recalibration when integrated into an existing rack system?

The 330704-000-060-50-12-00 is factory-calibrated as part of the Bently Nevada 3300 XL transducer system and is designed for direct plug-and-play integration with all 3300 XL monitor modules, including the 3300/20, 3300/25, and 3300/16, when used with the correct Proximitor® sensor (330180 series) and extension cable (330130 series). No field recalibration is required provided the complete three-component transducer system (probe, extension cable, Proximitor®) is replaced as a matched set. If only the probe is being replaced, the gap voltage should be verified at commissioning to confirm the new probe’s output aligns with the monitor module’s configured scale factor. Our 12-Month Warranty covers calibration integrity for the full warranty period.

Q2: Can this probe be used in a redundant dual-probe architecture, and what monitor module is required to support voting logic?

Yes. The 330704-000-060-50-12-00 is fully compatible with redundant dual-probe configurations. For voting logic protection, the Bently Nevada 3300/16 Dual Voting Logic Monitor is the appropriate module, supporting 2-out-of-2 voting to prevent spurious trips while maintaining full protection coverage. Each probe in the redundant pair requires its own dedicated Proximitor® sensor and extension cable, and both signal chains must be routed to separate input channels on the 3300/16 module. This architecture is standard practice for critical machinery trains in power generation and petrochemical applications where API 670 compliance is required.

Q3: What is the recommended maintenance interval for the 330704-000-060-50-12-00, and how does the 12-Month Warranty support long-term system reliability?

Bently Nevada proximity probes are designed for continuous operation with minimal scheduled maintenance. The primary maintenance activity is periodic gap verification — typically performed during planned outages or at 12-month intervals — to confirm that the probe-to-target gap remains within the linear measurement range (0.25 mm to 2.25 mm). Cable integrity inspection and connector cleaning are recommended at the same interval. The 12-Month Warranty provided with the 330704-000-060-50-12-00 covers manufacturing defects and calibration integrity from the date of shipment, ensuring that any factory-related performance deviation is addressed at no additional cost. For long-term inventory planning, maintaining a spare probe set — including matched extension cable and Proximitor® sensor — is recommended to minimize machinery downtime during unplanned replacement events.
