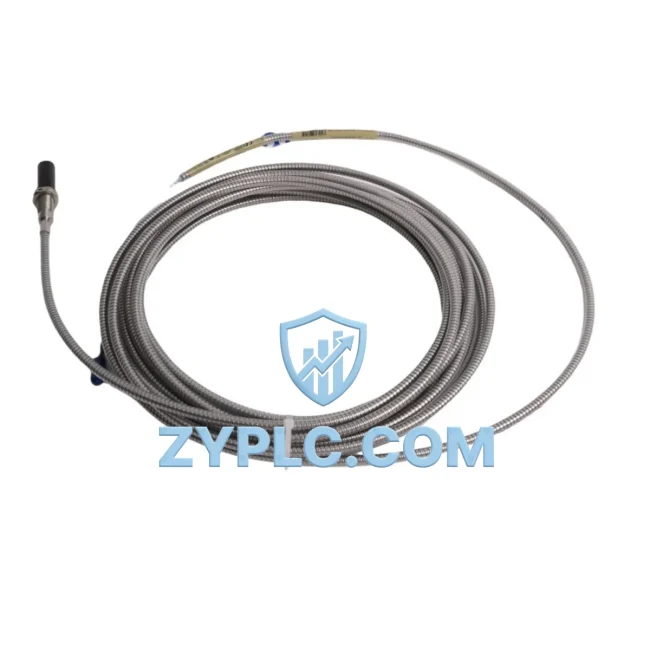

Bently Nevada 330704-000-078-10-01-CN System-Ready Proximity Probe for 3300 XL Architecture

Bently Nevada 330704-000-078-10-01-CN System-Ready Proximity Probe for 3300 XL Architecture

The Bently Nevada 330704-000-078-10-01-CN is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series continuous vibration monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, rotating machinery, and heavy manufacturing — the integrity of the machinery protection layer depends on the coordinated performance of every component across the control hierarchy. This probe is not a standalone sensor; it is a system-critical element that anchors the signal acquisition layer of a complete condition monitoring and machinery protection platform.

Within a layered automation architecture, the 330704-000-078-10-01-CN operates at the field instrumentation level, converting shaft displacement and radial vibration data into precise analog signals that feed directly into the 3300 XL monitor rack. These signals are then processed by modules such as the 3300/16 Dual Voting Logic Monitor or the 3300/20 Radial Vibration Monitor, which apply alarm and trip logic before passing structured data upward to the control layer — typically a DCS or safety PLC platform. The seamless handoff between the probe, the proximitor/extension cable assembly (such as the 330130 series), and the monitor card is what defines system-level reliability in high-stakes rotating equipment protection.

The probe’s 7.87 mm (5/8 in) diameter tip and standardized output sensitivity of 7.87 V/mm (200 mV/mil) ensure direct compatibility with the 3300 XL system’s signal conditioning expectations, eliminating calibration mismatches that can introduce measurement uncertainty across the monitoring chain. When paired with a matched Bently Nevada 330180 or 330190 proximitor and the appropriate extension cable, the complete transducer system delivers a linear measurement range of 0.25 mm to 2.26 mm (10 to 89 mils), providing the resolution required for early-warning vibration trending and precise trip setpoint enforcement.

From a system architecture perspective, the 330704-000-078-10-01-CN supports both simplex and redundant monitoring configurations. In redundant architectures — common in turbine protection systems and compressor trains — dual-probe installations on a single bearing journal allow the 3300 XL voting logic modules to cross-validate measurements, preventing spurious trips while maintaining protection integrity. This redundancy design philosophy extends across the rack: the 3300/05 Power Supply Module provides conditioned DC power to the monitor cards, while the 3300/55 System Monitor coordinates rack-level health status and communicates fault conditions to the plant DCS via Modbus or the System 1 software platform.

At the network and integration layer, the 3300 XL architecture supports communication with higher-level SCADA and asset management systems through the 3500/92 Communication Gateway or direct OPC-DA/OPC-UA interfaces via System 1 Evolution software. This contextual integration capability means that vibration data captured by the 330704-000-078-10-01-CN is not siloed within the machinery protection system — it becomes part of the plant-wide data fabric, enabling predictive maintenance workflows, historian trending, and integration with process control decisions made at the DCS level.

For engineering teams managing multi-train installations, the standardized form factor and connector interface of the 330704-000-078-10-01-CN simplify spare parts management and reduce mean time to repair (MTTR). A single probe model can serve multiple bearing positions across different machine trains within the same facility, provided the installation geometry and gap voltage requirements are matched during commissioning. This inventory consolidation benefit is particularly valuable in facilities operating multiple gas turbines, steam turbines, or large centrifugal compressors where probe replacement during planned outages must be executed rapidly to minimize downtime.

Architecture Specification Table

Coordinated Control System Design

The 330704-000-078-10-01-CN achieves its full value when deployed as part of a coordinated 3300 XL rack assembly. A typical machinery protection rack for a single compressor train includes the 3300/05 Power Supply Module providing regulated -24 VDC to all monitor cards, the 3300/20 Radial Vibration Monitor processing the probe’s analog output and enforcing alarm/trip setpoints, and the 3300/16 Dual Voting Logic Monitor implementing 2-out-of-2 or 2-out-of-3 voting logic for spurious trip prevention in critical service applications.

The signal chain begins at the probe tip, passes through the 330180 Proximitor (or the 330190 Proximitor for high-temperature applications), travels via the 330130 Extension Cable to the monitor card input terminals, and is then digitized and compared against configured alarm thresholds. The 3300/55 System Monitor continuously polls all cards in the rack for health status, flagging any transducer fault, power anomaly, or signal-out-of-range condition to the plant operator via the System 1 Evolution asset management platform.

For facilities requiring integration with a Yokogawa CENTUM VP or Emerson DeltaV DCS, the 3500/92 Communication Gateway provides Modbus TCP connectivity, allowing the DCS to read vibration values, alarm states, and trip outputs from the 3300 XL rack in real time. At the HMI layer, operators can visualize shaft centerline plots, trend vibration amplitude over time, and configure alert thresholds without interrupting the protection function — a critical capability during live machine commissioning and post-maintenance verification.

Application in Layered Automation Systems

In power generation facilities, the 330704-000-078-10-01-CN is typically installed on the journal bearings of steam turbine LP and HP rotors, where continuous radial vibration monitoring is mandated by API 670 and plant safety management systems. The probe’s high-temperature tolerance and stable sensitivity across the operating range make it suitable for bearing housings exposed to elevated ambient temperatures near the turbine casing.

In petrochemical and refinery applications, the probe is deployed on centrifugal compressor trains handling hydrocarbon process gases. Here, the ATEX-rated configuration of the 3300 XL system — including the probe, proximitor, and monitor rack — ensures compliance with hazardous area classification requirements. The 12-Month Warranty provides procurement teams with a defined quality assurance window that aligns with typical annual turnaround maintenance cycles.

In water treatment and municipal utility plants, large vertical pump motors and blower trains benefit from the probe’s ability to detect early-stage bearing wear through sub-alarm vibration trending. Integration with the plant SCADA via Modbus allows maintenance teams to schedule predictive interventions before vibration levels reach trip thresholds, reducing unplanned outages and extending equipment service life.

In mining and mineral processing environments, the probe supports continuous monitoring of SAG mill pinion bearings, crusher drive motors, and slurry pump trains — applications where unplanned downtime carries significant production cost. The robust construction and wide operating temperature range of the 330704-000-078-10-01-CN ensure reliable performance in dusty, high-vibration installation environments.

Architecture Engineering FAQ

Q1: Is the 330704-000-078-10-01-CN directly compatible with the 3300 XL monitor rack without additional signal conditioning?
Yes. The probe is factory-calibrated to the 3300 XL system’s expected input sensitivity of 200 mV/mil (7.87 V/mm). When paired with a matched 330180 or 330190 Proximitor and the correct length 330130 Extension Cable, the complete transducer system connects directly to the 3300/20 or 3300/16 monitor card input terminals. No additional signal conditioning modules are required. During commissioning, gap voltage should be verified at -10.0 VDC ±0.5 VDC at the nominal installation gap to confirm system calibration.

Q2: Can this probe be used in a redundant dual-probe configuration, and how does the 3300 XL architecture manage voting logic?
Yes. The 3300 XL architecture supports redundant probe installations on a single bearing journal. Two probes are mounted 90° apart (X and Y planes) and connected to separate input channels on the 3300/16 Dual Voting Logic Monitor. The monitor applies configurable 2-out-of-2 or 2-out-of-3 voting logic to alarm and trip outputs, ensuring that a single probe failure or signal anomaly does not cause a spurious machine trip. This configuration is standard practice for API 670-compliant machinery protection systems on critical rotating equipment.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects, calibration drift beyond specified tolerances, and functional failures under normal operating conditions. For maintenance engineers, this warranty period aligns with annual planned outage cycles, providing a defined quality assurance window for newly installed probes. Warranty claims are supported by ZYPLC’s technical team, and replacement units are available from in-stock inventory to minimize system downtime. For facilities operating under continuous monitoring requirements, ZYPLC recommends maintaining a minimum of two spare probes per machine train to support rapid replacement during unplanned maintenance events.
