Bently Nevada 330705-02-18-90-02-CN System-Ready Reverse Mount Proximity Probe for 3300XL Architecture

Bently Nevada 330705-02-18-90-02-CN System-Ready Reverse Mount Proximity Probe: Control System Architecture and Contextual Integration

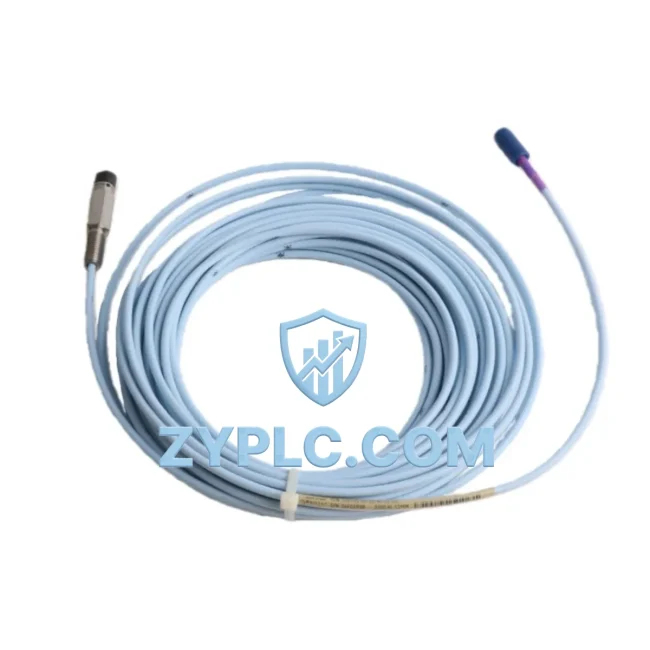

The Bently Nevada 330705-02-18-90-02-CN is a precision reverse mount proximity probe engineered for seamless integration within the 3300XL Series machinery protection and condition monitoring architecture. Unlike standalone sensing devices, this probe is designed as a system-level component — one that functions as the primary signal acquisition node within a layered automation hierarchy spanning the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. Its role is not simply to detect shaft displacement; it is to deliver consistent, low-noise eddy current signals that feed directly into the broader vibration monitoring and machinery protection ecosystem, ensuring system-wide coherence from the sensor tip to the control room display.

In modern industrial facilities — whether in power generation, petrochemical processing, water treatment, mining, metallurgy, or rotating equipment-intensive manufacturing — the integrity of the entire protection architecture depends on the reliability of the front-end sensing layer. The 330705-02-18-90-02-CN fulfills this role with a reverse mount configuration that allows installation from the non-drive end of the machine casing, reducing mechanical interference and enabling access in confined turbomachinery environments where conventional probes cannot be positioned without compromising measurement accuracy.

Architecture Specification Table

Coordinated Control System Design

The 330705-02-18-90-02-CN does not operate in isolation. Its value is fully realized only when it is integrated within a complete 3300XL machinery protection architecture. At the monitor layer, the probe connects directly to the Bently Nevada 3300/16 Proximitor Monitor or the 3300/55 Dual Voting Logic Monitor, which processes the raw eddy current signal and applies alarm and danger setpoints. The Proximitor monitor occupies a slot within the 3300 Series Rack, a modular backplane system that supports up to 16 monitor cards and provides the structural backbone for the entire protection system.

Power integrity is maintained through the Bently Nevada 3300/05 Power Supply Module, which delivers regulated DC power to all rack-mounted monitors and ensures that signal conditioning remains stable even during grid fluctuations. For applications requiring redundancy — such as critical steam turbines or gas compressors in petrochemical plants — a dual power supply configuration using two 3300/05 modules in parallel is standard practice, eliminating single points of failure at the power layer.

At the network and data layer, the 3300XL rack communicates with the plant-level Bently Nevada System 1 Condition Monitoring Software via the 3300/93 Communication Gateway Module, which supports Modbus TCP and OPC-DA protocols. This allows vibration trend data captured by the 330705-02-18-90-02-CN to be transmitted to the DCS or SCADA layer — for example, a GE Mark VIe Turbine Control System or a Honeywell Experion PKS DCS — enabling contextual integration between machinery protection and process control without requiring separate data historians.

At the I/O and signal conditioning layer, the probe works in conjunction with the Bently Nevada 330130 Proximitor Sensor (the signal conditioning extension driver), which provides the oscillator-demodulator circuit necessary to convert the raw probe impedance change into a calibrated DC voltage output. The 330130 is typically mounted in a junction box near the machine, with the 330705 probe cable connecting directly to its input terminals. This two-component sensing chain — probe plus Proximitor — is the standard architecture for all 3300XL eddy current measurements.

For HMI and operator interface, vibration data from the 3300XL system is displayed on the Bently Nevada 3500/94 Display Interface Module or routed to a plant-wide HMI running System 1 software, where operators can view real-time shaft orbit plots, trend data, and alarm histories. In facilities with advanced predictive maintenance programs, the same data feeds into GE APM (Asset Performance Management) platforms for machine health scoring and remaining useful life estimation.

Terminal and wiring integrity at the field junction level is supported by Phoenix Contact PTFIX or Weidmüller Klippon terminal blocks, which provide reliable, vibration-resistant connections between the probe cable and the Proximitor input. In high-vibration environments such as mining crushers or large reciprocating compressors, armored cable assemblies and stainless steel probe holders are used to protect the 330705 cable from mechanical damage, ensuring long-term signal continuity without maintenance interruptions.

Application in Layered Automation Systems

Power Generation: In steam turbine protection systems at thermal power plants, the 330705-02-18-90-02-CN is installed at the turbine journal bearing locations to monitor radial shaft vibration. The reverse mount configuration allows probe installation through the bearing housing without requiring machine disassembly, reducing outage time during scheduled maintenance. Alarm and danger setpoints are configured in the 3300XL monitor to trip the turbine automatically if vibration exceeds API 670 limits, protecting the machine from catastrophic failure.

Petrochemical and Refining: In centrifugal compressor trains at refineries and LNG facilities, the 330705 probe is used in conjunction with a keyphasor probe (typically the Bently Nevada 330180 Keyphasor Probe) to enable phase-referenced vibration analysis. This allows engineers to perform balancing, alignment diagnostics, and rotor dynamic analysis using System 1 software, reducing unplanned shutdowns and extending mean time between overhauls.

Water Treatment and Pumping Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure use the 3300XL system with 330705 probes to monitor bearing condition continuously. Because these facilities often operate with minimal on-site engineering staff, the automatic trip function of the 3300XL monitor provides a critical safety layer that prevents pump damage during cavitation events or bearing failures.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate high levels of structural vibration that can mask bearing defects if not properly filtered. The 330705-02-18-90-02-CN, with its high-frequency response and non-contact measurement principle, provides clean shaft displacement signals even in these high-noise environments, enabling reliable condition monitoring without the false alarms common with accelerometer-based systems.

Metallurgy and Steel Production: Rolling mill drive trains and continuous casting machine drives require continuous vibration monitoring to prevent unplanned production stops. The 330705 probe, integrated into the 3300XL architecture, provides the real-time shaft position data needed to detect misalignment, unbalance, and bearing wear before they escalate into failures that could damage rolls or casting molds.

Architecture Engineering FAQ

Q1: Is the 330705-02-18-90-02-CN directly compatible with the 3300XL monitor system without additional signal conditioning?
A: No — the 330705 proximity probe requires a companion Proximitor sensor (such as the Bently Nevada 330130 or 330180 series) to provide the oscillator-demodulator circuit that converts the probe’s impedance signal into a calibrated DC voltage output. The Proximitor output then connects to the 3300XL monitor input. This two-component architecture is standard for all Bently Nevada eddy current proximity measurement systems and is required for correct calibration and system certification under API 670.

Q2: Can this probe be used in a redundant voting architecture for critical machinery protection?
A: Yes. In critical applications such as gas turbines or high-pressure compressors, two or three 330705 probes can be installed at the same bearing plane and connected to separate 3300XL monitor channels configured in a 2-out-of-3 (2oo3) voting logic arrangement using the 3300/55 Dual Voting Logic Monitor. This redundant architecture ensures that a single probe or cable failure does not cause a spurious trip or, conversely, allow a real vibration event to go undetected. The 3300XL system supports this configuration natively without requiring external logic solvers.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
A: ZYPLC provides a 12-Month Warranty on the 330705-02-18-90-02-CN covering manufacturing defects, calibration failures, and premature component failure under normal operating conditions. The warranty period begins from the date of shipment. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order number, failure description, and photographic evidence of the defect. ZYPLC will arrange for replacement or repair within the agreed service timeline. Warranty does not cover damage resulting from improper installation, mechanical impact, chemical exposure, or operation outside the specified environmental limits.
