Bently Nevada 330750-60-05 System-Ready Velomitor Sensor for 3500 Architecture

Bently Nevada 330750-60-05 System-Ready Velomitor Sensor for 3500 Control Architecture

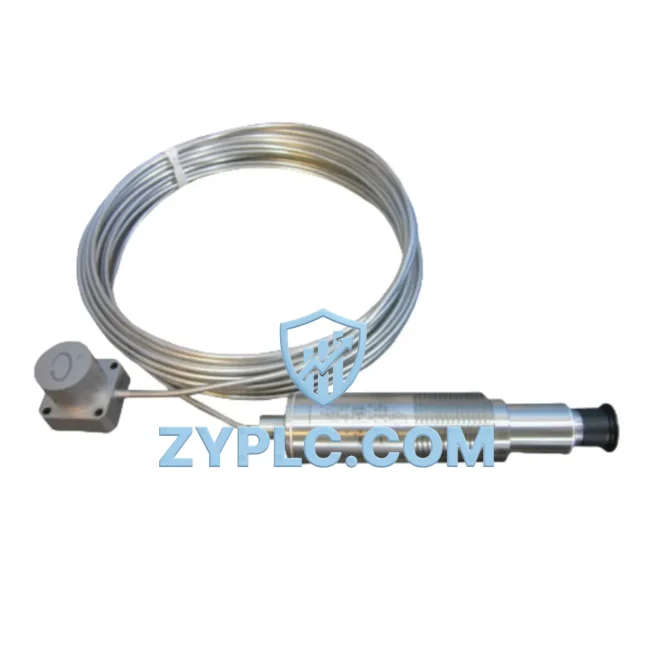

The Bently Nevada 330750-60-05 Velomitor Sensor Module is a precision velocity transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Unlike standalone vibration instruments, this sensor is designed from the ground up to function as a coordinated node within a layered industrial automation system — delivering real-time velocity signal data to the 3500 rack-based monitoring platform with the accuracy, reliability, and signal integrity that critical rotating machinery applications demand. Whether deployed in power generation, petrochemical processing, water treatment, or heavy manufacturing, the 330750-60-05 serves as the sensing foundation upon which the entire machinery health monitoring strategy is built.

In a complete 3500 system architecture, the 330750-60-05 operates at the field sensing layer, converting mechanical vibration velocity into a conditioned electrical signal that feeds directly into the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor/Seismic Monitor module housed within the 3500 rack. The rack itself — typically a 3500/05 or 3500/15 Rack Interface Module — provides the backplane communication bus that links every I/O module, power supply, and communication gateway into a unified monitoring node. This tightly integrated architecture ensures that velocity data from the 330750-60-05 is processed, alarmed, and transmitted to the control layer without latency or signal degradation.

At the power layer, the 3500/15 Power Supply Module or the redundant 3500/15E Enhanced Power Supply provides conditioned DC power to all rack-mounted modules, including the monitor cards that interface with the 330750-60-05. Redundant power configurations are strongly recommended in critical applications such as turbine protection or compressor monitoring, where a single power failure could result in undetected machinery damage. The Velomitor sensor itself is a self-powered, internally amplified device that draws its excitation from the monitor module, eliminating the need for external signal conditioning hardware and simplifying field wiring.

At the communication and network layer, the 3500 rack integrates with plant-level DCS and SCADA systems through the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC-DA protocols. This allows vibration velocity data captured by the 330750-60-05 to be transmitted upstream to historian servers, operator workstations, and advanced analytics platforms without requiring proprietary software bridges. In facilities running Emerson DeltaV or Honeywell Experion PKS, the 3500 gateway module enables direct tag mapping, ensuring that the Velomitor’s output is visible at the HMI layer in real time.

The human-machine interface layer typically consists of Emerson AMS Suite or System 1 Condition Monitoring Software, which aggregates velocity trend data from multiple 330750-60-05 sensors across a machine train. Operators can configure alarm setpoints, review historical waveform data, and generate predictive maintenance reports — all driven by the continuous signal stream originating at the Velomitor sensor. This closed-loop architecture, from sensor to software, is what distinguishes a true machinery protection system from a collection of isolated instruments.

For multi-machine installations, the 330750-60-05 is commonly deployed alongside the 3300 XL 8mm Proximity Probe System for radial shaft displacement monitoring, the 330180 Proximity Probe for axial position measurement, and the 3500/72M Temperature Monitor for bearing temperature surveillance. Together, these sensors form a comprehensive machine health monitoring suite that covers velocity, displacement, and temperature — the three primary indicators of rotating machinery condition. The 3500 rack architecture supports up to 16 monitor modules per rack, enabling a single rack to monitor an entire machine train with full redundancy and alarm management capability.

From an engineering and commissioning perspective, the 330750-60-05 is designed for straightforward field installation. Its integral cable and connector system is compatible with standard Bently Nevada field wiring practices, and the sensor’s frequency response — typically 10 Hz to 1,000 Hz — covers the full range of vibration frequencies relevant to rotating machinery operating between 600 RPM and 60,000 RPM. Sensitivity is factory-calibrated to 100 mV/in/s (4 mV/mm/s), ensuring consistent signal output across all units and eliminating the need for field calibration at installation. This plug-and-play characteristic significantly reduces commissioning time and minimizes the risk of wiring errors in complex multi-sensor installations.

Long-term maintenance efficiency is a core design principle of the 3500 architecture. The 330750-60-05 is a field-replaceable unit, and its standardized connector interface allows technicians to swap sensors during scheduled maintenance windows without disturbing adjacent wiring or monitor module configurations. Spare sensor inventory management is simplified by the sensor’s universal compatibility across all 3500/42M and 3500/40M monitor modules, regardless of rack generation. This cross-compatibility ensures that a single spare part number covers multiple machine monitoring points, reducing warehouse inventory complexity and procurement lead times.

All 330750-60-05 units supplied by ZYPLC are covered by a 12-Month Warranty and have undergone pre-shipment functional verification. Our inventory is sourced from authorized distribution channels and surplus industrial stocks, with full traceability documentation available upon request. We support global shipping with typical lead times of 3–7 business days for in-stock units, and our technical team is available to assist with system architecture consultation, compatibility verification, and installation guidance.

Architecture Specification Table

Coordinated Control System Design

The 330750-60-05 Velomitor achieves its full performance potential when deployed within a coordinated Bently Nevada 3500 system architecture. At the monitor layer, the 3500/42M Proximitor/Seismic Monitor receives and processes the velocity signal, applying configurable alarm setpoints for Alert and Danger thresholds. The 3500/40M Proximitor/Seismic Monitor provides an alternative monitor module for installations requiring combined proximity and seismic monitoring on a single card, reducing rack slot consumption in space-constrained enclosures.

The rack infrastructure — anchored by the 3500/05 Rack Interface Module or the 3500/15 Rack Interface Module — provides the backplane bus that synchronizes all monitor modules and enables system-wide alarm voting logic. Redundant power is supplied by the 3500/15E Enhanced Power Supply, which supports hot-swap replacement without system shutdown. The 3500/92 Communication Gateway Module bridges the 3500 rack to plant DCS and SCADA networks via Modbus and OPC protocols, ensuring that Velomitor data is available at every level of the automation hierarchy.

For comprehensive machine train monitoring, the 330750-60-05 is paired with the 3300 XL 8mm Proximity Probe System for radial shaft displacement, the 330180-91-00 Proximity Probe for axial position, and the 3500/72M Temperature Monitor for bearing and process temperature surveillance. The 3500/22M Transient Data Interface captures high-resolution waveform data during machine startups and shutdowns, providing the engineering team with the transient vibration signatures needed for advanced diagnostics. Together, these components form a fully integrated machinery protection and condition monitoring system capable of supporting API 670 compliance requirements.

Application in Layered Automation Systems

In power generation facilities — including gas turbines, steam turbines, and large centrifugal compressors — the 330750-60-05 is deployed as part of the turbine protection system, where it monitors casing vibration velocity and provides early warning of imbalance, misalignment, or bearing deterioration. The sensor’s wide temperature range and IP67 enclosure make it suitable for installation in hot, humid, or wash-down environments typical of power plant turbine halls.

In petrochemical and refinery applications, the Velomitor is used on process compressors, pumps, and fans where continuous vibration monitoring is required for API 670 compliance. The sensor’s intrinsically safe configurations support installation in hazardous area classifications (Zone 1, Zone 2, Class I Division 1), enabling deployment in explosive atmosphere environments without additional barriers in approved configurations.

In water treatment and municipal infrastructure plants, the 330750-60-05 monitors large centrifugal pumps and blowers, where early detection of cavitation or bearing wear can prevent costly unplanned outages. The sensor’s low-maintenance design and long service life align with the operational requirements of utilities that prioritize minimal intervention between scheduled maintenance intervals.

In mining and metallurgical operations, the Velomitor is applied to crushers, mills, conveyors, and large induction motors, where high ambient vibration levels and dusty environments demand a robust, sealed sensor with reliable signal output. The 3500 system’s alarm management and relay output capabilities enable direct integration with plant safety interlock systems, allowing automatic machine shutdown upon vibration threshold exceedance.

Architecture Engineering FAQ

Q1: Is the 330750-60-05 compatible with both the 3500/40M and 3500/42M monitor modules?
Yes. The 330750-60-05 Velomitor is fully compatible with both the 3500/40M and 3500/42M Proximitor/Seismic Monitor modules. Both modules accept the internally amplified voltage output of the Velomitor sensor and support the same alarm configuration, OK relay, and communication gateway integration. No additional signal conditioning hardware is required between the sensor and the monitor module.

Q2: Can the 330750-60-05 be installed in a hazardous area without an external safety barrier?
The 330750-60-05 in its standard configuration is not intrinsically safe. For hazardous area installations (Zone 1, Zone 2, or Class I Division 1), a Bently Nevada-approved Zener barrier or galvanic isolator must be installed between the sensor and the monitor module. Consult the 3500 system documentation and local electrical codes to confirm the appropriate barrier model for your hazardous area classification before installation.

Q3: What warranty and support does ZYPLC provide for the 330750-60-05?
All 330750-60-05 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. Units undergo pre-shipment functional verification, and full traceability documentation is available upon request. Our technical team provides post-sale support for system architecture consultation, compatibility verification, and installation guidance. For warranty claims or technical inquiries, contact us at plc.sales@zyplc.com or +86 19859288691.
