Bently Nevada 3500/22M 288055-01 Energy-Saving Vibration I/O

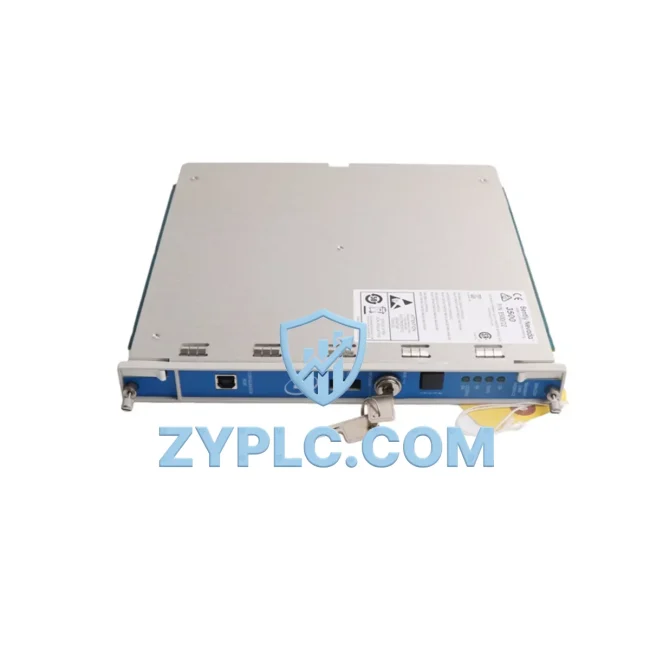

Bently Nevada 3500/22M 288055-01 Energy-Saving Vibration I/O Module for Optimized 3500 Series Automation

The Bently Nevada 3500/22M 288055-01 is a high-performance vibration I/O module engineered for the 3500 Series condition monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this module plays a central role in capturing real-time vibration data that drives smarter motor control decisions, reduces unnecessary energy consumption, and extends the operational life of rotating machinery. Whether deployed in turbine halls, compressor stations, or pump-driven process lines, the 3500/22M 288055-01 delivers the signal fidelity and system integration depth that energy-conscious plant engineers demand.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 3500/22M 288055-01 does not operate in isolation — it is the sensing backbone of a tightly integrated energy-aware automation architecture. Within a typical 3500 Series rack, it works alongside the 3500/01 Power Supply Module to maintain stable, low-ripple power delivery across all monitoring channels, ensuring that measurement accuracy is never compromised by power fluctuations that could mask early-stage bearing faults or rotor imbalance.

Vibration signals captured by the 3500/22M 288055-01 feed directly into the 3500/40M Proximitor/Seismic Monitor, which processes proximity probe and seismic sensor data in parallel. Together, these modules provide a multi-axis view of machine health that allows control engineers to distinguish between normal operational vibration and energy-wasting mechanical degradation. When abnormal vibration signatures are detected, the system can trigger setpoint alerts that interface with the plant’s DCS (Distributed Control System) or PLC — such as a Rockwell Automation ControlLogix or Siemens S7-300 — to modulate motor speed via a connected variable frequency drive (VFD).

This closed-loop feedback between the 3500/22M 288055-01 and the VFD is where the most significant energy savings are realized. Rather than running motors at fixed speed regardless of load, the system dynamically adjusts drive output based on real-time vibration and load data. A Bently Nevada 3500/42M Proximitor/Seismic Monitor can extend this capability to additional machine trains, while the 3500/60 Temperature Monitor adds thermal data to the energy profile, enabling a more complete picture of machine efficiency across varying production tempos.

For facilities using PROFIBUS DP or Modbus TCP communication backbones, the 3500/22M 288055-01 integrates seamlessly through the 3500/92 Communication Gateway Module, pushing live vibration data to SCADA platforms and energy management systems (EMS). This allows plant operators to correlate vibration trends with energy consumption data from power quality analyzers or smart energy meters installed at the motor control center (MCC), creating a unified view of equipment efficiency across the entire production line.

On the HMI side, operators monitoring the line through a Wonderware InTouch or GE iFIX SCADA display can visualize vibration amplitude, phase, and spectrum data alongside real-time kWh consumption, enabling faster, more informed decisions about when to schedule maintenance versus when to push production — without wasting energy on machines operating outside their efficiency envelope.

Power Optimization in Real Production Lines

In a real-world compressor station running three parallel centrifugal compressors, undetected bearing wear on a single unit can increase its energy draw by 8–15% before any audible or thermal symptom appears. The Bently Nevada 3500/22M 288055-01 catches this degradation at the vibration signature level — long before it becomes a thermal or acoustic event — allowing maintenance teams to schedule targeted interventions during planned downtime windows rather than reacting to emergency shutdowns that disrupt production rhythm and spike energy demand.

On pump-driven process lines, the module’s continuous monitoring capability eliminates the need for periodic manual vibration checks, which are both labor-intensive and energy-inefficient due to the start-stop cycles they introduce. By maintaining a constant data stream to the 3500 rack, the 3500/22M 288055-01 supports a steady production tempo — one of the most underappreciated factors in industrial energy efficiency. Machines running at consistent, optimized speeds consume significantly less energy than those subjected to frequent acceleration and deceleration cycles caused by reactive maintenance practices.

For motor-driven fan arrays in HVAC or process cooling applications, the module’s integration with VFD control loops allows the system to reduce fan speed during low-vibration, low-load periods — directly cutting kWh consumption without sacrificing process stability. Over a 12-month operational cycle, facilities using this predictive, vibration-informed approach to motor control consistently report measurable reductions in energy cost per unit of output, alongside lower spare parts consumption and extended mean time between failures (MTBF).

Every unit of the 3500/22M 288055-01 supplied by ZYPLC undergoes full functional testing prior to shipment, including channel-by-channel signal verification and rack compatibility checks. This ensures that the module performs to Bently Nevada factory specifications from day one, eliminating the energy and productivity losses associated with field commissioning failures or early-life module faults.

Energy Optimization FAQ

Q1: How does the 3500/22M 288055-01 contribute to measurable energy savings on the production line?
By providing continuous, high-resolution vibration data, the module enables predictive maintenance strategies that keep rotating machinery operating within its optimal efficiency band. Machines running with undetected imbalance, misalignment, or bearing wear consume more energy than mechanically sound equipment. Early detection via the 3500/22M 288055-01 allows corrective action before energy waste becomes significant, directly reducing kWh consumption per production cycle.

Q2: Is the 3500/22M 288055-01 compatible with my existing 3500 Series rack and control system?
Yes. The 288055-01 is a direct drop-in replacement for the standard 3500/22M slot within any 3500 Series rack. It is compatible with the 3500/01 Power Supply, 3500/20 Rack Interface Module, and 3500/92 Communication Gateway, and can interface with Modbus, OPC-UA, and PROFIBUS-based control and SCADA systems without additional hardware modifications.

Q3: What is the recommended replacement and testing process for this module?
ZYPLC supplies the 3500/22M 288055-01 fully tested and ready for installation. Each unit is verified for channel signal integrity, rack communication, and output accuracy before shipment. On-site replacement involves powering down the affected rack slot, swapping the module, and confirming channel configuration via the 3500 Rack Configuration Software. No recalibration of adjacent modules is required for a like-for-like replacement.

Q4: What warranty and after-sales support does ZYPLC provide for this module?
All units are covered by a 12-month warranty from the date of shipment. If the module fails to perform to specification under normal operating conditions within this period, ZYPLC will provide a replacement or full technical support to resolve the issue. Our team is available to assist with compatibility verification, rack configuration guidance, and sourcing of complementary 3500 Series components to complete your monitoring system.
