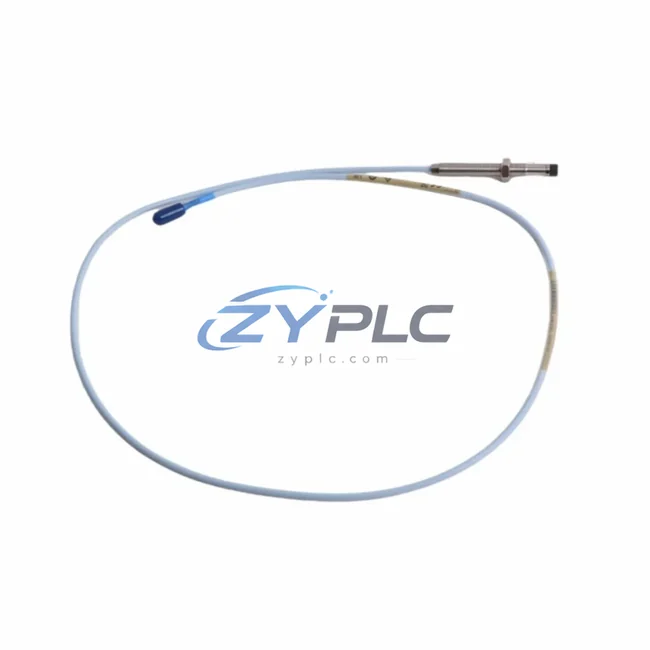

Bently Nevada 84661-66 Extension Cable for Proximitor Seismic Systems

Bently Nevada 84661-66: Industrial Data Link for Proximitor Seismic Systems

The Bently Nevada 84661-66 Extension Cable is a precision-engineered signal transmission component designed to serve as the critical physical link between eddy-current proximity probes and Proximitor sensor modules in rotating machinery protection and condition monitoring architectures. In modern smart factory environments, where real-time vibration data must flow seamlessly from field-mounted sensors through signal conditioning units, into DCS controllers, SCADA platforms, and historian databases, the integrity of every cable segment directly determines the quality of the entire data chain. The 84661-66 is built to meet that demand without compromise.

Deployed across turbines, compressors, pumps, motors, and gearboxes in oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this extension cable bridges the gap between the proximity probe tip and the Bently Nevada 3300 Series or 3500 Series Proximitor sensor. It maintains the precise electrical characteristics — impedance, capacitance, and shielding — required for accurate gap voltage output, ensuring that vibration amplitude, shaft displacement, and rotational speed data are transmitted without signal degradation or noise interference.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated condition monitoring architecture, the Bently Nevada 84661-66 extension cable operates at the very first segment of the data acquisition chain. A proximity probe — such as those in the Bently Nevada 330100 or 330500 probe series — is mounted adjacent to the rotating shaft. The 84661-66 extension cable carries the raw eddy-current signal from the probe tip to the Bently Nevada 3300 XL 8mm Proximitor Sensor or the 3500/42M Proximitor, Seismic, and Temperature Monitor module housed in the 3500 rack system.

From the Proximitor module, conditioned analog outputs — representing shaft vibration in mils or micrometers, and gap voltage in VDC — are fed into the Bently Nevada 3500 Rack System, which performs real-time signal processing, alarm threshold comparison, and relay output triggering. The 3500 rack communicates upstream via Modbus TCP or OPC DA/UA to the plant’s DCS controller — commonly a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA — where vibration trends are integrated into the overall process control loop.

Simultaneously, the vibration data stream is routed to the System 1 Evolution condition monitoring software platform, Bently Nevada’s dedicated SCADA-level asset health management system. Here, operators and reliability engineers can view real-time waveform data, trend historical vibration signatures, configure alert and danger setpoints, and initiate remote diagnostic sessions without interrupting production. Integration with plant-wide OSIsoft PI historians or Aspentech asset performance management platforms is achieved through OPC UA bridging, ensuring that the 84661-66’s signal contribution is preserved all the way to the enterprise data layer.

For facilities running GE Mark VIe or Siemens SPPA-T3000 turbine control systems, the Bently Nevada 3500 rack’s relay and analog outputs interface directly with the turbine control I/O modules, enabling automatic trip logic based on vibration overspeed or high-amplitude events. In this context, the 84661-66 extension cable is not merely a passive conductor — it is the foundational link that makes machine protection and predictive maintenance possible.

In seismic monitoring applications, the 84661-66 pairs with Bently Nevada 9200 Series seismic transducers or velocity sensors to capture structural vibration and foundation movement data, feeding the 3500/14B I/O Module for multi-channel seismic event logging and alarm annunciation. This configuration is widely used in nuclear power auxiliary buildings, large compressor stations, and offshore platform structural health monitoring systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is signal integrity loss caused by improper cable selection, mismatched impedance, or inadequate shielding — all of which create data isolation between the physical sensor and the monitoring system. When a facility uses non-OEM or incorrectly specified extension cables, the Proximitor sensor receives a distorted gap voltage signal, leading to false alarms, missed fault detection, and unreliable vibration trend data. The Bently Nevada 84661-66 eliminates this risk by providing factory-specified electrical characteristics that are fully compatible with the Proximitor signal conditioning chain.

In plants where multiple machine trains are monitored — each with its own probe, extension cable, and Proximitor module — maintaining cable standardization is essential for system-wide data consistency. The 84661-66 ensures that every channel in the 3500 rack receives a uniform, noise-free analog input, enabling accurate cross-machine vibration comparison and reliable alarm logic across the entire monitoring network.

For remote monitoring scenarios — offshore platforms, pipeline compressor stations, or unmanned substations — the ability to trust the sensor-to-Proximitor signal link without on-site verification is critical. The 84661-66’s robust shielding and OEM-grade construction mean that remote diagnostic sessions via System 1 Evolution or Modbus TCP polling from a central SCADA workstation yield accurate, actionable data rather than noise-corrupted readings that require field investigation.

As plants expand their condition monitoring coverage — adding new machine trains, upgrading from 3300 to 3500 Series racks, or integrating additional seismic channels — the 84661-66 provides a scalable, standardized cable solution that grows with the monitoring architecture without requiring custom engineering or field calibration adjustments.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 84661-66 compatible with both the 3300 Series and 3500 Series Proximitor systems?
Yes. The 84661-66 extension cable is designed to maintain the electrical specifications required by both the Bently Nevada 3300 XL and 3500 Series Proximitor sensor modules. Its impedance and capacitance characteristics are matched to the eddy-current probe system, ensuring accurate gap voltage output across both rack generations.

Q2: How does this extension cable affect vibration data accuracy and communication latency in a SCADA-connected monitoring system?
The 84661-66 is a passive analog signal cable and introduces no digital latency. Its shielded coaxial construction minimizes electromagnetic interference, ensuring that the analog voltage signal reaching the Proximitor module is a true representation of shaft displacement. This directly supports accurate real-time data in System 1 Evolution and any connected SCADA or DCS platform.

Q3: Can the 84661-66 be used in seismic monitoring applications alongside standard vibration monitoring channels?
Yes. The 84661-66 is suitable for use in seismic transducer signal chains as well as standard proximity probe configurations. When paired with Bently Nevada 9200 Series seismic sensors and the 3500/14B I/O module, it supports multi-channel seismic event monitoring in the same 3500 rack infrastructure used for rotating machinery protection.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the Bently Nevada 84661-66?
Every Bently Nevada 84661-66 unit shipped by ZYPLC undergoes pre-shipment functional testing to verify signal continuity, shielding integrity, and connector condition. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for shipment arranged after confirmation, and our technical team provides pre-sales compatibility consultation and post-sales support for system integration queries.

—
