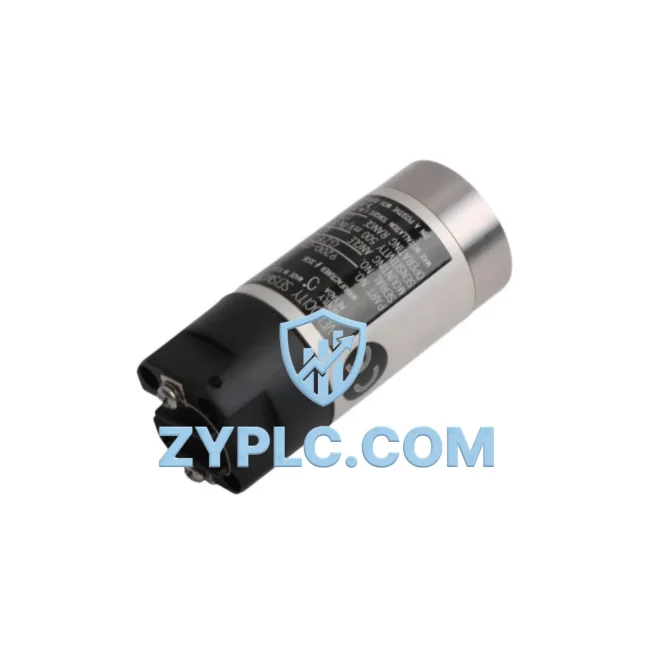

Bently Nevada 9200-01-05-10-00 System-Ready Seismoprobe for 3500 Architecture

Bently Nevada 9200-01-05-10-00 System-Ready Seismoprobe for 3500 Control Architecture

The Bently Nevada 9200-01-05-10-00 is a precision seismoprobe transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, mining, metallurgy, and heavy manufacturing — vibration monitoring is not a standalone function but a critical layer within a multi-tiered control system. The 9200-01-05-10-00 is designed precisely for this role: as a field-level sensing element that feeds real-time vibration data upward through the signal chain, enabling the control and protection layers to respond with speed, accuracy, and architectural consistency.

Unlike generic accelerometers or velocity transducers, the 9200-01-05-10-00 is purpose-built for the 3500 rack-based monitoring platform. Its signal conditioning characteristics, output impedance, and frequency response are matched to the input specifications of 3500 Series monitor modules, ensuring that the data arriving at the processing layer is clean, calibrated, and contextually integrated with the broader system architecture. This level of hardware-software-firmware alignment is what separates a properly engineered monitoring system from a collection of loosely connected instruments.

Architecture Specification Table

Coordinated Control System Design

The 9200-01-05-10-00 Seismoprobe occupies the field sensing layer of the Bently Nevada 3500 architecture, but its value is fully realized only when considered in the context of the complete system stack. At the rack level, the 3500/01 Power Supply Module provides stable, conditioned power to all monitor cards and field devices, ensuring that the analog signal from the seismoprobe is not corrupted by power rail noise — a critical consideration in high-voltage industrial environments such as substations or motor control centers.

The seismoprobe’s output is received by dedicated monitor modules within the 3500 rack. The 3500/42M Proximitor / Seismic Monitor is the primary processing card for seismic inputs, converting the raw analog signal into calibrated vibration values, applying alert and danger setpoints, and generating relay outputs for protective action. Alongside it, the 3500/22M Transient Data Interface captures high-resolution waveform data during transient events such as machine startup and shutdown, providing the engineering team with the diagnostic depth needed for root cause analysis.

For systems requiring absolute shaft position monitoring in addition to casing vibration, the 9200-01-05-10-00 is commonly deployed alongside 3300 XL 8mm Proximity Probes and 3300 XL Extension Cables, which measure relative shaft displacement. This combination — seismic casing measurement plus proximity shaft measurement — provides a complete picture of rotor dynamic behavior, satisfying API 670 machinery protection requirements for critical rotating equipment.

At the communication and integration layer, the 3500 rack connects to the plant DCS or SCADA platform via the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP, and other industrial protocols. This allows vibration data from the 9200-01-05-10-00 to be surfaced in real time on operator HMI stations running platforms such as GE iFIX, Wonderware System Platform, or Rockwell FactoryTalk View. The result is a fully integrated condition monitoring loop — from field transducer to control room display — with no data gaps or protocol mismatches.

In redundant architecture designs, dual 3500/01 Power Supply Modules are configured in hot-standby mode, and critical monitor channels may be duplicated across independent rack slots to eliminate single points of failure. The 9200-01-05-10-00, with its passive analog output, is inherently compatible with signal splitter arrangements that feed dual monitor inputs simultaneously, supporting 1oo2 or 2oo3 voting logic for safety-critical shutdown applications. Terminal blocks and field junction boxes from the Bently Nevada accessory range complete the field wiring layer, providing organized, labeled, and maintainable cable terminations that reduce commissioning time and long-term maintenance burden.

Application in Layered Automation Systems

Power Generation: In gas turbine and steam turbine protection systems, the 9200-01-05-10-00 is mounted on bearing housings to monitor casing vibration in accordance with ISO 10816 and API 670 standards. The seismoprobe feeds the 3500 rack continuously, with the system configured to initiate automatic turbine trip if vibration exceeds danger setpoints — protecting multi-million-dollar assets from catastrophic failure. Integration with the plant DCS allows operators to trend vibration data over time, identifying developing faults such as rotor imbalance, misalignment, or bearing wear before they escalate.

Petrochemical and Refinery Processing: Centrifugal compressors and process pumps in refinery service operate continuously under demanding conditions. The 9200-01-05-10-00 provides the casing vibration measurement layer for these machines, with the 3500 system providing both machinery protection (automatic shutdown on high vibration) and condition monitoring (continuous data logging for predictive maintenance programs). In hazardous area installations, the seismoprobe is deployed with appropriate intrinsic safety barriers or Zener barriers to maintain ATEX / IECEx compliance.

Mining and Minerals Processing: Large grinding mills, crushers, and conveyor drive systems in mining operations are subject to high vibration environments. The 9200-01-05-10-00, integrated into the 3500 monitoring architecture, provides the vibration baseline data that maintenance teams use to schedule planned shutdowns rather than reacting to unplanned failures — directly reducing production losses and maintenance costs in operations where downtime is measured in tens of thousands of dollars per hour.

Water and Wastewater Treatment: Pump stations and blower systems in water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation. The 9200-01-05-10-00 integrated with the 3500 platform provides automated alerting and data logging without requiring dedicated vibration analysts on site, making it suitable for remotely monitored facilities where SCADA integration via the 3500/92 gateway is essential.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in extreme thermal and electromagnetic environments. The robust construction of the 9200-01-05-10-00 and its compatibility with the 3500 rack’s signal conditioning make it a reliable choice for these demanding applications, where sensor reliability directly impacts product quality and process continuity.

Architecture Engineering FAQ

Q1: Is the 9200-01-05-10-00 directly compatible with all 3500 Series monitor modules, or are specific cards required?
The 9200-01-05-10-00 is a seismic velocity transducer designed for use with the Bently Nevada 3500 platform. The appropriate monitor card for seismic inputs is the 3500/42M Proximitor / Seismic Monitor, which is configured to accept the signal type and level produced by the 9200-01-05-10-00. Other 3500 monitor cards (such as the 3500/40M Proximitor Monitor for proximity probe inputs) are not the correct interface for this transducer. System architects should verify rack slot assignments and monitor card configuration during the engineering design phase to ensure correct signal routing and setpoint calibration.

Q2: Can the 9200-01-05-10-00 be integrated into a redundant 3500 architecture, and what are the wiring considerations?
Yes. In redundant monitoring architectures, the analog output of the 9200-01-05-10-00 can be split to feed two independent monitor card inputs using a passive signal splitter or dual-input terminal arrangement. This supports voting logic configurations (1oo2, 2oo3) required for SIL-rated safety instrumented systems. Wiring should use shielded twisted-pair cable with the shield grounded at one end only (typically at the rack termination) to minimize electromagnetic interference. Cable routing should avoid proximity to high-voltage power cables and variable frequency drive (VFD) output conductors, which are common sources of conducted and radiated noise in industrial control cabinets.

Q3: What does the 12-Month Warranty cover, and what support is available for system commissioning and long-term maintenance?
All 9200-01-05-10-00 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Each unit is tested and verified prior to shipment to confirm signal output integrity and mechanical condition. For system commissioning support — including rack configuration, monitor card setpoint programming, and DCS integration — our technical team is available to assist. For long-term maintenance planning, we recommend maintaining a spare seismoprobe in inventory to enable rapid field replacement without production interruption, as the 9200-01-05-10-00 is a field-replaceable component that does not require rack reconfiguration upon substitution.
