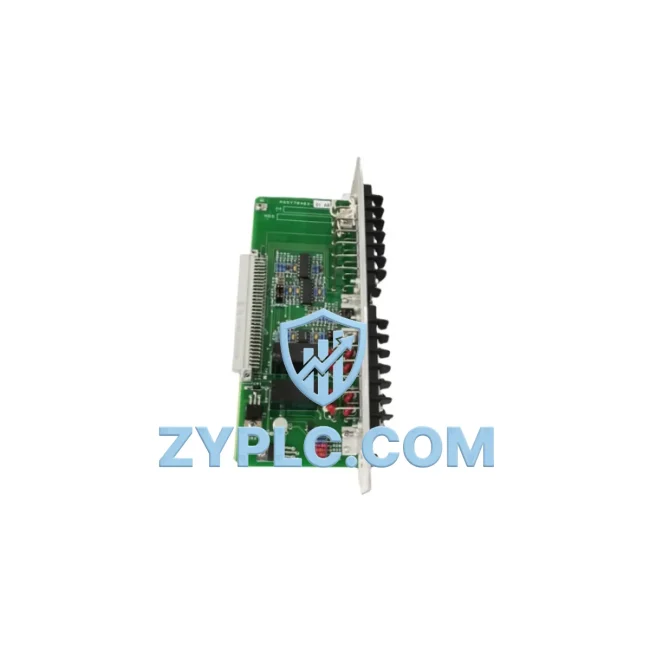

Bently Nevada ASSY78462-01AB Energy-Saving Relay Output Module

Bently Nevada ASSY78462-01AB Energy-Saving Relay Output Module: Precision Energy Control for 3500 Series Automation

The Bently Nevada ASSY78462-01AB is a high-performance Relay Output Module engineered for the 3500 Series machinery protection and condition monitoring platform. Designed for continuous industrial operation, this module plays a critical role in reducing unnecessary energy consumption by enabling precise, condition-based relay switching — ensuring that protective actions are triggered only when real process deviations occur, not due to false alarms or sensor drift. In energy-intensive production environments such as petrochemical plants, power generation facilities, and heavy manufacturing lines, the ASSY78462-01AB directly contributes to improved equipment utilization rates and reduced unplanned downtime.

By integrating the ASSY78462-01AB into a 3500 Series rack alongside modules such as the 3500/22M Transient Data Interface and the 3500/42M Proximitor/Seismic Monitor, plant engineers gain a tightly coordinated protection architecture. Relay outputs from the ASSY78462-01AB can be mapped to drive shutdown commands, alarm annunciation, or load-shedding sequences — all of which are essential for minimizing energy waste during abnormal operating conditions. When paired with the 3500/92 Communication Gateway, relay status and event logs are transmitted in real time to the plant DCS or SCADA system, enabling operators to correlate relay events with energy consumption spikes and optimize motor control strategies accordingly.

In motor-driven systems, the ASSY78462-01AB works in concert with variable frequency drives (VFDs) and servo controllers to enforce protective relay logic that prevents motors from running under fault conditions — a leading cause of excess energy draw. When a vibration threshold is exceeded and detected by the 3500/40M Proximitor Monitor, the relay output from the ASSY78462-01AB can trigger a controlled ramp-down via the connected VFD, rather than an abrupt trip, preserving both energy efficiency and mechanical integrity. This coordinated response reduces thermal stress on motor windings and extends mean time between failures (MTBF).

Efficiency Performance Table

Energy-Aware Automation Architecture

The ASSY78462-01AB does not operate in isolation — its energy optimization value is realized through its integration within a broader automation and protection architecture. Within the 3500 Series rack, it receives logic signals from monitor modules such as the 3500/45 Position Monitor and the 3500/50M Tachometer Module, which track shaft position and rotational speed respectively. These inputs allow the relay module to execute speed-dependent protection logic, ensuring that relay actions are proportional to actual machine state rather than fixed thresholds — a key factor in avoiding unnecessary shutdowns that waste energy on restart cycles.

For facilities running Modbus RTU or Ethernet/IP communication backbones, the 3500/92 Communication Gateway bridges relay event data to the plant historian and energy management system (EMS). This enables energy engineers to analyze relay trip frequency, correlate events with power meter readings from devices such as the Bently Nevada System 1 Software platform, and identify recurring fault patterns that indicate inefficient motor loading or misaligned drive parameters. Addressing these root causes — rather than simply resetting trips — is where the greatest energy savings are realized.

In I/O-intensive control architectures, the ASSY78462-01AB relay outputs can be wired to PLC digital input modules, allowing the plant’s main controller to log relay state changes and trigger automated energy-saving routines. For example, a relay trip from the ASSY78462-01AB can signal the PLC to switch a redundant pump to standby mode, reducing total system power draw while the primary unit is inspected. This kind of closed-loop feedback between the protection system and the control layer — often implemented via Allen-Bradley ControlLogix or Siemens S7-300 PLCs — is a hallmark of modern energy-aware industrial automation.

HMI panels connected to the same network can display real-time relay status from the ASSY78462-01AB alongside energy consumption dashboards, giving operators a unified view of machine health and power usage. When relay output states are visualized alongside data from power quality analyzers and motor current signature analysis (MCSA) tools, maintenance teams can distinguish between mechanical faults and electrical inefficiencies — enabling targeted corrective actions that reduce both energy waste and maintenance costs.

Power Optimization in Real Production Lines

In a typical compressor train application, the ASSY78462-01AB is configured to monitor radial vibration, axial displacement, and bearing temperature via the associated 3500 Series monitor modules. When any parameter approaches a danger threshold, the relay output initiates a controlled sequence: first an alarm relay activates to alert the control room, then — if the condition persists — a shutdown relay trips the compressor driver. This two-stage response prevents the compressor from running in a degraded state, which would otherwise consume 15–30% more energy than normal operation due to increased mechanical friction and reduced compression efficiency.

On continuous process lines such as ethylene crackers or LNG compression trains, unplanned shutdowns triggered by false relay trips can cost tens of thousands of dollars in lost production and restart energy. The ASSY78462-01AB’s relay logic, when properly configured with appropriate time delays and voting logic (e.g., 2-out-of-3 voting via multiple monitor channels), dramatically reduces nuisance trips. This directly improves Overall Equipment Effectiveness (OEE) and reduces the energy penalty associated with frequent cold-start cycles.

Predictive maintenance programs benefit significantly from the relay event history logged through the 3500 Series system. By analyzing the frequency and duration of relay activations over time, maintenance engineers can identify trends — such as a gradual increase in vibration-triggered relay events — that indicate bearing wear or rotor imbalance developing over weeks or months. Addressing these issues proactively, before a full shutdown is required, keeps equipment running at optimal efficiency and avoids the energy-intensive process of bringing a cold machine back to operating temperature and speed.

All units of the ASSY78462-01AB supplied by ZYPLC are sourced from verified inventory channels, subjected to functional relay output testing prior to shipment, and backed by a 12-month warranty. Stock availability is maintained to support urgent MRO (Maintenance, Repair & Operations) requirements, minimizing production downtime caused by waiting for critical spare parts.

Energy Optimization FAQ

Q1: How does the ASSY78462-01AB contribute to energy savings in motor-driven systems?
The ASSY78462-01AB enables condition-based relay switching, meaning protective actions — such as motor shutdowns or load transfers — are triggered only when real process deviations are detected. This prevents motors from running under fault conditions (which increases energy draw by 15–30%) and supports coordinated VFD ramp-down sequences that avoid abrupt, energy-wasteful hard trips.

Q2: Is the ASSY78462-01AB compatible with third-party PLCs and DCS platforms?
Yes. The relay outputs of the ASSY78462-01AB are dry-contact SPDT relays, making them universally compatible with digital input modules on any PLC or DCS platform, including Allen-Bradley, Siemens, Honeywell, and ABB systems. For network-level integration, the 3500/92 Communication Gateway provides Modbus and Ethernet/IP connectivity to plant control systems.

Q3: Can the ASSY78462-01AB replace an existing relay output module in a 3500 Series rack without reconfiguration?
In most cases, yes — the ASSY78462-01AB is a direct replacement for compatible relay output modules within the 3500 Series rack architecture. However, relay configuration (channel assignments, time delays, voting logic) is stored in the rack’s configuration software (Rack Configuration Software, RCS). It is recommended to back up the existing rack configuration before replacement and verify relay assignments after installation to ensure protection logic integrity.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every ASSY78462-01AB unit supplied by ZYPLC undergoes functional testing of all relay output channels prior to shipment, verifying correct switching operation, contact resistance, and coil response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request. For urgent MRO requirements, expedited shipping options are available from in-stock inventory.
