Bosch PCS9100 Energy-Saving Operator Panel for Optimized PCS Automation

Bosch PCS9100 Energy-Saving Operator Panel for Optimized PCS Automation

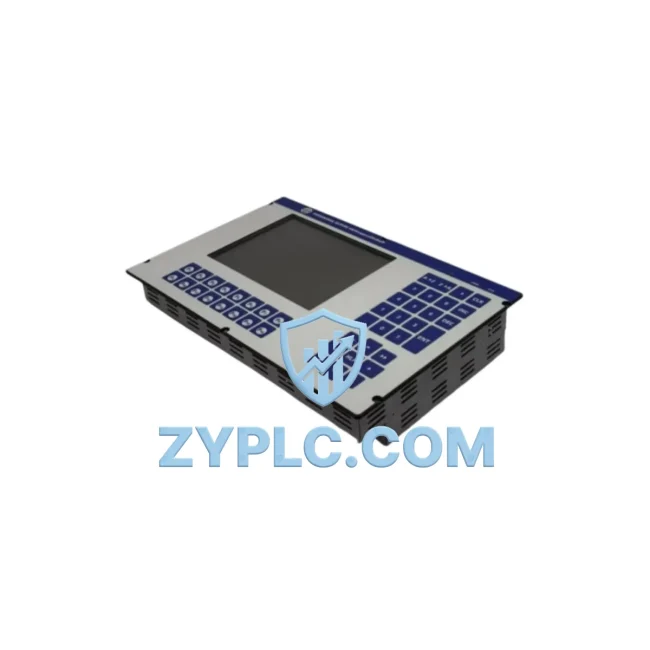

The Bosch PCS9100 (SKU: PHG GG 1) is a precision-engineered operator panel module designed for the PCS Series process control platform. In modern industrial environments where energy accountability is no longer optional, the PCS9100 serves as the human-machine interface layer that bridges real-time process data with operator decision-making — directly influencing how efficiently a production line consumes power, responds to load changes, and maintains equipment uptime. Whether deployed in chemical processing, water treatment, power generation, or discrete manufacturing, the PCS9100 enables operators to monitor energy-intensive equipment states, adjust setpoints in real time, and reduce idle-state energy waste across connected field devices.

Unlike generic HMI terminals, the PCS9100 is natively integrated into the Bosch PCS Series control architecture, ensuring low-latency communication with the process controller and consistent data fidelity across the automation loop. This tight integration eliminates the signal conversion overhead that often introduces inefficiencies in third-party HMI deployments, making the PCS9100 a preferred choice for facilities targeting measurable reductions in specific energy consumption (SEC) per production unit.

Efficiency Performance Table

Energy-Aware Automation Architecture

The PCS9100 does not operate in isolation. Its energy optimization value is fully realized when it functions as part of a coordinated automation architecture. In a typical PCS Series installation, the PCS9100 operator panel interfaces directly with the PCS9200 process controller, which handles closed-loop regulation of energy-consuming field devices such as pumps, compressors, and heat exchangers. The controller receives real-time feedback from field instruments and uses the operator panel as the primary interface for parameter adjustment and alarm acknowledgment.

On the drive side, Bosch Rexroth IndraDrive frequency inverters are commonly paired with PCS Series controllers to regulate motor speed in response to process demand — a critical mechanism for reducing energy consumption in variable-load applications. When an operator uses the PCS9100 to modify a flow setpoint, the updated command propagates through the control loop to the IndraDrive unit, which adjusts motor output accordingly, avoiding the fixed-speed energy penalty that accounts for a significant share of industrial electricity waste.

For power quality monitoring, the PCS Series architecture supports integration with Bosch energy measurement modules that track active power, reactive power, and power factor at the panel level. These modules feed consumption data back to the PCS9200 controller, where it can be logged, trended, and displayed on the PCS9100 interface — giving operators immediate visibility into energy performance without requiring a separate SCADA query. In facilities running Bosch Rexroth IndraControl L or IndraControl XM PLCs in parallel automation zones, the PCS9100 can serve as a local operator station while the broader energy data is aggregated at the plant level.

I/O expansion within the PCS Series is handled through dedicated I/O modules that connect to the controller backplane, extending the system’s ability to monitor additional energy meters, temperature sensors, and flow transmitters. The PCS9100 displays aggregated status from these I/O points, enabling operators to identify energy anomalies — such as a pump drawing above-normal current — before they escalate into unplanned downtime events. Communication with higher-level systems, including MES or ERP platforms, is supported via PROFIBUS DP or OPC-UA gateways, ensuring that energy data captured at the PCS9100 level contributes to plant-wide energy reporting and ISO 50001 compliance workflows.

Power Optimization in Real Production Lines

In a continuous process plant, the PCS9100 contributes to energy efficiency through several concrete mechanisms. First, by providing operators with a clear, real-time view of process variables — flow rates, temperatures, pressures, and equipment states — the panel reduces the likelihood of over-processing, where equipment runs at full load longer than the process requires. Operators can intervene earlier, trimming setpoints to match actual demand and reducing unnecessary energy draw.

Second, the PCS9100 supports alarm management workflows that directly impact energy consumption. When a heat exchanger fouling alarm is acknowledged and acted upon promptly via the operator panel, the associated pump or fan does not continue running at elevated load to compensate for degraded heat transfer efficiency. Early alarm response, facilitated by the PCS9100’s clear interface, translates directly into avoided energy waste.

Third, in batch production environments, the PCS9100 enables precise recipe-based control, where energy-intensive phases — heating, mixing, pressurization — are executed for exactly the required duration rather than relying on operator estimation. This repeatability reduces batch-to-batch energy variance and supports production line takt time optimization by eliminating the energy-wasting buffer time that operators often add when manual control is imprecise.

From a maintenance perspective, the PCS9100 supports predictive maintenance workflows by displaying equipment runtime hours and process deviation trends. Facilities that use this data to schedule maintenance before equipment efficiency degrades — rather than after failure — consistently report lower energy consumption per unit of output, as well as reduced spare parts costs and shorter planned downtime windows. All units supplied by ZYPLC undergo outgoing quality testing prior to shipment, and each PCS9100 is covered by a 12-month warranty, ensuring that the energy efficiency gains delivered by this module are protected from day one of installation.

Energy Optimization FAQ

Q1: How does the Bosch PCS9100 (PHG GG 1) contribute to reducing energy consumption on the production line?
The PCS9100 provides operators with real-time process visibility and direct setpoint control, enabling timely adjustments that prevent over-processing and reduce idle-state energy draw. When integrated with Bosch PCS Series controllers and IndraDrive frequency inverters, operator commands from the PCS9100 directly influence motor speed and load, delivering measurable reductions in specific energy consumption per production cycle.

Q2: Is the PCS9100 compatible with existing Bosch PCS Series installations, and can it replace an older operator panel without reconfiguring the controller?
Yes. The PCS9100 is designed as a native component of the PCS Series platform and is compatible with PCS Series process controllers. In most replacement scenarios, the panel can be substituted without requiring controller reconfiguration, provided the firmware revision of the replacement unit matches the system’s requirements. ZYPLC recommends verifying the firmware version prior to installation and can provide technical guidance upon request.

Q3: What is the testing and quality assurance process for the PCS9100 before shipment?
Every PCS9100 unit supplied by ZYPLC undergoes a structured outgoing quality test that verifies communication functionality, display operation, and input response before dispatch. Units that do not pass the full test sequence are not shipped. This process ensures that the module performs correctly from the moment it is installed, minimizing commissioning time and avoiding energy losses associated with faulty equipment operation.

Q4: What warranty coverage is provided, and what does it include?
The Bosch PCS9100 (PHG GG 1) is covered by a 12-month warranty from the date of shipment. The warranty covers defects in materials and workmanship under normal operating conditions. For warranty claims or technical support, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
