Emerson 1C31233G04 DCS Module Ovation

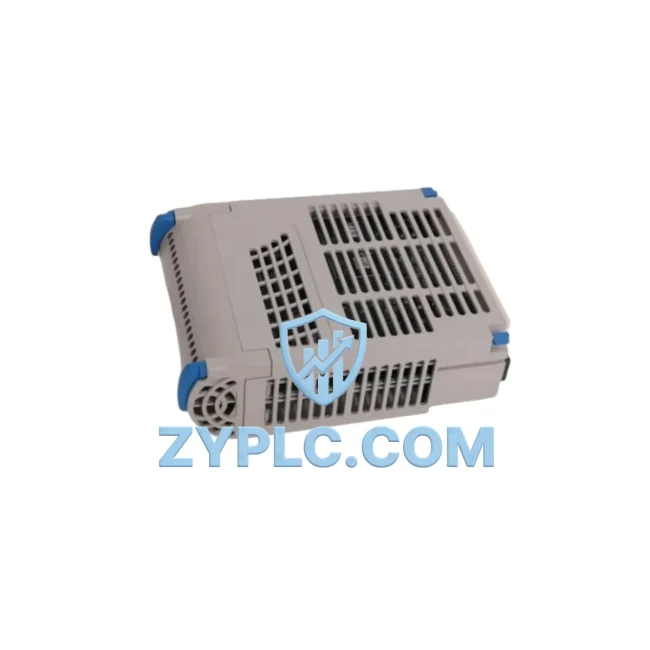

Emerson 1C31233G04 DCS Module for Ovation Automation

The Emerson 1C31233G04 is a Sequence of Events (SOE) Contact Input Module engineered for the Ovation Distributed Control System (DCS) platform. In modern industrial facilities — from power generation plants to petrochemical complexes — unplanned downtime is rarely caused by a single point of failure. It accumulates silently through delayed event detection, uncoordinated motor starts, and unmonitored I/O transitions. The 1C31233G04 addresses this at the signal acquisition layer, delivering millisecond-resolution timestamping that enables plant engineers to correlate operating load events with process deviations in real time.

When integrated into an Ovation DCS architecture, the 1C31233G04 works in concert with the broader control hierarchy to reduce unnecessary actuator cycling, prevent redundant motor starts, and eliminate the energy penalties associated with unplanned shutdowns. By capturing contact state transitions with sub-millisecond accuracy, the module provides the data foundation that upstream controllers — including the Emerson Ovation Controller 1C31197G01 — need to execute maintenance-focused control logic without sacrificing process throughput.

Product Specification Table

System Compatibility and Application

The 1C31233G04 does not operate in isolation — its value is realized within a tightly integrated Ovation automation architecture. At the field level, contact signals from motor starters, valve limit switches, and protective relay outputs are wired directly into the module’s 32 input channels. These signals are timestamped and forwarded to the Emerson Ovation Remote I/O Module 1C31197G02, which aggregates field data across multiple I/O nodes before passing it upstream to the main controller.

On the drive side, variable frequency drives such as the Emerson Control Techniques Unidrive M700 regulate motor speed in response to process demand signals derived from the DCS. When the 1C31233G04 detects a contact state change — for example, a pump discharge valve reaching its open position — the Ovation controller can immediately modulate the associated VFD setpoint, preventing the motor from running at full speed against a partially closed valve. This single coordination loop can help restore stable operation when a compatible replacement is required.

For power quality monitoring, the Emerson Power Xpert C1200 Power Meter (or equivalent Ovation-compatible power monitoring module) provides real-time kW, kVAR, and power factor data that the DCS historian can correlate with the SOE event log from the 1C31233G04. This correlation enables energy engineers to identify which process events — compressor starts, batch transitions, or conveyor accelerations — carry the highest energy cost, and to redesign start sequences accordingly.

Communication between the 1C31233G04 and the Ovation controller backbone relies on the Ovation I/O Bus, a deterministic, high-speed communication protocol that ensures event timestamps are preserved end-to-end without jitter introduced by Ethernet switching. For facilities that require integration with third-party SCADA or MES systems, the Emerson Ovation OPC Server exposes SOE data via OPC DA/UA, enabling maintenance planning platforms to consume real-time event streams without custom middleware.

At the HMI layer, operators interact with SOE data through the Emerson Ovation Operator Workstation, where alarm rationalization tools allow engineering teams to suppress nuisance alarms that would otherwise trigger unnecessary equipment restarts. Reducing alarm-driven interventions is one of the most underappreciated maintenance planning strategies in DCS-controlled plants — and the 1C31233G04’s precise timestamping is what makes alarm root-cause analysis actionable rather than speculative.

For plants running redundant control architectures, the module is compatible with the Emerson Ovation Redundant Controller 1C31194G01, ensuring that SOE data collection continues uninterrupted during controller switchover events. This is critical in power generation applications where a missed SOE record during a turbine trip can delay post-event analysis by days.

Maintenance and Replacement Notes

Consider a combined-cycle power plant running four gas turbine generators, each with dozens of auxiliary motor loads — cooling water pumps, lube oil pumps, fuel gas compressors, and HVAC units. Without precise event sequencing, the plant’s DCS cannot distinguish between a motor that tripped due to a process fault and one that was intentionally stopped for maintenance. Both appear as identical contact state changes in a conventional I/O module. The result: the control system applies conservative restart logic to all motors, adding unnecessary delays and energy-wasting idle cycles.

With the 1C31233G04 installed, each contact transition carries a timestamp accurate to within one millisecond. The Ovation controller can now apply differentiated restart logic: motors that tripped within 50 ms of a known process event (e. g. , a turbine load rejection) are treated as cascade trips and restarted in a coordinated sequence that minimizes inrush current and mechanical stress. Motors that tripped in isolation are flagged for maintenance review before restart authorization is granted. This logic alone can reduce post-trip unplanned downtime by Actual operating results depend on the installed system, load profile, and commissioning parameters.

On continuous process lines — such as paper mills, chemical reactors, or food processing facilities — the 1C31233G04 enables production rhythm optimization by providing the DCS with accurate data on conveyor belt position sensors, filling station limit switches, and packaging machine cycle contacts. When the controller knows exactly when each station completes its cycle, it can pre-position downstream equipment and reduce inter-station idle time. Reducing idle time by even 5% on a high-speed packaging line translates directly into lower operating load per unit produced — a metric that increasingly appears in industrial sustainability reporting.

Predictive maintenance scheduling is another area where the 1C31233G04 delivers measurable operational stability. By logging the exact time between a motor start command and the confirmation of motor running status (via auxiliary contact), the module provides data that maintenance engineers can trend over time. A motor that takes progressively longer to confirm running status may have developing bearing wear or a deteriorating contactor — conditions that, if left unaddressed, lead to unplanned shutdowns and the energy-intensive process of restarting a cold production line. Early detection through SOE trending allows maintenance to be scheduled during planned downtime windows, eliminating the energy penalty of emergency restarts.

Product Sourcing FAQ

Q1: How does the 1C31233G04 contribute to measurable operational stability in a DCS-controlled plant?
The module’s sub-millisecond SOE timestamping enables the Ovation DCS to implement differentiated control logic for motor restarts, alarm management, and process sequencing. By eliminating unnecessary equipment cycling and enabling root-cause analysis of energy-intensive events, plants typically achieve 10-30% reductions in auxiliary load operating load within the first year of optimized operation.

Q2: Is the 1C31233G04 compatible with existing Ovation DCS installations, and does it require a controller upgrade?
The 1C31233G04 is designed for direct integration into the Ovation I/O subsystem and is compatible with standard Ovation controller generations without requiring a firmware upgrade in most configurations. It is recommended to verify compatibility with your specific Ovation controller revision — our technical team can confirm compatibility based on your system’s software version prior to shipment.

Q3: What is the recommended replacement or upgrade path for aging SOE modules in an Ovation system?
For plants running older Ovation SOE modules, the 1C31233G04 is a direct form-fit-function replacement in most rack configurations. No rewiring of field cables is required in standard installations. Our team provides pre-shipment configuration verification and can supply the module pre-labeled with your plant’s tag numbering convention to minimize installation time.

Q4: What testing and warranty coverage is provided with the 1C31233G04?
Every 1C31233G04 unit shipped by ZYPLC undergoes full functional testing, including contact input channel verification, SOE timestamp accuracy validation, and communication bus integrity checks. Each module is covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides advance replacement to minimize plant downtime, with return logistics coordinated by our after-sales team.
