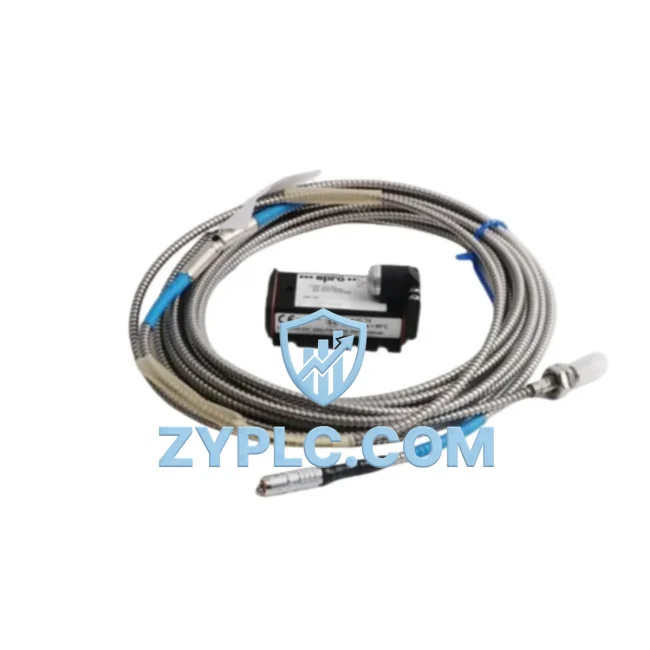

Emerson PR6423/00R-030 CON021 System-Ready Eddy Current Sensor for 3300 XL Architecture

Emerson PR6423/00R-030 CON021 System-Ready Eddy Current Sensor for Bently Nevada 3300 XL Architecture

The Emerson PR6423/00R-030 CON021 is a precision eddy current proximity sensor engineered for seamless integration within the Bently Nevada 3300 XL continuous machinery monitoring system. Rather than functioning as a standalone measurement device, this sensor occupies a critical position in the layered architecture of rotating machinery protection — bridging the physical measurement layer with the signal conditioning, processing, and alarm management layers that define a complete condition monitoring solution. Its role extends from raw vibration and position signal acquisition at the machine casing level all the way through to the data presentation and decision-support functions that plant engineers rely on during both routine surveillance and emergency response scenarios.

In a fully configured 3300 XL system architecture, the PR6423/00R-030 CON021 sensor operates in conjunction with the Bently Nevada 3300 XL proximitor extension cable, the 3300 XL proximitor sensor housing, and the 3300/16 or 3300/20 monitor modules installed within the 3300 rack chassis. The sensor’s 5-metre integral cable and CON021 connector interface are matched to the system’s signal conditioning requirements, ensuring that the eddy current field generated at the probe tip translates into a calibrated -24 VDC output voltage that the monitor module can interpret with full linearity across the measurement gap range. This end-to-end signal integrity is what separates a properly architected monitoring system from a collection of individually sourced components.

System architects specifying rotating machinery protection for turbines, compressors, pumps, and generators will recognise that the PR6423/00R-030 CON021 is not selected in isolation. It is chosen as part of a coordinated sensor-to-monitor chain that also includes the 3300 XL rack power supply module, the 3300/55 keyphasor module for phase reference, and the 3500/22M transient data interface for event capture. When the full complement of these components is installed and configured within a single rack, the system achieves the redundancy, self-diagnostics, and alarm relay output capabilities required by API 670 machinery protection standards. The PR6423/00R-030 CON021 contributes to this architecture by providing the high-resolution, non-contact displacement measurement that underpins shaft radial vibration, axial position, and differential expansion monitoring channels.

From a maintenance and lifecycle management perspective, the PR6423/00R-030 CON021 is designed for field replacement without requiring recalibration of the associated monitor module, provided the replacement sensor is of the same part number and the installation gap is set correctly using the standard -24 VDC gap voltage verification procedure. This characteristic significantly reduces planned maintenance downtime and supports the predictive maintenance strategies that modern industrial facilities depend on to maximise asset availability. Paired with the Bently Nevada System 1 software platform, the sensor’s output feeds directly into trend analysis, alarm rationalisation, and work order generation workflows, creating a closed-loop maintenance architecture that spans from the machine shaft to the enterprise asset management system.

For facilities operating multiple rotating machines across a plant, the ability to standardise on the PR6423/00R-030 CON021 across all critical machinery trains simplifies spare parts inventory management, reduces technician training requirements, and ensures consistent measurement performance across the entire monitored fleet. This standardisation benefit is amplified when the sensor is deployed alongside other 3300 XL series components such as the 3300/25 reverse rotation monitor, the 3300/46M speed monitor, and the 3300/50 temperature monitor, all of which share the same rack infrastructure and communication architecture. The result is a unified monitoring platform that engineering teams can manage, troubleshoot, and expand without introducing compatibility uncertainties.

ZYPLC maintains verified stock of the PR6423/00R-030 CON021 and supports global procurement requirements with a 12-Month Warranty and full Contextual Integration support, ensuring that each unit delivered is traceable, tested, and ready for installation within your existing 3300 XL system architecture.

Architecture Specification Table

Coordinated Control System Design

A complete Bently Nevada 3300 XL machinery protection architecture built around the PR6423/00R-030 CON021 sensor typically incorporates the following coordinated components across the signal chain:

At the sensor layer, the PR6423/00R-030 CON021 works in matched pairs for X-Y radial vibration measurement on each bearing, with a third probe often added for axial position monitoring on thrust bearings. The 3300 XL proximitor extension cable connects the probe to the proximitor housing mounted outside the bearing pedestal, maintaining signal integrity across the high-temperature, high-vibration environment immediately adjacent to the machine casing.

At the signal conditioning layer, the Bently Nevada 3300 XL proximitor sensor converts the probe’s impedance variation into the calibrated -24 VDC output voltage that the monitor rack processes. The proximitor’s internal oscillator-demodulator circuit is factory-matched to the PR6423/00R-030 probe geometry, ensuring system-level calibration traceability.

Within the monitor rack layer, the 3300/16 dual-channel vibration monitor or 3300/20 four-channel monitor receives the proximitor output and applies the alarm setpoints, time delays, and relay logic configured by the machinery protection engineer. The 3300 rack power supply module provides the regulated DC power required by all monitor modules and proximitors within the chassis, with optional redundant power supply configuration for critical machinery trains.

The 3300/55 keyphasor module provides the once-per-revolution phase reference signal that enables the System 1 software to perform synchronous vibration analysis, orbit plot generation, and Bode plot trending — analytical functions that are only possible when the sensor chain from PR6423/00R-030 through to the keyphasor is correctly installed and configured. For transient event capture during machine startups and shutdowns, the 3500/22M transient data interface records high-resolution waveform data that supports root cause analysis of vibration anomalies.

At the network and data layer, the 3300 XL rack communicates with the Bently Nevada System 1 software platform via the rack’s communication interface, enabling real-time trend display, alarm acknowledgement, and historical data archiving across the plant’s condition monitoring network. This architecture ensures that the physical measurement performed by the PR6423/00R-030 CON021 at the machine shaft is ultimately reflected in the plant historian and the maintenance management system, closing the loop between field instrumentation and engineering decision-making.

Application in Layered Automation Systems

The PR6423/00R-030 CON021 finds application across a broad range of heavy industrial sectors where rotating machinery protection is a regulatory and operational requirement. In power generation facilities — including gas turbines, steam turbines, and hydro generators — the sensor monitors shaft radial vibration and axial position on the main rotor bearings, providing the early warning of rotor imbalance, misalignment, and bearing degradation that prevents catastrophic machine failures and unplanned outages.

In petrochemical and refinery environments, the PR6423/00R-030 CON021 is installed on centrifugal compressors, expanders, and booster pumps that operate continuously in hazardous area classifications. The sensor’s non-contact measurement principle eliminates the wear and contamination risks associated with contact-type transducers, making it the preferred choice for machines that cannot be taken offline for routine sensor maintenance.

In water treatment and pumping stations, the sensor supports condition-based maintenance programmes on large vertical turbine pumps and horizontal split-case pumps, where bearing degradation is the primary failure mode and early detection directly reduces emergency repair costs and service interruption risk. Mining and minerals processing facilities deploy the PR6423/00R-030 CON021 on SAG mill pinion bearings, crusher main shafts, and slurry pump bearing housings, where the harsh operating environment demands the robust construction and wide temperature tolerance that the Bently Nevada 3300 XL sensor series provides.

In steel and metallurgical plants, the sensor monitors rolling mill drive train components and continuous casting machine drives, where vibration anomalies in the drivetrain translate directly into product quality defects and production losses. Across all these applications, the PR6423/00R-030 CON021 delivers the measurement consistency and system compatibility that plant engineers require to build and maintain a reliable, long-term machinery health monitoring programme.

Architecture Engineering FAQ

Q1: Is the PR6423/00R-030 CON021 directly interchangeable with other PR6423 series probes in an existing 3300 XL system?
The PR6423/00R-030 CON021 is compatible with the Bently Nevada 3300 XL proximitor housing and monitor modules, but interchangeability with other PR6423 variants depends on the cable length suffix and connector type. The /00R-030 designation specifies a 5-metre integral cable with CON021 connector. Before substituting a different cable length or connector variant, verify that the replacement probe’s sensitivity and linear range match the system calibration records held by the monitor module. ZYPLC’s technical team can assist with cross-reference verification prior to shipment.

Q2: Can the PR6423/00R-030 CON021 be used in a redundant monitoring architecture, and what additional components are required?
Yes. Redundant vibration monitoring architectures using the PR6423/00R-030 CON021 typically employ dual-probe X-Y configurations on each bearing, with each probe connected to an independent monitor channel within the 3300 XL rack. For full system redundancy, the rack should be configured with a redundant power supply module and, where required by the machinery protection philosophy, dual keyphasor inputs via the 3300/55 module. The System 1 software platform supports redundant data path configuration to ensure that a single component failure does not result in loss of machinery protection coverage.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning for the PR6423/00R-030 CON021?
ZYPLC’s 12-Month Warranty covers manufacturing defects and performance non-conformance against the published Bently Nevada specification for the PR6423/00R-030 CON021. Warranty claims are supported by ZYPLC’s technical team via direct contact at plc.sales@zyplc.com or +86 19859288691. For long-term maintenance planning, ZYPLC recommends establishing a consignment stock arrangement for critical spare sensors, particularly for facilities operating multiple machines on the same sensor type. ZYPLC maintains verified inventory and can support scheduled replacement programmes aligned with planned maintenance outage windows.
