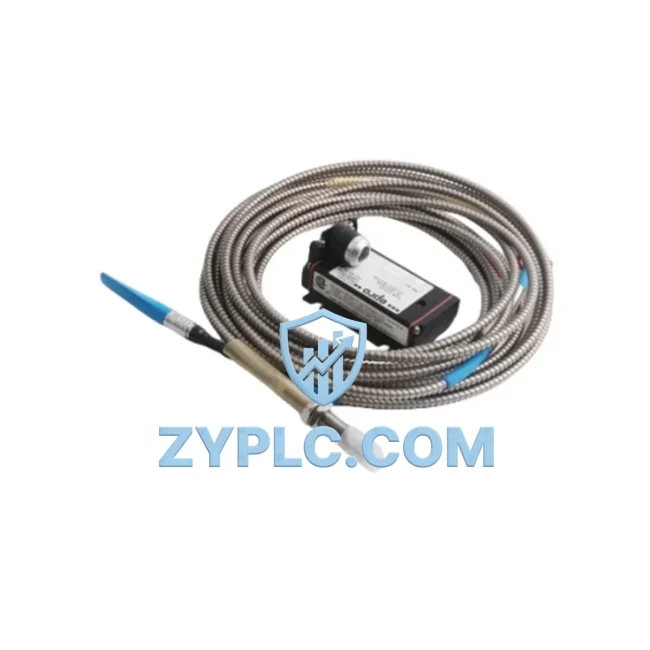

Emerson PR6423/01R-111 CON031 System-Ready Eddy Current Sensor for Bently Nevada Architecture

Emerson PR6423/01R-111 CON031 System-Ready Eddy Current Sensor for Bently Nevada Architecture

The Emerson PR6423/01R-111 CON031 is a precision eddy current displacement sensor engineered for seamless integration within Bently Nevada machinery protection and condition monitoring architectures. Designed to operate as a core sensing element within multi-layer industrial automation systems, this sensor delivers continuous, non-contact shaft displacement and vibration measurements that feed directly into the control and protection hierarchy of rotating machinery installations. Whether deployed in turbine protection systems, compressor trains, pump monitoring arrays, or generator sets, the PR6423/01R-111 CON031 provides the signal fidelity and mechanical reliability that system architects demand when designing for long-term operational continuity.

In a complete Bently Nevada system architecture, the PR6423/01R-111 CON031 functions as the field-level sensing layer, working in close coordination with the Bently Nevada 3500 Series rack-based monitoring system. The sensor’s output is routed through the CON031 extension cable assembly to a compatible proximitor/oscillator such as the Bently Nevada 3300 XL 8mm Proximitor, which conditions the raw eddy current signal into a calibrated DC voltage proportional to the gap between the probe tip and the observed shaft surface. This conditioned signal is then received by I/O modules within the 3500 rack — including the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor — where it is processed against user-defined alert and danger setpoints. The system’s modular rack design allows engineers to expand monitoring capacity by adding additional monitor modules without disrupting existing channel configurations, supporting scalable architecture growth across large rotating machinery fleets.

From a system architecture perspective, the PR6423/01R-111 CON031 sits at the intersection of the field instrumentation layer and the signal conditioning layer. Its output integrates naturally with the communication layer through the 3500 rack’s Ethernet and Modbus TCP/IP gateway capabilities, enabling real-time data transmission to distributed control systems (DCS), SCADA platforms, and plant historian servers. In facilities where the Bently Nevada System 1 software platform is deployed, vibration trend data from this sensor contributes to predictive maintenance workflows, alarm management dashboards, and machinery health reporting — all without requiring additional signal conversion hardware. The sensor’s compatibility with the broader Bently Nevada ecosystem, including the 3500/22M Transient Data Interface and the 3500/15 Power Supply module, ensures that it can be incorporated into both new installations and retrofit projects with minimal engineering overhead.

For applications requiring redundant protection architectures — common in power generation, petrochemical, and LNG processing facilities — the PR6423/01R-111 CON031 can be deployed in dual-sensor configurations on a single shaft journal, with each sensor channel routed to independent monitor modules within the 3500 rack. This redundancy strategy eliminates single points of failure at the sensing layer and supports voted-logic trip configurations that prevent spurious shutdowns while maintaining full protection coverage. The sensor’s robust stainless steel housing and oil-resistant cable jacket make it suitable for installation in bearing housings, seal cavities, and other harsh environments where exposure to lubricating oils, process gases, and elevated temperatures is expected.

In layered automation systems, the PR6423/01R-111 CON031 supports the execution layer by providing the real-time shaft position data that safety instrumented systems (SIS) and emergency shutdown systems (ESD) rely upon to make trip decisions. When integrated with a Triconex or similar SIL-rated safety controller via hardwired relay outputs from the 3500 rack, the sensor’s displacement signal becomes part of a certified safety loop that meets IEC 61511 requirements for process industry applications. This architecture is particularly relevant in refineries, offshore platforms, and chemical plants where machinery protection is a regulatory requirement as well as an operational necessity.

Commissioning the PR6423/01R-111 CON031 within a Bently Nevada architecture follows a structured gap-setting procedure. Engineers use a digital voltmeter to measure the proximitor output voltage at the recommended installation gap — typically between -10 VDC and -18 VDC for standard 8mm probes — and adjust the probe mounting depth until the output falls within the linear range specified in the Bently Nevada calibration documentation. Once the gap is set and locked, the channel is configured in the 3500 rack software with the appropriate scale factor, transducer type, and alarm setpoints. This process ensures that the sensor’s output is accurately interpreted by the monitoring system and that alarm thresholds reflect the actual mechanical clearances of the machine being monitored.

Long-term maintenance of the PR6423/01R-111 CON031 is simplified by its non-contact measurement principle, which eliminates mechanical wear at the sensing interface. Periodic inspection should focus on the probe tip condition, cable jacket integrity, and connector seating at both the probe and proximitor ends. In installations where the sensor is exposed to high-vibration environments, cable clamp spacing and strain relief arrangements should be verified during scheduled outages to prevent fatigue failures in the extension cable assembly. Replacement sensors and extension cables are available from authorized Emerson distributors, and all units supplied by ZYPLC are covered by a 12-Month Warranty that includes functional testing and calibration verification prior to shipment.

Architecture Specification Table

Coordinated Control System Design

The PR6423/01R-111 CON031 achieves its full potential when deployed as part of a coordinated Bently Nevada control system architecture. At the signal conditioning layer, the Bently Nevada 3300 XL 8mm Proximitor converts the sensor’s raw inductive signal into a calibrated voltage that the monitoring rack can interpret. Within the 3500 Series rack, the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor modules process displacement and velocity channels simultaneously, enabling comprehensive shaft and casing vibration monitoring from a single rack assembly. The 3500/15 Power Supply module provides regulated DC power to all rack-mounted monitors, while the 3500/22M Transient Data Interface captures high-resolution waveform data during machine startup and shutdown transients — critical for diagnosing rotor dynamic behavior and bearing condition trends.

At the network and communication layer, the 3500 rack’s built-in Ethernet module transmits alarm status, channel values, and configuration data to the plant DCS or SCADA system using standard industrial protocols. For facilities integrating Bently Nevada data with a broader asset management platform, the System 1 software acts as the data aggregation and analytics layer, correlating vibration trends from the PR6423/01R-111 CON031 with process variables such as bearing temperature, lube oil pressure, and load to generate actionable machinery health insights. At the human-machine interface layer, operators interact with alarm states and trend displays through dedicated HMI panels or SCADA workstations, with the 3500 rack providing hardwired relay outputs for annunciator panels and emergency shutdown logic. This multi-layer architecture — from field sensor through signal conditioning, monitoring rack, network gateway, and HMI — represents the complete contextual integration that the PR6423/01R-111 CON031 is designed to support.

Application in Layered Automation Systems

In power generation facilities, the PR6423/01R-111 CON031 is typically installed on steam turbine and gas turbine shaft journals to monitor radial vibration and shaft centerline position. The sensor’s output feeds the Bently Nevada 3500 protection system, which provides the first line of defense against catastrophic bearing failures by initiating automatic turbine trips when vibration levels exceed danger setpoints. In petrochemical and refinery applications, the sensor is deployed on centrifugal compressor trains where API 670 compliance requires continuous shaft vibration monitoring as a condition of safe operation. The non-contact measurement principle is particularly valuable in these environments, where shaft speeds, process gas compositions, and bearing temperatures create conditions that would rapidly degrade contact-type sensors.

In water treatment and municipal utility applications, the PR6423/01R-111 CON031 monitors large vertical pump shafts and motor bearings, providing early warning of impeller imbalance, bearing wear, and misalignment before these conditions escalate to unplanned outages. In mining and mineral processing facilities, the sensor is used on ball mill drives, crusher main shafts, and conveyor drive motors, where the combination of high loads, variable speeds, and abrasive environments demands robust, maintenance-free sensing solutions. In packaging and food processing lines, the sensor supports precision shaft positioning feedback in high-speed rotary equipment, contributing to both product quality control and equipment protection objectives. Across all these applications, the 12-Month Warranty provided by ZYPLC ensures that replacement units are available with verified calibration, minimizing the time between sensor failure detection and system restoration.

Architecture Engineering FAQ

Q1: Is the PR6423/01R-111 CON031 compatible with the Bently Nevada 3500 Series rack without additional adapters?
Yes. The PR6423/01R-111 CON031 is designed for direct integration with the Bently Nevada 3500 Series monitoring rack. The CON031 extension cable connects the probe to a compatible 3300 XL Proximitor, whose output is wired directly to the 3500 rack’s monitor module input terminals. No signal conversion adapters or intermediate conditioning hardware are required, provided the proximitor model and scale factor are correctly matched to the probe type during rack configuration.

Q2: Can this sensor be used in a redundant dual-sensor architecture for SIL-rated machinery protection?
Yes. The PR6423/01R-111 CON031 supports redundant installation configurations where two sensors are mounted 90 degrees apart on the same shaft journal, each routed to an independent monitor channel within the 3500 rack. This arrangement supports voted-logic trip configurations (e.g., 1oo2 or 2oo2) that satisfy IEC 61511 requirements for safety instrumented systems. The 3500 rack’s relay output modules can be configured to interface with Triconex or other SIL-rated safety controllers for integrated ESD logic.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance requirements?
All PR6423/01R-111 CON031 units supplied by ZYPLC are covered by a 12-Month Warranty that includes functional testing, gap calibration verification, and output linearity confirmation prior to shipment. In the event of a warranty claim, ZYPLC provides replacement units from verified inventory with full calibration documentation, minimizing system downtime. For long-term maintenance planning, ZYPLC maintains stock of PR6423 series probes, CON031 extension cables, and compatible 3300 XL Proximitors, enabling customers to source complete sensor assemblies from a single supplier and reduce procurement lead times for critical spare parts.
