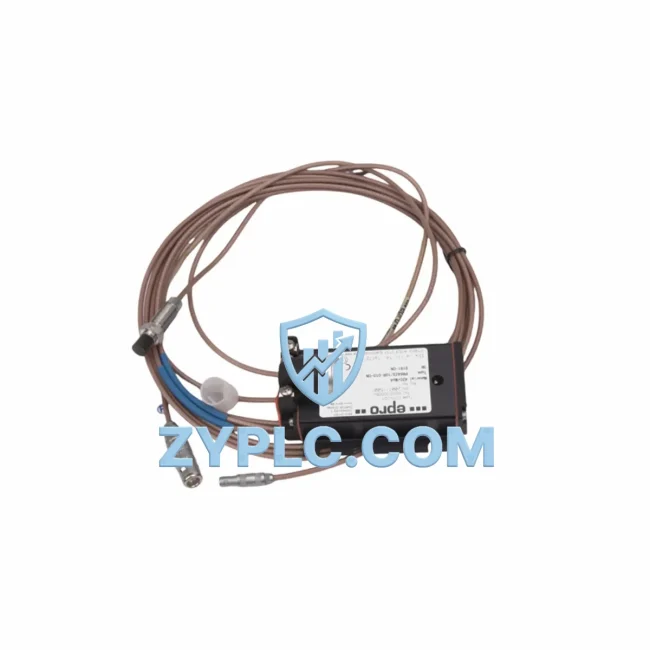

Emerson PR6423/10R-010+CON021 System-Ready Eddy Current Sensor for Epro Architecture

Emerson PR6423/10R-010+CON021 System-Ready Eddy Current Sensor for Epro Architecture: Control System Architecture and Upstream–Downstream Coordination

In modern industrial automation, machinery protection and condition monitoring are not standalone functions — they are deeply embedded layers within a multi-tier control system architecture. The Emerson PR6423/10R-010+CON021 eddy current sensor and signal conditioner assembly occupies a critical position in this architecture, serving as the primary sensing element for shaft displacement, radial vibration, and axial position measurement in rotating machinery protection systems. When deployed within an Epro-based monitoring platform, this sensor assembly integrates seamlessly across the control layer, I/O layer, network layer, power layer, HMI layer, and actuation layer, delivering the signal integrity and system consistency that demanding industrial environments require.

The PR6423/10R-010 probe is a non-contact eddy current transducer designed for continuous, real-time measurement of shaft displacement in turbines, compressors, pumps, and other critical rotating equipment. Paired with the CON021 signal conditioner, the assembly converts raw proximity signals into standardized 4–20 mA or voltage outputs compatible with Emerson’s Epro MMS series monitors. This pairing ensures that signal conditioning, linearization, and output scaling are handled at the field level, reducing noise susceptibility and improving measurement accuracy before signals reach the control layer.

Within the Epro rack architecture, the PR6423/10R-010+CON021 assembly feeds directly into monitors such as the MMS6220 dual-channel vibration monitor and the MMS6110 machinery protection monitor. These monitors process the conditioned signals and generate alarm and trip outputs that interface with the plant DCS or safety instrumented system. The MMS6220, for example, supports both radial vibration and axial position channels, making it a natural companion to the PR6423 probe in turbine protection applications. The A6210 Epro interface module further bridges the monitoring layer to higher-level control networks, enabling real-time data exchange with SCADA platforms and historian systems.

Power integrity is foundational to reliable vibration monitoring. The A6120 rack power supply module provides regulated, redundant DC power to the Epro monitoring rack, ensuring that sensor excitation voltages remain stable even during grid disturbances. This power-layer coordination directly affects the measurement baseline of the PR6423/10R-010 probe, as eddy current sensors are sensitive to supply voltage variations. Redundant power configurations using dual A6120 modules are standard practice in critical machinery protection applications, supporting continuous operation without interruption.

At the network layer, the A6500-UM communication gateway enables the Epro monitoring system to transmit vibration, displacement, and position data to plant-wide networks using standard industrial protocols. This connectivity allows the PR6423/10R-010+CON021 measurement data to be integrated into broader predictive maintenance platforms, digital twin environments, and enterprise asset management systems. The result is a fully contextualized data stream — not just a raw sensor value, but a system-level insight that supports proactive maintenance decisions and reduces unplanned downtime.

For applications requiring expanded I/O capacity, the PR6424/000-030 eddy current sensor variant and the CON041 signal conditioner offer compatible alternatives within the same Epro ecosystem, allowing engineers to standardize on a single wiring and commissioning methodology across multiple measurement points. The PR6426 velocity sensor complements the eddy current measurement by providing seismic vibration data from the bearing housing, giving operators a complete picture of both shaft and structural vibration behavior.

At the HMI layer, operator stations running Emerson’s machinery health management software display real-time trend data, alarm histories, and spectrum analysis derived from the PR6423/10R-010+CON021 measurement chain. This visibility enables maintenance engineers to correlate vibration signatures with process conditions, identify developing faults at an early stage, and plan corrective actions before equipment damage occurs. The PR9268 accelerometer, when deployed alongside the eddy current probe, extends the frequency range of the measurement system, capturing high-frequency structural resonances that complement the low-frequency shaft displacement data from the PR6423.

From an engineering and commissioning perspective, the PR6423/10R-010+CON021 assembly is designed for straightforward installation and calibration. The 10R probe tip radius and standard cable length simplify gap setting procedures, and the CON021 conditioner’s front-panel indicators provide immediate feedback during commissioning. Long-term maintenance is supported by the modular design of the Epro rack system, allowing individual monitors and conditioners to be replaced without disturbing adjacent channels. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that replacement and support commitments are clearly defined from the point of purchase.

Architecture Specification Table

Coordinated Control System Design

The PR6423/10R-010+CON021 assembly achieves its full value when considered as part of a coordinated Epro control system design rather than as an isolated sensor. In a typical turbine protection architecture, the probe is mounted radially at the bearing journal, with the CON021 conditioner installed in the field junction box or marshalling cabinet. The conditioned output feeds into the MMS6220 dual-channel monitor housed in the Epro A6120-powered rack. The MMS6110 machinery protection monitor provides the trip relay outputs that connect to the turbine’s emergency shutdown system, while the A6210 interface module aggregates data from multiple MMS monitors and transmits it to the plant DCS via the A6500-UM communication gateway.

Redundancy is a core design principle in critical machinery protection. Dual PR6423 probes mounted 90° apart at each bearing provide XY vibration vectors, enabling orbit plot analysis and early detection of rotor instability. Redundant CON021 conditioners and dual MMS6220 monitor channels ensure that a single component failure does not compromise the protection function. The A6120 rack power supply supports 1+1 redundant power configurations, and the Epro rack backplane provides hot-swap capability for monitor modules, minimizing maintenance downtime.

For axial position monitoring, the PR6423/10R-010+CON021 is deployed in thrust bearing applications alongside a second probe measuring from the opposite face of the thrust collar. The differential measurement eliminates thermal expansion errors and provides a true axial position signal to the MMS6200 axial position monitor. This configuration is standard in steam turbine and gas compressor protection systems, where axial displacement limits are critical to preventing blade-to-casing contact.

Application in Layered Automation Systems

The PR6423/10R-010+CON021 eddy current sensor assembly is deployed across a wide range of industrial sectors where rotating machinery protection is essential to operational continuity and safety.

In power generation, the assembly protects steam turbines and gas turbines in baseload and peaking power plants. Continuous shaft displacement monitoring enables early detection of rotor bow, bearing wear, and oil whirl instability, allowing operators to take corrective action before a forced outage occurs. The 12-Month Warranty coverage supports maintenance planning cycles aligned with annual turbine inspection schedules.

In petrochemical and refining applications, the PR6423 probe monitors centrifugal compressors and process pumps in hazardous area installations. The IP67-rated probe and ATEX-compatible conditioner configurations meet the stringent safety requirements of Zone 1 and Zone 2 classified areas. Contextual Integration with the plant safety instrumented system ensures that vibration trip signals are processed within the required safety integrity level.

In water and wastewater treatment, large vertical pump motors and blower units benefit from continuous vibration monitoring to detect impeller imbalance and bearing degradation. The low-maintenance, non-contact measurement principle of the eddy current sensor is particularly advantageous in wet and corrosive environments where contact-type sensors would require frequent replacement.

In mining and minerals processing, the assembly monitors crusher drives, conveyor head pulleys, and mill pinion bearings. The robust construction of the PR6423 probe withstands the high-vibration, high-dust environments typical of mineral processing plants, while the Epro monitoring system provides the alarm management and data logging functions required for condition-based maintenance programs.

In packaging and discrete manufacturing, the sensor assembly is integrated into high-speed rotating equipment such as centrifuges, turboblowers, and spindle drives, where precise shaft position control is essential to product quality and equipment longevity.

Architecture Engineering FAQ

Q1: Is the PR6423/10R-010+CON021 assembly compatible with existing Epro MMS6000 series racks, and can it be retrofitted without replacing the entire monitoring system?
A: Yes. The PR6423/10R-010 probe and CON021 conditioner are fully compatible with the Epro MMS6000 series monitoring platform. The CON021 conditioner outputs a standard signal that interfaces directly with MMS6220, MMS6110, and MMS6200 series monitors without requiring firmware updates or hardware modifications to the existing rack. Retrofitting is typically limited to probe mounting, cable routing, and conditioner installation in the field junction box, making it a straightforward upgrade that can be completed during a planned maintenance window.

Q2: How does the PR6423/10R-010+CON021 assembly support long-term maintenance efficiency in a multi-machine monitoring architecture?
A: The modular design of the PR6423/CON021 assembly standardizes the sensing layer across multiple measurement points, reducing the number of spare part variants that maintenance teams need to stock. A single probe model and conditioner type can cover radial vibration, axial position, and differential expansion measurements across different machine trains, simplifying inventory management. ZYPLC’s 12-Month Warranty ensures that replacement units are available with defined lead times, supporting planned maintenance schedules and minimizing the risk of extended equipment downtime due to sensor unavailability.

Q3: What commissioning steps are required to achieve accurate gap setting and signal calibration for the PR6423/10R-010 probe in a new installation?
A: Commissioning the PR6423/10R-010 probe requires setting the air gap between the probe tip and the target shaft surface to the nominal operating point specified in the Epro calibration curve for the target material. Typically, this is achieved by adjusting the probe mounting depth until the CON021 conditioner output reads the midpoint of its linear range (approximately –12 VDC for a standard Epro system). The gap is then verified using a calibrated gap tool or by monitoring the DC output voltage with a multimeter. Final calibration involves confirming the sensitivity (mV/µm) against the Epro calibration certificate and adjusting the MMS monitor channel scaling accordingly. ZYPLC provides technical support for commissioning and calibration as part of the 12-Month Warranty service commitment.
