Emerson PR6423/10R-040+CON021 System-Ready Eddy Current Sensor for Epro Architecture

Emerson PR6423/10R-040+CON021 System-Ready Eddy Current Sensor for Epro Control Architecture

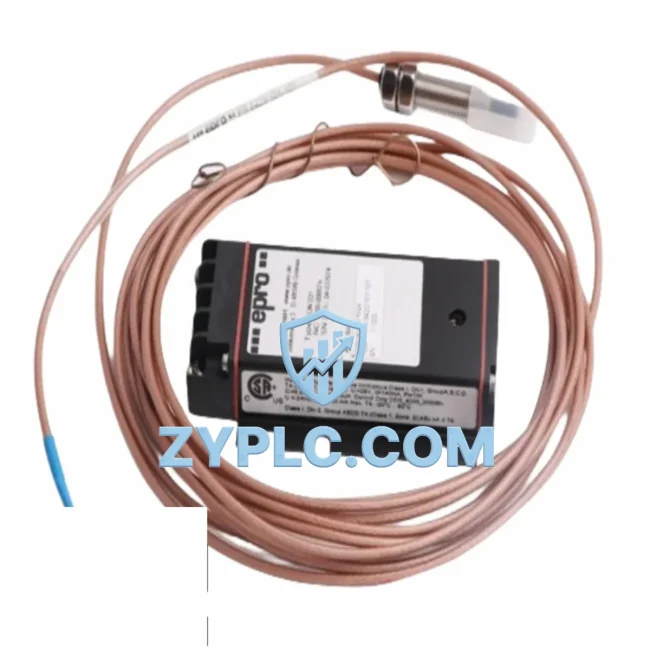

The Emerson PR6423/10R-040+CON021 is a precision eddy current displacement sensor engineered for seamless integration within the Emerson Epro machinery protection and condition monitoring architecture. Unlike standalone sensing devices, this sensor is designed from the ground up to function as a coordinated node within a layered industrial control system — delivering real-time shaft displacement and vibration data to upstream signal conditioning modules, protection relay logic, and plant-level DCS or SCADA platforms. Its role within the control hierarchy spans the field instrumentation layer through to the supervisory control layer, making it a foundational component for rotating machinery protection in critical industrial environments.

In modern industrial automation, the reliability of a rotating machinery protection system depends not on any single component, but on the coherent integration of every layer — from the proximity probe tip to the final control element. The PR6423/10R-040+CON021 is engineered to fulfill this role with precision, providing the raw displacement signal that feeds into Emerson Epro signal conditioners such as the CON021 extension cable assembly, which ensures low-noise, impedance-matched signal transmission between the probe body and the monitoring rack. This architecture-first design philosophy ensures that the sensor contributes to system-wide consistency, redundancy capability, and long-term maintainability across the full asset lifecycle.

Whether deployed in a turbine protection panel, a compressor monitoring rack, or a pump vibration surveillance system, the PR6423/10R-040+CON021 delivers the measurement accuracy and environmental robustness required for continuous, uninterrupted operation in demanding process environments. With a 12-Month Warranty and full Contextual Integration support, this sensor is a trusted choice for maintenance engineers, system integrators, and procurement specialists worldwide.

Architecture Specification Table

Coordinated Control System Design

The PR6423/10R-040+CON021 achieves its full performance potential only when deployed within a properly coordinated Emerson Epro system architecture. At the field instrumentation layer, the PR6423 probe body is mounted in a machined bracket at the bearing housing, maintaining a precise air gap to the rotating shaft. The CON021 extension cable connects the probe to the driver electronics, preserving signal integrity over the 10-meter run and eliminating ground loop interference that could corrupt displacement readings.

The conditioned analog output feeds directly into the Emerson Epro MMS6120 dual-channel shaft displacement monitor or the MMS6110 single-channel variant, both of which are rack-mounted within the Epro MMS6000 series modular monitoring chassis. These monitors perform real-time signal processing, apply alert and danger setpoints, and generate relay outputs to the Epro MMS6823 relay output module, which interfaces with the plant’s emergency shutdown (ESD) system or safety instrumented system (SIS).

Power to the entire monitoring rack is supplied by the Epro MMS6004 power supply module, which provides regulated -24 VDC to all sensor drivers and signal conditioners within the chassis. For critical applications requiring continuous availability, a redundant power supply configuration using dual MMS6004 modules with automatic switchover is recommended, ensuring that a single power supply failure does not interrupt machinery protection coverage.

At the network and communication layer, the Epro MMS6350 communication gateway module aggregates data from all monitoring channels and transmits structured process values to the plant DCS — typically a DeltaV M-series controller or a third-party PLC via Modbus RTU or PROFIBUS DP. This enables the control room operator to view real-time shaft vibration trends on the DeltaV Live HMI or an equivalent SCADA workstation, correlating machinery health data with process variables such as flow, pressure, and temperature.

For installations requiring API 670-compliant redundancy, the PR6423/10R-040+CON021 can be deployed in a dual-probe, dual-channel configuration alongside a second PR6423/10R-040+CON021 unit, with both channels monitored independently by separate MMS6120 modules. This architecture ensures that a single probe failure does not result in a loss of protection, and that maintenance personnel can replace a faulty probe during operation without interrupting the monitoring system. Terminal blocks and marshalling panels using Epro TK-LBNG series terminal modules facilitate clean field wiring and simplify loop testing during commissioning and periodic maintenance.

Application in Layered Automation Systems

Power Generation & Turbomachinery: In gas turbine and steam turbine protection systems, the PR6423/10R-040+CON021 is deployed at each journal bearing to monitor radial shaft displacement in both X and Y planes. The sensor’s wide frequency response (DC to 10 kHz) captures both slow thermal growth and high-frequency sub-synchronous instabilities, providing the monitoring system with the data needed to distinguish between normal operating conditions and developing faults such as oil whirl, rub, or bearing wear. The API 670-compliant architecture ensures that the protection system meets the requirements of turbine OEMs and insurance underwriters.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressors in ethylene, ammonia, and LNG plants operate continuously under high differential pressure and temperature. The PR6423/10R-040+CON021 provides the shaft displacement monitoring required by API 670 for these machines, with the CON021 extension cable routed through explosion-proof conduit to the monitoring rack located in the safe area. The sensor’s -35°C to +120°C operating range accommodates the wide temperature swings encountered in cryogenic and high-temperature process services.

Water & Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in water treatment facilities benefit from continuous shaft displacement monitoring to detect bearing degradation before it leads to catastrophic failure. The PR6423/10R-040+CON021, integrated with the Epro MMS6000 monitoring system, provides early warning of developing faults, enabling condition-based maintenance scheduling and reducing unplanned downtime in critical water supply infrastructure.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to severe vibration and shock loading. The PR6423/10R-040+CON021’s robust IP67-rated probe construction and wide operating temperature range make it suitable for the harsh environmental conditions encountered in open-pit and underground mining applications. Integration with the plant’s DCS via the Epro MMS6350 gateway enables centralized monitoring of all rotating equipment from the control room.

Metallurgy & Steel Production: Rolling mills, continuous casters, and large induction furnace drives require precise shaft monitoring to maintain product quality and prevent equipment damage. The PR6423/10R-040+CON021 provides the high-resolution displacement measurement needed to detect shaft eccentricity and bearing clearance changes in these demanding applications, with the Epro monitoring architecture delivering the real-time data required for closed-loop process control.

Architecture Engineering FAQ

Q1: Is the PR6423/10R-040+CON021 compatible with existing Epro MMS3000 series monitoring racks, or does it require the newer MMS6000 series?
A: The PR6423/10R-040+CON021 is fully compatible with both the Epro MMS3000 and MMS6000 series monitoring racks. The sensor’s -24 VDC supply requirement and analog voltage output are standard across all Epro proximity monitoring systems. When integrating with MMS3000 series monitors such as the MMS3120 or MMS3110, verify that the monitor’s input impedance and sensitivity settings match the PR6423 driver specifications. For new installations, the MMS6000 series is recommended for its enhanced diagnostics, Modbus TCP communication capability, and improved channel density. Our technical team can provide a compatibility matrix and configuration guide upon request.

Q2: What are the installation and commissioning requirements for achieving accurate gap calibration in a high-temperature environment?
A: Accurate gap calibration for the PR6423/10R-040+CON021 requires that the probe be installed at the manufacturer-specified nominal gap (typically 1.0–1.5 mm for the 8 mm probe) using a calibrated gap setting tool. In high-temperature environments, thermal expansion of the shaft and bearing housing must be accounted for by performing a hot calibration check after the machine reaches operating temperature. The CON021 extension cable should be routed away from heat sources and secured at regular intervals to prevent vibration-induced connector fatigue. A loop calibration check using a calibrated signal simulator should be performed at commissioning and repeated annually as part of the preventive maintenance program. All calibration records should be retained for audit purposes under the plant’s asset management system.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims or long-term spare parts support?
A: The 12-Month Warranty covers all manufacturing defects, material failures, and functional performance deviations from the published specification under normal operating conditions. The warranty period begins from the date of shipment. To initiate a warranty claim, contact our technical support team with the purchase order number, shipment date, and a description of the observed fault. We will arrange for a replacement unit to be dispatched within 5 business days, subject to inspection of the returned item. For long-term spare parts support beyond the warranty period, we maintain a dedicated inventory of PR6423 series probes, CON021 extension cables, and associated Epro monitoring components to support planned maintenance shutdowns and emergency replacement requirements. Contact us at [email protected] or +86 19859288691 for availability and lead time confirmation.
