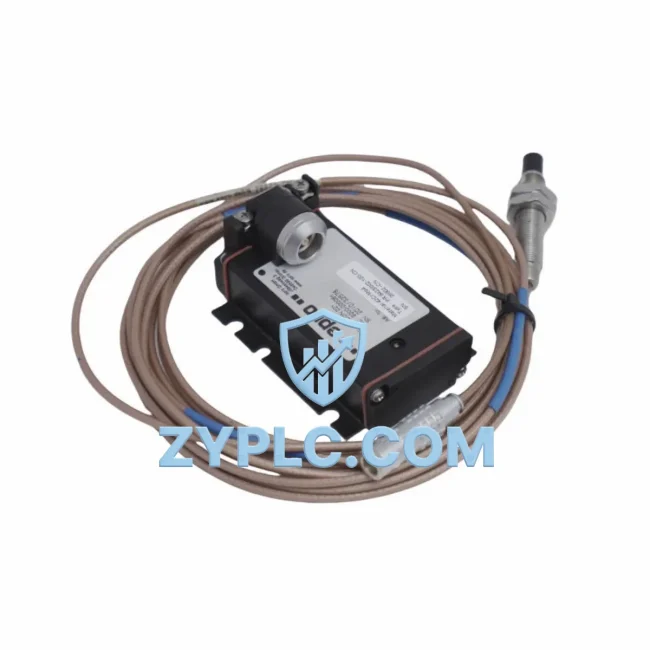

EPRO PR6424/012-000 CON011 System-Ready Vibration Sensor

EPRO PR6424/012-000 CON011 System-Ready Vibration Sensor: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation, no component operates in isolation. The EPRO PR6424/012-000 CON011 eddy current sensor is engineered not merely as a standalone measurement device, but as a precision-calibrated element within a layered turbine protection and vibration monitoring architecture. Designed to integrate seamlessly into the PR6424 series signal conditioning ecosystem, this sensor delivers consistent, high-resolution shaft displacement and vibration data that feeds directly into the control layer, enabling real-time decision-making across the full automation hierarchy.

The PR6424/012-000 CON011 operates as part of a complete proximity measurement chain. Its output is conditioned by the EPRO CON011 extension cable assembly and processed through the EPRO PR6424 signal conditioner, which converts raw eddy current signals into standardized 4–20 mA or voltage outputs compatible with upstream safety and control systems. This signal chain is fundamental to maintaining measurement integrity across long cable runs in high-noise industrial environments such as power generation turbines, compressor trains, and rotating machinery in petrochemical facilities.

Within the control architecture, the conditioned signal from the PR6424/012-000 CON011 is typically received by a Bently Nevada 3500 series rack or equivalent machinery protection system, where it is processed alongside inputs from other transducers including velocity sensors, accelerometers, and temperature probes. The rack communicates alarm and trip states to the plant DCS or safety instrumented system (SIS) via Modbus RTU, FOUNDATION Fieldbus, or hardwired relay outputs, ensuring that the vibration data captured at the shaft level propagates correctly through every layer of the control hierarchy — from field instrumentation to the operator HMI and ultimately to the emergency shutdown system (ESD).

System architects specifying the PR6424/012-000 CON011 should consider its role within the broader sensor cluster. A typical turbine monitoring installation pairs this sensor with a second proximity probe for redundant X-Y shaft orbit measurement, a PR6424/010-000 CON011 or PR6424/008-000 CON011 probe for complementary radial positions, and a PR6423 series thrust position sensor for axial displacement monitoring. Together, these sensors form the complete vibration and position monitoring layer that underpins both continuous condition monitoring and API 670-compliant machinery protection.

From a power and installation perspective, the PR6424/012-000 CON011 is powered through the signal conditioner, which in turn draws from the control cabinet’s 24 VDC instrument power rail. Proper grounding, shielding, and cable routing discipline are essential to preserve signal quality. The sensor’s stainless steel housing and IP67-rated construction ensure reliable operation in environments subject to oil mist, vibration, and temperature cycling — conditions common in gas turbine enclosures, steam turbine pedestals, and centrifugal compressor packages.

For maintenance engineers, the modular architecture of the PR6424 system offers significant advantages. The sensor, extension cable, and signal conditioner are each independently replaceable, allowing targeted component swap-out without disturbing the full measurement chain. Calibration can be verified using a standard EPRO calibration driver or equivalent proximity system tester, and the system’s linear output characteristic simplifies field verification against known gap distances. This modularity directly reduces mean time to repair (MTTR) and supports planned maintenance intervals aligned with turbine overhaul schedules.

Long-term supply continuity is a critical consideration for plant asset managers. The PR6424/012-000 CON011 is stocked and available for immediate dispatch, supporting both emergency replacement and planned spares inventory programs. All units supplied are covered by a 12-Month Warranty, providing assurance of product authenticity and functional integrity from the date of delivery. This warranty coverage is particularly valuable for facilities operating under IEC 61511 or ISA-84 functional safety frameworks, where documented component traceability and warranty status are required elements of the safety lifecycle record.

Architecture Specification Table

Coordinated Control System Design

The PR6424/012-000 CON011 achieves its full value when specified as part of a coordinated control system rather than as an isolated component. In a typical turbine protection architecture, the sensor works in concert with the EPRO PR6424 signal conditioner mounted in the local junction box or marshalling cabinet, which conditions the raw proximity signal before transmission to the machinery protection rack. The rack — commonly a Bently Nevada 3500/22M transient data interface or 3500/42M proximitor monitor — processes the conditioned signal alongside inputs from complementary probes such as the PR6424/010-000 CON011 (radial position, second plane) and the PR6423 series thrust probe (axial displacement).

At the I/O layer, the machinery protection system outputs alarm and trip relay signals to the plant’s emergency shutdown system (ESD) and transmits continuous vibration data to the DCS historian via Modbus TCP or OPC-UA gateway. The operator HMI — typically a Wonderware InTouch or Siemens WinCC station — displays real-time shaft orbit plots, trend data, and alarm states derived from the PR6424 measurement chain. At the power layer, the instrument power supply — such as a Phoenix Contact QUINT 24 VDC rail-mount PSU — provides the stable, low-ripple supply voltage required for accurate eddy current measurement. Redundant power feeds with automatic changeover are recommended for SIL 2 and above applications.

For facilities requiring hot-standby redundancy, the PR6424/012-000 CON011 can be installed in a dual-probe configuration with automatic voting logic implemented in the safety PLC or SIS, ensuring that a single sensor failure does not result in a spurious trip or undetected dangerous condition. This architecture is consistent with IEC 61511 requirements for redundant field instrumentation in safety instrumented functions (SIFs) with SIL 2 or SIL 3 integrity targets.

Application in Layered Automation Systems

The PR6424/012-000 CON011 finds application across a broad range of heavy industrial sectors where rotating machinery protection is critical to operational continuity and personnel safety.

In power generation, the sensor is deployed on steam and gas turbine shafts to monitor radial vibration and shaft displacement in real time. Utilities operating combined-cycle power plants rely on PR6424 series sensors to maintain continuous availability of turbine-generator sets, with vibration data feeding directly into the plant’s condition monitoring system and automatic load-shedding logic.

In petrochemical and refinery applications, the PR6424/012-000 CON011 is installed on centrifugal compressors, pumps, and expanders where API 670 compliance is mandatory. The sensor’s robust construction and wide operating temperature range make it suitable for installation in classified hazardous areas (Zone 1/Zone 2) when paired with appropriate intrinsically safe barriers or Zener barriers in the instrument loop.

In mining and metallurgy, large induced draft fans, ball mills, and conveyor drive motors benefit from continuous proximity monitoring to detect bearing wear, rotor imbalance, and misalignment before they develop into catastrophic failures. The PR6424 system’s compatibility with standard 4–20 mA process control infrastructure allows integration into existing plant SCADA systems without requiring dedicated proprietary networks.

In water and wastewater treatment, high-speed pump and blower monitoring using the PR6424/012-000 CON011 supports predictive maintenance programs that reduce unplanned downtime and extend equipment service life. The sensor’s IP67 rating ensures reliable operation in the humid, chemically aggressive environments typical of water treatment facilities.

Architecture Engineering FAQ

Q1: Is the PR6424/012-000 CON011 directly compatible with Bently Nevada 3500 series machinery protection racks?
The PR6424/012-000 CON011 is designed to operate with the EPRO PR6424 signal conditioner, which produces a standard –24 VDC proximity output signal. This output is electrically compatible with Bently Nevada 3500 series proximitor input modules (e.g., 3500/42M) when the conditioner is configured to match the expected sensitivity and gap voltage range. System integrators should verify the conditioner’s output sensitivity (typically 7.87 V/mm) against the rack’s input specification and adjust the OK/Not-OK window settings accordingly. Full system validation should be performed during commissioning using a calibrated gap simulation tool.

Q2: What extension cable and conditioner combination is required for the CON011 configuration, and can cable lengths be customized?
The CON011 designation specifies the integrated cable configuration for the PR6424/012-000 probe, with a total system cable length of 12 meters (probe cable plus extension). The extension cable is a matched, factory-calibrated component of the measurement system; substituting non-EPRO cables will affect system sensitivity and linearity, potentially invalidating calibration. For installations requiring non-standard cable lengths, EPRO offers alternative CON0xx configurations (e.g., CON021 for longer runs) that maintain system calibration integrity. Always specify the complete probe-extension-conditioner combination as a matched set to ensure measurement accuracy.

Q3: What does the 12-Month Warranty cover, and how does it support compliance with functional safety lifecycle requirements?
The 12-Month Warranty covers manufacturing defects, material failures, and functional non-conformance under normal operating conditions from the date of delivery. For facilities operating under IEC 61511 or ISA-84 functional safety management systems, the warranty provides documented evidence of product authenticity and supplier accountability, which is a required element of the safety lifecycle record for safety instrumented functions. Warranty claims are processed through our technical support team, with replacement units dispatched to minimize plant downtime. Extended warranty and spare parts supply agreements are available for facilities with long-term maintenance contracts or critical asset protection requirements.
