Forney D464889 System-Ready Relay Module for AFS Architecture

Forney D464889 System-Ready Relay Module for AFS Architecture: Control System Architecture and Upstream–Downstream Coordination

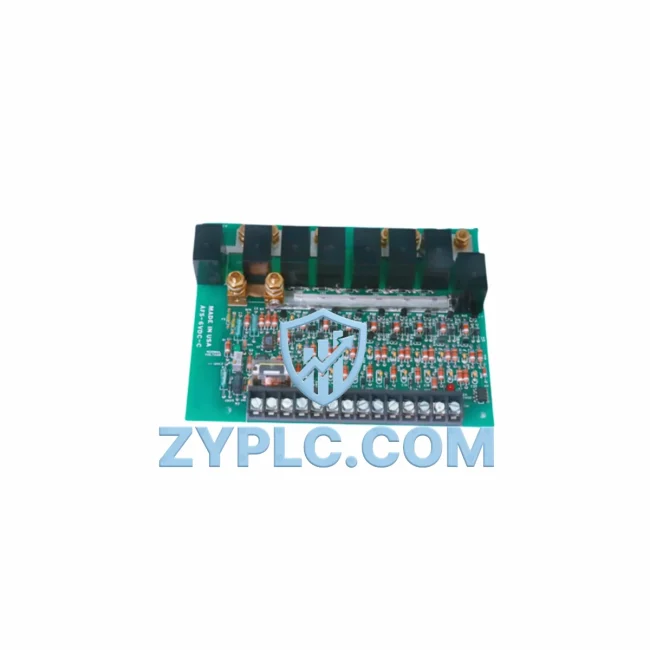

The Forney D464889 (AFS-6VDC-C) is a 6VDC coil relay module engineered for seamless integration within the Forney AFS Series burner management and flame safeguard control architecture. Rather than functioning as a standalone switching component, the D464889 is designed to occupy a precise position within a layered automation hierarchy — bridging the logic execution layer and the field execution layer to ensure deterministic, low-latency signal routing across the entire combustion control system. Its role is not incidental; it is structural. Every relay position in an AFS-based control cabinet is a deliberate architectural decision, and the D464889 fulfills that role with the electrical consistency and mechanical reliability that continuous-duty industrial environments demand.

In modern industrial combustion systems — whether applied to process heaters, boilers, kilns, or thermal oxidizers — the control architecture must maintain signal integrity from the supervisory PLC or DCS layer all the way through to the burner actuators, fuel valves, and ignition circuits. The D464889 relay module serves as a critical interface node in this signal chain, converting low-energy logic outputs from the AFS Series flame safeguard controller into the switched power signals required to energize downstream field devices. This contextual integration capability is what distinguishes the D464889 from generic relay components: it is rated, tested, and validated for use within the Forney AFS control platform, ensuring that system-level diagnostics, fault relay logic, and safety interlock sequences operate as designed.

Architecture Specification Table

Coordinated Control System Design

The D464889 relay module does not operate in isolation. Its value is realized only when it is correctly positioned within a complete Forney AFS control system architecture. A well-engineered AFS-based combustion control panel typically integrates the following coordinated components, each contributing to system-wide reliability and safety compliance:

At the controller layer, the Forney AFS Series Flame Safeguard Controller (such as the AFS-400 or AFS-600 platform) serves as the primary logic engine, executing the burner startup sequence, monitoring flame signal quality, and issuing relay output commands. The D464889 receives these commands directly from the controller’s output terminals, making the electrical compatibility between the controller’s 6VDC output stage and the relay coil rating a non-negotiable design requirement.

At the power supply layer, the Forney ICS Series Power Supply Module provides the regulated DC bus voltage that energizes the relay coil. Voltage stability at the power supply output directly affects relay pull-in and drop-out consistency — a critical factor in safety interlock timing. Pairing the D464889 with a properly rated ICS power supply ensures that coil energization occurs within the controller’s expected timing window.

At the flame detection layer, Forney UV Flame Scanner and Infrared Flame Detector modules feed analog or discrete flame presence signals back to the AFS controller. The controller’s relay output logic — and therefore the D464889’s switching state — is directly conditioned by the quality and continuity of these flame signals. A degraded flame scanner signal can cause nuisance relay cycling; the D464889’s contact rating must be matched to the load it switches to minimize contact wear under such conditions.

At the field device layer, the D464889 typically switches signals to fuel shutoff valves, ignition transformers, combustion air damper actuators, and burner management annunciator panels. Each of these loads presents a different electrical characteristic — inductive, resistive, or capacitive — and the relay’s contact rating must be verified against the actual field load to ensure long-term contact integrity.

For systems requiring redundancy, a parallel relay architecture using a second D464889 or a compatible Forney D464888 relay module can be implemented to provide 1oo2 (one-out-of-two) or 2oo2 (two-out-of-two) voting logic at the output stage. This is particularly relevant in applications governed by IEC 61511 or NFPA 85 safety standards, where single-point failure of an output relay must be mitigated.

Terminal wiring integrity is maintained through Forney AFS Series terminal block assemblies and DIN rail mounting hardware, which ensure that relay module seating, wiring termination, and panel grounding are consistent across all relay positions in the control cabinet. Consistent mechanical installation reduces the risk of intermittent contact faults caused by vibration or thermal cycling.

Application in Layered Automation Systems

The Forney D464889 AFS-6VDC-C relay module finds application across a broad range of industrial combustion and process heating environments where the AFS Series control platform is deployed:

Process Heaters and Fired Vessels (Petrochemical / Refining): In crude oil preheat trains, vacuum distillation heaters, and reformer furnaces, the AFS controller manages complex multi-burner startup sequences. The D464889 relay modules handle individual burner valve sequencing, ensuring that each burner’s fuel and air valves are energized in the correct order and de-energized immediately upon flame loss detection. The 12-Month Warranty coverage provides procurement teams with a defined support window aligned to annual maintenance turnaround cycles.

Industrial Boilers (Power Generation / Utilities): Steam boiler control systems governed by NFPA 85 require that all burner management relay outputs be rated for the specific load and duty cycle of the application. The D464889, as a factory-specified AFS Series component, satisfies the traceability requirements of boiler safety audits and insurance inspections. Its Contextual Integration within the AFS platform means that replacement during a planned outage does not require recalibration of the controller’s output timing parameters.

Rotary Kilns and Dryers (Cement / Minerals / Aggregates): High-temperature rotary kiln burner systems operate continuously for extended campaigns. Relay modules in these applications must withstand elevated ambient temperatures and frequent thermal cycling. The D464889’s industrial-grade contact materials and coil insulation are selected for durability under these conditions, and its compatibility with the AFS Series controller ensures that the kiln’s flame safeguard logic remains uninterrupted during relay replacement.

Thermal Oxidizers (Environmental / Chemical Processing): Regenerative and recuperative thermal oxidizers use the AFS Series controller to manage pilot and main burner sequences, as well as purge cycle interlocks. The D464889 relay modules switch the pilot valve, main fuel valve, and purge damper actuator signals, with the AFS controller’s safety relay logic providing the required proof-of-closure and proof-of-open feedback loops.

Water Treatment and Municipal Infrastructure: Sludge dryers, biogas combustion systems, and incinerators in water treatment facilities increasingly adopt standardized flame safeguard platforms for regulatory compliance. The AFS Series with D464889 relay modules provides a documented, auditable control architecture that satisfies environmental agency inspection requirements.

Architecture Engineering FAQ

Q1: Is the Forney D464889 (AFS-6VDC-C) directly interchangeable with other 6VDC relay modules from different manufacturers?
A: While the D464889 uses a standard 6VDC coil voltage, it is specifically engineered and validated for use within the Forney AFS Series control platform. Substituting a generic relay module may result in dimensional incompatibility with the AFS relay socket, contact rating mismatches with the field load, or loss of traceability required for safety system documentation. We strongly recommend using the OEM-specified D464889 to maintain system integrity and warranty coverage.

Q2: Can the D464889 be used in a redundant relay output architecture for SIL-rated burner management systems?
A: Yes. The D464889 can be deployed in parallel relay configurations to achieve redundant output switching for safety-instrumented burner management applications. When implementing 1oo2 or 2oo2 relay voting architectures, both relay modules should be sourced from the same production batch where possible to ensure matched electrical characteristics. The 12-Month Warranty applies to each module individually from the date of shipment, providing a consistent support baseline for redundant installations.

Q3: What is the recommended maintenance and replacement interval for the D464889 in continuous-duty combustion control applications, and how does the 12-Month Warranty support long-term maintenance planning?
A: Relay contact life in continuous-duty applications depends on the switched load current, switching frequency, and ambient temperature. For AFS Series burner management systems, we recommend inspecting relay contact condition during each scheduled annual maintenance outage and replacing relay modules that show evidence of contact erosion, coil resistance drift, or mechanical wear. The 12-Month Warranty from date of shipment ensures that modules procured for a planned maintenance campaign are covered through the next scheduled outage, supporting a zero-defect spare parts strategy for critical combustion control infrastructure.
