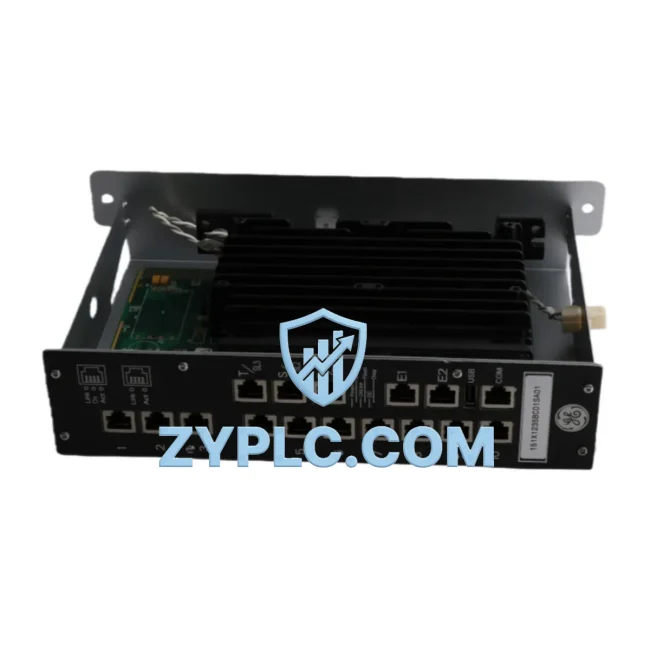

The GE 151X1249BR01SA01 is a high-integrity I/O module engineered for deployment within GE’s Mark VI Turbine Control System architecture. Designed to operate as a core signal-conditioning and data-acquisition component within the Mark VI control platform, this module bridges the physical process environment and the digital control layer with precision, reliability, and full contextual integration across all system tiers. Whether deployed in gas turbine, steam turbine, or combined-cycle power generation facilities, the 151X1249BR01SA01 delivers consistent performance across the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer — ensuring system-wide coherence from field signal to operator interface.

In modern industrial automation, no module operates in isolation. The 151X1249BR01SA01 is architected to function as part of a coordinated, layered control system where signal integrity, redundancy, and deterministic communication are non-negotiable. Its role within the Mark VI platform is to receive, condition, and transmit field-level signals — including analog inputs, discrete inputs, and relay-driven outputs — to the central processing units that govern turbine sequencing, protection logic, and load management. This Contextual Integration capability ensures that the module’s data is not merely collected but actively interpreted within the broader system state, enabling faster fault detection, more accurate diagnostics, and reduced mean time to repair across the entire control architecture.

The 151X1249BR01SA01 is fully compatible with the Mark VI’s TMR (Triple Modular Redundancy) architecture, where three independent control paths — each equipped with its own I/O modules, processors, and voting logic — continuously cross-check signal values to eliminate single-point failures. This redundancy design is critical in power generation environments where unplanned shutdowns carry significant operational and financial consequences. By maintaining signal consistency across all three redundant channels, the module contributes directly to system availability, protection reliability, and regulatory compliance in facilities governed by NERC CIP, IEC 61511, or equivalent functional safety standards.

From an engineering and commissioning perspective, the 151X1249BR01SA01 integrates seamlessly into the Mark VI’s backplane and I/O rack infrastructure, supporting hot-swap capability for in-service replacement without requiring full system shutdown. This feature is particularly valuable in continuous-process industries — including petrochemical refining, LNG processing, and combined heat and power (CHP) plants — where maintenance windows are limited and operational continuity is paramount. The module’s deterministic scan cycle and low-latency signal path ensure that control loop performance is maintained even during partial system reconfiguration or module replacement events.

All units supplied by ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional verification, original packaging, and full traceability documentation. Global logistics support ensures rapid delivery to power generation facilities, EPC contractors, and MRO procurement teams worldwide.

Architecture Specification Table

Coordinated Control System Design

The 151X1249BR01SA01 achieves its full operational value when deployed within a complete Mark VI control system architecture. At the processor level, the IS215UCVEH2A and IS215UCVEH2AE Mark VI UCVx controller boards serve as the central processing units that receive and act upon the conditioned signals delivered by this I/O module. These controllers execute the turbine protection, sequencing, and load-control algorithms that govern overall plant operation.

At the power layer, the IS200EPCTG1A power conditioner and associated Mark VI power supply modules provide the stable 24 VDC rail required for reliable I/O module operation. Power quality at this layer directly affects signal accuracy and module longevity, making the selection of compatible power components a critical architectural decision.

For network communication, the Mark VI platform relies on IONet — GE’s proprietary deterministic Ethernet protocol — to transmit I/O data between the field modules and the controller. The IS200IOCIG1A IONet communication interface card manages this data pathway, ensuring low-latency, high-integrity signal transmission across the control network. In larger installations, IS200STCIG1A terminal boards provide the physical wiring interface between field cables and the I/O module backplane, simplifying installation and reducing wiring errors during commissioning.

At the HMI layer, GE’s Cimplicity SCADA platform and the Mark VIe Control System operator interface consume the real-time process data delivered through the I/O chain, presenting operators with accurate turbine state information for monitoring, alarming, and manual intervention. The integrity of this data chain — from field sensor through the 151X1249BR01SA01 to the HMI display — is what makes Contextual Integration a system-level capability rather than a module-level feature.

For redundancy management, the IS200TRLYH1C relay output terminal board and IS200VTURH1BDB turbine control terminal boards work in conjunction with the I/O module to provide voted relay outputs for critical protection functions, including emergency shutdown, overspeed protection, and flame detection logic. This layered redundancy architecture ensures that no single component failure — including the I/O module itself — can compromise turbine protection integrity.

Application in Layered Automation Systems

The GE 151X1249BR01SA01 is deployed across a wide range of industrial sectors where turbine-based power generation and process control intersect. In gas-fired power generation facilities, the module supports the Mark VI’s role as the primary turbine control system, managing fuel valve positioning, compressor inlet guide vane control, and exhaust temperature monitoring across multi-shaft combined-cycle configurations.

In petrochemical and refinery applications, the module is integrated into mechanical drive turbine control systems where steam or gas turbines drive compressors, pumps, and blowers critical to continuous process operation. The module’s ability to maintain signal integrity under high-vibration, high-temperature enclosure conditions makes it well-suited for these demanding environments.

In power utility and grid-connected generation facilities, the 151X1249BR01SA01 supports frequency response and automatic generation control (AGC) functions by providing the fast, accurate I/O data required for load-following and spinning reserve management. Its TMR compatibility ensures that protection functions remain active even during partial system maintenance, supporting N-1 contingency compliance requirements.

In LNG liquefaction and regasification plants, the module is used within refrigeration compressor train control systems, where precise speed and surge control depend on high-fidelity I/O data from multiple field instruments. The module’s deterministic scan cycle and low-latency signal path are essential for maintaining compressor stability at the tight operating margins typical of LNG process conditions.

For mining and mineral processing operations that rely on turbine-driven grinding mills or large-scale ventilation systems, the 151X1249BR01SA01 provides the I/O infrastructure needed to integrate turbine control with plant-wide DCS systems, enabling coordinated production management and energy optimization across the facility.

Architecture Engineering FAQ

Q1: Is the GE 151X1249BR01SA01 compatible with both Mark VI and Mark VIe control systems?
The 151X1249BR01SA01 is designed for the Mark VI platform. While GE’s Mark VIe system shares architectural principles with the Mark VI, it uses a different I/O module family (IS200 and IS215 series with VIe-specific firmware). Compatibility with Mark VIe should be verified against the specific rack configuration, backplane revision, and firmware version in use at your facility. ZYPLC’s technical team can assist with cross-reference verification prior to procurement.

Q2: Can this module be replaced in-service without shutting down the turbine control system?
Yes — in a properly configured TMR Mark VI architecture, the 151X1249BR01SA01 supports hot-swap replacement. The remaining two redundant channels continue to provide voted control and protection outputs while the module is replaced. However, hot-swap procedures must be performed in strict accordance with GE’s Mark VI maintenance documentation, and the system should be placed in the appropriate maintenance mode prior to module removal to prevent spurious trips or alarm floods during the replacement process.

Q3: What does the 12-Month Warranty cover, and what documentation is provided with each unit?
All 151X1249BR01SA01 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Each unit is supplied with pre-shipment functional test records, original or equivalent protective packaging, and full part number and serial number traceability documentation. In the event of a warranty claim, ZYPLC provides advance replacement support to minimize system downtime. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for warranty registration and claim procedures.
