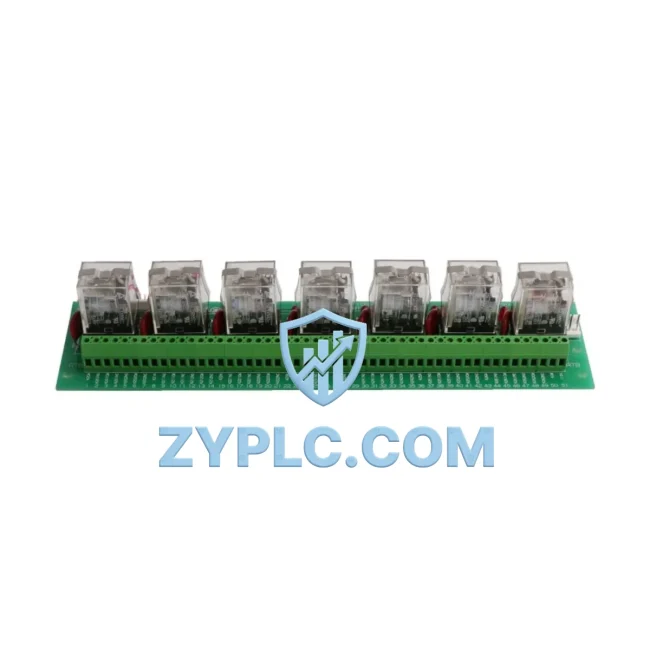

GE 531X191RTBAJG1 System-Ready Relay Terminal for Mark VI Architecture

GE 531X191RTBAJG1 System-Ready Relay Terminal for Mark VI Control System Architecture

The GE 531X191RTBAJG1 is a purpose-engineered relay terminal board designed to operate as a critical output interface within the GE Speedtronic Mark VI turbine control architecture. Rather than functioning as a standalone component, this board occupies a defined role in the layered automation hierarchy — bridging the digital command signals generated by the Mark VI controller with the physical relay-driven actuators, solenoids, and protective trip circuits that govern turbine operation. Its integration into the control system directly affects signal fidelity, relay response timing, output channel isolation, and the long-term maintainability of the entire turbine protection and sequencing framework.

In modern gas turbine and steam turbine installations, the Mark VI platform distributes control responsibility across multiple I/O boards, communication modules, and terminal assemblies. The 531X191RTBAJG1 serves the relay output layer — the final stage before a digital command becomes a physical switching event. This position in the signal chain demands high contact reliability, consistent coil drive characteristics, and compatibility with the Mark VI’s I/O bus architecture. Engineering teams specifying this board must consider not only its individual relay ratings but also how it coordinates with upstream processor boards, downstream field wiring, and the redundancy topology of the overall control cabinet.

Architecture Specification Table

Coordinated Control System Design

The 531X191RTBAJG1 does not operate in isolation. Its value is realized only when correctly positioned within a fully coordinated Mark VI control cabinet. At the processor level, the IS215VCMIH2C Mark VI VME Communication Interface manages high-speed data exchange between the controller core and the I/O subsystem. The relay terminal board receives switching commands routed through I/O modules such as the IS200VTURH1BCC Turbine I/O Board and the IS200VCRCH1B Contact Input/Output Board, which handle the logical conditioning of output signals before they reach the relay stage.

Power distribution to the relay terminal board and its associated I/O modules is managed by the IS200EPSMH1A Power Supply Module, which provides regulated DC bus voltage across the Mark VI cabinet. In redundant configurations, a secondary power supply — such as the DS200PCCAG1A Power Control Card — ensures uninterrupted relay coil drive voltage even during primary supply maintenance or failure events. This power redundancy is essential in turbine protection applications where relay dropout due to supply interruption could trigger unplanned shutdowns.

At the network layer, the Mark VI system communicates plant-wide via ARCNET and Ethernet-based protocols, with the IS215UCVEH2A Mark VI Controller Board serving as the central processing node that issues relay output commands based on real-time turbine state data. The 531X191RTBAJG1 translates these commands into physical contact closures, interfacing with field devices including fuel control solenoids, inlet guide vane actuators, lube oil system relays, and generator protection trip circuits.

For human-machine interface integration, the Mark VI system typically connects to GE Cimplicity HMI workstations or compatible SCADA platforms via the plant Ethernet network. Operators monitor relay output states, trip log histories, and alarm conditions through these interfaces, with the 531X191RTBAJG1’s output channel status reflected in real time. In facilities running parallel turbine trains, the IS200TREGH1B Relay Output Board may be deployed alongside the 531X191RTBAJG1 to expand the total relay output channel count without modifying the cabinet’s processor or communication architecture.

Terminal wiring from the 531X191RTBAJG1 connects to field junction boxes and marshalling panels via shielded multi-conductor cables, with Phoenix Contact or equivalent terminal blocks used at the cabinet boundary. Proper cable segregation between relay output wiring and analog signal wiring is critical to maintaining signal integrity across the I/O layer, particularly in high-voltage turbine environments where induced noise can affect relay coil drive circuits.

Application in Layered Automation Systems

The 531X191RTBAJG1 finds its primary application in gas turbine power generation facilities, where the Mark VI platform governs start sequencing, load control, protective tripping, and auxiliary system management. In combined-cycle plants, this relay terminal board participates in the coordinated shutdown logic that sequences the gas turbine, heat recovery steam generator, and steam turbine during emergency trip events. Its relay contacts must operate reliably across thousands of start-stop cycles over the plant’s operational lifetime.

In petrochemical and refinery compressor drive applications, the Mark VI system — with the 531X191RTBAJG1 at its output stage — controls anti-surge valve solenoids, lube oil pump starters, and seal gas system relays. The board’s contact isolation characteristics are particularly valued in these environments, where relay output circuits may interface with high-voltage motor control centers or intrinsically safe field instrument loops.

For offshore platform and LNG facility installations, the Mark VI’s TMR architecture — supported by redundant relay terminal assemblies including the 531X191RTBAJG1 — provides the fault-tolerant output capability required by IEC 61511 functional safety standards. Each relay output channel is independently driven and monitored, with diagnostic coverage extending to contact weld detection and coil continuity verification.

In steel mill and metals processing facilities operating large industrial gas turbines for captive power generation, the 531X191RTBAJG1 supports the relay output requirements of turbine auxiliary systems including cooling water pump control, inlet air filtration bypass, and fuel gas pressure regulation. Maintenance teams in these facilities benefit from the board’s modular design, which allows relay terminal assembly replacement without disturbing the Mark VI cabinet’s primary wiring infrastructure.

Water treatment and municipal power generation operators running GE Frame 5 or Frame 6 turbines with Mark VI controls rely on the 531X191RTBAJG1 for reliable relay output performance across extended maintenance intervals. The board’s compatibility with the Mark VI’s online diagnostic tools allows maintenance engineers to verify relay output health during scheduled outages without requiring full cabinet de-energization.

Architecture Engineering FAQ

Q1: Is the 531X191RTBAJG1 compatible with both simplex and TMR Mark VI configurations?
Yes. The 531X191RTBAJG1 relay terminal board is designed for use within the GE Speedtronic Mark VI platform and supports both simplex and Triple Modular Redundancy (TMR) cabinet configurations. In TMR systems, three independent relay output channels are driven by three separate I/O modules (R, S, T frames), with the relay terminal board providing the physical contact interface for each voted output. System integrators should verify the specific I/O module pairing — typically IS200VTURH1B or IS200VCRCH1B — to confirm channel-to-terminal mapping before installation.

Q2: What installation and commissioning steps are required when replacing a 531X191RTBAJG1 in an operating turbine control cabinet?
Replacement of the 531X191RTBAJG1 should be performed during a planned maintenance window with the turbine in a safe shutdown state. The procedure involves de-energizing the relay output circuits at the cabinet terminal strip, documenting existing field wiring terminations, removing the board assembly, installing the replacement unit, and verifying relay coil continuity and contact resistance before re-energizing. Mark VI diagnostic tools should be used to perform an output channel functional test — confirming relay pickup and dropout at the correct command thresholds — prior to returning the turbine to service. All replacement activities are covered under the 12-Month Warranty provided with each unit supplied by ZYPLC.

Q3: How does the 531X191RTBAJG1 support long-term spare parts strategy and system maintainability?
Maintaining a Contextual Integration approach to spare parts management means stocking the 531X191RTBAJG1 alongside its associated I/O modules, power supply boards, and communication interface cards as a coordinated assembly rather than as isolated components. This strategy reduces mean time to repair during unplanned outages by ensuring that all interdependent boards are available simultaneously. ZYPLC supplies the 531X191RTBAJG1 with a 12-Month Warranty and provides technical support for system architecture compatibility verification, helping engineering teams build spare parts inventories that reflect the actual interdependencies of their Mark VI control system configuration.
