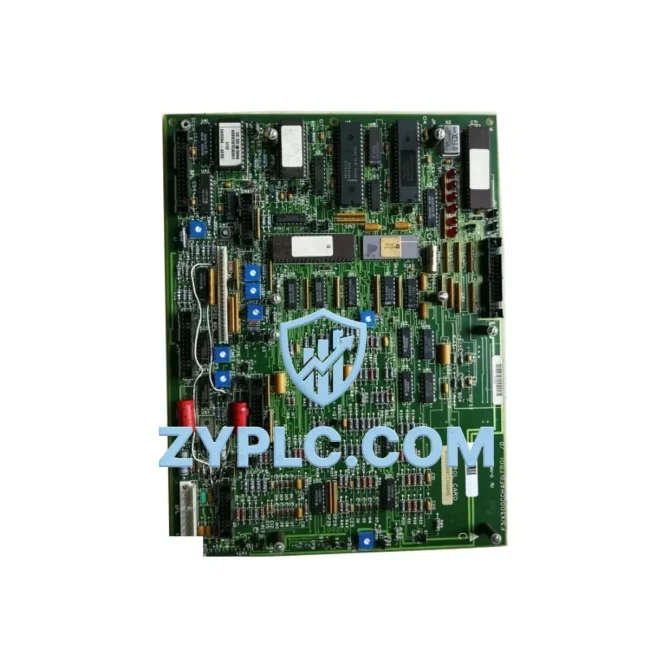

GE 531X300CCHAFM5 Control Card for DC300 Automation

GE 531X300CCHAFM5 Control Card for DC300 Automation

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the precision and reliability of DC drive control hardware directly determines how efficiently a production line consumes power. The GE 531X300CCHAFM5 is a high-performance control card module engineered for the GE DC300 series DC drive platform, delivering accurate armature current regulation, field excitation control, and closed-loop speed feedback that together reduce unnecessary energy draw across motor-driven processes. Rather than treating energy efficiency as a secondary concern, this card places it at the center of drive operation — enabling facilities to extract maximum mechanical output from minimum electrical input.

The 531X300CCHAFM5 functions as the computational and regulatory core of the DC300 drive, processing real-time feedback from tachometer or encoder inputs and issuing precise firing angle commands to the thyristor bridge. This level of control eliminates the torque ripple and speed hunting that cause motors to draw abnormal load during transient load conditions. In applications such as paper machine drives, extruder lines, winding systems, and rolling mill stands — where load profiles change continuously — the card’s fast response loop ensures the motor operates at its most efficient operating point throughout the production cycle.

Product Specification Table

System Compatibility and Application

The 531X300CCHAFM5 does not operate in isolation — its operational-efficiency value is realized through tight integration with the surrounding drive and control architecture. Within the DC300 drive chassis, it works alongside the GE 531X301CCHAFM5 field control card and the 531X302CCHAFM5 firing card to form a complete three-card control set. The field control card manages the motor’s excitation current independently, allowing field weakening above base speed and reducing field copper losses during light-load periods. The firing card translates the phase angle commands from the 531X300CCHAFM5 into precise gate pulses for the thyristor stack, ensuring low harmonic distortion and high power factor at the AC supply.

At the supervisory level, a GE Fanuc Series 90-30 PLC or a GE PACSystems RX3i controller typically provides the setpoint references and production sequencing commands that the DC300 drive executes. The 531X300CCHAFM5 receives speed and torque references from this controller via analog signal or serial link, translating high-level production targets into real-time motor control actions. When the PLC detects a reduced-load condition — such as a web break on a paper machine or an empty reel on a winder — it can command the drive to reduce speed and current, and the 531X300CCHAFM5 responds within milliseconds, preventing the motor from drawing full-load current against a reduced mechanical demand.

For condition monitoring and reporting, the DC300 system can be paired with a GE Multilin power quality meter or a dedicated power monitoring I/O module that captures real-time kW consumption, power factor, and harmonic content. The data collected by these instruments, when correlated with the drive’s operating state as managed by the 531X300CCHAFM5, gives energy managers a clear picture of where losses occur and how control parameter tuning can reduce them. An HMI panel — such as a GE QuickPanel+ operator interface — displays this information to operators in real time, enabling informed decisions about speed setpoints and production scheduling that directly affect operating load.

On the network layer, a GE RX3i Ethernet communications module or a Profibus DP gateway connects the drive system to the plant SCADA or MES, enabling centralized energy reporting and remote parameter adjustment without interrupting production. This connectivity also supports predictive maintenance workflows: by monitoring armature current trends and speed regulation quality through the 531X300CCHAFM5’s feedback loop, maintenance teams can identify bearing wear, brush degradation, or commutator issues before they cause unplanned downtime — each of which, if left unaddressed, would cause the motor to draw progressively more current for the same mechanical output.

Maintenance and Replacement Notes

In a steel rolling mill, the 531X300CCHAFM5 controls the main drive motors that accelerate and decelerate the rolling stands in synchronization with the strip speed. Precise current control during acceleration ramps prevents current spikes that would otherwise trip protection devices or cause voltage sags on the supply bus. By maintaining tight speed regulation across the rolling pass, the card ensures that inter-stand tension remains within specification, eliminating the unplanned downtimed in over-driving one stand to compensate for speed error in another.

In a paper machine application, the card manages the drive sections of the wet end, press section, and dryer section, each of which must maintain precise speed ratios to control sheet tension and moisture profile. The closed-loop regulation provided by the 531X300CCHAFM5 eliminates the speed drift that would otherwise require operators to manually increase drive setpoints — a common source of unplanned downtime risk in older, open-loop systems. Facilities that have replaced failed or degraded control cards with new 531X300CCHAFM5 units consistently report improved speed stability and measurable reductions in motor current draw at equivalent production rates.

In chemical and petrochemical plants, DC drives controlled by the 531X300CCHAFM5 power agitators, compressors, and pump drives where variable speed operation is essential for process control. The card’s ability to maintain stable speed under varying viscosity loads — without the current hunting that characterizes poorly tuned drives — directly reduces the energy consumed per unit of product processed. Combined with field weakening control from the companion field card, the system can operate motors above base speed at reduced flux, lowering iron losses and improving overall drive efficiency in high-speed, light-load operating regions.

Across all these applications, the 531X300CCHAFM5 supports predictive maintenance by providing stable, repeatable control behavior that makes anomalies easy to detect. A sudden increase in the current required to maintain a given speed setpoint — visible through the drive’s monitoring outputs — signals a mechanical problem that can be addressed during a planned maintenance window rather than an emergency shutdown. This shift from reactive to predictive maintenance reduces both unplanned downtime and the production losses associated with unplanned downtime.

Product Sourcing FAQ

Q1: How does the 531X300CCHAFM5 directly reduce operating load compared to a degraded or failed control card?
A degraded control card introduces instability in the current and speed regulation loops, causing the motor to hunt — oscillating around the setpoint and drawing abnormal load in the process. The 531X300CCHAFM5, when operating correctly, maintains tight closed-loop control that keeps the motor at its most efficient operating point. Replacing a degraded card with a tested 531X300CCHAFM5 unit typically restores the drive to its original efficiency specification, reducing motor current draw and improving power factor at the supply.

Q2: Is the 531X300CCHAFM5 compatible with all DC300 drive variants, and can it be used as a direct replacement without parameter re-entry?
The 531X300CCHAFM5 is designed for the GE DC300 series and is compatible with the standard DC300 drive chassis configurations. As a direct card replacement, it installs into the existing card slot without hardware modification. Drive parameters stored in the drive’s non-volatile memory are retained during the card swap, so the replacement card inherits the existing tuning configuration. However, it is recommended to verify speed loop gain, current limit, and field weakening parameters after replacement to confirm optimal performance in the specific application.

Q3: What testing is performed on the 531X300CCHAFM5 before shipment, and what does the 12-Month Warranty cover?
Each 531X300CCHAFM5 unit undergoes functional testing that verifies analog input and output signal integrity, digital I/O operation, internal power supply rails, and communication interface continuity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are repaired or replaced at no charge. The warranty does not cover damage resulting from incorrect installation, operation outside specified environmental limits, or electrical overstress events such as supply voltage transients.

Q4: How should the 531X300CCHAFM5 be stored if purchased as a spare, and what is the recommended commissioning procedure after extended storage?
The card should be stored in its original anti-static packaging in a dry, temperature-controlled environment between -20°C and +70°C with relative humidity below 85% non-condensing. Before installation after extended storage (greater than 12 months), inspect the card for signs of corrosion on connector pins and capacitor leakage. Power the card in the drive at no-load conditions first, verify all feedback signals are within specification, and perform a slow-ramp speed run to confirm regulation stability before returning the drive to full production duty.
