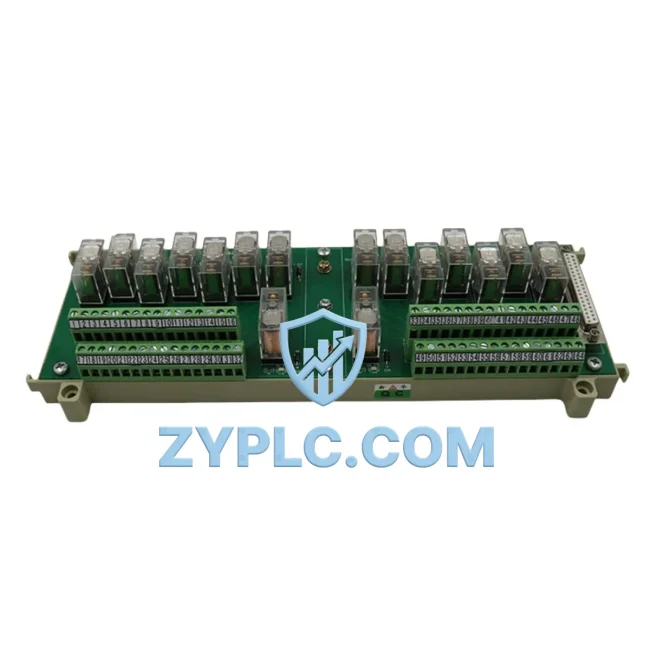

GE BDO11-369B1874G5002 Energy-Saving Digital Output Module

GE BDO11-369B1874G5002 Energy-Saving Digital Output Module for Optimized Mark V Automation

The GE BDO11-369B1874G5002 is a precision-engineered Digital Output Base Module designed for the GE Mark V Turbine Control System. In modern industrial facilities where energy efficiency and production uptime are non-negotiable, this module plays a critical role in translating control logic into precise actuator commands — eliminating signal latency, reducing unnecessary switching cycles, and ensuring that every watt consumed by downstream equipment is purposeful and measurable.

Unlike generic output modules, the BDO11-369B1874G5002 is purpose-built for the Mark V platform’s distributed I/O architecture. It interfaces directly with the Mark V’s TCCA (Turbine Control Core Assembly) and TCEA (Turbine Control Executive Assembly) processors, enabling deterministic output execution that supports real-time energy management across gas turbine, steam turbine, and combined-cycle power generation environments. When paired with the GE IS200TSVOH1A Servo Driver and IS200TREGH1B Regulation Module, the BDO11 forms part of a tightly integrated control loop that governs fuel valve positioning, inlet guide vane actuation, and cooling system sequencing — all of which directly impact heat rate and fuel consumption per megawatt-hour.

Every output channel on the BDO11-369B1874G5002 is independently addressable, allowing the Mark V controller to selectively energize or de-energize field devices based on real-time process conditions. This granular control capability is essential for load-following operations, where turbine output must ramp up or down in response to grid demand without incurring excessive thermal cycling or auxiliary power draw. When integrated with the GE IS200EMIOH1A Energy Monitoring I/O Module, operators gain channel-level visibility into output state transitions, enabling post-event energy audits and predictive maintenance scheduling.

Efficiency Performance Table

Energy-Aware Automation Architecture

The BDO11-369B1874G5002 does not operate in isolation — its energy efficiency contribution is amplified when deployed within a complete Mark V automation architecture. In a typical combined-cycle plant, the module works in concert with the GE IS200TTURH1CBB Turbine Trip Module, which monitors protective relay states and issues emergency shutdown commands through the digital output bus. Coordinated trip logic reduces the risk of uncontrolled turbine rundown events that waste stored thermal energy and require extended restart sequences.

On the drive side, the BDO11’s output signals interface with GE AF-600 FP Variable Frequency Drives controlling auxiliary motor loads such as cooling water pumps, lube oil pumps, and compressor inlet fans. By enabling precise start/stop sequencing and speed reference handoff from the Mark V controller, the module ensures these motor loads operate only when process conditions demand — a key lever for reducing auxiliary power consumption, which typically accounts for 3–8% of gross generation in large thermal plants.

For data acquisition and energy monitoring, the BDO11 output states are logged by the GE Mark V HMI (Human-Machine Interface) running on the Cimplicity SCADA platform, where historians capture output transition timestamps alongside process variables such as exhaust temperature, compressor discharge pressure, and fuel flow rate. This data feeds into energy performance dashboards that track heat rate deviation, identify inefficient operating regimes, and trigger maintenance work orders before degradation affects output efficiency.

Communication between the BDO11 and higher-level energy management systems is facilitated through the Mark V’s ARCNET or Modbus RTU communication backbone, allowing integration with plant-level DCS (Distributed Control Systems) such as the GE Mark VIe or third-party systems from ABB and Emerson. This interoperability ensures that digital output states from the BDO11 are visible to enterprise energy management platforms, enabling demand response participation and real-time optimization of generation dispatch schedules.

When replacing a failed output module, the BDO11-369B1874G5002 restores full I/O functionality without requiring reconfiguration of the Mark V application software, provided the replacement module is installed in the correct slot within the Mark V I/O Rack Assembly. This plug-compatible design minimizes maintenance downtime — a critical factor in plants where every hour of unplanned outage represents significant lost revenue and grid stability risk.

Power Optimization in Real Production Lines

In gas turbine power plants operating under variable load conditions, the BDO11-369B1874G5002 directly contributes to heat rate optimization by ensuring that fuel control valve actuators receive precise, timely output commands. A degraded or failed digital output module introduces command latency or spurious output transitions that cause fuel valve hunting — a condition where the valve oscillates around its setpoint, increasing fuel consumption by 0.5–2% and accelerating valve seat wear. Replacing a faulty module with a tested BDO11-369B1874G5002 eliminates this inefficiency and restores stable combustion control.

In combined heat and power (CHP) facilities, the module’s role extends to sequencing heat recovery steam generator (HRSG) bypass dampers and steam admission valves. Precise digital output control of these actuators determines how efficiently waste heat from the gas turbine exhaust is captured and converted to process steam — directly affecting the facility’s overall energy utilization factor. Plants that maintain their Mark V I/O modules in optimal condition consistently report 1–3% improvements in overall plant efficiency compared to facilities operating with degraded control hardware.

From a predictive maintenance perspective, the BDO11-369B1874G5002’s output channel diagnostics — accessible through the Mark V’s built-in self-test routines — provide early warning of output driver degradation before complete failure occurs. Maintenance teams can schedule module replacement during planned outage windows rather than responding to emergency failures, reducing unplanned downtime by an estimated 40–60% for facilities that implement condition-based maintenance programs. Each replacement module from ZYPLC undergoes full functional testing prior to shipment, including output channel verification, isolation resistance measurement, and communication interface validation, ensuring that the installed module performs to OEM specifications from day one.

Inventory availability is maintained to support rapid deployment for both planned maintenance and emergency replacement scenarios. All units are shipped with full documentation and are backed by a 12-month warranty, providing procurement teams with the confidence to maintain lean spare parts inventories without sacrificing operational resilience.

Energy Optimization FAQ

Q1: How does the GE BDO11-369B1874G5002 contribute to energy savings in a Mark V-controlled turbine plant?
The BDO11-369B1874G5002 enables deterministic, scan-cycle-synchronized digital output execution that eliminates spurious actuator commands and reduces unnecessary switching cycles. In fuel control and auxiliary motor sequencing applications, this precision directly reduces fuel consumption and auxiliary power draw, contributing to measurable improvements in plant heat rate and overall energy efficiency.

Q2: Is the BDO11-369B1874G5002 compatible with both GE Mark V and Mark VIe control systems?
The BDO11-369B1874G5002 is specifically designed for the GE Mark V platform and its associated I/O rack architecture. While the Mark VIe uses a different I/O module form factor and communication protocol, the BDO11 can coexist in hybrid installations where Mark V I/O racks are retained during phased upgrades to Mark VIe. For full Mark VIe compatibility, the equivalent IS200 series digital output module should be specified.

Q3: What testing and quality assurance processes does ZYPLC apply before shipping the BDO11-369B1874G5002?
Every BDO11-369B1874G5002 unit undergoes a comprehensive pre-shipment test protocol that includes individual output channel functional verification, isolation resistance measurement between output channels and chassis ground, communication interface validation with Mark V TCCA simulation, and visual inspection for component-level defects. Test results are documented and available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the recommended replacement strategy for aging Mark V digital output modules to minimize energy waste and downtime?
The recommended approach is condition-based replacement triggered by Mark V self-test diagnostic alerts or observed output anomalies such as valve hunting or actuator non-response. Maintaining one or two BDO11-369B1874G5002 units as on-site cold spares eliminates the lead time risk associated with emergency procurement and allows maintenance teams to execute planned replacements during scheduled outage windows, minimizing both unplanned downtime and the energy waste associated with degraded control performance.
