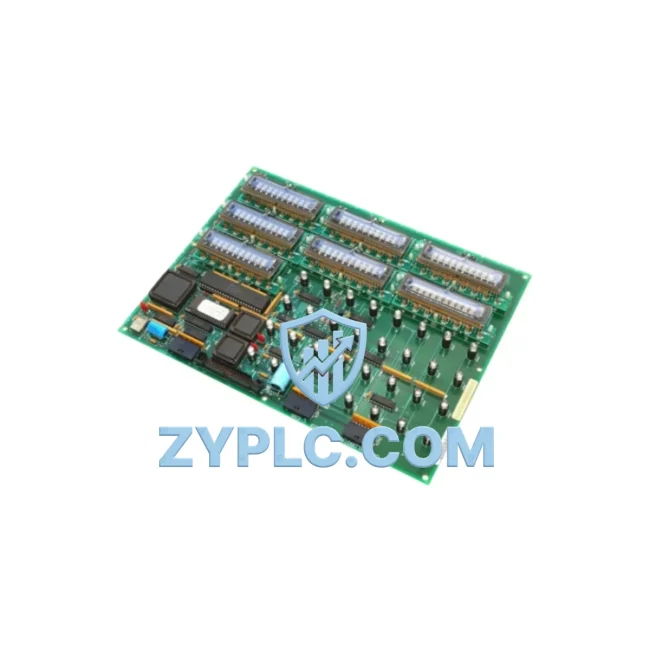

GE DS200KLDBG1ABC System-Ready Display Board for Mark VI Architecture

GE DS200KLDBG1ABC System-Ready Display Board: Control System Architecture and Contextual Integration

The GE DS200KLDBG1ABC is a dedicated display board engineered for deployment within the GE Mark VI Turbine Control System — one of the most widely adopted distributed control platforms in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. Rather than functioning as a standalone component, the DS200KLDBG1ABC is designed to operate as an integrated node within a layered automation architecture, where signal integrity, inter-module communication, and long-term operational continuity are non-negotiable requirements. Understanding its role within the full control hierarchy is essential for engineers responsible for system commissioning, expansion, and lifecycle maintenance.

Architecture Specification Table

Coordinated Control System Design

The DS200KLDBG1ABC display board occupies the human-machine interface layer of the GE Mark VI control architecture, serving as the visual output and operator feedback node within a tightly integrated multi-module system. Its function cannot be evaluated in isolation — it is the downstream recipient of processed signals originating from the control layer, I/O layer, and communication backbone of the Mark VI platform.

At the control layer, the DS200TCQAG1A Quad Core Processor Board and DS200TCQCG1A Control Board execute the turbine sequencing logic and generate the display data that the DS200KLDBG1ABC renders for operator review. These processor boards communicate via the internal backplane, and the display board must maintain synchronization with their output cycles to ensure real-time accuracy of turbine state visualization.

The I/O layer, populated by modules such as the DS200IOCAG1A I/O Controller Board and DS200TCDAG1A Analog I/O Board, feeds live process values — including exhaust temperature, compressor pressure ratio, fuel flow, and vibration amplitude — into the control processor, which then routes formatted display data to the DS200KLDBG1ABC. Any degradation in I/O signal quality directly affects the accuracy of operator-facing display outputs.

The communication layer, anchored by the DS200TCPSG1A Power Supply Board and the DS200SLCCG1A Serial Link Communication Board, ensures that inter-module data exchange across the Mark VI backplane remains stable under continuous load. The DS200KLDBG1ABC depends on this communication infrastructure to receive timely updates from the control processor without latency or frame loss.

In redundant Mark VI configurations — where TMR (Triple Modular Redundancy) architecture is employed — the display board must remain compatible with the voting logic outputs of the DS200TCRAG1A Redundancy Controller. This ensures that even during a single-channel fault event, the operator display continues to reflect the correct system state without interruption, supporting safe turbine operation and minimizing unplanned downtime.

At the power layer, the DS200TCPSG1A Power Supply Board provides regulated DC power to all backplane-connected modules, including the DS200KLDBG1ABC. Voltage stability at the backplane level is critical for display board operation, as fluctuations can cause screen artifacts, communication timeouts, or module resets that disrupt operator situational awareness during critical turbine transitions.

Finally, terminal modules and field wiring interfaces — including DS200TBCIG1A Terminal Board assemblies — connect field instrumentation signals into the I/O layer, completing the signal chain that ultimately populates the display board’s output. Engineers commissioning or replacing the DS200KLDBG1ABC must verify the integrity of this entire signal path, from field sensor through terminal board, I/O module, control processor, and backplane communication, before validating display accuracy.

Application in Layered Automation Systems

The DS200KLDBG1ABC finds its primary application in power generation facilities operating GE Frame 6, Frame 7, and Frame 9 gas turbines, as well as steam turbine installations where the Mark VI platform serves as the primary turbine control system. In combined-cycle power plants, the display board supports operator monitoring across both gas turbine and heat recovery steam generator (HRSG) control loops, providing a unified visual interface for multi-unit plant operations.

In the petrochemical and refining sector, Mark VI-controlled compressor trains and process gas turbines rely on the DS200KLDBG1ABC to present critical process variables — including surge margin, suction pressure, and discharge temperature — to control room operators. The board’s integration within the Mark VI architecture ensures that display updates reflect the same data used by the control processor for protective relay decisions, maintaining consistency between operator perception and actual system state.

In power utility substations and grid-connected generation facilities, the display board supports black-start sequencing visualization, enabling operators to monitor turbine acceleration, synchronization status, and load ramp progression from a single interface node. Its compatibility with the Mark VI’s IONet communication layer allows it to receive data from distributed I/O panels located across the turbine hall without requiring dedicated point-to-point wiring between the display and each field instrument.

For water treatment and municipal utility applications where GE Mark VI systems control large pump drives and aeration blower turbines, the DS200KLDBG1ABC provides the operator interface layer that bridges automated control logic with human oversight — a critical requirement in facilities operating under regulatory compliance frameworks that mandate documented operator acknowledgment of alarm states.

In mining and mineral processing operations, where turbine-driven compressors and mill drives operate under the Mark VI platform, the display board’s robust industrial design supports continuous operation in environments with elevated ambient temperature, vibration, and electromagnetic interference — conditions common to underground and surface mining control rooms.

Architecture Engineering FAQ

Q1: Is the DS200KLDBG1ABC compatible with both Mark VI and Mark VIe control cabinets?
The DS200KLDBG1ABC is primarily designed for the GE Mark VI turbine control platform. Compatibility with Mark VIe cabinets depends on the specific backplane revision and cabinet configuration. Engineers should verify the cabinet’s backplane slot assignment and communication protocol version before installation. Our technical team can assist with compatibility confirmation based on your cabinet serial number and system revision level.

Q2: What is the recommended procedure for replacing the DS200KLDBG1ABC without disrupting turbine operation?
In non-redundant Mark VI configurations, replacement of the DS200KLDBG1ABC typically requires a planned control system outage, as the display board is integral to the operator interface layer. In TMR-configured systems, hot-swap capability depends on the specific cabinet design and software revision. Best practice is to coordinate replacement during a scheduled maintenance window, with the turbine in a safe shutdown state, and to perform a full display calibration and communication verification after installation before returning the unit to service.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to the original GE specification for the DS200KLDBG1ABC. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the module’s rated operating range. For maintenance planners, the 12-Month Warranty provides a defined reliability baseline for spare parts budgeting and inventory rotation cycles, supporting a proactive maintenance strategy that minimizes unplanned control system downtime across multi-year turbine service intervals.
