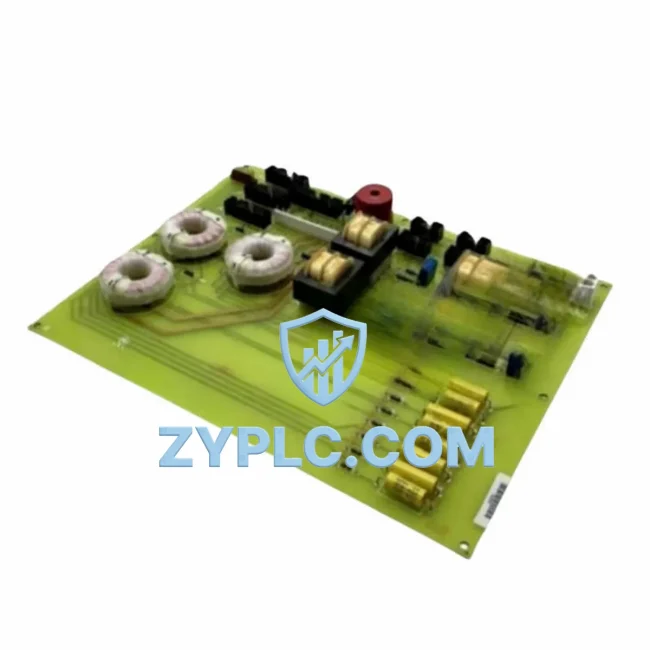

GE DS200TCEBG1AAB Energy-Saving Relay Output Board Mark V

GE DS200TCEBG1AAB Energy-Saving Relay Output Board for Optimized Mark V Automation

The GE DS200TCEBG1AAB is a high-performance Relay Output Board engineered for the Speedtronic Mark V turbine control platform by General Electric. Designed to deliver precise, low-latency switching commands to field actuators, this board plays a critical role in reducing unnecessary energy consumption across gas turbine and steam turbine installations. By ensuring that relay outputs are executed with minimal signal delay and maximum contact reliability, the DS200TCEBG1AAB directly contributes to tighter control loop performance, reduced auxiliary power draw, and improved overall plant efficiency.

In modern industrial energy management, every millisecond of control latency and every unnecessary relay cycle translates into measurable energy waste. The DS200TCEBG1AAB addresses this by providing stable, repeatable relay switching that supports the Mark V’s closed-loop turbine sequencing logic — enabling operators to maintain optimal fuel-to-power ratios, minimize idle running time, and reduce thermal stress on downstream equipment.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DS200TCEBG1AAB does not operate in isolation — it is a functional node within a tightly integrated energy-aware control architecture. Within the Mark V cabinet, it works in concert with the DS200TCQCG1A I/O terminal board, which aggregates field signal inputs and routes them to the core processor. The DS200TCPSG1A power supply board regulates backplane voltage, ensuring the relay board receives stable power without voltage sag that could cause false trips or unnecessary re-sequencing cycles.

On the processing side, the DS200TCDAG1A analog input board captures real-time turbine parameters — exhaust temperature, compressor discharge pressure, and fuel flow — feeding the Mark V’s control algorithms with the data needed to make energy-efficient dispatch decisions. When the system determines that load shedding or startup sequencing is required, the DS200TCEBG1AAB executes those relay commands with the precision needed to avoid over-cycling auxiliary equipment.

For drive-level energy control, the Mark V platform often interfaces with GE’s EX2100 excitation control system, which regulates generator field current to maintain power factor and reactive power balance — directly reducing transmission losses. The DS200TCEBG1AAB’s relay outputs can trigger permissive signals to the excitation system, enabling coordinated voltage regulation that improves grid-side efficiency.

In facilities where variable-speed auxiliary drives are deployed, the relay outputs from the DS200TCEBG1AAB are used to enable or inhibit GE AF-600 FP series variable frequency drives on cooling fans, lube oil pumps, and fuel gas compressors. By controlling when these drives are energized based on actual turbine demand rather than fixed timers, plants can achieve significant reductions in auxiliary power consumption — often 15–30% on fan and pump loads alone.

Communication integrity is maintained through the Mark V’s ARCNET-based I/O communication backbone, which the DS200TCEBG1AAB relies on for synchronized command execution. Alongside this, the DS200TCEAG1A and DS200TCRAG1A boards handle complementary I/O functions within the same rack, ensuring that relay outputs are coordinated with analog and digital feedback loops for closed-loop energy optimization.

For facilities that have upgraded to the Mark VIe platform, the DS200TCEBG1AAB can serve as a legacy interface component during phased migration, allowing plants to maintain relay output functionality while progressively adopting the Mark VIe’s EtherNet/IP-based distributed I/O architecture — avoiding costly full-panel replacements and the associated production downtime.

Power Optimization in Real Production Lines

In gas turbine power plants and industrial cogeneration facilities, unplanned downtime caused by relay output board failures is one of the most costly energy inefficiency events possible. When a relay output board fails mid-sequence, the turbine control system may default to a safe-state shutdown, requiring a full cold restart — a process that consumes significant fuel during the purge and ignition sequence without generating any useful output. By maintaining a tested, in-stock DS200TCEBG1AAB as a critical spare, plant operators can reduce mean time to repair (MTTR) from days to hours, restoring productive generation capacity and eliminating the energy waste of extended restart cycles.

Beyond failure recovery, the DS200TCEBG1AAB contributes to ongoing energy optimization through its role in turbine sequencing logic. The Mark V uses relay outputs to control inlet guide vane (IGV) actuator permissives, bleed valve sequencing, and fuel control valve enables. Precise, reliable relay switching ensures that these components operate in their optimal efficiency windows — for example, keeping IGVs at the correct angle for the current load point rather than defaulting to a fixed position that wastes compressor work.

Predictive maintenance programs benefit directly from relay output board reliability. When relay contacts degrade, they introduce resistance that can cause voltage drops detectable by the Mark V’s diagnostic routines. Replacing a degraded DS200TCEBG1AAB before contact failure occurs prevents the cascading inefficiencies of partial relay actuation — where actuators receive insufficient drive signals and operate in intermediate positions, consuming more energy than a fully open or fully closed state.

All units supplied by ZYPLC are subject to functional load testing prior to shipment, verifying relay contact resistance, coil pull-in voltage, and release voltage under simulated Mark V backplane conditions. This pre-shipment validation ensures that the board performs to specification from the first power-on, eliminating the commissioning delays and re-tuning cycles that can extend planned maintenance windows and increase overall energy consumption during the outage period.

Energy Optimization FAQ

Q1: How does the DS200TCEBG1AAB contribute to reducing turbine energy waste?
The board provides reliable relay switching for critical turbine sequencing commands, including fuel valve enables, bleed valve control, and IGV permissives. Accurate, low-latency relay actuation keeps the turbine operating within its optimal efficiency envelope, reducing fuel consumption per unit of output and minimizing the energy cost of off-design operation.

Q2: Is the DS200TCEBG1AAB compatible with both Mark V and Mark VI systems?
The DS200TCEBG1AAB is natively designed for the GE Speedtronic Mark V platform. Compatibility with Mark VI or Mark VIe systems depends on the specific panel configuration and may require adapter boards or signal conditioning. ZYPLC’s technical team can advise on cross-compatibility based on your panel revision and I/O mapping requirements.

Q3: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers functional defects in relay contact performance, coil operation, and board-level electronics under normal Mark V operating conditions. If a warranty claim is required, ZYPLC provides advance replacement shipping to minimize plant downtime, followed by return of the defective unit for failure analysis. Warranty claims are processed within 2 business days of fault confirmation.

Q4: What testing is performed before shipment?
Every DS200TCEBG1AAB undergoes a multi-stage inspection and functional test protocol: visual inspection for component damage, relay coil resistance measurement, contact resistance verification, pull-in and release voltage testing, and simulated backplane communication check. A test report is available upon request and accompanies each unit shipped to customers requiring documentation for their maintenance management systems.
