GE DS200TCQAG1A System-Ready Analog I/O Board for Mark V Architecture

GE DS200TCQAG1A System-Ready Analog I/O Board for Mark V Control Architecture

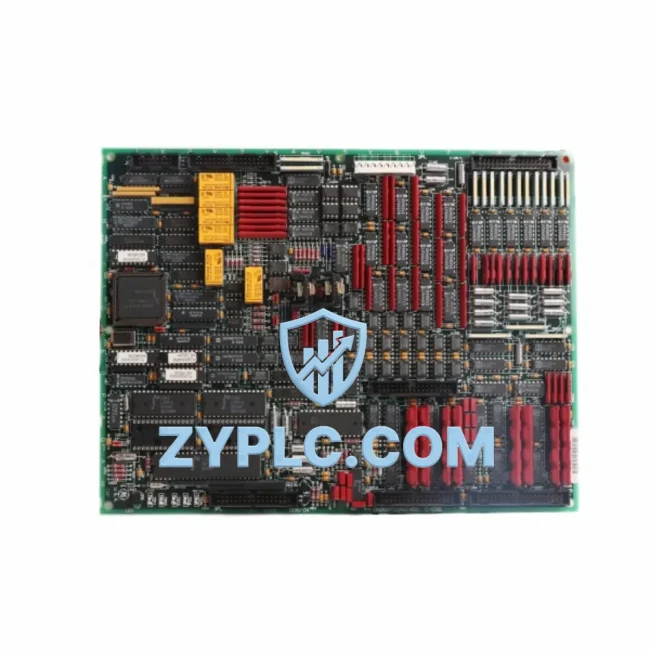

The GE DS200TCQAG1A is a precision analog input/output board engineered for deployment within the GE Mark V turbine control platform — one of the most widely adopted distributed control architectures in power generation, oil & gas, and heavy industrial environments. Rather than functioning as a standalone component, the DS200TCQAG1A is designed to operate as an integral node within a layered control system, where signal fidelity, module interoperability, and long-term serviceability are non-negotiable requirements. Understanding its role within the full system architecture is essential for engineers responsible for turbine control upgrades, panel replacements, and lifecycle extension projects.

In a complete Mark V control system, the DS200TCQAG1A occupies the I/O layer — the critical interface between field instrumentation and the central processing core. Analog signals from thermocouples, RTDs, pressure transmitters, and position sensors are routed through this board before being conditioned, digitized, and passed upstream to the CPU module for real-time processing. The board’s analog channels support both input and output functions, enabling closed-loop control of actuators, valve positioners, and speed governors within the same architectural framework. This bidirectional signal capability makes the DS200TCQAG1A a cornerstone of the Mark V’s process control layer, directly influencing turbine speed regulation, temperature management, and load dispatch accuracy.

Architecture Specification Table

Coordinated Control System Design

The DS200TCQAG1A does not operate in isolation — its performance is inseparable from the broader Mark V system architecture. In a typical turbine control panel, the board interfaces directly with the DS200TCDAG1A terminal board, which provides the physical screw-terminal connections for field wiring. Signal integrity at this junction is critical: any impedance mismatch or grounding fault at the terminal board level will propagate directly into the analog readings processed by the DS200TCQAG1A, affecting control accuracy across the entire loop.

At the processing layer, the DS200TCQAG1A communicates via the VME backplane with the DS200TCPSG1A processor board, which executes the turbine control algorithms and issues setpoint commands back through the analog output channels. The processor board’s scan cycle must be synchronized with the I/O board’s conversion rate to prevent data latency in fast-response control loops such as speed governing and exhaust temperature limiting. Engineers integrating the DS200TCQAG1A into an existing Mark V panel should verify backplane slot assignments and interrupt priority settings against the original system configuration documentation.

Power distribution within the Mark V panel is managed by the DS200TCPSG1B power supply module, which delivers regulated +5 VDC and ±15 VDC rails to all installed boards including the DS200TCQAG1A. Voltage ripple on the ±15 VDC rail directly affects the analog front-end performance of the I/O board; a degraded power supply module is a common root cause of unexplained analog drift in aging Mark V systems. Replacing the DS200TCQAG1A without inspecting the power supply module is a frequent commissioning oversight that leads to repeat failures.

For systems requiring communication with plant-level SCADA or DCS platforms, the DS200TCQEG1A communication gateway board provides the protocol bridge between the Mark V VME backplane and external networks including Modbus RTU, Modbus TCP, and proprietary GE communication protocols. The analog data processed by the DS200TCQAG1A is ultimately transmitted through this gateway to historian servers, operator workstations, and plant information systems. Ensuring that the communication gateway is correctly configured for the analog tag list is a prerequisite for successful system commissioning.

In redundant Mark V architectures — common in critical power generation and petrochemical applications — the DS200TCQAG1A may be deployed in paired configurations across the R, S, and T control processors, with voting logic implemented at the CPU level to detect and isolate faulty analog readings. This triple-redundant I/O architecture requires that all three DS200TCQAG1A boards are sourced from the same hardware revision to ensure consistent ADC characteristics and avoid systematic voting errors. The DS200TCEAG1A expander board may also be present in larger configurations to extend the analog channel count beyond the base I/O capacity.

Human-machine interface integration is achieved through the DS200TCQCG1A or compatible HMI interface boards, which translate the processed analog data into display-ready engineering unit values for operator workstations running GE’s CIMPLICITY or third-party SCADA software. Alarm setpoints, trend displays, and control faceplate values all originate from the analog data chain that begins at the DS200TCQAG1A field input terminals. Calibration of the analog channels must be performed with the HMI in service to verify end-to-end signal accuracy from field sensor to operator display.

Application in Layered Automation Systems

The DS200TCQAG1A finds application across a broad range of industrial sectors where the GE Mark V platform has been deployed as the primary turbine or process control system.

In power generation — including gas turbine, steam turbine, and combined-cycle plants — the board manages the analog signal chain for exhaust temperature thermocouples, compressor inlet pressure transmitters, fuel control valve position feedback, and generator excitation control outputs. Turbine OEMs and independent power producers operating aging Mark V systems rely on the availability of the DS200TCQAG1A to maintain unit availability without undertaking full control system replacements, which can cost several times the price of a board-level repair or replacement.

In oil & gas and petrochemical facilities, the Mark V platform is frequently used for compressor train control, where the DS200TCQAG1A handles surge control analog loops, anti-surge valve position outputs, and vibration monitoring inputs. The board’s isolation characteristics are particularly important in these environments, where ground loops and common-mode noise from variable-frequency drives and high-power switching equipment can corrupt analog signals if proper shielding and grounding practices are not observed.

In water treatment and municipal utilities, Mark V-based control systems manage pump station automation, where the DS200TCQAG1A processes flow meter signals, pressure transducer inputs, and chemical dosing pump control outputs. The long service life of the Mark V platform in these applications — often exceeding 20 years — makes the availability of replacement boards like the DS200TCQAG1A a critical factor in asset management planning.

In mining and metallurgical applications, the board supports analog control of ore processing equipment, including conveyor speed references, crusher load monitoring, and flotation cell level control. The harsh electromagnetic environment of mining facilities places additional demands on the board’s analog front-end filtering and isolation, making hardware revision and condition verification essential before installation.

Architecture Engineering FAQ

Q1: Is the DS200TCQAG1A compatible with both Mark V and Mark VI control systems?
The DS200TCQAG1A is natively designed for the GE Mark V VME-based architecture. While some analog I/O boards share physical form factors between Mark V and Mark VI platforms, direct interchangeability is not guaranteed without engineering verification. Mark VI systems use a different I/O bus architecture (IONet) and typically require the DS200 series boards to be paired with specific interface modules. Before installing the DS200TCQAG1A in a Mark VI panel, consult the system configuration matrix and verify the board revision against the Mark VI hardware compatibility list. ZYPLC’s technical team can assist with cross-platform compatibility assessment prior to order confirmation.

Q2: What commissioning steps are required after installing a replacement DS200TCQAG1A?
After physical installation into the Mark V card cage, the replacement board requires analog channel calibration using GE’s CIMPLICITY toolset or the Mark V Toolbox software. Each analog input channel must be verified against a known reference signal source, and analog output channels must be confirmed against the actuator or valve positioner’s expected input range. The system’s I/O configuration file must be checked to ensure the board’s slot address matches the original hardware assignment. Following calibration, a full functional test of all associated control loops — including setpoint tracking, alarm response, and manual/auto transfer — should be completed before returning the unit to service. All calibration records should be retained for maintenance documentation purposes.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
The 12-Month Warranty provided by ZYPLC covers full functional performance of the DS200TCQAG1A under normal operating conditions, including analog channel accuracy, backplane communication integrity, and power supply compatibility. Warranty claims are supported by ZYPLC’s technical team, who can assist with fault diagnosis, board-level testing, and replacement logistics. For long-term maintenance planning, ZYPLC maintains inventory of DS200 series boards and associated Mark V components, enabling rapid response to unplanned outages. Customers operating multiple Mark V units are encouraged to discuss strategic spare parts stocking programs with ZYPLC to minimize mean time to repair across their installed base.
