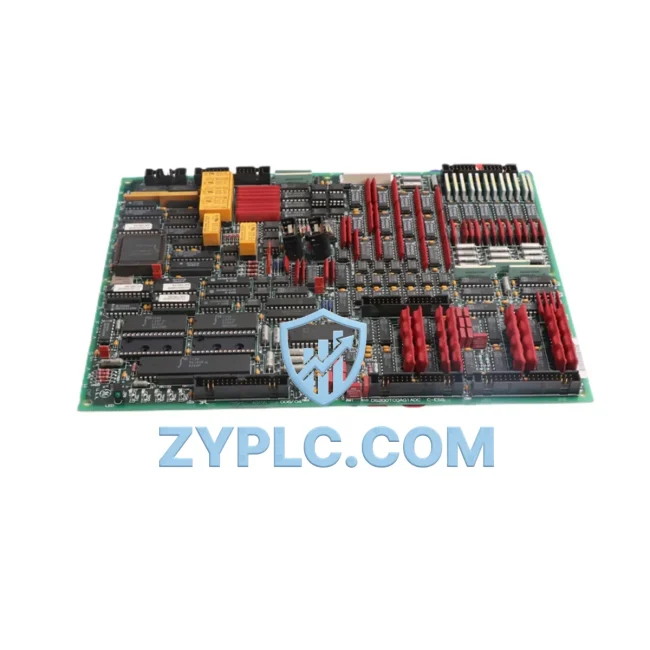

GE DS200TCQRG1RFC System-Ready Relay Output for DS200 Architecture

GE DS200TCQRG1RFC System-Ready Relay Output for DS200 Control Architecture

The GE DS200TCQRG1RFC is a relay output board engineered for deployment within GE’s DS200 distributed control system (DCS) architecture, widely used in turbine control, power generation, and heavy industrial process automation. Rather than functioning as a standalone component, the DS200TCQRG1RFC is designed to operate as an integral node within a layered automation hierarchy — coordinating signal execution between the control layer, I/O layer, and field device layer to ensure deterministic, reliable output switching across demanding industrial environments.

In a complete DS200 control system, the DS200TCQRG1RFC occupies the output execution layer, receiving discrete command signals from the central processing unit and converting them into relay contact closures that actuate field devices such as solenoid valves, motor starters, alarm annunciators, and trip circuits. Its role is not isolated — it works in concert with upstream logic processors and downstream actuators to maintain system-wide response integrity, particularly in applications where output latency or contact bounce could compromise process safety or equipment protection.

Architecture Specification Table

Coordinated Control System Design

The DS200TCQRG1RFC achieves its full operational value when integrated within a complete DS200 control system rack. In a typical turbine or power plant DCS configuration, the system begins at the processor level with a DS200 CPU board such as the DS200DCFBG1A or DS200TCRAG1AAA, which executes the control logic and issues output commands via the backplane bus. The DS200TCQRG1RFC receives these commands and translates them into physical relay switching actions, providing the critical bridge between digital logic and field-level actuation.

Power integrity across the rack is maintained by dedicated power supply modules such as the DS200DPBAG1A, which distributes regulated 5 VDC and 24 VDC to all boards including the DS200TCQRG1RFC. Stable, clean power is essential for relay output boards, as voltage fluctuations can cause false trips or contact chatter — both of which are unacceptable in turbine protection or process shutdown applications.

On the input side, analog and digital signals from field transmitters and sensors are conditioned and acquired by companion I/O boards such as the DS200TCDAG1A (analog input) and DS200TCDAH1BHD (digital input), feeding real-time process data to the CPU for logic evaluation. The DS200TCQRG1RFC then executes the resulting output decisions — closing or opening relay contacts to command actuators, trip relays, or alarm circuits in the field.

For applications requiring communication with supervisory SCADA systems or distributed HMI platforms, the DS200 architecture incorporates communication gateway modules such as the DS200TCQCG1A or Ethernet-capable interface boards that bridge the DS200 backplane to Modbus TCP, Profibus, or proprietary GE communication protocols. This ensures that the relay output states driven by the DS200TCQRG1RFC are fully visible and auditable at the supervisory level, supporting both real-time monitoring and historical event logging.

In redundant system designs — common in power generation and critical process industries — the DS200TCQRG1RFC may be deployed in parallel with a redundant output board configuration, where a secondary board such as the DS200TCQRG1A variant stands by to assume output control in the event of a primary board fault. This redundancy architecture, combined with the DS200’s built-in diagnostics, ensures that relay output availability meets the high-availability requirements of continuous process operations.

Terminal interface and field wiring are managed through compatible terminal boards and I/O terminal modules that connect to the DS200TCQRG1RFC’s output contacts, providing screw-terminal or spring-clamp field wiring points that simplify installation, commissioning, and future maintenance without disturbing the board itself.

Application in Layered Automation Systems

The DS200TCQRG1RFC is deployed across a wide range of industrial sectors where GE’s DS200 and Mark V control platforms are the established standard. In power generation — including gas turbines, steam turbines, and combined-cycle plants — the board provides the relay output switching required for turbine trip circuits, fuel valve control, lube oil system commands, and generator protection relay actuation. Its relay-isolated outputs ensure that high-voltage field circuits remain electrically separated from the low-voltage control electronics, protecting both the control system and field personnel.

In petrochemical and refinery applications, the DS200TCQRG1RFC supports compressor control systems, emergency shutdown (ESD) relay outputs, and process valve actuation within DCS architectures that demand high reliability and long mean-time-between-failure (MTBF) performance. The board’s compatibility with the DS200 rack system allows it to be integrated into existing control cabinets without requiring panel redesign, reducing retrofit costs and engineering time.

For water treatment and municipal utility systems, the relay output board drives pump motor starters, valve actuators, and alarm relay panels within SCADA-integrated DS200 control systems. Its deterministic output response and relay isolation make it suitable for both normal operational switching and emergency response scenarios.

In mining and metallurgical facilities, where control systems must operate reliably in high-vibration, high-dust, and wide-temperature environments, the DS200TCQRG1RFC’s industrial-grade construction and rack-mounted installation provide the mechanical and electrical robustness required for continuous operation. Conveyor control, crusher motor commands, and process interlock relay outputs are typical applications in this sector.

Packaging and discrete manufacturing lines that have standardized on GE DS200 control platforms benefit from the DS200TCQRG1RFC’s ability to interface with machine safety relays, pneumatic valve solenoids, and production line interlock circuits — all within the same DS200 rack architecture used for the broader machine control system.

Architecture Engineering FAQ

Q1: Is the DS200TCQRG1RFC compatible with both DS200 DCS and Mark V turbine control system racks?
The DS200TCQRG1RFC is designed for the GE DS200 series rack and backplane architecture, which is the hardware foundation shared by both the DS200 DCS platform and the Mark V turbine control system. Compatibility depends on the specific rack configuration, backplane revision, and slot assignment within your system. It is recommended to verify the board’s position assignment and backplane connector pinout against your system’s engineering drawings before installation. ZYPLC’s technical team can assist with compatibility verification prior to order confirmation.

Q2: Can the DS200TCQRG1RFC be installed and commissioned without taking the entire control system offline?
In most DS200 and Mark V architectures, individual I/O boards including relay output boards can be replaced or installed during planned maintenance windows with the rack powered down at the slot level, depending on the system’s hot-swap capability and the specific rack revision. For systems with redundant output configurations, switchover to the standby board may allow the primary slot to be serviced without full system shutdown. Always follow GE’s installation and commissioning procedures and consult your system’s safety interlock requirements before performing any board-level work on a live control system.

Q3: What does the 12-Month Warranty cover for the DS200TCQRG1RFC, and what support is available during the warranty period?
The DS200TCQRG1RFC supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. The warranty period begins from the date of shipment. During the warranty period, ZYPLC provides technical support for installation guidance, fault diagnosis, and board-level troubleshooting. In the event of a confirmed warranty claim, ZYPLC will arrange repair or replacement in accordance with the agreed terms. For warranty inquiries or technical support, contact ZYPLC at +86 19859288691 or [email protected].
