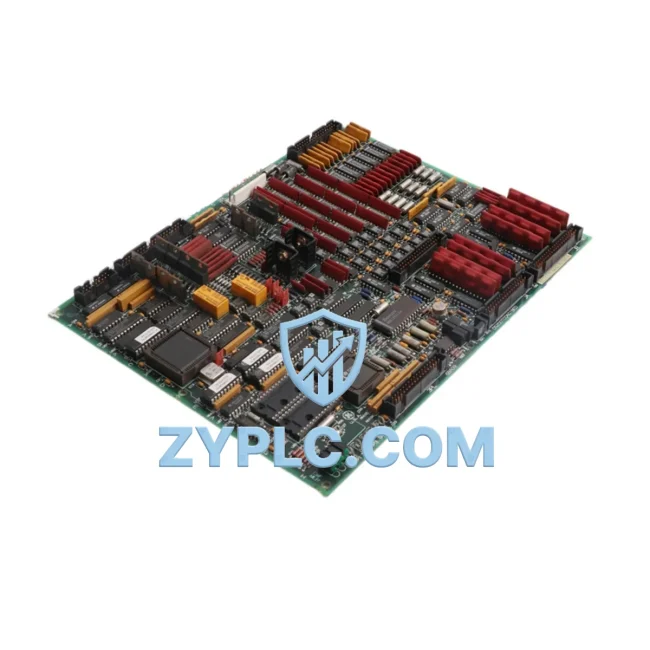

The GE DS215TCQAG1BZZ01A is a dedicated Analog I/O Board engineered for seamless integration within the GE Speedtronic Mark V turbine control platform. Rather than functioning as a standalone component, this board occupies a critical position within the layered control architecture — bridging the gap between field-level instrumentation and the central processing logic of the Mark V system. Its role spans signal acquisition, conditioning, and transmission across the I/O layer, ensuring that real-time process variables are accurately delivered to the CPU modules for decision-making and closed-loop control.

In a complete Speedtronic Mark V control system, the DS215TCQAG1BZZ01A operates in close coordination with the DS200TCQAG1BDD and DS215TCDAG1BZZ01A boards, which handle complementary analog and digital I/O functions within the same rack assembly. The board interfaces directly with the DS200TCRAG1AHD terminal board, which provides the physical connection points for field wiring — thermocouples, RTDs, 4–20 mA transmitters, and voltage signals. This terminal-to-I/O-board pairing is fundamental to maintaining signal integrity and reducing noise in high-vibration turbine environments.

At the control layer, the DS215TCQAG1BZZ01A feeds processed analog data to the DS200TCPSG1A processor board, which executes the turbine sequencing and protection logic. The processor board communicates with redundant counterparts through the Mark V’s internal VME-based backplane, ensuring that any single-board failure does not interrupt control continuity. This redundancy architecture — supported by the DS200TCQCG1B and associated I/O expansion boards — is a defining feature of the Mark V platform and one that the DS215TCQAG1BZZ01A is specifically designed to support.

From a network and communications perspective, the Mark V system relies on the DS200SLCCG1AFG LAN communication board to transmit operational data to SCADA systems, DCS interfaces, and HMI workstations. The analog values captured by the DS215TCQAG1BZZ01A — including exhaust temperatures, fuel flow rates, compressor inlet pressures, and vibration amplitudes — are routed through this communication layer to operator displays and historian databases. This ensures that plant engineers have real-time visibility into turbine performance without compromising the deterministic response of the control loop.

Power distribution within the Mark V enclosure is managed by the DS200TCPSG1A power supply module, which provides regulated DC voltages to all boards in the rack. The DS215TCQAG1BZZ01A is designed to operate within the voltage tolerances specified for the Mark V platform, and its low power consumption profile contributes to the overall thermal management of the control cabinet. In installations where redundant power feeds are required, the system supports dual-supply configurations that protect against single-point power failures.

For human-machine interface integration, the Mark V platform connects to Cimplicity HMI workstations via the LAN communication board, providing operators with graphical representations of the analog signals processed by the DS215TCQAG1BZZ01A. Alarm management, trend logging, and setpoint adjustment are all performed through this HMI layer, with the I/O board serving as the foundational data source for all analog process variables displayed on the operator screen.

At the execution layer, the analog outputs generated or relayed by the DS215TCQAG1BZZ01A drive actuators, control valves, and variable-speed drives that regulate fuel flow, inlet guide vane position, and cooling system operation. The accuracy and resolution of the analog signals produced by this board directly influence the precision of turbine speed control, load sharing between parallel units, and emissions compliance in gas turbine power generation applications.

From an engineering and maintenance perspective, the DS215TCQAG1BZZ01A is designed for straightforward replacement within the Mark V rack. Its board-level diagnostics, accessible through the Mark V’s built-in self-test routines, allow maintenance engineers to isolate faults to the I/O layer without removing the unit from service. This capability significantly reduces mean time to repair (MTTR) in critical power generation and industrial process applications, where unplanned downtime carries substantial operational and financial consequences.

ZYPLC maintains verified stock of the DS215TCQAG1BZZ01A with full functional testing completed prior to shipment. Each unit is covered by a 12-Month Warranty and ships with documentation supporting Contextual Integration into existing Mark V architectures — including wiring diagrams, rack positioning guidance, and compatibility notes for adjacent boards. Our inventory supports urgent replacement requirements across gas turbine power plants, combined-cycle facilities, compressor stations, and industrial process control installations worldwide.

Architecture Specification Table

Coordinated Control System Design

The DS215TCQAG1BZZ01A achieves its full performance potential when deployed within a complete and properly configured Mark V control system. In a typical gas turbine installation, the board operates alongside the DS200TCQAG1BDD analog I/O companion board and the DS215TCDAG1BZZ01A digital I/O board, which together provide comprehensive signal coverage across the turbine’s instrumentation network. The DS200TCRAG1AHD terminal board serves as the field-wiring interface, connecting the DS215TCQAG1BZZ01A to the physical sensors and transmitters installed on the turbine skid.

Processor-level coordination is handled by the DS200TCPSG1A processor board, which receives conditioned analog data from the I/O layer and executes the turbine’s control algorithms in real time. The DS200SLCCG1AFG LAN communication board extends this data to the plant network, enabling integration with SCADA, DCS, and historian systems. For installations requiring enhanced redundancy, the DS200TCQCG1B provides additional I/O capacity and supports the Mark V’s triple-redundant voting architecture, where three independent control paths compare outputs to detect and isolate faults before they affect turbine operation.

Power integrity across the rack is maintained by the Mark V power supply module, and the DS200TCPSG1A ensures that all boards — including the DS215TCQAG1BZZ01A — receive stable, regulated voltages within the specified operating range. This coordinated power and signal architecture is what enables the Mark V platform to achieve the high availability and reliability demanded by continuous-duty power generation and industrial process applications.

Application in Layered Automation Systems

The DS215TCQAG1BZZ01A finds application across a broad range of industries where the GE Speedtronic Mark V platform is deployed as the primary turbine or compressor control system. In gas turbine power generation, the board processes exhaust temperature arrays, compressor discharge pressures, and fuel control signals that are essential for load regulation and emissions compliance. In combined-cycle power plants, it supports the coordination between gas turbine, heat recovery steam generator (HRSG), and steam turbine control systems, where analog signal accuracy directly affects plant efficiency and grid stability.

In oil and gas pipeline compression stations, the DS215TCQAG1BZZ01A monitors and controls the analog parameters of gas turbine-driven compressors, including suction and discharge pressures, flow rates, and bearing temperatures. Its reliable analog signal processing ensures that compressor surge protection and anti-surge control systems respond accurately to changing pipeline conditions. In petrochemical and refinery applications, the board supports process control loops where turbine-driven pumps and compressors must maintain precise flow and pressure setpoints across varying load conditions.

For industrial power generation in mining, cement, and steel manufacturing facilities, the DS215TCQAG1BZZ01A provides the analog I/O infrastructure needed to integrate turbine control with plant-wide DCS systems. Its compatibility with the Mark V’s communication architecture allows seamless data exchange with Modbus, Profibus, and Ethernet-based plant networks, supporting the transition from legacy control systems to modern integrated automation platforms.

Architecture Engineering FAQ

Q1: Is the DS215TCQAG1BZZ01A compatible with both the Mark V R Panel and S Panel configurations?
A: Yes. The DS215TCQAG1BZZ01A is designed for use within the GE Speedtronic Mark V platform and is compatible with R, S, and T Panel rack configurations. The board uses the standard VME card-edge interface common to all Mark V rack assemblies. When replacing an existing board, verify the rack slot assignment and jumper configuration against the original system documentation to ensure correct channel mapping and signal routing. ZYPLC provides Contextual Integration documentation with each unit to support this verification process.

Q2: Can the DS215TCQAG1BZZ01A be installed without taking the turbine offline?
A: In Mark V systems configured with triple-redundant control paths (R, S, T panels), it is possible to replace an I/O board in one panel while the other two panels maintain turbine control. However, this procedure requires careful coordination with the turbine OEM’s maintenance guidelines and should only be performed by qualified control system engineers. ZYPLC recommends reviewing the Mark V maintenance manual and consulting with a GE-certified service provider before attempting hot-swap replacement. Our technical team can provide board-level documentation to support pre-replacement planning.

Q3: What does the 12-Month Warranty cover, and what support is available for integration issues?
A: The 12-Month Warranty covers functional defects identified during normal operation in a correctly configured Mark V system. Each DS215TCQAG1BZZ01A unit shipped by ZYPLC undergoes full functional testing prior to dispatch, including analog channel verification and backplane interface checks. If integration issues arise during installation, our technical support team provides Contextual Integration assistance — including wiring guidance, rack positioning advice, and compatibility verification with adjacent boards such as the DS200TCRAG1AHD terminal board and DS200TCPSG1A processor board. Contact us at [email protected] or +86 19859288691 for post-sale technical support.
