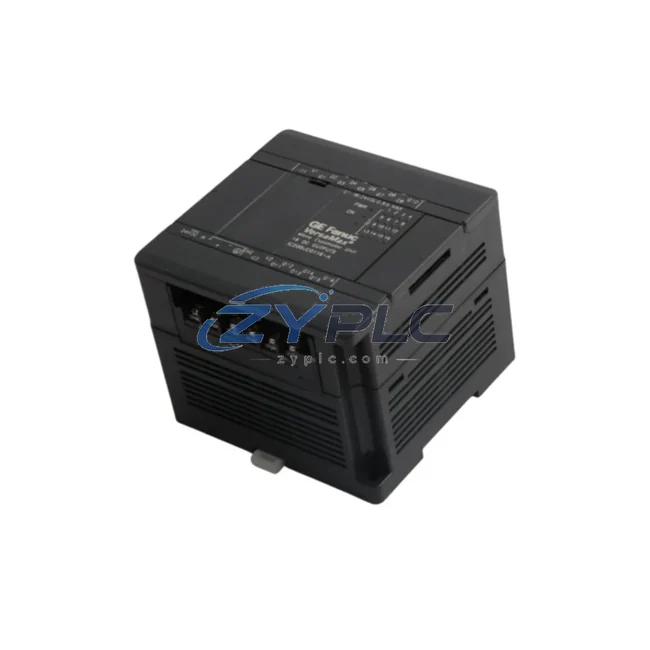

GE IC200UEO116 PLC Output Module VersaMax

GE IC200UEO116 PLC Output Module for VersaMax Automation

The GE IC200UEO116 is a high-density discrete output module engineered for the GE VersaMax distributed I/O platform. Designed to meet the rigorous demands of modern industrial automation, this module delivers precise, low-latency output switching that directly contributes to reduced unplanned downtime, improved motor control response, and optimized production line throughput. Whether deployed in a standalone machine cell or integrated into a plant-wide SCADA architecture, the IC200UEO116 serves as a critical execution node in any maintenance-focused control strategy.

In today’s manufacturing environment, energy efficiency is no longer a secondary consideration — it is a core KPI. The IC200UEO116 enables engineers to implement tighter control loops, reduce idle-state power draw, and synchronize output actuation with real-time process feedback. When paired with upstream controllers such as the GE IC200CPUE05 CPU module or the GE IC200PWR002 power supply, the system achieves a coherent, low-overhead control architecture that minimizes unnecessary switching cycles and associated energy losses.

Product Specification Table

System Compatibility and Application

The IC200UEO116 does not operate in isolation — its true value emerges when integrated into a well-designed industrial automation system. In a typical VersaMax deployment, the module receives command signals from a GE IC200CPUE05 or IC200CPUE01 CPU, which executes ladder logic or function block programs optimized for energy-conscious sequencing. The CPU’s scan cycle can be tuned to reduce unnecessary output toggling, directly lowering the cumulative switching energy across a production shift.

On the drive side, the IC200UEO116 output channels are commonly wired to the enable and direction inputs of GE AF-600FP series variable frequency drives (VFDs). By coordinating discrete output signals with VFD speed references, engineers can implement soft-start and ramp-down sequences that eliminate inrush current spikes — one of the most significant sources of unplanned downtime in motor-driven systems. The result is a measurable reduction in peak demand charges and extended motor service life.

For power quality monitoring, the IC200UEO116 architecture is often complemented by GE EPM 7000 or EPM 9900 series power meters, which provide real-time kWh, kVAR, and power factor data back to the control system via Modbus RTU or Ethernet/IP. This closed-loop feedback allows the PLC program to dynamically adjust output scheduling based on actual operating load — a capability that transforms a standard I/O module into an active participant in plant-level maintenance planning.

Communication integrity is maintained through GE IC200BEM003 Ethernet interface modules or IC200PBI001 PROFIBUS adapters, enabling the VersaMax rack to exchange real-time status and diagnostic data with upstream MES or SCADA platforms. This connectivity supports predictive maintenance workflows: when output channel diagnostics indicate abnormal load conditions, maintenance teams can intervene before a fault causes unplanned downtime — preserving both energy efficiency and production continuity.

On the human-machine interface layer, operators interact with the system through GE QuickPanel+ HMI terminals, which display live output status, operating load trends, and alarm histories. This visibility empowers line supervisors to identify inefficient operating patterns — such as outputs held active during scheduled breaks — and implement corrective logic directly in the PLC program.

Maintenance and Replacement Notes

Consider a mid-scale automotive parts assembly line where the IC200UEO116 manages 16 discrete outputs controlling pneumatic valve banks, conveyor zone enables, and indicator stack lights. In a conventional, non-optimized configuration, many of these outputs remain energized throughout the shift regardless of actual production demand. By implementing output scheduling logic in the GE IC200CPUE05 CPU — triggered by upstream sensor inputs wired through a companion GE IC200MDL650 discrete input module — the system can de-energize idle zones during micro-stoppages and scheduled breaks.

Field data from similar deployments indicates that demand-based output control of this type can reduce auxiliary system operating load by 8–15% per shift, depending on line configuration and product mix. Over a three-shift operation, this translates to meaningful reductions in monthly electricity costs and a corresponding decrease in carbon intensity per unit produced.

Maintenance cost reduction is equally significant. The IC200UEO116’s channel-level diagnostics, accessible via the VersaMax rack’s backplane communication, allow the control system to log output cycle counts and load current anomalies. When integrated with a CMMS through the GE IC200BEM003 Ethernet module, these diagnostics feed directly into predictive maintenance schedules — replacing time-based replacement intervals with condition-based interventions that extend component life and reduce spare parts consumption.

Every IC200UEO116 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including output channel verification under rated load conditions. Stock is maintained for rapid dispatch, supporting both planned maintenance replacements and emergency breakdown scenarios. All units are covered by a warranty terms confirmed during quotation, providing procurement teams with the confidence to standardize on this module across multiple production lines.

Product Sourcing FAQ

Q1: How does the IC200UEO116 contribute to measurable operational stability on the production floor?
The IC200UEO116 enables demand-based output control, allowing the PLC program to de-energize non-critical loads during idle periods, micro-stoppages, and scheduled breaks. When combined with VFD coordination via GE AF-600FP drives and real-time power monitoring through GE EPM series meters, the module becomes an active element in a closed-loop maintenance planning system rather than a passive switching device.

Q2: Is the IC200UEO116 compatible with existing GE PACSystems or third-party control platforms?
The IC200UEO116 is natively compatible with the GE VersaMax distributed I/O platform and can be integrated into GE PACSystems RX3i architectures using the appropriate remote I/O adapter. For third-party PLC platforms, compatibility depends on the communication protocol supported — Modbus RTU and PROFIBUS DP interfaces are available through GE IC200BEM and IC200PBI adapter modules.

Q3: What is the recommended replacement and testing procedure when substituting an IC200UEO116 in a live production environment?
ZYPLC recommends a hot-swap procedure where feasible: power down the affected rack segment, replace the module, restore power, and verify output channel status via the HMI or programming terminal before resuming production. Each ZYPLC-supplied IC200UEO116 is pre-tested under load conditions, reducing commissioning time. Full channel verification should be completed within the first 24 hours of operation as part of standard acceptance testing.

Q4: What does the warranty terms confirmed during quotation cover, and how is a warranty claim processed?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact ZYPLC with the unit serial number, purchase date, and a description of the observed fault. Replacement units are dispatched from stock to minimize production downtime.
