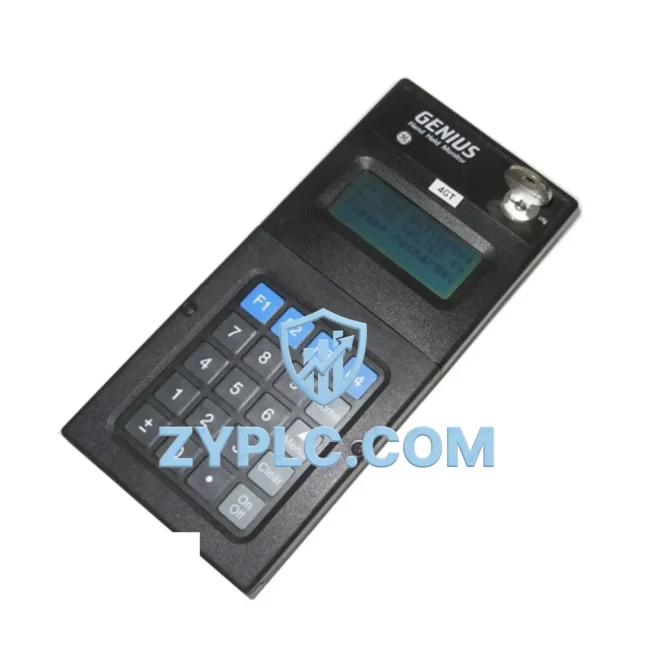

GE IC660HHM501 Hand Held Monitor for Genius I/O

GE IC660HHM501 Hand Held Monitor for Genius I/O

The GE IC660HHM501 Hand Held Monitor is a purpose-built diagnostic and configuration tool designed to operate within the full-stack Genius I/O control system architecture developed by GE Automation (now part of Emerson). Rather than functioning as a standalone instrument, the IC660HHM501 is engineered to integrate seamlessly across the control layer, I/O layer, network layer, and maintenance layer of a distributed automation system. Its role is to provide field engineers and system integrators with direct, real-time access to block-level diagnostics, configuration parameters, and fault data without interrupting live process operations.

In a layered automation architecture, the IC660HHM501 connects directly to the Genius Bus — the serial communications backbone that links I/O blocks, bus controllers, and the host PLC or DCS. This direct bus access allows the monitor to interrogate individual I/O blocks, read analog and discrete signal states, verify configuration registers, and push parameter updates to field devices. The result is a significant reduction in commissioning time and a more structured approach to long-term maintenance across complex, multi-drop bus topologies.

The IC660HHM501 is fully compatible with the broader GE Genius I/O product family. In a typical system deployment, it works alongside components such as the IC660BBA020 (Genius Bus Controller), IC660BBD024 (Discrete I/O Block), IC660BBA101 (Analog Input Block), IC660BBD101 (Discrete Output Block), and IC660TBD024 (Terminal Assembly). On the control side, the monitor supports systems hosted by GE Series 90-70 CPUs such as the IC697CPU772 and IC697CPU781, as well as Series 90-30 controllers including the IC693CPU374. For redundant bus architectures, the IC660HHM501 can be used to verify dual-bus configurations and confirm that both primary and secondary bus paths are operating correctly — a critical step in high-availability process environments.

From a system architecture perspective, the IC660HHM501 addresses a key challenge in distributed I/O design: the need to access and verify individual field devices without requiring a laptop, programming software, or network connectivity. By connecting directly to the Genius Bus via its built-in interface cable, the monitor provides immediate block identification, I/O status readout, and configuration verification. This capability is especially valuable during initial system commissioning, where verifying each I/O block’s address, data format, and signal range is essential before handing over to operations.

The monitor also plays an important role in fault isolation and predictive maintenance. When a process alarm is triggered, field technicians can use the IC660HHM501 to walk the bus, identify the specific block reporting the fault, and determine whether the issue is a wiring fault, a configuration mismatch, or a hardware failure — all without removing the block from service. This non-intrusive diagnostic capability reduces mean time to repair (MTTR) and supports the kind of structured maintenance workflows required in regulated industries such as power generation, petrochemical processing, and water treatment.

In terms of system integration, the IC660HHM501 supports system integration with the host control platform. Configuration data read from the bus can be cross-referenced against the PLC program to verify that field device parameters match the engineering design. This is particularly important in systems where the Genius Bus is interfaced to a DCS via a GE Series 90-70 rack with a Genius Bus Controller (IC660BBA020) installed in a standard 9-slot or 12-slot VME backplane. The monitor’s ability to read and write block parameters in real time ensures that the control system remains in a known, verified state throughout its operational lifecycle.

Product Specification Table

System Compatibility Notes

The IC660HHM501 is most effective when deployed as part of a coordinated Genius I/O system rather than as an isolated diagnostic tool. In a full system deployment, the monitor interacts with the following components across multiple architecture layers:

At the control layer, the host CPU — such as the IC697CPU772 (GE Series 90-70) or IC693CPU374 (GE Series 90-30) — executes the control program and communicates with the Genius Bus via a dedicated bus controller. The IC660HHM501 allows engineers to verify that the CPU’s I/O configuration matches the physical block layout on the bus, reducing the risk of address conflicts or data format mismatches during commissioning.

At the I/O layer, the monitor communicates directly with discrete and analog I/O blocks including the IC660BBD024 (16-point discrete I/O), IC660BBA101 (analog input), and IC660BBD101 (discrete output). Each block’s bus address, data format, and signal status can be read and verified in real time, supporting both initial setup and ongoing maintenance.

At the network layer, the IC660BBA020 Genius Bus Controller manages communication between the host CPU and the distributed I/O blocks. The IC660HHM501 can be used to verify bus controller configuration, check bus scan rates, and confirm that all blocks are responding correctly on the network.

At the power layer, Genius I/O systems typically use dedicated 24VDC or 120VAC power supplies to energize I/O blocks and field devices. The monitor’s bus-powered operation means it does not add load to the field power supply, making it safe to use in power-sensitive installations.

At the terminal and wiring layer, terminal assemblies such as the IC660TBD024 provide the physical connection point between field wiring and I/O blocks. The IC660HHM501 can verify signal states at the block level, helping engineers confirm that field wiring is correctly terminated and that signals are being read accurately by the I/O system.

Industrial Application Notes

The GE IC660HHM501 is deployed across a wide range of industrial automation environments where Genius I/O systems form the backbone of the control architecture:

Power Generation & Utilities: In turbine control and boiler management systems, the IC660HHM501 is used to verify I/O block configurations during planned outages and to perform rapid fault isolation when process alarms occur. Its ability to access the Genius Bus without interrupting the host CPU makes it particularly valuable in high-availability power plant environments.

Petrochemical & Refinery Processing: In continuous process plants, where unplanned downtime carries significant financial and safety consequences, the IC660HHM501 supports structured preventive maintenance programs. Field technicians can walk the bus during scheduled inspections, verify block health, and identify degraded components before they cause process upsets.

Water & Wastewater Treatment: Municipal water treatment facilities using GE Series 90-30 or Series 90-70 PLCs rely on the IC660HHM501 to maintain accurate I/O configurations across geographically distributed pump stations and treatment units. The monitor’s portability makes it well-suited for use across multiple remote sites served by a single maintenance team.

Mining & Metals Processing: In conveyor control, crusher management, and ore processing systems, the IC660HHM501 provides a reliable means of diagnosing I/O faults in harsh environments where vibration, dust, and temperature extremes can affect field device performance. Its rugged handheld design supports use in areas where laptop-based diagnostics are impractical.

Packaging & Discrete Manufacturing: On high-speed packaging lines and assembly systems, the IC660HHM501 is used during changeovers and maintenance windows to verify I/O block configurations and confirm that all field devices are correctly mapped to the control program. This reduces the risk of configuration errors that could cause product quality issues or line stoppages.

Product Compatibility FAQ

Q1: Is the IC660HHM501 compatible with all GE Genius I/O bus controllers and I/O block types?
The IC660HHM501 is designed to work with the full range of GE Genius I/O blocks and bus controllers, including discrete, analog, and specialty I/O blocks connected to the Genius Bus. It is compatible with bus controllers such as the IC660BBA020 and supports systems hosted by GE Series 90-70 and Series 90-30 PLCs. For specific compatibility with older Series Six or Series Five systems, we recommend verifying the firmware revision of the bus controller before deployment.

Q2: Can the IC660HHM501 be used on a live production system without interrupting the control program?
Yes. The IC660HHM501 connects directly to the Genius Bus and operates as a passive monitoring device in read mode. It can read block status, I/O data, and configuration parameters without interrupting the host CPU’s scan cycle or the bus communication. Write operations (parameter configuration) should be performed during a maintenance window or with the affected I/O block taken out of service, in accordance with your site’s management of change procedures.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration questions?
The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions from the date of shipment. It includes replacement or repair of the unit at no additional cost. For system integration questions — including compatibility verification, bus configuration guidance, and architecture design support — our technical team is available via the contact details below. All units are tested prior to shipment to verify full functionality against GE’s original specifications.
