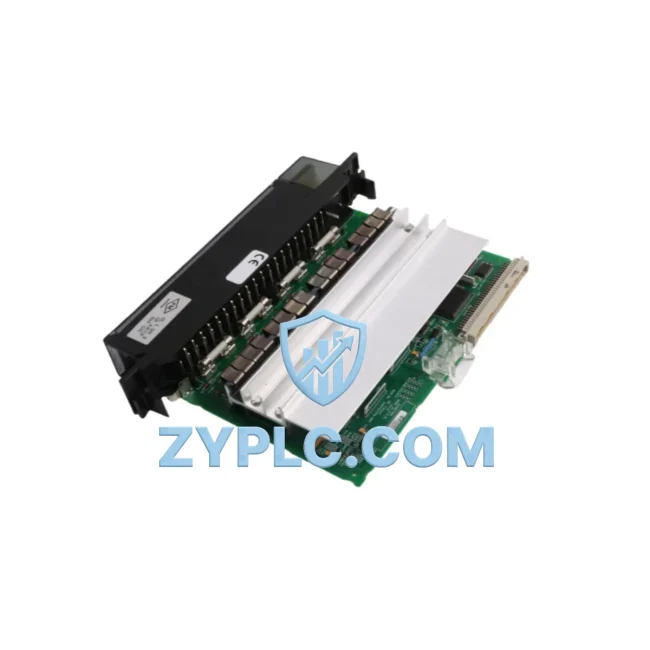

GE IC697MDL740 System-Ready Discrete Output Module for Series 90-70 Architecture

GE IC697MDL740 System-Ready Discrete Output Module: Control Architecture Coordination for Series 90-70 Systems

The GE IC697MDL740 is a high-density discrete output module engineered for seamless integration within the GE Series 90-70 programmable logic controller architecture. Designed to operate as a critical node in the output layer of a distributed control system, this module delivers reliable signal switching across industrial environments where uptime, signal integrity, and system scalability are non-negotiable. Whether deployed in a standalone rack configuration or as part of a multi-rack, multi-CPU redundant architecture, the IC697MDL740 provides the output density and electrical performance required to sustain continuous process operations.

In a fully layered automation system, the IC697MDL740 occupies the I/O execution layer — the point at which control logic decisions are translated into physical actuation commands. It receives discrete output signals from the CPU module, such as the IC697CPU772 or IC697CPU782, processes them through its internal output driver circuitry, and delivers switched DC or relay-compatible signals to field devices including solenoid valves, motor starters, indicator lamps, and relay coils. This direct coupling between the control layer and the execution layer is what makes the IC697MDL740 indispensable in high-cycle, high-reliability applications.

Architecture Specification Table

Coordinated Control System Design

The IC697MDL740 does not function in isolation — its value is realized through its role within a coordinated, multi-layer control architecture. In a typical Series 90-70 system deployment, the module shares a rack with the IC697PWR711 or IC697PWR724 power supply module, which provides stable backplane voltage to all installed modules. The CPU module — commonly the IC697CPU772 — executes the ladder logic or function block programs stored in battery-backed RAM, and communicates output commands to the IC697MDL740 via the VME backplane bus at each scan cycle.

For applications requiring expanded I/O capacity beyond a single rack, the IC697MDL740 can be deployed in remote expansion racks connected via the IC697BEM711 bus expansion module or through a IC697CMM711 communications module supporting Genius Bus or Ethernet connectivity. This allows the output module to serve field devices located at distances from the main control cabinet without compromising scan time or signal fidelity.

In redundant CPU architectures — common in power generation, water treatment, and petrochemical applications — the IC697MDL740 operates in conjunction with a redundant CPU pair such as the IC697CPU782 with hot-standby failover. The output module continues to receive valid output commands from the active CPU, while the standby CPU maintains a synchronized image of the output table. Should a CPU fault occur, the standby assumes control within milliseconds, and the IC697MDL740 continues switching field outputs without interruption.

At the human-machine interface layer, operator stations running GE’s Proficy HMI/SCADA or third-party SCADA platforms communicate with the Series 90-70 CPU via Ethernet or serial links. The output states driven by the IC697MDL740 are reflected in real time on operator displays, enabling process engineers to monitor actuator states, acknowledge alarms, and issue manual override commands without direct access to the control cabinet. This closed-loop visibility between the HMI layer and the I/O execution layer is a cornerstone of modern industrial control system design.

For installations requiring analog and discrete I/O in the same rack, the IC697MDL740 coexists with analog output modules such as the IC697ALG320 and analog input modules such as the IC697ALG230, sharing the same backplane and power budget. This mixed-signal rack configuration reduces cabinet footprint, simplifies wiring, and consolidates maintenance access — all critical factors in high-density control panel design.

Application in Layered Automation Systems

The IC697MDL740 has been deployed across a broad spectrum of industrial sectors where discrete output control is a fundamental requirement of the process architecture.

In manufacturing and assembly automation, the module drives pneumatic solenoid valves, conveyor motor starters, and part-presence indicator lamps across high-speed production lines. Its 32-channel density allows a single module to control an entire assembly station, reducing rack slot consumption and simplifying the I/O mapping process during commissioning.

In electrical power distribution and substation automation, the IC697MDL740 is used to issue switching commands to circuit breakers, disconnect switches, and protection relay trip coils. The optical isolation between the logic side and the field side ensures that high-voltage transients on the field wiring do not propagate into the CPU backplane, protecting the integrity of the control system during fault events.

In petrochemical and refinery process control, the module participates in emergency shutdown (ESD) logic by driving shutdown solenoids and process isolation valves. When integrated with a redundant CPU architecture and a UPS-backed power supply, the IC697MDL740 contributes to a safety-instrumented system (SIS) layer that meets the response time and availability requirements of SIL-rated applications.

In water and wastewater treatment facilities, the module controls pump motor starters, valve actuators, and chemical dosing systems across distributed pump stations. Its compatibility with remote I/O expansion via the Genius Bus allows a single Series 90-70 CPU to manage output points distributed across multiple physical locations within a treatment plant.

In mining and mineral processing, the IC697MDL740 is deployed in conveyor control systems, crusher interlock circuits, and ventilation fan control panels. The module’s robust operating temperature range and vibration tolerance make it suitable for installation in control rooms adjacent to heavy machinery environments.

In packaging and material handling, the module drives reject gates, diverter solenoids, and label applicator triggers on high-speed packaging lines. Its deterministic scan-cycle response ensures that output switching occurs within the timing tolerances required for precise product handling at line speeds exceeding 300 units per minute.

Architecture Engineering FAQ

Q1: Is the IC697MDL740 compatible with all Series 90-70 rack configurations, and can it be mixed with other I/O module types in the same rack?
Yes. The IC697MDL740 is fully compatible with all standard Series 90-70 rack chassis, including the IC697CHS750 (5-slot), IC697CHS782 (9-slot), and IC697CHS790 (12-slot) configurations. It can be installed in any I/O slot within the rack and coexists with discrete input modules, analog I/O modules, and communications modules sharing the same backplane. Slot assignment is configured through the GE Proficy Machine Edition programming environment, where each module’s I/O reference address is mapped to the CPU’s output table.

Q2: How does the IC697MDL740 support long-term maintenance and spare parts management in an aging Series 90-70 installation?
The IC697MDL740 is a form-fit-function replacement for existing Series 90-70 discrete output modules, meaning it can be swapped into an operational rack without requiring changes to the rack chassis, backplane wiring, or CPU program. Each unit supplied by ZYPLC is covered by a 12-Month Warranty and has been functionally tested prior to shipment. For facilities managing aging GE Series 90-70 infrastructure, maintaining a stock of tested IC697MDL740 modules reduces mean time to repair (MTTR) and eliminates the risk of extended downtime caused by obsolete module sourcing delays.

Q3: What commissioning steps are required when installing the IC697MDL740 into an existing Series 90-70 system, and how is Contextual Integration achieved?
Installation requires powering down the rack, inserting the module into the designated I/O slot, and powering the system back up. The Series 90-70 CPU performs an automatic module identification scan on startup, detecting the IC697MDL740 and comparing it against the configured I/O table stored in the CPU program. If the module type matches the configured slot assignment, the CPU immediately begins writing output data to the module — no additional configuration is required. Contextual Integration is achieved through the GE Proficy Machine Edition software, where the module’s output reference addresses are mapped to the relevant rungs of the control program, enabling the module to participate in the full control logic context from the first scan cycle.
