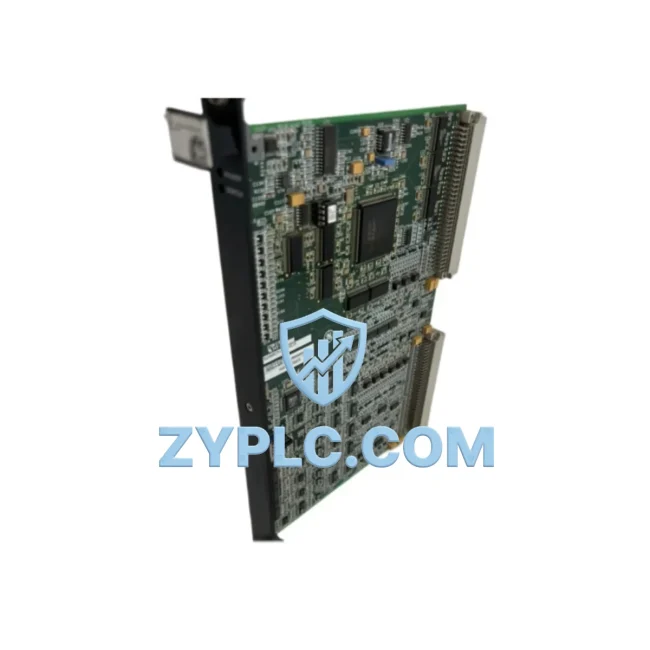

GE IS200EMIOH1ACA System-Ready Exciter I/O for IS200 Architecture

GE IS200EMIOH1ACA System-Ready Exciter I/O for IS200 Architecture: Control System Architecture and Upstream-Downstream Coordination

The GE IS200EMIOH1ACA is a critical Exciter Main I/O Board engineered for deployment within GE’s IS200 series control architecture — a platform widely adopted across power generation, turbine control, and heavy industrial automation environments. Rather than functioning as a standalone component, the IS200EMIOH1ACA occupies a defined role within a layered control hierarchy, interfacing directly with the excitation control loop while maintaining signal integrity across the broader Mark VI or Mark VIe distributed control system. Understanding its position within the full system architecture is essential for engineers responsible for commissioning, redundancy planning, and long-term maintenance strategy.

Architecture Specification Table

Coordinated Control System Design

The IS200EMIOH1ACA does not operate in isolation. Its value is realized only when properly integrated within a complete IS200 or Mark VI control system architecture. In a typical turbine control cabinet, this board works in close coordination with the IS200ESELH1A exciter selector board, which manages excitation source switching, and the IS200EPCTG1A exciter protection and control terminal board, which handles protective relay logic and trip signal routing. Together, these modules form the excitation control layer of the system.

At the processor level, the IS200EMIOH1ACA receives command signals from the IS215UCVEH2A or IS215UCVEH2B VME controller boards, which serve as the central processing units within the Mark VI rack. These controllers execute the turbine control application and issue setpoints to the excitation I/O layer via the IS200 backplane. The backplane itself — typically the IS200BPPBH1A or equivalent rack backplane assembly — provides the physical and electrical bus that connects all I/O boards, power modules, and communication interfaces within the enclosure.

Power distribution within the control cabinet is managed by dedicated IS200 series power supply modules such as the IS200PSCDH1A, which conditions and distributes 28VDC or 24VDC to all installed boards. Stable, clean power delivery is a prerequisite for reliable excitation I/O performance, particularly in environments with high electromagnetic interference such as generator halls or switchgear rooms.

For network communication and remote diagnostics, the IS200EMIOH1ACA-equipped system typically interfaces with IS200IOCIH1A or similar IONet communication interface modules, enabling real-time data exchange between the excitation control layer and the plant-level DCS or SCADA system. This Contextual Integration capability ensures that excitation status, fault codes, and setpoint feedback are continuously available to operators at the HMI layer — commonly implemented via GE’s Cimplicity HMI platform or third-party SCADA systems connected through OPC-DA or OPC-UA gateways.

Terminal connectivity for field wiring is managed through associated terminal boards such as the IS200TBAIH1C or IS200TBCIH1C, which provide screw-terminal or plug-in connector interfaces for analog and digital I/O signals from the generator exciter field. Proper termination and cable shielding at this layer directly affects signal quality at the IS200EMIOH1ACA input stage.

Application in Layered Automation Systems

The IS200EMIOH1ACA finds its primary application in power generation facilities — including gas turbine plants, steam turbine stations, combined-cycle power plants, and hydroelectric installations — where GE Mark VI or Mark VIe systems are the standard control platform. In these environments, the excitation control loop is safety-critical: any degradation in I/O board performance can result in voltage instability, reactive power imbalance, or generator trip events.

Beyond power generation, the IS200 series architecture is also deployed in petrochemical compressor trains, offshore platform turbine-generator sets, and large industrial drives where generator excitation must be precisely regulated under variable load conditions. In these applications, the IS200EMIOH1ACA supports continuous operation across wide ambient temperature ranges and high-vibration environments, consistent with the ruggedized design standards of the IS200 platform.

For facilities operating redundant control architectures — such as TMR (Triple Modular Redundancy) or dual-redundant Mark VI configurations — maintaining a verified spare IS200EMIOH1ACA in inventory is a standard engineering practice. Mean time to repair (MTTR) in excitation system faults is directly reduced when a tested, warranty-backed replacement board is available on-site, avoiding extended lead times associated with OEM procurement channels.

Architecture Engineering FAQ

Q1: Is the IS200EMIOH1ACA compatible with both Mark VI and Mark VIe control systems?
The IS200EMIOH1ACA is designed for the IS200 series platform, which is primarily associated with the GE Mark VI turbine control system. Compatibility with Mark VIe configurations depends on the specific rack assembly and backplane version in use. Engineers should verify the rack part number and backplane revision against GE’s IS200 compatibility matrix before installation. Our technical team can assist with cross-reference verification prior to shipment.

Q2: How does the IS200EMIOH1ACA support long-term maintenance and system uptime?
As a field-replaceable I/O board, the IS200EMIOH1ACA is designed for hot-swap replacement in systems configured for redundant I/O operation. In non-redundant configurations, replacement requires a controlled shutdown of the excitation loop. All units supplied under our 12-Month Warranty are fully tested under simulated load conditions prior to dispatch, ensuring that replacement boards perform to original GE specifications from the moment of installation. Maintaining a spare in inventory eliminates unplanned downtime caused by board-level failures.

Q3: What documentation and support is available for commissioning the IS200EMIOH1ACA in an existing IS200 architecture?
GE provides detailed installation and commissioning guidance through the Mark VI Turbine Control System manuals, including I/O board addressing, backplane slot assignments, and IONet configuration procedures. Our team provides pre-shipment technical consultation to confirm system compatibility, and post-delivery support is available throughout the 12-Month Warranty period. Contextual Integration with existing IS200 rack configurations is supported through standard GE Toolbox software procedures.
