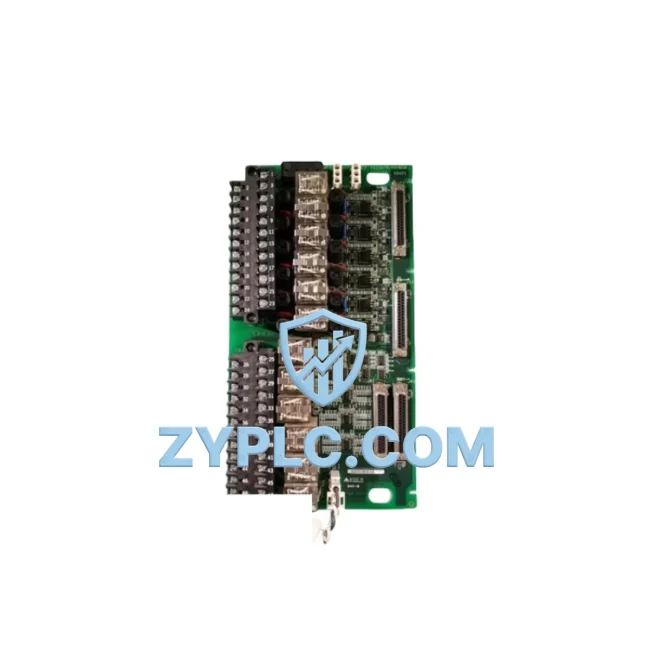

The GE IS200TRLYH1BHH is a relay terminal board engineered for seamless integration within the GE Mark VI turbine control system architecture. Designed to serve as a critical interface layer between the control processor and field-level relay outputs, this board ensures reliable signal routing, deterministic switching response, and long-term operational stability across demanding power generation and industrial automation environments. Whether deployed in gas turbine, steam turbine, or combined-cycle plant configurations, the IS200TRLYH1BHH delivers the structural consistency and electrical integrity that modern layered automation systems demand.

In a complete Mark VI control architecture, every component must perform with precision across the control layer, I/O layer, network layer, and power layer simultaneously. The IS200TRLYH1BHH occupies the relay output interface position — translating digital control commands from the Mark VI processor boards into hardwired relay switching actions that drive actuators, solenoids, alarms, and protective trip circuits. This role is foundational: without a properly functioning relay terminal board, the downstream execution layer loses its ability to respond to control logic in real time.

Architecture Specification Table

Coordinated Control System Design

The IS200TRLYH1BHH does not operate in isolation — it is one node in a tightly coordinated Mark VI control architecture. At the processor level, the IS215UCVEH2A or IS220PTURH1B turbine control processor boards generate the relay output commands that flow downstream through the I/O pack layer. I/O packs such as the IS200IOCIH2A serve as the communication bridge between the processor backplane and the terminal boards, translating digital logic into physical relay switching signals delivered to the IS200TRLYH1BHH.

On the power supply side, the IS200EPCTG1A power conditioning board and associated Mark VI power supply modules ensure that the relay terminal board receives stable, regulated voltage — a prerequisite for consistent relay coil operation and contact integrity. Voltage fluctuations or power interruptions at this layer can cause spurious relay trips or missed switching events, making power layer redundancy a key design consideration in any Mark VI installation.

For redundant architectures — common in critical turbine protection systems — the IS200TRLYH1BHH is often paired with a redundant I/O pack configuration using dual IS200IOCIH2A modules operating in hot-standby mode. This ensures that a single I/O pack failure does not interrupt relay output availability, maintaining continuous protection circuit integrity. The IS200TRLYH1BHH terminal board itself is designed to accept connections from both primary and redundant I/O paths, supporting seamless failover without manual intervention.

At the human-machine interface layer, operators monitor relay output states and turbine protection status through GE Mark VI HMI workstations running Toolbox ST or WorkstationST software. Real-time relay status, trip history, and alarm logs are displayed and archived, giving maintenance engineers full visibility into the relay output layer without requiring physical panel inspection. This integration between the IS200TRLYH1BHH relay outputs and the HMI layer is essential for rapid fault diagnosis and post-trip analysis.

Field wiring from the IS200TRLYH1BHH connects directly to actuators, solenoid valves, trip relays, and alarm annunciators in the turbine skid. Terminal blocks on the board provide clearly labeled, screw-type or spring-clamp termination points that simplify field wiring during commissioning and reduce the risk of wiring errors. When replacing or upgrading an existing IS200TRLYH1BHH, the modular terminal board design allows field wiring to remain connected while the board is swapped — minimizing turbine downtime during maintenance windows.

Application in Layered Automation Systems

The IS200TRLYH1BHH finds its primary application in power generation facilities — gas turbine plants, steam turbine stations, and combined-cycle power blocks — where the Mark VI system serves as the primary turbine control and protection platform. In these environments, relay terminal boards are responsible for driving emergency shutdown (ESD) circuits, fuel valve solenoids, lube oil pump starters, and cooling system actuators. The reliability of these relay outputs is directly linked to plant safety and regulatory compliance.

In petrochemical and refinery applications, Mark VI systems are deployed to control compressor trains, process gas turbines, and rotating equipment packages. The IS200TRLYH1BHH supports the relay output requirements of these installations, interfacing with field devices across hazardous area boundaries through appropriate isolation and barrier circuits. Its robust design tolerates the vibration, temperature variation, and electromagnetic interference typical of heavy industrial environments.

For water treatment and utility infrastructure operators who have standardized on GE Mark VI platforms for pump station or generation control, the IS200TRLYH1BHH provides a compatible, tested replacement option that avoids the cost and complexity of full system upgrades. Maintaining a spare IS200TRLYH1BHH in inventory is a recognized best practice for facilities where turbine availability is critical to operational continuity.

In mining and metals processing facilities that operate captive power generation or large rotating equipment controlled by Mark VI systems, the IS200TRLYH1BHH supports the relay output layer for motor protection, conveyor interlocks, and process shutdown circuits. Its compatibility with the broader IS200 series ecosystem means that engineering teams can source replacement boards without redesigning the control cabinet wiring or reconfiguring the Mark VI software.

Architecture Engineering FAQ

Q1: Is the IS200TRLYH1BHH compatible with both Mark VI and Mark VIe systems?
The IS200TRLYH1BHH is designed for the GE Mark VI turbine control platform. Compatibility with Mark VIe configurations depends on the specific I/O pack and backplane architecture in use. We recommend confirming your system’s I/O pack model (e.g., IS200IOCIH2A or equivalent) before ordering. Our technical team can assist with compatibility verification based on your system’s bill of materials.

Q2: What is included with the 12-Month Warranty, and what does Contextual Integration support mean?
Every IS200TRLYH1BHH shipped from ZYPLC includes a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Contextual Integration support means our team provides pre-shipment functional testing, configuration guidance, and post-installation technical assistance to ensure the board integrates correctly within your existing Mark VI architecture — reducing commissioning risk and accelerating return to service.

Q3: How should the IS200TRLYH1BHH be installed and commissioned in an existing Mark VI system?
Installation follows GE Mark VI standard procedures: power down the affected I/O pack, disconnect field wiring from the terminal board (or use the modular connector if available), remove the existing board, install the IS200TRLYH1BHH, reconnect field wiring, and restore power. After installation, verify relay output states via the Mark VI HMI or Toolbox ST diagnostic interface. All boards supplied by ZYPLC are pre-tested and shipped with inspection documentation to support your commissioning records.
