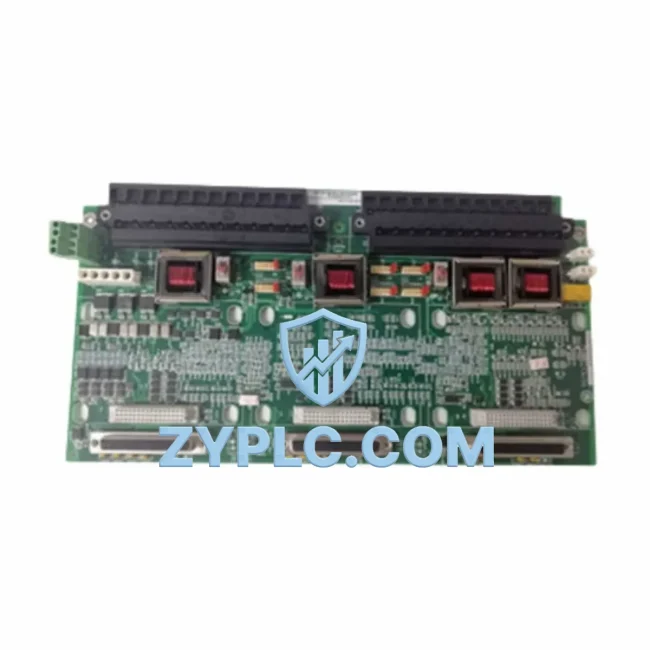

GE IS200TSVCH1A Energy-Saving I/O Terminal for Mark VI

GE IS200TSVCH1A Energy-Saving I/O Terminal Board for Optimized Mark VI Automation

The GE IS200TSVCH1A is a high-performance I/O Terminal Board engineered for the GE Mark VI turbine control platform. Designed to serve as the critical signal interface between field instrumentation and the Mark VI controller, this board plays a foundational role in reducing unnecessary energy consumption across gas turbine, steam turbine, and combined-cycle power generation facilities. By ensuring clean, low-latency signal transmission between sensors, actuators, and the control core, the IS200TSVCH1A directly contributes to tighter control loops, reduced process variability, and measurable improvements in overall plant energy efficiency.

In modern industrial energy optimization strategies, the quality of I/O signal integrity is often overlooked as a driver of energy waste. Degraded terminal connections, signal noise, or mismatched I/O mapping can cause the Mark VI controller to issue erroneous correction commands to fuel valves, inlet guide vanes, or cooling systems — each unnecessary correction cycle consuming additional energy and accelerating mechanical wear. The IS200TSVCH1A eliminates these inefficiencies by providing a robust, well-shielded terminal interface that maintains signal fidelity under demanding industrial conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200TSVCH1A does not operate in isolation — it is one node in a tightly integrated energy-aware automation architecture built around the GE Mark VI platform. Understanding how this terminal board interacts with surrounding components reveals its true contribution to plant-wide energy optimization.

At the controller level, the GE UCVEH Mark VI VME Controller processes all I/O data routed through terminal boards like the IS200TSVCH1A. The controller executes turbine sequencing logic, fuel control algorithms, and load-sharing routines that directly govern fuel consumption. When the IS200TSVCH1A delivers clean, noise-free analog signals from thermocouples and pressure transmitters, the UCVEH can make precise fuel valve adjustments — avoiding the over-fueling events that silently inflate heat rate across a generation unit.

The GE IS200VTURH1B Turbine I/O Board (VTUR) works in close coordination with the IS200TSVCH1A, handling turbine-specific I/O channels including speed pickups, flame detectors, and vibration sensors. Together, these two boards form the primary sensing layer of the Mark VI system. Accurate vibration data, for example, enables the controller to detect early-stage rotor imbalance and adjust load dispatch before a forced outage occurs — a direct contribution to equipment utilization and energy continuity.

On the communications side, the GE IS200VCMIH2C VCMI Communication Board aggregates data from multiple I/O terminal boards and transmits it to the plant DCS or historian via Ethernet or serial protocols. This data pipeline is essential for energy monitoring dashboards and real-time efficiency KPI tracking. Without reliable terminal board performance at the IS200TSVCH1A level, the VCMI cannot deliver accurate data upstream — undermining the entire energy monitoring strategy.

For power supply integrity, the GE IS200EPBAG1A Power Distribution Board ensures that all Mark VI I/O modules, including the IS200TSVCH1A, receive stable, conditioned DC power. Voltage fluctuations at the power distribution level can introduce ground loops and signal offsets at terminal boards, leading to false readings and unnecessary control corrections. A stable power architecture is therefore a prerequisite for energy-efficient I/O operation.

In facilities that have integrated the Mark VI with a broader energy management system, the GE IS200DSPXH1D Digital Signal Processor Board handles high-speed signal conditioning for fast-response control loops such as combustion dynamics monitoring. When paired with the IS200TSVCH1A’s analog termination capabilities, this combination enables sub-cycle detection of combustion instabilities — allowing the fuel control system to make micro-adjustments that reduce NOx emissions and improve thermal efficiency simultaneously.

For plants running parallel generation units, the GE IS200TREGH1B Voltage Regulator Board manages excitation control for the generator, working from setpoints derived from the Mark VI controller. Accurate terminal board data from the IS200TSVCH1A feeds into the load-sharing algorithms that balance reactive power across units — reducing circulating currents and the associated I²R losses in the generator windings.

Finally, in facilities that have upgraded to the GE Mark VIe distributed control architecture, the IS200TSVCH1A remains backward-compatible as a field termination interface, allowing plants to modernize their control logic and energy optimization algorithms without replacing the entire field wiring infrastructure — a significant capital and operational cost saving.

Power Optimization in Real Production Lines

In a typical combined-cycle power plant running two gas turbines and one steam turbine, the Mark VI system manages hundreds of I/O channels simultaneously. Each channel that passes through a terminal board like the IS200TSVCH1A represents a measurement point that influences a control decision. When terminal boards are degraded — through oxidized contacts, loose terminations, or EMI-induced signal drift — the Mark VI controller compensates by widening its control deadbands, effectively reducing the precision of fuel and air management.

A plant that replaced a faulty I/O terminal board with a tested IS200TSVCH1A unit reported a measurable reduction in fuel valve hunting — the oscillatory behavior where a valve repeatedly opens and closes around a setpoint. Valve hunting is a well-documented source of excess fuel consumption, mechanical wear on actuators, and thermal stress on combustion liners. By restoring signal integrity at the terminal board level, the control loop stabilized, valve travel was reduced, and the unit’s heat rate improved by an estimated 0.3–0.8% — a significant figure at utility scale.

From a maintenance scheduling perspective, the IS200TSVCH1A supports predictive maintenance strategies by ensuring that vibration, temperature, and pressure signals arrive at the Mark VI controller without distortion. Clean sensor data enables condition-based maintenance algorithms to accurately trend equipment health, reducing both unplanned downtime and the energy penalty associated with running degraded equipment at reduced efficiency. Plants that shift from time-based to condition-based maintenance cycles for turbine auxiliaries typically report 10–15% reductions in maintenance-related energy losses.

Shipping logistics are streamlined through ZYPLC’s in-stock inventory model. The IS200TSVCH1A is available for immediate dispatch, with pre-shipment functional testing completed on every unit. This ensures that replacement boards arrive ready to install — minimizing the duration of any forced outage and the associated energy production loss during the outage window. All units are covered by a 12-month warranty, providing operational assurance for the full post-installation commissioning and optimization period.

Energy Optimization FAQ

Q1: How does the IS200TSVCH1A contribute to energy savings in a Mark VI turbine control system?
The IS200TSVCH1A ensures high-fidelity signal transmission between field sensors and the Mark VI controller. Accurate sensor data enables tighter PID control loops, reducing fuel valve hunting, minimizing over-fueling events, and improving the overall heat rate of the turbine unit. Even marginal improvements in control loop stability translate to measurable fuel savings at industrial scale.

Q2: Is the IS200TSVCH1A compatible with both Mark VI and Mark VIe systems?
The IS200TSVCH1A is primarily designed for the GE Mark VI platform. In Mark VIe installations, compatibility depends on the specific I/O module configuration and backplane architecture. We recommend confirming your system’s I/O module assignments and terminal board slot requirements before ordering. Our technical team can assist with cross-referencing your system’s BOM.

Q3: What testing process does each IS200TSVCH1A unit undergo before shipment?
Every IS200TSVCH1A unit in our inventory undergoes functional testing prior to shipment, including signal continuity verification, terminal integrity checks, and visual inspection for component-level defects. Units that do not meet our quality standards are quarantined and not offered for sale. This process ensures that replacement boards perform to specification from the first power-on.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified for the GE Mark VI platform. If a unit fails within the warranty period, contact our support team with your order details and a description of the fault. We will arrange for a replacement unit to be dispatched promptly to minimize any impact on your plant’s operational continuity.
