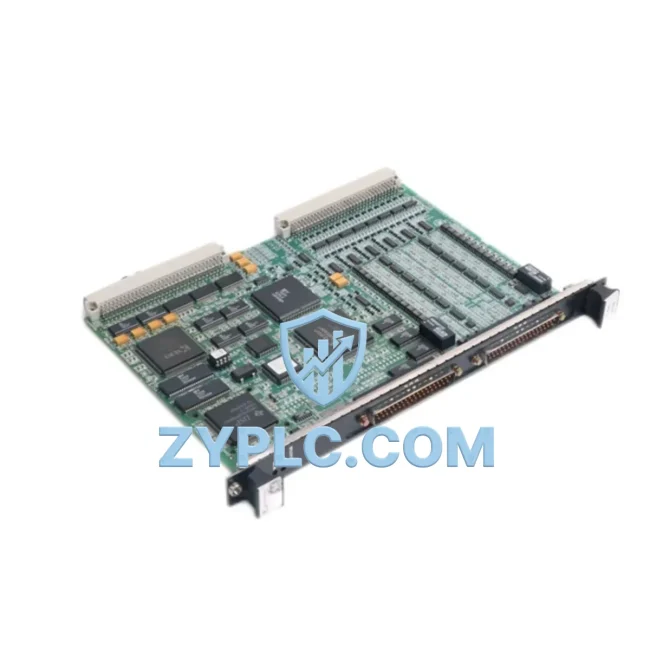

GE IS200VCRCH1B Energy-Saving Relay Output Board Mark VI

GE IS200VCRCH1B Energy-Saving Relay Output Board Mark VI: Precision Energy Control for Industrial Automation

The GE IS200VCRCH1B is a high-performance relay output board engineered for the GE Mark VI turbine control platform. Designed to deliver precise switching control with minimal power dissipation, this board plays a critical role in reducing unnecessary energy consumption across gas turbine, steam turbine, and combined-cycle power generation systems. By ensuring accurate relay actuation and eliminating spurious switching events, the IS200VCRCH1B directly contributes to improved equipment utilization rates and tighter production line rhythm in energy-intensive industrial environments.

In modern industrial facilities where energy cost management is a strategic priority, every control layer matters. The IS200VCRCH1B operates as a key execution node within the Mark VI distributed control architecture, receiving commands from the GE IS200VCMIH2C VME communication interface module and translating them into reliable relay output signals that drive field actuators, solenoid valves, and motor starters. This tight integration between the communication layer and the output execution layer minimizes control latency, reduces unnecessary actuator cycling, and supports optimized energy draw across the entire drive system.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS200VCRCH1B does not operate in isolation — its energy optimization value is fully realized when integrated within a well-designed Mark VI control architecture. In a typical turbine control cabinet, the board interfaces directly with the GE IS200VSVOH1B servo output board, which manages the high-precision positioning of fuel control valves and inlet guide vanes. Together, these two boards form the execution backbone of the turbine’s energy regulation loop: the IS200VCRCH1B handles discrete on/off switching for auxiliary systems, while the IS200VSVOH1B manages continuous analog positioning for primary energy flow control.

Upstream, the GE IS200VTCCH1B thermocouple input board feeds real-time exhaust temperature data into the Mark VI controller. This thermal feedback is essential for energy-aware combustion tuning — when exhaust temperatures deviate from optimal setpoints, the controller adjusts fuel valve positions and auxiliary relay states via the IS200VCRCH1B to bring the system back into its most efficient operating band. Simultaneously, the GE IS200VTURH1B turbine protection board monitors rotor speed and vibration, triggering protective relay outputs through the IS200VCRCH1B when abnormal conditions are detected, thereby preventing energy-wasting runaway conditions before they escalate.

For power quality monitoring and energy consumption tracking, the Mark VI system integrates with external power monitoring modules such as the GE Multilin 750/760 feeder protection relay series, which provides real-time kWh metering and demand tracking at the generator output level. The relay output signals from the IS200VCRCH1B coordinate with these protection relays to ensure that load shedding and reconnection sequences are executed with minimal energy transients. On the HMI side, operators interact with the system through GE Cimplicity SCADA software, where energy consumption trends, relay actuation logs, and efficiency KPIs are visualized in real time.

The GE IS200VCMIH2C VME communication interface module serves as the data highway between the IS200VCRCH1B and the broader plant DCS network, supporting Modbus TCP and Ethernet Global Data (EGD) protocols. This connectivity enables the relay output board’s switching history to be logged centrally, supporting energy audits and predictive maintenance workflows. When paired with the GE IS200VPROH1B protection output board, the system achieves a layered defense strategy: normal operational switching is handled by the IS200VCRCH1B, while emergency protective trips are managed by the IS200VPROH1B, ensuring that energy-critical shutdown sequences are executed with maximum reliability and minimum collateral disruption to the production line.

Power Optimization in Real Production Lines

In gas turbine power plants operating under variable load demand, the IS200VCRCH1B enables a control strategy known as relay state optimization — a technique where the Mark VI controller minimizes unnecessary relay toggling during steady-state operation. Each unnecessary relay actuation represents a small but cumulative energy cost: contact wear, inrush current spikes, and electromagnetic interference that degrades signal quality across the I/O bus. By maintaining stable relay states during low-demand periods and executing precise, command-driven switching only when load conditions require it, the IS200VCRCH1B reduces auxiliary power consumption and extends the mean time between maintenance interventions.

In combined-cycle plants where steam turbine and gas turbine units share a common control infrastructure, the IS200VCRCH1B coordinates the switching of steam bypass valves, lube oil pump starters, and cooling fan contactors. Optimizing the sequencing of these auxiliary loads — ensuring they are energized only when thermodynamic conditions require it — can reduce auxiliary power consumption by several percentage points, directly improving the plant’s net heat rate. This is not a theoretical benefit: facilities that have upgraded from older Mark V relay output boards to the IS200VCRCH1B-based Mark VI architecture have reported measurable reductions in auxiliary load demand during part-load operation.

From a predictive maintenance perspective, the IS200VCRCH1B’s relay contact status is continuously monitored by the Mark VI controller. Abnormal contact resistance trends — indicative of contact oxidation or mechanical wear — are flagged before they cause control failures. This early warning capability allows maintenance teams to schedule board replacements during planned outages rather than emergency shutdowns, eliminating the energy waste and production loss associated with unplanned downtime. All units supplied by ZYPLC are fully tested prior to shipment, with relay contact integrity verified under load conditions, ensuring that replacement boards perform to specification from the moment they are installed.

Energy Optimization FAQ

Q1: How does the IS200VCRCH1B contribute to energy savings in a Mark VI turbine control system?
The IS200VCRCH1B minimizes unnecessary relay actuation cycles during steady-state turbine operation, reducing inrush current events and auxiliary power draw. When integrated with the Mark VI controller’s load-following algorithms, it ensures that auxiliary systems — pumps, fans, valves — are switched only when thermodynamic conditions require it, directly improving the plant’s net efficiency.

Q2: Is the IS200VCRCH1B compatible with both Mark VI and Mark VIe control platforms?
The IS200VCRCH1B is designed for the GE Mark VI VME-based architecture. Compatibility with Mark VIe (which uses a different I/O module form factor) should be verified against your specific system configuration. ZYPLC’s technical team can assist with cross-reference verification before purchase.

Q3: What is the recommended replacement procedure to minimize production downtime?
ZYPLC recommends scheduling IS200VCRCH1B replacement during a planned maintenance window. All replacement units are pre-tested and shipped with test reports. The board should be installed with the turbine in a safe, de-energized state, and relay contact integrity should be verified with the Mark VI diagnostic tools before returning the unit to service.

Q4: What warranty and testing standards apply to ZYPLC-supplied IS200VCRCH1B boards?
Every IS200VCRCH1B supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing — including relay actuation verification, contact resistance measurement, and backplane communication checks — prior to shipment. Test documentation is available upon request.
