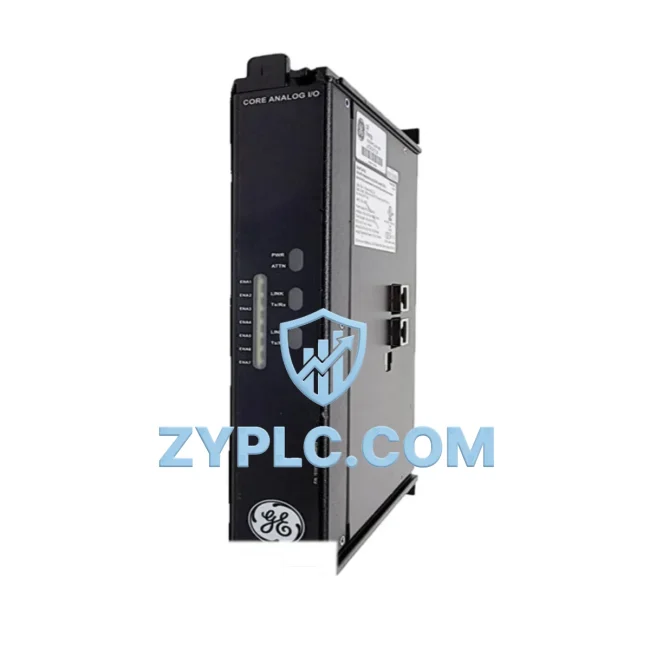

GE IS220PCLAH1A System-Ready I/O Pack for Mark VIe Architecture

GE IS220PCLAH1A System-Ready I/O Pack for Mark VIe Control Architecture

The GE IS220PCLAH1A is a high-density I/O pack module engineered for deployment within the GE Mark VIe distributed control system architecture. Rather than functioning as a standalone component, the IS220PCLAH1A is designed to operate as an integral node within a layered automation hierarchy — connecting the field signal layer to the controller layer with precision, reliability, and full contextual integration across the system’s communication backbone.

In modern turbine and power generation control environments, the Mark VIe platform distributes intelligence across multiple I/O packs, each responsible for acquiring, conditioning, and transmitting process signals to the central controller. The IS220PCLAH1A fulfills this role within the PPRO (Protection and Control) I/O subsystem, supporting the acquisition of analog and discrete signals from field instrumentation including thermocouples, RTDs, pressure transmitters, and discrete contact inputs. Its architecture ensures that signal fidelity is maintained from the field terminal to the controller’s execution cycle, enabling deterministic control response across the turbine’s operating envelope.

System architects integrating the IS220PCLAH1A into a Mark VIe cabinet will typically pair it with the IS215VCMIH2C VME communication module, which manages the high-speed IONet Ethernet backbone connecting I/O packs to the VCMI controller. The IS220PCLAH1A communicates over this dedicated IONet network, ensuring that scan cycle integrity is preserved even under high-load conditions. Alongside the VCMI, the IS200TBAIH1C terminal board provides the physical field wiring interface, accepting thermocouple and analog inputs directly from the process and routing them through the I/O pack for digitization and transmission.

Power distribution within the Mark VIe cabinet is managed by the IS200EPCTG1A power conditioner, which supplies regulated DC power to the I/O pack rail. The IS220PCLAH1A is designed to operate within the voltage and current envelope defined by this power architecture, ensuring stable operation across the full ambient temperature range of the installation. For applications requiring redundant power, the IS200EPCTG1A supports dual-feed configurations that eliminate single points of failure at the power layer — a critical requirement in gas turbine and combined-cycle plant environments.

At the controller layer, the IS215UCVEH2A UCVE controller module serves as the primary execution engine, processing I/O data received from the IS220PCLAH1A and executing the turbine control application. In triple-redundant (TMR) configurations, three UCVE controllers operate in parallel, each receiving identical I/O data from the I/O pack network and voting on output commands. The IS220PCLAH1A’s deterministic IONet communication ensures that all three controllers receive synchronized data, maintaining voting integrity across the redundancy architecture.

Human-machine interface integration is achieved through the Mark VIe’s OPC-DA and OPC-UA server capabilities, which expose real-time process data — including signals acquired by the IS220PCLAH1A — to operator workstations running GE’s ToolboxST configuration environment. Engineers can monitor individual channel health, calibration status, and diagnostic alarms directly from the ToolboxST interface, enabling rapid fault isolation without physical access to the cabinet. This capability significantly reduces mean time to repair (MTTR) in operational plant environments.

For applications in combined-cycle power plants, the IS220PCLAH1A supports integration with the Mark VIe’s HRSG control subsystem, where it acquires temperature and pressure signals from the steam path instrumentation. In gas compression and pipeline applications, the module interfaces with vibration monitoring systems and surge control instrumentation, providing the signal acquisition layer for compressor protection logic executed in the UCVE controller.

Architecture Specification Table

Coordinated Control System Design

The IS220PCLAH1A does not operate in isolation — its value is realized through its integration with the broader Mark VIe system architecture. A complete Mark VIe turbine control panel typically includes the IS215UCVEH2A UCVE controller, IS215VCMIH2C VME communication module, IS200TBAIH1C terminal board, IS200EPCTG1A power conditioner, and IS200TREGH1B terminal board for relay output expansion. In TMR configurations, the IS215ACLEH1A analog control module and IS220PTCCH1A thermocouple I/O pack complement the IS220PCLAH1A by covering additional signal types across the turbine’s instrumentation network.

At the network layer, the Mark VIe’s IONet architecture connects all I/O packs — including the IS220PCLAH1A — to the VCMI communication module via a dedicated 100 Mbps Ethernet ring. This ring topology provides inherent redundancy at the network layer, ensuring that a single cable fault does not interrupt I/O communication. The VCMI module manages network arbitration and delivers synchronized I/O data to all controller modules in the rack, maintaining the deterministic scan cycle required for turbine protection applications.

For HMI integration, the Mark VIe platform supports GE’s WorkstationST operator interface, which displays real-time process data acquired by the IS220PCLAH1A and other I/O packs. Alarm management, trend logging, and event sequencing are all driven by the data flowing through the I/O pack network, making the IS220PCLAH1A a foundational element of the plant’s operational visibility infrastructure.

Application in Layered Automation Systems

The IS220PCLAH1A finds application across a wide range of industrial sectors where the GE Mark VIe platform is deployed. In gas turbine power generation, the module acquires exhaust temperature, compressor inlet pressure, and fuel flow signals that feed the turbine’s protection and sequencing logic. In combined-cycle plants, it supports HRSG drum level, steam temperature, and bypass valve position monitoring. In industrial gas compression, the IS220PCLAH1A interfaces with vibration probes, surge control transmitters, and anti-surge valve position feedback, providing the signal acquisition layer for compressor protection systems.

In the oil and gas sector, Mark VIe systems equipped with the IS220PCLAH1A are deployed on offshore platforms and LNG terminals, where the module’s robust design and TMR compatibility meet the stringent reliability requirements of SIL-rated safety instrumented systems. In the mining and metals sector, the module supports electric arc furnace control and large drive coordination applications, where precise analog signal acquisition is critical to process stability and equipment protection.

Across all these applications, the IS220PCLAH1A’s role is consistent: it serves as the trusted interface between the physical process and the digital control system, ensuring that the Mark VIe controller always has accurate, timely, and reliable process data on which to base its control decisions.

Architecture Engineering FAQ

Q1: Is the IS220PCLAH1A compatible with both simplex and TMR Mark VIe configurations?
Yes. The IS220PCLAH1A is designed to operate in both simplex and Triple Modular Redundancy (TMR) Mark VIe architectures. In TMR configurations, the I/O pack communicates simultaneously with all three UCVE controller modules via the IONet network, ensuring that each controller receives identical process data for voting purposes. No hardware modification is required — the redundancy mode is configured via ToolboxST software during system commissioning.

Q2: What terminal board is required to interface field wiring with the IS220PCLAH1A?
The IS220PCLAH1A is typically paired with the IS200TBAIH1C terminal board, which provides the physical screw-terminal interface for thermocouple and analog input field wiring. The terminal board mounts in the Mark VIe cabinet and connects to the I/O pack via a dedicated ribbon cable. Correct terminal board selection is critical to signal compatibility — engineers should verify the terminal board part number against the Mark VIe I/O pack compatibility matrix in GE’s system documentation before installation.

Q3: What does the 12-Month Warranty cover, and what is the support process?
Our 12-Month Warranty covers functional defects in the IS220PCLAH1A under normal operating conditions, including failure to communicate on the IONet network, channel-level signal acquisition faults, and power supply interface failures. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions, or physical impact. To initiate a warranty claim, contact our technical support team with the module’s serial number and a description of the fault. Replacement units are dispatched within 3–5 business days, and our engineering team provides remote commissioning support to minimize plant downtime.
