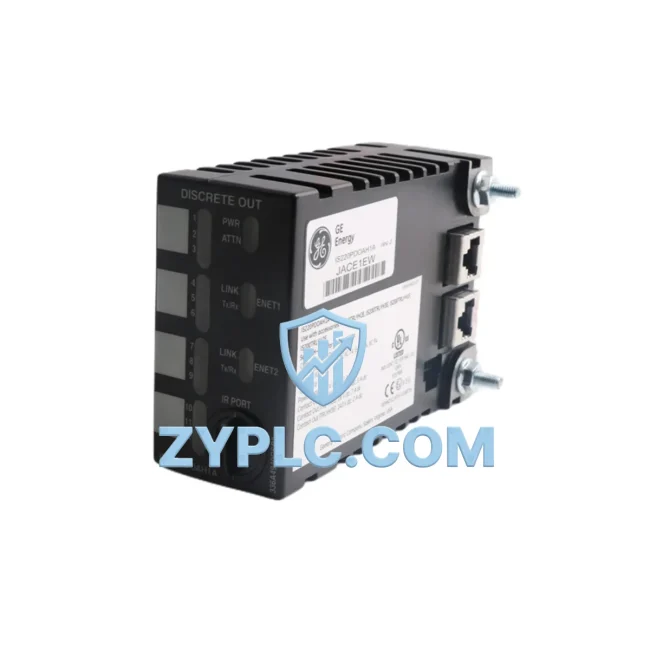

GE IS220PDOAH1A Energy-Saving Discrete Output Module Mark VI

GE IS220PDOAH1A Energy-Saving Discrete Output Module for Optimized Mark VI Automation

The GE IS220PDOAH1A is a high-performance discrete output module engineered for the GE Mark VI Turbine Control System. Designed to deliver precise, low-latency switching signals to field actuators, solenoids, and relay-driven loads, this module plays a critical role in reducing unnecessary energy draw across turbine and compressor control architectures. By ensuring that output signals are executed with minimal overhead and zero redundant switching cycles, the IS220PDOAH1A directly contributes to measurable reductions in auxiliary power consumption and improved overall equipment effectiveness (OEE) on the production floor.

In modern industrial facilities where energy costs represent a significant share of operational expenditure, the ability to control discrete outputs with high accuracy is not merely a functional requirement — it is an energy optimization strategy. The IS220PDOAH1A eliminates signal drift and output latency that can cause actuators to cycle unnecessarily, wasting both electrical energy and mechanical service life. When integrated into a fully configured Mark VI control cabinet alongside modules such as the IS220PTURH1A turbine protection card and the IS220PSVOH1A servo output module, the system achieves a tightly coordinated control loop that minimizes idle-state power draw while maintaining full operational readiness.

Facilities running GE Mark VI platforms benefit from the IS220PDOAH1A’s compatibility with the IS215UCVEH2A VME controller and the IS200TREGH1B terminal board, enabling seamless signal routing without additional conversion hardware. This reduces both installation complexity and the parasitic losses associated with signal conditioning intermediaries. The module’s deterministic output behavior also supports predictive maintenance strategies — when output response times are consistent and logged via the IS220PAICH1A analog input card feeding back process variables, maintenance teams can detect actuator degradation before it causes unplanned downtime.

From a production line rhythm perspective, the IS220PDOAH1A enables tighter synchronization between the turbine control sequence and downstream process equipment. In combined heat and power (CHP) plants, coordinated discrete output control ensures that steam valves, bypass dampers, and auxiliary loads are switched in the optimal sequence — reducing thermal transients that waste energy and stress mechanical components. When paired with the IS220PDIOH1A discrete input module for closed-loop feedback and the IS220PTCCH1A thermocouple input card for thermal monitoring, the control system can dynamically adjust output states based on real-time energy and temperature data.

The module also supports integration with GE’s Proficy HMI/SCADA – iFIX platform and communicates over the IONET proprietary network, allowing plant operators to monitor discrete output states, log switching events, and correlate output activity with energy consumption trends. This data-driven approach to output management enables continuous improvement cycles where engineering teams can identify and eliminate unnecessary switching events that inflate energy bills without contributing to process output.

Every IS220PDOAH1A unit supplied by ZYPLC undergoes full functional testing prior to shipment, including output channel verification, isolation resistance testing, and communication handshake validation with the Mark VI controller. Units are sourced from verified supply channels, maintained in climate-controlled storage, and shipped with full traceability documentation. A 12-month warranty is provided on all units, covering manufacturing defects and premature functional failure under normal operating conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IS220PDOAH1A is most effective when deployed as part of a fully integrated Mark VI control architecture. In a typical energy-optimized turbine control panel, the module works in concert with the IS220PTURH1A turbine protection module, which monitors overspeed and flame-out conditions and triggers discrete output commands to trip valves and bypass actuators. The IS220PSVOH1A servo output module handles proportional valve positioning, while the IS220PDOAH1A manages the on/off switching of auxiliary loads — together, they ensure that no actuator remains energized beyond its required duty cycle.

On the input side, the IS220PDIOH1A discrete input module captures field status signals — limit switches, pressure switches, and relay contacts — and feeds them back to the IS215UCVEH2A controller, which then issues updated output commands to the IS220PDOAH1A. This closed-loop architecture eliminates the energy waste associated with open-loop control, where outputs may remain active due to the absence of feedback confirmation. Thermal data from the IS220PTCCH1A thermocouple input card further informs the controller’s output scheduling, allowing the system to defer non-critical switching events during peak thermal load periods.

For power quality monitoring, the Mark VI system can be integrated with GE’s EPM 9450 power quality meter via Modbus TCP, providing real-time visibility into the energy consumed by each output-driven load. This integration enables energy managers to correlate discrete output activity with power demand spikes, identify inefficient actuator configurations, and implement demand-response strategies that reduce peak energy costs. The IS220PAICH1A analog input card complements this by capturing 4–20 mA signals from current transformers and flow transmitters, giving the control system a comprehensive picture of energy flow across the production asset.

Power Optimization in Real Production Lines

In gas turbine power plants, the IS220PDOAH1A is typically responsible for controlling fuel gas stop valves, purge valves, cooling fans, and lube oil pump contactors. Each of these loads represents a discrete energy consumer, and the precision with which the Mark VI system switches them on and off directly determines the plant’s auxiliary power consumption. A poorly timed or stuck output can leave a cooling fan running at full speed during a low-load period, consuming kilowatts of power that contribute nothing to generation output. The IS220PDOAH1A’s reliable, low-latency switching eliminates this class of energy waste.

In compressor stations, the module manages anti-surge valve control signals, seal gas system outputs, and emergency shutdown (ESD) relay commands. The ability to execute ESD sequences rapidly and reliably not only protects equipment but also minimizes the energy cost of unplanned restarts — each compressor restart cycle consumes significant electrical energy for motor acceleration and system re-pressurization. By ensuring that ESD events are triggered only when genuinely required and that normal operation resumes without unnecessary delays, the IS220PDOAH1A contributes to a lower frequency of high-energy restart events.

Maintenance cost reduction is another key benefit. Because the module’s output channels are individually isolated and protected against short-circuit and overcurrent conditions, field wiring faults do not propagate to adjacent channels or damage the controller. This isolation architecture reduces the scope of fault-related repairs and minimizes the downtime associated with output module failures. Combined with ZYPLC’s pre-shipment functional testing and 12-month warranty coverage, facilities can plan maintenance budgets with greater confidence and reduce the carrying cost of spare parts inventory.

Energy Optimization FAQ

Q1: How does the IS220PDOAH1A contribute to energy savings in a Mark VI turbine control system?
The IS220PDOAH1A reduces energy waste by ensuring that discrete output signals are executed with precise timing and without redundant switching. This prevents actuators and relay-driven loads from remaining energized beyond their required duty cycles, directly reducing auxiliary power consumption. When integrated with feedback modules such as the IS220PDIOH1A, the system operates in a closed loop that further eliminates unnecessary output activity.

Q2: Is the IS220PDOAH1A compatible with my existing Mark VI cabinet and terminal boards?
Yes. The IS220PDOAH1A is designed for use within the GE Mark VI control architecture and is compatible with the IS215UCVEH2A VME controller and the IS200TREGH1B terminal board. It communicates over the IONET protocol native to the Mark VI platform. If you are upgrading from an earlier Mark V system, please contact ZYPLC to confirm compatibility with your specific cabinet revision.

Q3: What testing does ZYPLC perform before shipping the IS220PDOAH1A?
Every unit undergoes a multi-stage pre-shipment test protocol that includes individual output channel functional verification, isolation resistance measurement between channels and chassis ground, and communication handshake testing with a reference Mark VI controller. Units that do not meet GE’s original performance specifications are quarantined and not offered for sale. All tested units ship with a test report and are covered by a 12-month warranty.

Q4: Can the IS220PDOAH1A be used as a direct replacement for a failed module, and how quickly can it be delivered?
Yes, the IS220PDOAH1A is a direct plug-in replacement for failed or degraded units within the same Mark VI cabinet slot. ZYPLC maintains in-stock inventory of this module to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments, with expedited options available. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to confirm current stock and arrange shipment.
