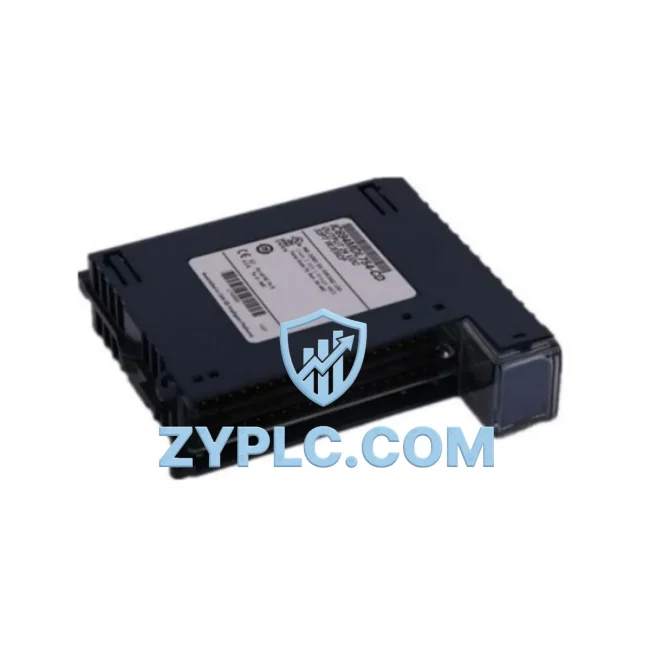

GE IS220PRTDH1AD Energy-Saving RTD Input Module Mark VIe

GE IS220PRTDH1AD Energy-Saving RTD Input Module for Optimized Mark VIe Automation

The GE IS220PRTDH1AD is a high-precision RTD (Resistance Temperature Detector) Input Module engineered for the GE Mark VIe turbine control platform. Designed to deliver accurate thermal data acquisition across critical industrial processes, this module plays a central role in energy-aware automation architectures — enabling plant operators to monitor heat distribution, optimize combustion efficiency, reduce unnecessary energy consumption, and extend equipment service life. With a verified in-stock status, full pre-shipment functional testing, and a 12-month warranty, the IS220PRTDH1AD is a reliable choice for both OEM integration and MRO replacement programs.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-optimized turbine control system, the IS220PRTDH1AD functions as the thermal sensing backbone of the Mark VIe I/O subsystem. It collects RTD signals from bearing housings, exhaust ducts, combustion chambers, and heat exchangers, feeding real-time temperature data into the GE Mark VIe controller for closed-loop energy management.

Within the Mark VIe I/O rack, the IS220PRTDH1AD works in close coordination with the IS220PAICH1B Analog Input Module, which handles 4–20 mA process signals such as pressure and flow — together forming a comprehensive process variable acquisition layer. The IS220PTCCH1A Thermocouple Input Module complements the RTD module by covering high-temperature zones where thermocouple sensors are preferred, ensuring no thermal blind spots exist across the turbine train.

On the output and control execution side, the IS220PSVOH1B Servo Output Module translates the processed thermal and control signals into precise actuator commands — adjusting fuel valves, inlet guide vanes, and cooling dampers to maintain optimal combustion efficiency. Paired with the IS220PDOAH1B Digital Output Module, the system can trigger protective shutdowns or load-shedding sequences when thermal thresholds are exceeded, preventing energy waste from runaway heat conditions.

For power quality monitoring and energy metering at the plant level, the IS220PRTDH1AD data feeds into supervisory systems that integrate with GE EnerVista software and IS420UCSBH3A Mark VIe UCB controller boards, enabling plant-wide energy dashboards and predictive maintenance scheduling. The IS220PDIOH1B Digital I/O Module further extends the system’s ability to monitor auxiliary equipment states — fans, pumps, and cooling systems — ensuring that ancillary energy loads are only activated when thermal conditions demand it.

Communication across the control network is handled via IONet, GE’s high-speed deterministic I/O protocol, which ensures that RTD data from the IS220PRTDH1AD reaches the controller with minimal latency — a critical requirement for real-time combustion trim and load-following operations. In installations where legacy integration is required, the IS220PTURH1B turbine controller interface module bridges older Mark V architectures with the Mark VIe platform, preserving existing sensor investments while upgrading control performance.

Power Optimization in Real Production Lines

In gas turbine power generation facilities, inaccurate or delayed temperature feedback is one of the leading causes of combustion inefficiency. When exhaust temperature spreads are not properly monitored, operators are forced to run turbines at conservative load points — sacrificing megawatts of output to maintain safety margins. The IS220PRTDH1AD eliminates this uncertainty by providing high-resolution, channel-isolated RTD measurements that allow the Mark VIe controller to execute precise combustion trim adjustments in real time.

On combined-cycle production lines, the module’s data directly influences heat recovery steam generator (HRSG) optimization. By accurately tracking exhaust gas temperatures at multiple points, the control system can maximize steam generation from waste heat — improving overall plant heat rate and reducing fuel consumption per megawatt-hour produced. Plants that have upgraded from legacy RTD modules to the IS220PRTDH1AD series have reported measurable improvements in turbine availability and a reduction in unplanned thermal-related trips.

From a maintenance cost perspective, the IS220PRTDH1AD supports predictive maintenance workflows by providing continuous bearing and winding temperature trends. Abnormal temperature rise patterns — indicative of bearing wear, cooling system degradation, or insulation breakdown — are detected early, allowing maintenance teams to schedule interventions during planned outages rather than responding to emergency failures. This shift from reactive to predictive maintenance directly reduces mean time to repair (MTTR) and lowers the total cost of ownership for turbine assets.

Every unit shipped by ZYPLC undergoes a full functional test protocol prior to dispatch, verifying channel accuracy, signal isolation, and communication integrity on the IONet bus. This ensures that replacement modules are production-ready upon arrival, minimizing installation time and eliminating the risk of commissioning delays caused by defective hardware. Combined with the 12-month warranty and fast global shipping, the IS220PRTDH1AD represents a low-risk, high-value procurement decision for plant engineers and MRO procurement teams.

Energy Optimization FAQ

Q1: How does the IS220PRTDH1AD contribute to energy savings in a gas turbine plant?
The module provides high-accuracy RTD temperature measurements that enable the Mark VIe controller to perform real-time combustion trim, exhaust temperature spread management, and cooling system optimization. By eliminating thermal measurement uncertainty, operators can run turbines closer to their optimal efficiency point, reducing specific fuel consumption and improving heat rate.

Q2: Is the IS220PRTDH1AD compatible with both Mark VIe and older Mark V systems?
The IS220PRTDH1AD is natively designed for the GE Mark VIe I/O platform and communicates via the IONet protocol. Direct installation into a Mark V system is not supported without an interface adapter. For mixed-generation installations, the IS220PTURH1B interface module can facilitate integration between Mark V and Mark VIe architectures.

Q3: What is the replacement and testing process when ordering from ZYPLC?
All IS220PRTDH1AD units in our inventory are sourced from verified supply channels and subjected to a full pre-shipment functional test, including channel-by-channel RTD signal verification and IONet communication validation. Units are shipped with test documentation. Our technical team can provide configuration guidance to support seamless drop-in replacement in existing Mark VIe racks.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and any issues identified during the commissioning phase that are attributable to the module itself. Warranty claims are processed promptly, with replacement units dispatched from in-stock inventory to minimize plant downtime. Contact our team at [email protected] or +86 19859288691 for warranty support.
