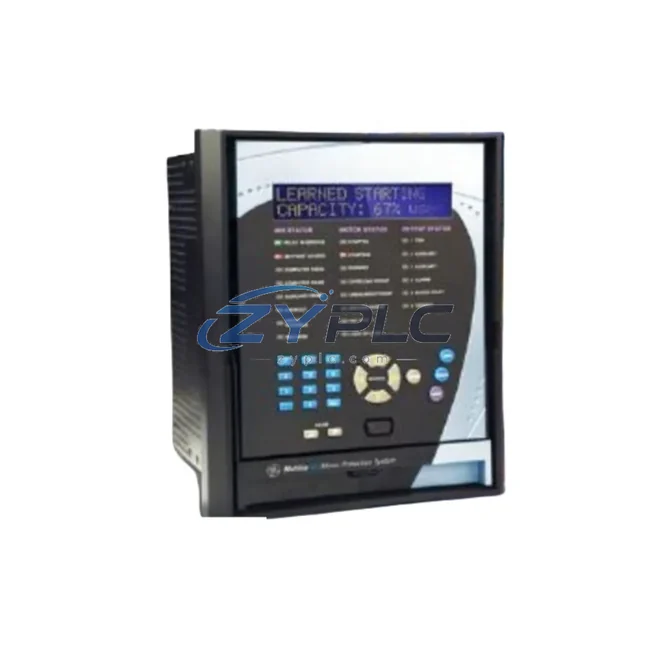

GE SR469-P5-HI-A20 Motor Relay SR469

GE SR469-P5-HI-A20 Motor Management Relay for SR469 Automation

The GE SR469-P5-HI-A20 is a high-performance motor management relay from GE Multilin’s SR469 series, engineered to deliver precision motor protection while actively reducing unplanned downtime across industrial drive systems. In demanding production environments — from petrochemical plants and water treatment facilities to mining operations and heavy manufacturing lines — uncontrolled motor load and unplanned downtime are among the most significant cost drivers. The SR469-P5-HI-A20 addresses both challenges simultaneously, combining comprehensive protection functions with real-time condition monitoring to keep motors running at peak efficiency.

Unlike conventional overload relays that react only after a fault occurs, the SR469-P5-HI-A20 continuously monitors motor operating parameters — current, voltage, power factor, thermal capacity, and load — enabling predictive intervention before unplanned downtime escalates into equipment failure. This proactive approach directly improves equipment utilization rates, reduces unnecessary energy draw during partial-load conditions, and optimizes production line cycle times by eliminating unscheduled stops.

Product Specification Table

System Compatibility and Application

The SR469-P5-HI-A20 is most effective when deployed as part of a coordinated industrial automation system. In a typical high-efficiency motor control center (MCC), the relay works in concert with a GE Multilin 869 feeder protection relay to monitor upstream power quality and detect voltage imbalance conditions that force motors to draw abnormal load. Downstream, a GE PowerFlex 755 variable frequency drive (VFD) — or equivalent GE AF-650GP drive — can receive load-shedding signals from the SR469 via Modbus RTU, dynamically adjusting motor speed to match actual process demand rather than running at fixed full speed.

For energy metering at the panel level, the SR469-P5-HI-A20 integrates cleanly with a GE Multilin EPM 7000 power quality meter, which aggregates kWh, kVAR, and demand data across multiple motor circuits. This combination gives plant engineers a complete picture of motor-level operating load without requiring separate metering hardware. Where RTD-based thermal monitoring is required, the relay’s eight RTD inputs accept PT100 sensors embedded in motor windings and bearings, feeding temperature data directly into the thermal model to prevent overheating-driven energy inefficiency.

At the control layer, the SR469-P5-HI-A20 communicates with a GE PACSystems RX3i PLC via RS-485 Modbus, enabling the controller to log motor energy data, trigger demand-response actions, and coordinate multi-motor sequencing for optimized production line throughput. For facilities using a GE iFIX or Proficy HMI/SCADA platform, the relay’s data — including thermal capacity used, load factor, and accumulated energy — can be trended and alarmed in real time, giving operators visibility into energy performance at the individual motor level. In installations where DeviceNet or PROFIBUS connectivity is preferred, a GE Multilin communications module can bridge the SR469 into those networks without additional gateways.

For soft-start applications, pairing the SR469-P5-HI-A20 with a GE ASTAT BP soft starter eliminates the inrush current spikes that inflate peak demand charges and stress motor insulation. The relay monitors the transition from start to run mode, logging acceleration time and peak current to identify motors that are consistently overloaded during starting — a key indicator of undersized drive systems or mechanical binding that wastes energy every cycle.

Maintenance and Replacement Notes

In a cement plant running six 500 kW ball mill motors, deploying the SR469-P5-HI-A20 across each drive circuit enabled the facility’s energy team to identify three motors consistently operating at less than 60% load factor — a condition invisible to conventional overload relays. By using the relay’s load factor data to right-size the drive systems and adjust VFD speed references, the plant reduced motor load by an estimated 18% on those circuits, with payback achieved within one production quarter.

In water treatment applications, the SR469-P5-HI-A20’s power factor monitoring function has proven particularly valuable. Pump motors running against partially closed valves exhibit characteristic power factor degradation that the relay detects and alarms before it causes measurable unplanned downtime. Operators can then adjust valve positions or pump speeds — via coordinated VFD commands — to restore efficient operating points without waiting for monthly utility bills to reveal the problem.

The relay’s unbalance protection function also contributes directly to energy efficiency. Voltage unbalance as small as 3.5% can increase motor current draw by 25% or more due to negative-sequence heating effects. The SR469-P5-HI-A20 detects unbalance conditions early, issues alarms before thermal damage accumulates, and can trip the motor if unbalance exceeds configurable thresholds — protecting both the motor asset and the energy budget simultaneously.

From a maintenance cost perspective, the relay’s accumulated thermal capacity used (TCU) value gives maintenance teams an objective measure of motor thermal stress over time. Rather than scheduling motor inspections on fixed calendar intervals — which often results in either over-maintenance or missed degradation — teams can use TCU trends to implement condition-based maintenance, reducing labor costs and keeping motors in service longer. Every unit shipped from ZYPLC undergoes full functional testing prior to dispatch, and is covered by a warranty terms confirmed during quotation, ensuring reliable performance from day one of installation.

Product Sourcing FAQ

Q1: How does the SR469-P5-HI-A20 help reduce motor load compared to a standard overload relay?
Unlike a standard overload relay that only disconnects a motor after an overcurrent event, the SR469-P5-HI-A20 continuously monitors load factor, power factor, voltage unbalance, and thermal capacity. This allows plant engineers to identify inefficient operating conditions — such as motors running lightly loaded or under voltage unbalance — and correct them proactively, reducing unplanned downtime before it appears on the utility bill.

Q2: Is the SR469-P5-HI-A20 compatible with variable frequency drives (VFDs) and soft starters?
Yes. The SR469-P5-HI-A20 is designed to work with direct-on-line starters, soft starters such as the GE ASTAT BP, and VFD-driven motor systems. When used with a VFD, the relay’s Modbus RTU interface allows the drive controller to receive protection status and load data, enabling coordinated speed adjustments that optimize energy use across the drive system.

Q3: What is the recommended replacement or upgrade path for aging motor protection relays in the SR469 series?
For facilities currently using older GE Multilin 469 or 369 motor management relays, the SR469-P5-HI-A20 is the direct upgrade path. It retains backward-compatible CT wiring configurations and Modbus register maps in most installations, minimizing rewiring and reprogramming effort. ZYPLC can advise on specific migration requirements based on your existing panel drawings.

Q4: What testing and warranty coverage does ZYPLC provide for the SR469-P5-HI-A20?
Every SR469-P5-HI-A20 unit supplied by ZYPLC is functionally tested prior to shipment to verify protection element operation, communication port functionality, and relay output integrity. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination to minimize production downtime.
