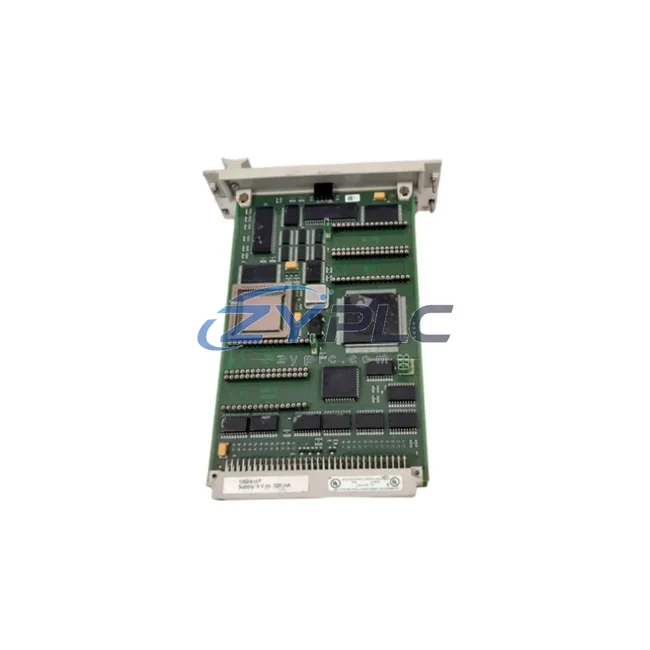

Honeywell 10024/H/F Safety Controller for FSC

Honeywell 10024/H/F Safety Controller for FSC

The Honeywell 10024/H/F is a critical safety controller module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) architecture — one of the most trusted safety instrumented systems (SIS) in heavy industry. Designed to operate as a core element of the safety control layer, the 10024/H/F provides deterministic logic execution for emergency shutdown (ESD), fire and gas detection (F&G), and burner management system (BMS) applications. Its role within the FSC platform ensures that safety-critical decisions are processed independently from the basic process control system (BPCS), maintaining strict separation between safety and operational domains as required by IEC 61511 and IEC 61508 standards.

Product Specification Table

System Compatibility Notes

Within a fully configured FSC safety system, the 10024/H/F does not operate in isolation — it functions as the central logic solver coordinating with a network of specialized modules across multiple system layers. At the control layer, the 10024/H/F communicates with redundant CPU modules such as the Honeywell 10006/2/1 and the 10002/1/2 processor unit, ensuring that safety logic is executed with triple modular redundancy (TMR) voting to eliminate single points of failure. This TMR architecture is fundamental to achieving SIL 3 integrity levels in applications where spurious trips or missed dangerous failures carry severe consequences.

The I/O layer is populated with dedicated safety-rated input and output modules. Digital input modules like the 10101/2/1 collect field signals from emergency stop buttons, flame detectors, gas sensors, and pressure transmitters, while digital output modules such as the 10201/2/1 drive final control elements including solenoid valves, motor contactors, and alarm annunciators. Analog input capability is provided by modules like the 10105/2/1, which interfaces with 4-20 mA transmitters for continuous process variable monitoring within the safety loop. Each I/O module connects to the controller through the FSC backplane, specifically the 10018/1/1 chassis assembly, which provides both power distribution and high-speed data communication between all resident modules.

Power integrity is maintained through redundant power supply modules such as the 10002/IOM/1 power distribution unit, which ensures that a single power rail failure does not compromise the safety function. The communication layer extends beyond the local FSC chassis through gateway modules like the 10024/1/1 communication interface, enabling data exchange with the Honeywell Experion PKS distributed control system (DCS) for integrated safety and process monitoring. This system integration between the SIS and BPCS layers allows operators to view safety system status, alarm conditions, and diagnostic data from a unified human-machine interface (HMI) without compromising the independence of the safety controller.

For facilities requiring expanded I/O capacity, the FSC architecture supports remote I/O racks connected via the safety fieldbus network. The 10201/1/1 remote output module and associated terminal assemblies extend the reach of the 10024/H/F controller to field devices located hundreds of meters from the central control room, reducing cable runs and simplifying installation in large-scale plants. This distributed topology is particularly valuable in petrochemical complexes, offshore platforms, and power generation facilities where equipment is spread across vast areas.

System diagnostics and online module replacement are integral to the FSC design philosophy. The 10024/H/F supports hot-swappable module replacement, meaning a failed channel or processor card can be replaced without shutting down the safety function — a critical capability for continuous process operations where unplanned shutdowns cost millions in lost production. Comprehensive self-diagnostics run continuously, with fault conditions reported to the Experion HMI and logged for regulatory compliance and audit trail purposes.

Industrial Application Notes

The Honeywell 10024/H/F finds its primary applications in industries where safety instrumented systems are mandated by regulation and risk assessment. In oil and gas refining, the module serves as the logic solver for emergency shutdown systems protecting distillation columns, catalytic crackers, and hydroprocessing units. In petrochemical plants, it manages fire and gas detection zones, coordinating with field detectors and deluge valve systems to provide rapid response to hazardous conditions. Power generation facilities deploy the 10024/H/F for turbine protection and burner management, where the TMR architecture ensures that turbine trip commands are executed reliably even under degraded conditions.

In offshore oil and gas production, the compact FSC platform and its ability to operate in harsh environmental conditions make the 10024/H/F a preferred choice for platform ESD systems. Mining and metallurgical operations use the controller for conveyor protection, furnace safety interlocks, and gas monitoring in underground environments. Water and wastewater treatment plants leverage the FSC system for chlorine dosing safety interlocks and pump protection schemes, while pharmaceutical manufacturing facilities use it for solvent handling area safety and reactor overpressure protection. Across all these applications, the 10024/H/F delivers consistent, certified safety performance while integrating seamlessly into the broader Honeywell automation ecosystem.

Product Compatibility FAQ

Q1: Can the Honeywell 10024/H/F be integrated into an existing FSC system without a full system shutdown?
Yes. The FSC architecture supports online configuration changes and hot-swappable module replacement. The 10024/H/F can be inserted into an operational FSC chassis, and the TMR voting logic will incorporate the new module without interrupting the active safety function. This capability is essential for brownfield upgrades and phased migration projects.

Q2: What companion modules are required to build a complete safety loop with the 10024/H/F?
A minimum safety loop requires the 10024/H/F controller, a digital or analog input module (e.g., 10101/2/1 or 10105/2/1), a digital output module (e.g., 10201/2/1), a backplane chassis (10018/1/1), and a redundant power supply. For communication with the BPCS, a gateway module such as the 10024/1/1 is recommended. All modules must be configured using the Honeywell Safety Builder software tool.

Q3: What warranty and supply assurance does ZYPLC provide for the 10024/H/F?
ZYPLC provides a warranty terms confirmed during quotation on the Honeywell 10024/H/F, covering manufacturing defects and functional failures under normal operating conditions. All units are tested and verified before shipment. ZYPLC maintains global inventory of FSC series modules to support urgent replacement needs and scheduled maintenance turnarounds, with worldwide shipping available.
