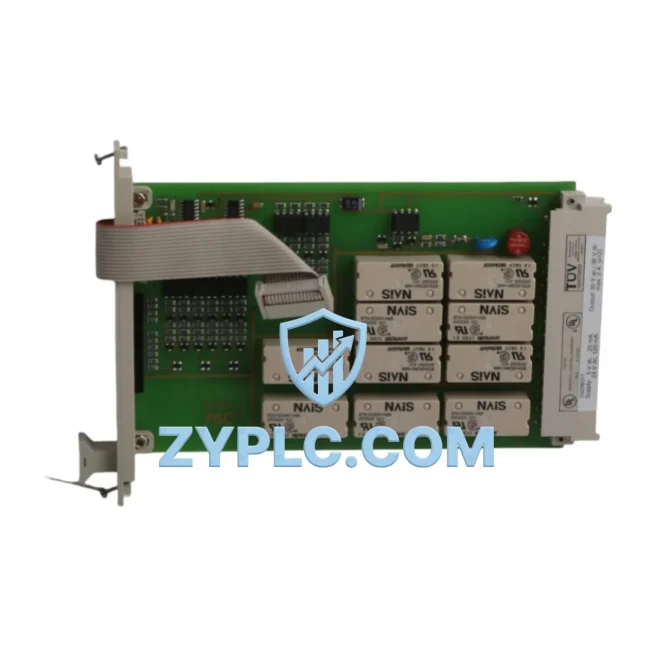

Honeywell 10208/2/1 System-Ready Relay Output for Experion Architecture

Honeywell 10208/2/1 System-Ready Relay Output for Experion Architecture: Control System Architecture and Upstream-Downstream Coordination

The Honeywell 10208/2/1 is a relay output module engineered for deployment within the Experion PKS (Process Knowledge System) distributed control system architecture. Rather than functioning as a standalone component, this module occupies a defined role within a layered automation hierarchy — bridging the digital command layer with physical field actuators across demanding industrial environments. Its integration into a complete control system architecture ensures signal integrity, operational continuity, and long-term maintainability across the full automation stack.

In modern industrial automation, relay output modules are not peripheral accessories — they are load-switching nodes that translate controller logic into real-world switching actions for motors, solenoids, alarms, and interlock circuits. The 10208/2/1 is designed to fulfill this role within Honeywell’s Experion PKS platform, maintaining electrical isolation between the control layer and field devices while supporting the system’s overall redundancy and diagnostic architecture.

Architecture Specification Table

Coordinated Control System Design

The Honeywell 10208/2/1 relay output module achieves its full value when considered within the broader Experion PKS system architecture. At the controller layer, Honeywell C200 and C300 process controllers issue digital output commands that are routed through the system backplane to relay output modules such as the 10208/2/1. These controllers manage loop execution, sequence logic, and safety interlocks — and depend on reliable output modules to translate those commands into field-level switching actions without signal degradation or latency.

At the I/O layer, the 10208/2/1 works alongside analog input modules (such as the Honeywell 10204/1/1 AI module series), digital input modules, and thermocouple input cards to form a complete I/O subsystem. The relay output module handles discrete switching — motor starters, valve actuators, alarm annunciators — while analog output modules manage proportional control signals for variable-speed drives and control valves. Together, these I/O components populate the Experion PKS I/O chassis or FIM (Field Interface Module) enclosures, maintaining a structured signal flow from the process field to the controller and back.

At the network and communication layer, the Experion PKS architecture relies on FTE (Fault Tolerant Ethernet) as its primary control network backbone. The 10208/2/1 communicates through the chassis backplane, which interfaces with the FTE network via dedicated communication modules. This architecture ensures that relay output commands are delivered with deterministic timing, even under high-load network conditions. Redundant FTE switches and dual-path network configurations further protect the integrity of output commands in critical process environments.

Power distribution is managed through dedicated Honeywell power supply modules and chassis power assemblies. The relay output module draws logic power from the chassis backplane while maintaining isolated field-side power for relay coil operation. In redundant power configurations, dual power supply modules — such as the Honeywell 10006/1/1 or equivalent chassis PSU — ensure that a single power supply failure does not interrupt relay output operation. This power architecture is essential in continuous process industries where unplanned shutdowns carry significant operational and safety consequences.

At the human-machine interface layer, Experion PKS operator stations running Honeywell’s HMIWeb Display Builder provide real-time visibility into relay output states, alarm conditions, and interlock status. Operators can monitor the 10208/2/1’s output channels directly from the DCS console, with full integration into the Experion alarm management and event historian systems. This HMI integration supports rapid fault diagnosis and reduces mean time to repair (MTTR) during process upsets.

For system expansion, the 10208/2/1 can be deployed across multiple I/O chassis connected via remote I/O cabinets or marshalling panels. Honeywell’s CHARM (Characterization Module) I/O architecture, used in newer Experion PKS installations, complements traditional relay output modules by providing flexible, field-configurable I/O points. In hybrid architectures, the 10208/2/1 continues to serve legacy relay output requirements while CHARM modules handle new I/O additions — preserving investment in existing infrastructure while enabling system modernization.

Application in Layered Automation Systems

Oil Refining and Petrochemical Processing: In refinery control systems, the Honeywell 10208/2/1 relay output module is deployed to switch motor-operated valves, pump starters, and emergency shutdown (ESD) interlock circuits. The module’s galvanic isolation protects the Experion PKS controller from field-side voltage transients common in high-voltage motor control centers (MCCs). Redundant relay output configurations ensure that safety-critical switching actions remain available even during partial system failures.

Power Generation and Utilities: In thermal power plants and combined-cycle facilities, relay output modules control auxiliary equipment including cooling water pumps, fuel gas valves, and turbine lube oil systems. The 10208/2/1 integrates with Honeywell’s Experion PKS safety instrumented system (SIS) architecture, supporting IEC 61511-compliant safety loop designs. Its compatibility with the Experion C300 controller platform enables unified control and safety management from a single operator interface.

Water and Wastewater Treatment: Municipal water treatment facilities use the 10208/2/1 to control chemical dosing pumps, aeration blowers, and UV disinfection systems. The module’s relay outputs provide the electrical isolation required when switching between different voltage levels across the treatment process. Long-term reliability and the 12-Month Warranty make it a preferred choice for infrastructure projects with extended commissioning timelines and multi-year maintenance contracts.

Mining and Mineral Processing: In conveyor control systems, crusher circuits, and flotation cell automation, relay output modules must withstand high electrical noise environments. The 10208/2/1’s isolated relay contacts prevent ground loops and noise coupling between heavy industrial equipment and the DCS control network. Its rack-mounted form factor simplifies installation in remote I/O panels located near process equipment.

Pharmaceutical and Fine Chemical Manufacturing: FDA-regulated manufacturing environments require full audit trails for all control system changes. The Honeywell 10208/2/1, operating within the Experion PKS platform, supports 21 CFR Part 11-compliant change management through the Experion historian and event logging system. Relay output states are recorded with millisecond-resolution timestamps, supporting batch record documentation and regulatory compliance.

Architecture Engineering FAQ

Q1: Is the Honeywell 10208/2/1 compatible with both C200 and C300 Experion PKS controller platforms, and can it be used in a mixed-controller architecture?

Yes. The 10208/2/1 relay output module is designed for the Experion PKS I/O subsystem and is compatible with both C200 and C300 controller platforms. In mixed-controller architectures — where C200 controllers manage legacy process areas and C300 controllers handle newer high-availability loops — the 10208/2/1 can be deployed in I/O chassis assigned to either controller type. System integrators should verify chassis assignment and FTE network segmentation during engineering design to ensure correct controller-to-I/O mapping. Our technical team can assist with architecture validation prior to procurement.

Q2: How does the 10208/2/1 support redundancy requirements in safety-critical applications, and what companion modules are recommended for redundant relay output configurations?

For safety-critical applications requiring redundant relay outputs, the 10208/2/1 is typically deployed in paired configurations with independent power feeds and separate chassis slots. Honeywell’s Experion PKS architecture supports output voting logic at the controller level, enabling 1oo2 (one-out-of-two) or 2oo3 relay output configurations for ESD and interlock applications. Companion modules such as Honeywell safety relay modules and external relay multiplier panels are used to achieve the required SIL (Safety Integrity Level) ratings. All redundancy configurations should be validated against the project’s SIL assessment and Honeywell’s certified system documentation.

Q3: What does the 12-Month Warranty cover for the Honeywell 10208/2/1, and what is the recommended maintenance and replacement strategy for long-term system reliability?

All Honeywell 10208/2/1 relay output modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch, verifying relay contact operation, backplane communication integrity, and electrical isolation performance. For long-term system reliability, we recommend maintaining a minimum of one spare 10208/2/1 per installed chassis as part of a proactive spare parts strategy. Modules approaching the end of their operational lifecycle should be replaced during planned maintenance windows to avoid unplanned process interruptions. ZYPLC maintains ongoing inventory of the 10208/2/1 and related Experion PKS I/O modules to support emergency replacement requirements with short lead times.
