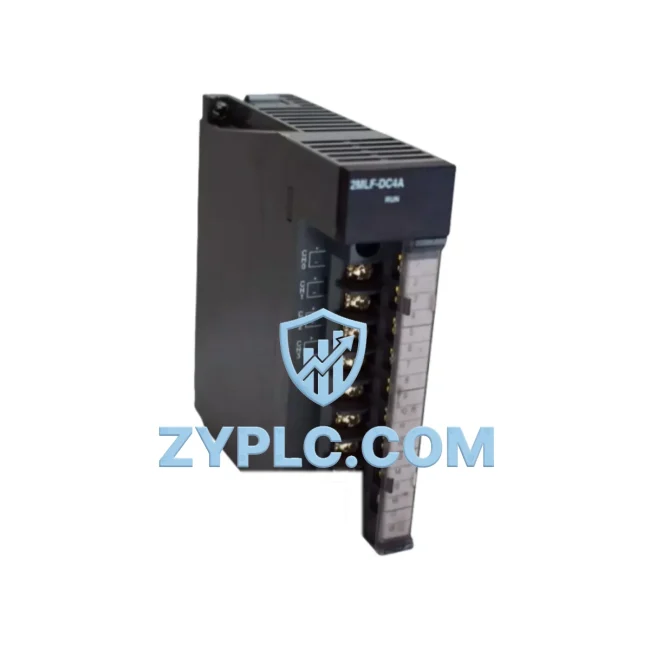

Honeywell 2MLF-DC4A System-Ready Digital Output for Experion PKS

Honeywell 2MLF-DC4A System-Ready Digital Output for Experion PKS Control Architecture

The Honeywell 2MLF-DC4A is a high-reliability digital output module engineered for seamless integration within the Experion PKS (Process Knowledge System) distributed control architecture. Rather than functioning as a standalone component, the 2MLF-DC4A is designed to operate as a coordinated element within a layered automation hierarchy — connecting the control layer to field-level actuators, solenoids, motor starters, and discrete output devices across demanding industrial environments. Its role within the system is to translate controller-issued commands into precise, electrically isolated digital signals that drive downstream execution devices with deterministic timing and high signal integrity.

In modern DCS deployments, the digital output layer is a critical bridge between the process controller and the physical plant. The 2MLF-DC4A fulfills this role within the Experion PKS I/O subsystem by providing a structured, rack-mounted output interface that supports the system’s native communication fabric. When paired with the C300 Controller or the EPKS C200E Controller, the module participates in the system’s coordinated scan cycle, ensuring that output states are updated in synchronization with the controller’s execution rate. This tight coupling between the control layer and the I/O layer is fundamental to achieving the loop performance and response times required in process-critical applications.

From a system architecture perspective, the 2MLF-DC4A is installed within the Series C I/O Link infrastructure, sharing a common backplane with other I/O modules such as the 2MLF-AI4A analog input module, the 2MLF-AO4A analog output module, and the 2MLF-DI4A digital input module. This modular co-location within the same chassis reduces wiring complexity, simplifies cabinet layout, and enables engineers to build compact, high-density I/O assemblies that are easy to commission and maintain. The shared backplane also supports the system’s redundancy architecture, allowing the module to participate in fault-tolerant configurations where controller or I/O link failures do not interrupt process output continuity.

At the network layer, the Experion PKS architecture relies on the FTE (Fault Tolerant Ethernet) network to carry control data between the server, controllers, and I/O subsystems. The 2MLF-DC4A, as part of this ecosystem, benefits from the inherent redundancy of the FTE infrastructure, which uses dual-path Ethernet to eliminate single points of network failure. This is particularly important in applications such as refinery unit operations, power generation control, and chemical batch processing, where network interruptions can have significant safety and production consequences. The module’s integration with the FTE network ensures that output commands are delivered reliably even under adverse network conditions.

For power distribution, the 2MLF-DC4A operates within the Experion PKS cabinet power architecture, which typically includes redundant 24 VDC power supplies and power distribution modules. Proper power sequencing and load balancing across the I/O chassis are essential for maintaining module availability. Engineers specifying the 2MLF-DC4A should account for the module’s current draw when sizing the cabinet power budget, particularly in high-density configurations where multiple output modules share a common power rail. The use of dedicated power conditioning and surge protection at the cabinet level further enhances the module’s long-term reliability in electrically noisy industrial environments.

At the human-machine interface layer, the 2MLF-DC4A’s output states are fully visible and controllable through the Experion PKS Station operator interface. Operators can monitor individual channel states, issue manual overrides, and review historical output trends through the integrated historian. This transparency between the HMI layer and the I/O layer is a key advantage of the Experion PKS architecture, enabling rapid fault diagnosis and reducing mean time to repair during process upsets. The module’s channel-level diagnostics are surfaced directly in the operator display, providing actionable information without requiring engineers to access the physical cabinet.

In terms of system expandability, the 2MLF-DC4A supports the Experion PKS philosophy of incremental system growth. As production capacity increases or process requirements evolve, additional I/O modules can be added to existing chassis or new chassis can be introduced into the I/O link without disrupting the running system. This non-disruptive expansion capability is a significant operational advantage in continuous process industries such as oil and gas, pulp and paper, and water treatment, where planned shutdowns for system modifications are costly and operationally complex.

All 2MLF-DC4A modules supplied by ZYPLC are covered by a 12-Month Warranty and undergo full functional testing prior to shipment. Each unit is verified for channel-level output integrity, isolation performance, and backplane communication compatibility. ZYPLC maintains ready stock of the 2MLF-DC4A to support urgent maintenance requirements, system expansions, and spare parts programs for Experion PKS installations worldwide.

Architecture Specification Table

Coordinated Control System Design

The 2MLF-DC4A achieves its full performance potential when deployed as part of a coordinated Experion PKS system architecture. At the control layer, the C300 Controller serves as the primary execution engine, managing the scan cycle and issuing output commands to the 2MLF-DC4A through the Series C I/O Link. In redundant configurations, a secondary C300 Controller operates in hot-standby mode, ensuring bumpless transfer of control in the event of a primary controller failure. The C200E Controller is an alternative control layer option for smaller Experion PKS installations, offering the same I/O link compatibility with a reduced channel count.

At the I/O layer, the 2MLF-DC4A shares the chassis with complementary modules including the 2MLF-AI4A analog input module for process variable acquisition, the 2MLF-AO4A analog output module for continuous control signals, and the 2MLF-DI4A digital input module for discrete field signal monitoring. This co-location within a common chassis minimizes inter-module wiring and supports a clean, maintainable cabinet architecture. The Series C I/O Chassis (backplane) provides the physical and electrical foundation for this modular assembly, distributing power and communication signals to all installed modules.

At the network layer, the FTE Switch (Fault Tolerant Ethernet Switch) provides the dual-path network infrastructure that connects the Experion PKS server, controllers, and remote I/O nodes. The FTE architecture ensures that a single cable or switch failure does not interrupt control communications, which is essential for the 2MLF-DC4A’s output reliability in continuous process applications. For remote I/O deployments, the IOLIM (I/O Link Interface Module) extends the Series C I/O Link over longer distances, enabling the 2MLF-DC4A to be installed in field junction boxes or remote marshalling cabinets while maintaining full system integration.

At the power layer, redundant 24 VDC Power Supply Modules within the Experion PKS cabinet architecture provide the electrical foundation for the 2MLF-DC4A and its co-located I/O modules. Proper power redundancy at the cabinet level is a prerequisite for achieving the system availability targets required in safety-critical and high-uptime process applications. At the human-machine interface layer, the Experion PKS Station provides operators with real-time visibility into the 2MLF-DC4A’s channel states, enabling rapid response to process deviations and supporting the system’s overall operational transparency.

Application in Layered Automation Systems

The 2MLF-DC4A is deployed across a broad range of industrial automation applications where reliable digital output control is essential to process integrity and operational safety.

In oil refinery and petrochemical processing environments, the module controls solenoid valves, motor starters, and shutdown actuators within distillation, reaction, and separation units. Its integration with the Experion PKS safety and control architecture ensures that output commands are executed with the determinism required for process safety management compliance.

In power generation and utility control systems, the 2MLF-DC4A manages discrete outputs for turbine auxiliary systems, switchgear control, and balance-of-plant automation. The module’s compatibility with the Experion PKS redundant architecture supports the high-availability requirements of baseload and peaking power generation facilities.

In water and wastewater treatment plants, the module controls pump motor starters, valve actuators, and chemical dosing systems within the Experion PKS SCADA and DCS hybrid architecture. Its robust isolation and diagnostic capabilities reduce maintenance burden in facilities where continuous operation is a regulatory requirement.

In mining and minerals processing applications, the 2MLF-DC4A operates within the Experion PKS control system to manage conveyor drives, crusher controls, and flotation cell actuators. The module’s ability to function reliably in electrically noisy environments makes it well-suited to the demanding electrical conditions typical of mining operations.

In pharmaceutical and food processing facilities, the module supports batch control architectures where precise, auditable output control is required for regulatory compliance. Its integration with the Experion PKS historian and alarm management system provides the data traceability required for FDA and GMP compliance documentation.

Architecture Engineering FAQ

Q1: Is the 2MLF-DC4A compatible with both C300 and C200E controllers in the same Experion PKS system?
Yes. The 2MLF-DC4A is designed for the Series C I/O Link infrastructure, which is supported by both the C300 and C200E controllers. In mixed-controller Experion PKS architectures, the module can be assigned to either controller type without hardware modification, provided the I/O link configuration is correctly defined in the Experion PKS Control Builder engineering environment. This flexibility supports phased system upgrades where older C200E controllers are progressively replaced with C300 units while maintaining I/O continuity.

Q2: Can the 2MLF-DC4A be installed in a redundant I/O configuration, and what are the architecture requirements?
The 2MLF-DC4A supports Experion PKS redundant I/O architectures when paired with the appropriate redundant I/O link modules and chassis configurations. Redundant I/O requires dual IOLIM modules, a redundancy-capable chassis, and a redundant controller pair (C300 or C200E). In this configuration, a failure of one I/O link path does not interrupt output control, as the secondary path assumes communication responsibility without operator intervention. ZYPLC recommends consulting the Experion PKS I/O Link and Termination Assemblies Planning Guide when designing redundant I/O architectures to ensure correct module placement and cabling.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 2MLF-DC4A?
The 12-Month Warranty provided by ZYPLC covers functional defects in the 2MLF-DC4A module under normal operating conditions, including channel output failures, backplane communication faults, and isolation degradation. Warranty claims are supported by ZYPLC’s technical team, who can assist with fault diagnosis and module replacement logistics. For long-term spare parts planning, ZYPLC maintains ongoing stock of the 2MLF-DC4A and related Experion PKS I/O modules to support maintenance programs, system expansions, and emergency replacement requirements. Customers with multi-site Experion PKS installations are encouraged to contact ZYPLC to discuss volume stocking agreements and priority supply arrangements.
