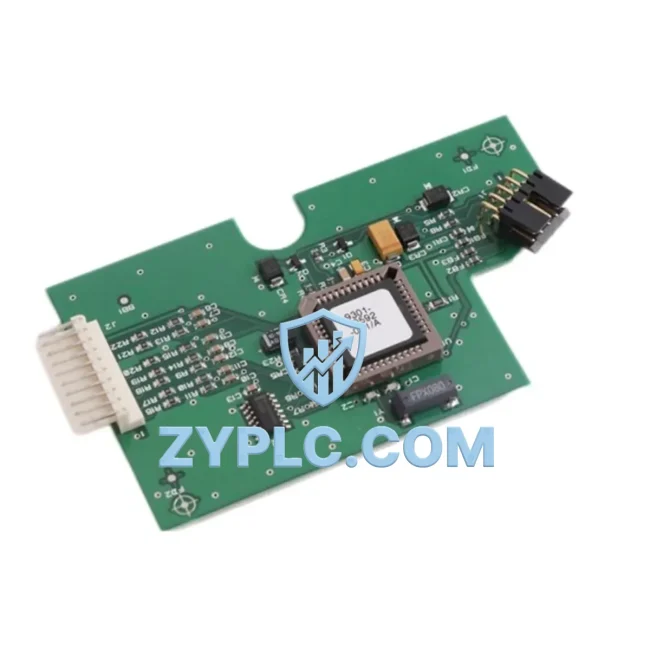

Honeywell 51304685-150 System-Ready Coated I/O Module for TPS/Experion Architecture

Honeywell 51304685-150 System-Ready Conformally Coated I/O Module: Control System Architecture and Contextual Integration

The Honeywell 51304685-150 is a conformally coated I/O module engineered for deployment within Honeywell TotalPlant Solution (TPS) and Experion PKS distributed control system architectures. Conformal coating provides enhanced protection against moisture, dust, and corrosive atmospheres, making this module a preferred choice for demanding industrial environments including petrochemical plants, offshore platforms, power generation facilities, and heavy manufacturing lines. Within a layered automation system, the 51304685-150 occupies a critical position at the field I/O layer, bridging the gap between field instrumentation and the process control network with high signal fidelity and system-consistent communication.

Designed for seamless contextual integration, this module supports direct insertion into Honeywell’s standard I/O termination assemblies and card files, enabling engineers to expand or replace I/O capacity without disrupting ongoing process operations. Its compatibility with the broader Experion PKS platform means that configuration, diagnostics, and live process data are all accessible through the Experion Station HMI environment, reducing commissioning time and simplifying long-term maintenance workflows.

Architecture Specification Table

Coordinated Control System Design

The 51304685-150 does not function in isolation — its value is realized through its role within a coordinated, multi-layer control architecture. In a typical Experion PKS or TPS installation, the module interfaces directly with the Honeywell C300 Controller or legacy HPM (High-Performance Process Manager) via the I/O Link bus, ensuring deterministic scan cycles and reliable data transfer between the field and the control layer. The controller’s processing capacity is extended through the card file backplane, where the 51304685-150 occupies a defined slot alongside complementary modules such as the Honeywell 51304485-100 analog input module and the 51309512-175 digital output module, forming a complete signal chain from sensor to actuator.

At the power layer, the module relies on the Honeywell 51195156-100 power supply module or equivalent card file power distribution assembly to maintain stable 24 VDC operation. Redundant power configurations are supported, ensuring that a single power supply failure does not interrupt I/O scanning or process data acquisition. This is particularly important in continuous process industries where unplanned shutdowns carry significant operational and safety consequences.

Network connectivity is managed through the Honeywell FTE Switch (Fault Tolerant Ethernet infrastructure), which provides dual-path communication between the I/O subsystem, the Experion Server, and the operator workstation layer. The Experion PKS Operator Station and associated Honeywell HMIWeb Display Builder environment consume the real-time process data delivered through this I/O module, enabling operators to monitor signal states, configure alarm thresholds, and execute control strategies without leaving the unified Experion environment.

For installations requiring field-side signal conditioning, the 51304685-150 is typically paired with Honeywell STI termination assemblies or equivalent marshalling panels, which organize field wiring and provide a clean interface between the I/O module and field instruments such as transmitters, control valves, and motor starters. In redundant I/O architectures, a secondary 51304685-150 module can be installed in a mirrored slot configuration, with automatic switchover managed by the C300 controller’s I/O redundancy logic — eliminating single points of failure at the I/O layer without requiring manual intervention.

Application in Layered Automation Systems

The Honeywell 51304685-150 conformally coated module is deployed across a wide range of process industries where environmental robustness and system consistency are non-negotiable requirements.

In petrochemical and refinery applications, the conformal coating provides essential protection against hydrogen sulfide, hydrocarbon vapors, and high-humidity environments found in distillation units, reactor control systems, and tank farm automation. The module’s compatibility with Experion PKS allows seamless integration with safety instrumented systems (SIS) and advanced process control (APC) strategies running on the same platform.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 51304685-150 supports boiler control, turbine protection, and balance-of-plant automation. Its conformal coating ensures reliable operation in environments subject to vibration, thermal cycling, and airborne particulates from combustion processes.

For water and wastewater treatment plants, the module provides the I/O infrastructure needed to monitor and control pumping stations, chemical dosing systems, filtration processes, and effluent quality instrumentation. The Experion PKS platform’s contextual integration capabilities allow operators to correlate I/O data with process trends and alarm histories, supporting regulatory compliance and operational efficiency.

In mining and metallurgical operations, where control panels are exposed to dust, vibration, and temperature extremes, the conformal coating of the 51304685-150 significantly extends module service life compared to standard uncoated alternatives. The module supports conveyor control, crusher automation, flotation cell management, and smelter process control within unified TPS/Experion architectures.

Packaging and discrete manufacturing lines benefit from the module’s fast I/O scan rates and deterministic communication, enabling precise coordination between PLCs, servo drives, vision systems, and the Experion supervisory layer. The 12-Month Warranty provides procurement teams with the confidence needed to specify this module as a long-term inventory component for planned maintenance and emergency replacement programs.

Architecture Engineering FAQ

Q1: Is the Honeywell 51304685-150 compatible with both TPS and Experion PKS architectures?
Yes. The 51304685-150 is designed for use within Honeywell’s TPS and Experion PKS platforms, which share a common I/O infrastructure and card file form factor. The module can be installed in existing TPS card files and will operate correctly within Experion PKS environments following standard migration procedures. Engineers should verify the specific card file revision and I/O Link bus version during system integration to confirm slot compatibility and firmware alignment with the active controller revision.

Q2: How does the conformal coating affect installation, replacement, and long-term maintenance procedures?
The conformal coating does not alter the module’s mechanical form factor, connector pinout, or electrical interface — installation and replacement procedures follow the same steps as standard uncoated modules. For long-term maintenance, the coating eliminates the need for additional environmental enclosures in moderately harsh environments, reducing cabinet complexity and cooling requirements. When replacing a coated module, technicians should follow standard ESD precautions and verify that the replacement unit carries the same coating specification (suffix -150) to maintain environmental protection consistency across the I/O subsystem.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support system architects during the warranty period?
The 12-Month Warranty covers verified hardware defects identified under normal operating conditions consistent with Honeywell’s published environmental and electrical specifications. ZYPLC provides direct technical support throughout the warranty period, including assistance with system integration questions, compatibility verification, and replacement logistics. For system architects managing multi-site or multi-unit deployments, ZYPLC maintains inventory of the 51304685-150 and related Honeywell TPS/Experion components to support both planned maintenance schedules and unplanned emergency replacement requirements. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for architecture-specific support.
