Honeywell 51308365-175 Energy-Saving Analog Input Module

Honeywell 51308365-175 Energy-Saving Analog Input Module: Precision Control for Optimized CC-TAIX11 Automation

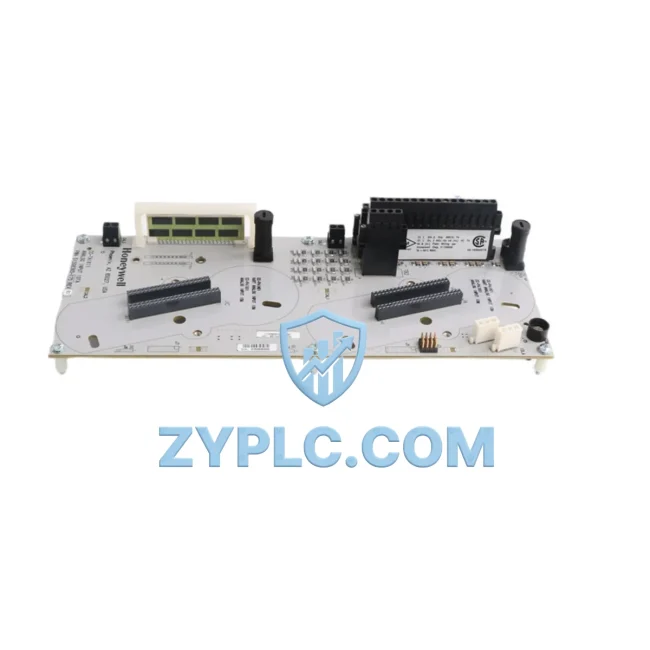

The Honeywell 51308365-175 CC-TAIX11 is a high-efficiency analog input IOTA (Input/Output Termination Assembly) engineered for the Experion PKS (Process Knowledge System) Distributed Control System platform. Designed to meet the demanding requirements of modern industrial automation, this module serves as a critical interface between field instrumentation and the DCS control layer — enabling precise, low-latency signal acquisition that directly contributes to reduced energy waste, improved equipment utilization, and optimized production line throughput.

In energy-intensive industries such as petrochemical refining, power generation, pharmaceutical manufacturing, and continuous process plants, the accuracy and responsiveness of analog signal input directly determines how efficiently a control loop can respond to process deviations. The CC-TAIX11 (51308365-175) delivers the signal fidelity required to keep PID loops tight, minimize overshoot, and reduce the energy penalties associated with poorly tuned control strategies.

Efficiency Performance Table

Energy-Aware Automation Architecture

The CC-TAIX11 (51308365-175) does not operate in isolation — it is a foundational element within a broader energy-aware automation architecture. In a typical Experion PKS deployment, this analog input module works in concert with the Honeywell C300 Process Controller, which executes the control algorithms that govern energy-consuming field devices. The C300 relies on clean, accurate analog signals from the CC-TAIX11 to make real-time decisions about valve positions, motor speeds, and heating element outputs.

On the output side, the Honeywell CC-TAOX11 Analog Output IOTA translates those control decisions back into 4–20 mA signals that drive actuators and variable frequency drives (VFDs). When paired with drives such as the Honeywell SaftDrive or compatible third-party VFDs, the system achieves closed-loop motor speed regulation — one of the most impactful energy-saving strategies available in industrial automation, capable of reducing motor energy consumption by 30–50% compared to fixed-speed operation.

For digital process data, the Honeywell CC-TDIL01 Digital Input IOTA and CC-TDOL01 Digital Output IOTA complement the CC-TAIX11 by capturing discrete equipment states — pump running signals, valve open/closed feedback, and motor fault indicators — that are essential for building a complete picture of energy flow across the production line. Together, these I/O modules feed the Experion PKS Historian, which logs process data at high resolution for energy trend analysis and regulatory compliance reporting.

Communication between the DCS and enterprise-level energy management systems is handled through the Honeywell Experion PKS OPC DA/UA Server, enabling integration with SCADA platforms and third-party power monitoring software. For facilities using Modbus RTU or PROFIBUS DP field networks, gateway modules within the Experion architecture bridge legacy instrumentation — including power meters, flow computers, and energy analyzers — into the unified control and monitoring environment.

At the field level, instruments such as the Honeywell STT850 Smart Temperature Transmitter and STD800 Differential Pressure Transmitter deliver the process variable signals that the CC-TAIX11 receives and conditions for the C300 controller. The accuracy of these transmitters, combined with the low-noise signal path of the CC-TAIX11 IOTA, ensures that energy-critical control loops — such as steam flow control, cooling water regulation, and compressed air pressure management — operate at peak efficiency with minimal hunting or oscillation.

Power Optimization in Real Production Lines

In real-world production environments, the Honeywell 51308365-175 CC-TAIX11 contributes to energy optimization across multiple dimensions of plant operation.

Reducing Motor and Drive Energy Waste: Inaccurate or noisy analog input signals cause control loops to overcorrect, forcing motors and actuators to work harder than necessary. The CC-TAIX11’s high-resolution analog input channels provide clean, stable process variable readings that allow the C300 controller to maintain tighter setpoint adherence. In pump and compressor applications, this translates directly to reduced shaft power demand and lower electricity consumption per unit of throughput.

Minimizing Unplanned Downtime: Unplanned equipment failures are among the most costly energy events in a plant — not only because of lost production, but because restart sequences often consume disproportionate amounts of energy. By providing reliable, continuous analog monitoring of critical process variables, the CC-TAIX11 supports predictive maintenance strategies. Operators and maintenance engineers can detect early signs of equipment degradation — rising bearing temperatures, shifting flow profiles, abnormal pressure differentials — before they escalate into failures. This capability, when combined with the Experion PKS alarm management system, enables condition-based maintenance scheduling that keeps equipment running at optimal efficiency.

Optimizing Production Line Throughput: In batch and continuous manufacturing processes, production line throughput is directly linked to the quality of process control. Poor analog signal quality introduces variability into control loops, which manifests as inconsistent product quality, increased rework rates, and extended cycle times. The CC-TAIX11 eliminates this source of variability, enabling the C300 controller to maintain the precise temperature, pressure, flow, and level profiles that define optimal production conditions. The result is higher equipment utilization, shorter cycle times, and reduced energy consumption per unit of output.

Supporting Energy Audits and Compliance: Modern industrial facilities are increasingly required to demonstrate energy efficiency improvements to regulators, customers, and sustainability auditors. The high-resolution data captured by the CC-TAIX11 and stored in the Experion PKS Historian provides the granular process data needed to calculate specific energy consumption (SEC) metrics, identify energy waste hotspots, and document efficiency improvements over time. This data foundation is essential for ISO 50001 energy management system compliance and for participating in demand response programs offered by utility providers.

Every unit of the Honeywell 51308365-175 CC-TAIX11 supplied by ZYPLC undergoes functional testing prior to shipment, verifying channel accuracy, signal conditioning performance, and backplane communication integrity. This ensures that the module performs to specification from day one of installation, without the energy and productivity losses associated with infant-failure events.

Energy Optimization FAQ

Q1: How does the CC-TAIX11 (51308365-175) contribute to measurable energy savings in a DCS-controlled plant?
The CC-TAIX11 improves energy efficiency by providing high-accuracy analog input signals that enable the Honeywell C300 controller to maintain tighter control loop performance. Tighter loops mean less overcorrection by motors, valves, and actuators — directly reducing unnecessary energy consumption. In applications such as pump speed control, heat exchanger regulation, and compressed air management, improved loop performance typically yields 5–15% reductions in energy consumption for the controlled equipment.

Q2: Is the 51308365-175 compatible with existing Experion PKS systems, and can it replace older analog input modules?
Yes. The CC-TAIX11 is designed as a standard IOTA within the Honeywell Experion PKS I/O architecture and is compatible with C300 Series controllers and associated FIM (Field Interface Module) assemblies. It can serve as a direct replacement for equivalent TAIX-series IOTAs in existing installations. Before replacement, verify the firmware revision of your C300 controller and FIM to ensure compatibility with your specific system configuration. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q3: What is the testing and quality assurance process for the 51308365-175 before shipment?
All Honeywell 51308365-175 CC-TAIX11 modules supplied by ZYPLC are functionally tested prior to dispatch. Testing covers analog channel accuracy across the full 4–20 mA input range, signal conditioning performance, and backplane communication verification. Units that do not meet specification are quarantined and not shipped. This pre-shipment testing process ensures that every module arrives ready for installation and commissioning, minimizing the risk of energy and productivity losses from early-life failures.

Q4: What warranty coverage is provided, and what does it include?
ZYPLC provides a 12-month warranty on all Honeywell 51308365-175 CC-TAIX11 modules. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC will arrange for replacement or repair of the affected unit. The 12-month warranty period begins from the date of shipment. For mission-critical applications, ZYPLC recommends maintaining a spare unit in inventory to ensure rapid recovery in the event of an unexpected module failure.
