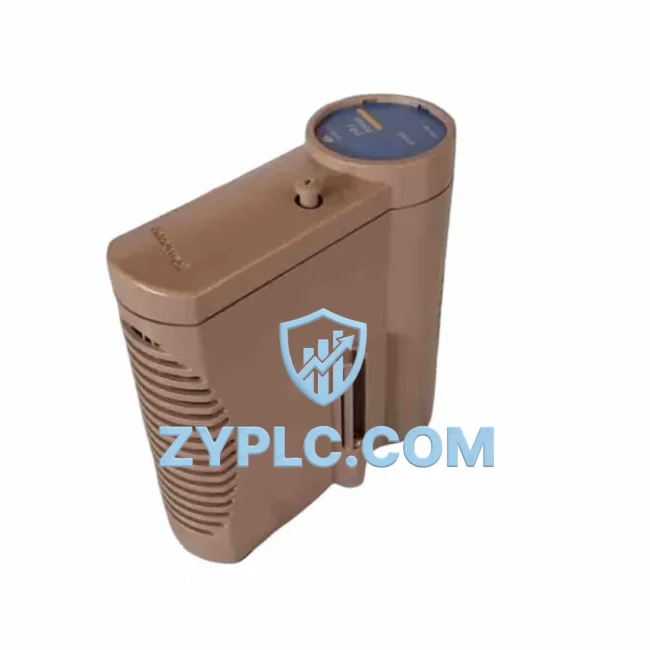

Honeywell CC-PAIN01 51410069-175 System-Ready Analog Input for C300 Architecture

Honeywell CC-PAIN01 51410069-175 System-Ready Analog Input for C300 Architecture

The Honeywell CC-PAIN01 (part number 51410069-175) is a precision analog input module purpose-built for the Honeywell C300 Controller platform within the Experion PKS distributed control system. Rather than functioning as a standalone component, this module is engineered to operate as an integral node within a layered automation architecture — contributing to signal acquisition, data integrity, and system-wide process visibility across control, I/O, network, power, HMI, and execution layers. Its role in the control hierarchy makes it a critical enabler of system consistency, scalability, redundancy, and long-term maintainability in demanding industrial environments.

In a complete Experion PKS control system, the CC-PAIN01 resides at the I/O layer, receiving 4–20 mA or 1–5 V analog signals from field transmitters and converting them into digital process values that are passed upward to the C300 Controller for real-time logic execution. This signal flow is foundational: without reliable analog input acquisition, the control layer cannot make accurate decisions, and the entire automation pyramid — from field instruments to SCADA and HMI — loses its data foundation. The CC-PAIN01 ensures that this foundation is solid, delivering high-resolution, noise-immune signal conversion with the electrical isolation and channel-to-channel separation required in process-critical applications.

System architects integrating the CC-PAIN01 benefit from its native compatibility with the Series C I/O family, allowing it to be mounted on standard ASSY 51304485-150 or equivalent Series C I/O Link carrier assemblies. This carrier-based architecture supports hot-swap capability, enabling module replacement without process interruption — a key advantage in continuous operations such as refinery distillation columns, power generation turbine control, or pharmaceutical batch reactors. The module communicates over the C300’s proprietary I/O Link bus, ensuring deterministic, low-latency data transfer that supports tight control loop timing requirements.

From a system architecture perspective, the CC-PAIN01 integrates seamlessly with the broader Honeywell Experion PKS ecosystem. It works in coordinated fashion with the CC-PAON01 analog output module to form closed-loop control pairs, while the CC-PDIL01 digital input module and CC-PDOB01 digital output module handle discrete signal layers within the same chassis. For applications requiring redundancy, the CC-PAIN01 can be deployed in redundant I/O configurations alongside the ASSY 51304487-150 redundant carrier, ensuring that a single module failure does not interrupt process data acquisition. This redundancy architecture is particularly valued in safety-instrumented and high-availability systems.

At the network and communication layer, the C300 Controller — which the CC-PAIN01 directly serves — connects to the Experion PKS FTE (Fault Tolerant Ethernet) network, providing dual-path, fault-tolerant communication between controllers, I/O subsystems, and the Experion server. This means that the analog data acquired by the CC-PAIN01 is transmitted through a resilient network architecture that eliminates single points of failure at the communication level. Engineers designing systems for power utilities, petrochemical plants, or water treatment facilities will find this architecture essential for meeting uptime and reliability mandates.

The power layer supporting the CC-PAIN01 typically includes the Honeywell CC-PWR01 or equivalent Series C power supply modules, which provide regulated, filtered DC power to the I/O carrier assemblies. Proper power architecture — including redundant power feeds and UPS integration — ensures that the analog input module maintains continuous operation even during utility disturbances. This is especially important in mining and metallurgical applications where power quality can be variable and process interruptions carry significant economic consequences.

At the HMI and supervisory layer, process values acquired by the CC-PAIN01 are displayed and trended in Experion PKS Station or third-party SCADA systems via OPC-DA or OPC-UA interfaces. Operators monitoring a packaging line, a chemical reactor, or a water treatment clarifier rely on the accuracy and update rate of the CC-PAIN01’s analog inputs to make informed control decisions. The module’s 16-bit resolution and configurable input ranges ensure that even subtle process variations are captured and communicated faithfully to the operator interface.

For engineering teams managing large-scale system expansions, the CC-PAIN01’s compatibility with the Honeywell Control Builder engineering environment simplifies configuration, calibration, and diagnostics. Module parameters, channel assignments, and alarm limits can be configured online without process shutdown, reducing commissioning time and supporting phased system expansions. This contextual integration capability — the ability to add, configure, and validate I/O modules within a live system — is a defining advantage of the Series C I/O architecture and a key reason why the CC-PAIN01 is specified in greenfield and brownfield projects alike.

Long-term maintenance planning is simplified by the CC-PAIN01’s standardized form factor and broad availability. Spare module strategies for Experion PKS systems typically include stocking one CC-PAIN01 per four to six installed modules, ensuring rapid replacement in the event of hardware failure. ZYPLC maintains verified inventory of the CC-PAIN01 51410069-175, supported by a 12-Month Warranty covering manufacturing defects and functional performance. All modules are tested prior to shipment using Honeywell-compatible test fixtures, and documentation including revision history and firmware compatibility is provided upon request.

Architecture Specification Table

Coordinated Control System Design

The CC-PAIN01 does not operate in isolation — its value is realized through coordinated integration with complementary modules and system components across the Experion PKS architecture. In a typical C300-based control cabinet, the CC-PAIN01 shares a Series C I/O carrier with the CC-PAON01 analog output module, forming the signal acquisition and actuation backbone for PID control loops governing flow, pressure, temperature, and level. Discrete signal layers are handled by the CC-PDIL01 digital input module and CC-PDOB01 digital output module, which manage motor run feedback, valve position confirmation, and equipment interlock signals within the same chassis.

The C300 Controller itself — the computational core of this architecture — executes control strategies using the analog data provided by the CC-PAIN01, applying configured function blocks for PID, ratio, cascade, and feedforward control. For systems requiring high availability, the C300 supports controller redundancy, and the CC-PAIN01 can be paired with a redundant carrier assembly to ensure continuous I/O availability during controller failover events. The CC-PWR01 power supply module provides the regulated DC power required by the carrier assembly, and redundant power configurations using dual CC-PWR01 modules are standard practice in critical process applications.

At the network layer, the C300 connects to the Experion PKS FTE Switch (Fault Tolerant Ethernet infrastructure), enabling dual-path communication to the Experion server and operator stations. For remote I/O applications or geographically distributed control architectures, the CC-LINK01 or equivalent remote I/O gateway modules extend the I/O Link bus beyond the local cabinet, allowing CC-PAIN01 modules to be deployed at field junction boxes while maintaining centralized control. Terminal modules such as the CC-TAIX01 provide the field wiring interface for the CC-PAIN01, offering screw-terminal or marshalling panel connectivity that simplifies field cable management and loop testing during commissioning.

In systems where safety instrumentation is required, the CC-PAIN01 analog inputs may feed into safety logic executed by a separate Safety Manager controller, with the Experion PKS providing supervisory integration via the Safety Builder engineering tool. This layered approach — separating basic process control from safety instrumented functions while maintaining unified operator visibility — is the standard architecture for SIL-rated applications in the oil and gas, chemical, and power generation sectors.

Application in Layered Automation Systems

The CC-PAIN01 finds application across a broad spectrum of industrial sectors where reliable analog signal acquisition is fundamental to process control integrity. In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the module acquires temperature, pressure, and flow signals from boiler instrumentation, turbine control loops, and cooling water systems, feeding the C300 Controller with the real-time data required for load following and protective relay coordination.

In petrochemical and refinery applications, the CC-PAIN01 handles analog inputs from pressure transmitters, flow meters, and level gauges across distillation columns, heat exchangers, and reactor vessels. Its channel isolation and noise immunity are critical in environments where ground loops and electromagnetic interference from large motor drives can corrupt signal integrity. The module’s compatibility with HART-enabled field devices (via appropriate HART multiplexers) supports asset management and predictive maintenance programs without additional wiring infrastructure.

For water and wastewater treatment plants, the CC-PAIN01 acquires analog signals from pH sensors, dissolved oxygen analyzers, turbidity meters, and flow transmitters across intake, treatment, and distribution systems. The Experion PKS architecture — with the CC-PAIN01 at its I/O foundation — supports the SCADA integration required by municipal utilities for remote monitoring and regulatory compliance reporting.

In mining and metallurgical operations, the module is deployed in conveyor control systems, crusher automation, flotation cell management, and smelter process control, where robust analog input acquisition under harsh environmental conditions is essential. Packaging and manufacturing production lines use the CC-PAIN01 to monitor tension, weight, temperature, and speed signals across high-speed automated lines, where precise analog data drives servo coordination and quality control systems. In all these applications, the CC-PAIN01’s role as a contextual integration component — embedded within a coherent, scalable control architecture — delivers measurably better system performance than standalone or mixed-vendor I/O solutions.

Architecture Engineering FAQ

Q1: Is the CC-PAIN01 51410069-175 compatible with both C300 and C200 controller platforms?
The CC-PAIN01 is specifically designed for the Honeywell Series C I/O architecture, which is natively compatible with the C300 Controller in Experion PKS systems. While the C200 Controller also supports Series C I/O in certain configurations, compatibility depends on the specific firmware revision and system configuration. It is recommended to verify controller firmware and I/O Link configuration with your Honeywell system documentation or contact ZYPLC for pre-sale technical confirmation. All modules supplied by ZYPLC include a 12-Month Warranty and are tested for functional performance prior to shipment.

Q2: Can the CC-PAIN01 be installed in a redundant I/O configuration, and what additional components are required?
Yes. The CC-PAIN01 supports redundant I/O deployment when paired with a compatible redundant Series C carrier assembly (such as the ASSY 51304487-150). In a redundant configuration, two CC-PAIN01 modules are installed on a redundant carrier, with the active module handling signal acquisition and the standby module ready for automatic switchover in the event of a hardware fault. This configuration requires no additional software licensing in standard Experion PKS systems and is managed transparently by the C300 Controller’s redundancy management firmware. ZYPLC can supply both the CC-PAIN01 modules and compatible redundant carrier assemblies as a matched set.

Q3: What is the recommended spare module strategy for long-term maintenance, and what does the 12-Month Warranty cover?
For Experion PKS systems with significant CC-PAIN01 deployments, a spare ratio of one module per four to six installed units is generally recommended, adjusted based on criticality and mean-time-to-repair targets. Modules should be stored in anti-static packaging in a climate-controlled environment within the specified storage temperature range. The 12-Month Warranty provided by ZYPLC covers manufacturing defects and verified functional failures under normal operating conditions, including full replacement or repair at no additional cost. Warranty claims are processed with priority turnaround to minimize system downtime. Extended support agreements and consignment spare arrangements are available for large installed bases — contact ZYPLC for details.
