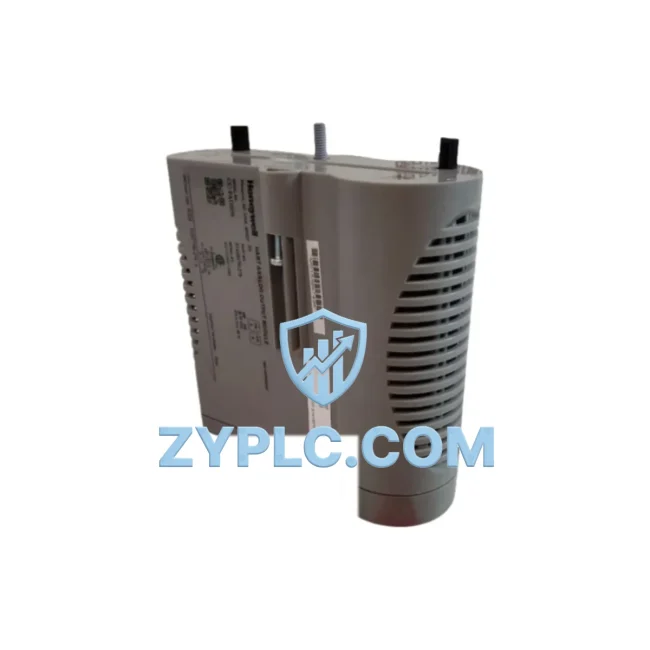

Honeywell CC-PAOH51 51410070-275 System-Ready Analog Output for Experion PKS Architecture

Honeywell CC-PAOH51 51410070-275 System-Ready Analog Output for Experion PKS Architecture

The Honeywell CC-PAOH51 (Part No. 51410070-275) is a high-integrity analog output module engineered for deployment within the Experion PKS (Process Knowledge System) distributed control architecture. Designed to operate within Honeywell’s EUCN (Experion Universal Control Network) framework, this module serves as a critical signal-conditioning and output-driving component at the I/O layer of a multi-tier process automation system. Its role extends beyond simple signal conversion — it functions as a precision interface between the control layer and field-level actuators, ensuring that command signals from the C300 Controller are faithfully translated into calibrated 4–20 mA analog outputs for control valves, variable frequency drives, and positioners across demanding industrial environments.

In a fully integrated Experion PKS architecture, the CC-PAOH51 is mounted on a Series C I/O Link chassis alongside complementary modules such as the CC-PAIN01 analog input module, CC-PDOB01 digital output module, and CC-PDIL01 digital input module. These modules share a common backplane bus managed by the C300 Controller, which coordinates signal scheduling, diagnostic polling, and redundancy switchover. The CC-PAOH51 supports HART pass-through communication, enabling field device diagnostics and parameterization to be conducted from the Experion Station HMI without interrupting the live control loop — a capability that significantly reduces maintenance downtime in continuous process operations.

At the control layer, the C300 Controller (CC-PCF901) manages execution of control strategies and communicates with the CC-PAOH51 via the FTE (Fault Tolerant Ethernet) network, which provides dual-path redundancy at the network layer. This architecture ensures that a single cable or switch failure does not interrupt control signal delivery to field devices. The CC-PAOH51 itself supports channel-level diagnostics, reporting open-loop faults, out-of-range conditions, and hardware failures directly to the Experion server for alarm management and historian logging.

From a power architecture perspective, the CC-PAOH51 draws regulated DC power from the Series C Power Supply (CC-PWR001 or equivalent), which is typically installed in a redundant pair configuration within the same I/O enclosure. This power redundancy, combined with the module’s internal watchdog circuitry, ensures that output channels maintain their last commanded state or drive to a configurable fail-safe position in the event of a power interruption — a critical requirement in safety-instrumented and high-availability process control applications.

The module’s installation within a DIN-rail or rack-mounted control cabinet follows Honeywell’s standard Series C mechanical form factor, allowing it to be hot-swapped without powering down adjacent modules. This feature is particularly valuable during scheduled maintenance windows in continuous production environments such as oil refining, chemical processing, and power generation, where unplanned shutdowns carry significant operational and financial consequences. The CC-PAOH51 is compatible with the Experion PKS R400 through R501 software releases, ensuring long-term supportability within existing installed base systems.

For system integrators and automation engineers specifying replacement or expansion modules, the CC-PAOH51 is fully interchangeable within existing Series C I/O chassis without requiring firmware reconfiguration, provided the channel assignments and HART device descriptors are preserved in the Experion Control Builder database. This plug-and-play compatibility, combined with a 12-Month Warranty and Contextual Integration support, makes the CC-PAOH51 a reliable choice for both greenfield projects and brownfield upgrades across manufacturing, petrochemical, water treatment, mining, metallurgy, and power utility sectors.

Architecture Specification Table

Coordinated Control System Design

The CC-PAOH51 achieves its full performance potential when deployed as part of a coordinated Experion PKS control system. At the controller level, the C300 Controller (CC-PCF901) executes regulatory and advanced control strategies, issuing analog output commands to the CC-PAOH51 at scan rates as fast as 50 ms. The controller communicates with the I/O subsystem via the Series C I/O Link, a deterministic bus that ensures synchronized data exchange across all modules in the chassis.

Adjacent to the CC-PAOH51 in a typical I/O chassis, the CC-PAIN01 Analog Input Module provides the closed-loop feedback signals from field transmitters, while the CC-PDOB01 Digital Output Module handles discrete actuator commands such as motor starters and solenoid valves. The CC-PDIL01 Digital Input Module captures field status signals including limit switches and process interlocks, completing the I/O layer signal flow for a fully integrated control loop.

At the network layer, the FTE Switch (FTENET) provides dual-path Ethernet redundancy between the C300 Controller, the Experion Server, and the Experion Station HMI, which serves as the operator interface for monitoring analog output values, HART device health, and alarm states. The HMI communicates with the CC-PAOH51’s HART pass-through capability to perform field device calibration and diagnostics without loop interruption.

Power integrity is maintained by a redundant pair of CC-PWR001 Series C Power Supply Modules, which provide regulated 24 VDC to the I/O chassis. In redundant controller configurations, a second C300 Controller operates in hot-standby mode, with bumpless transfer to the standby unit in the event of a primary controller fault — ensuring that analog output commands to field actuators are never interrupted. Terminal blocks and marshalling panels, such as the CC-TAOX11 Analog Output Terminal Assembly, provide the field wiring interface for the CC-PAOH51’s output channels, simplifying cable management and reducing installation time in large-scale control cabinet builds.

Application in Layered Automation Systems

In oil refining and petrochemical facilities, the CC-PAOH51 is deployed to control flow control valves, pressure regulators, and heat exchanger bypass valves within distillation columns and reactor feed systems. Its HART pass-through capability enables online valve diagnostics, supporting predictive maintenance programs that reduce unplanned shutdowns in continuous process units operating 24/7.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the CC-PAOH51 drives analog setpoints for boiler feedwater control valves, turbine governor actuators, and combustion air dampers. The module’s configurable fail-safe output behavior ensures that actuators drive to a safe position during a controller fault, meeting the functional safety requirements of IEC 61511 process safety management frameworks.

In water and wastewater treatment plants, the CC-PAOH51 controls variable-speed pump drives and chemical dosing systems, where precise 4–20 mA output accuracy is essential for maintaining effluent quality within regulatory discharge limits. Its hot-swap capability allows module replacement during plant operation without interrupting the dosing control loops that protect downstream treatment processes.

In mining and metallurgical operations, the CC-PAOH51 is used in ore processing, flotation cell control, and smelter temperature regulation applications. The module’s wide operating temperature range and robust diagnostic reporting make it suitable for the harsh electrical environments typical of mining control rooms, where ground loops and electromagnetic interference can challenge signal integrity in conventional I/O systems.

In packaging and discrete manufacturing production lines, the CC-PAOH51 provides analog speed references to servo drives and tension controllers, enabling precise web tension and line speed regulation in film extrusion, paper converting, and food packaging applications where product quality is directly linked to analog output accuracy and repeatability.

Architecture Engineering FAQ

Q1: Is the CC-PAOH51 (51410070-275) compatible with all Experion PKS Series C I/O chassis configurations, and can it be mixed with other Series C modules in the same chassis?
Yes. The CC-PAOH51 is fully compatible with all standard Series C I/O chassis configurations, including 4-slot, 8-slot, and 12-slot variants. It can be freely mixed with other Series C modules — including analog input, digital input, digital output, and HART multiplexer modules — within the same chassis, provided the chassis power budget is not exceeded. No special slot assignment is required; the C300 Controller automatically identifies the module type and channel configuration via the I/O Link during system initialization.

Q2: What happens to the analog output channels if the C300 Controller fails or the FTE network is interrupted?
The CC-PAOH51 supports configurable fail-safe behavior on a per-channel basis. Each channel can be configured to hold its last commanded output value or drive to a predefined low (3.6 mA) or high (21 mA) fail-safe state in the event of a controller communication timeout. In redundant C300 Controller configurations, bumpless transfer to the standby controller occurs within the FTE network’s switchover time, typically less than one scan cycle, ensuring that analog output commands are maintained without interruption during controller failover events.

Q3: What does the 12-Month Warranty cover for the CC-PAOH51, and what support is available for long-term maintenance and spare parts supply?
The 12-Month Warranty covers hardware defects in materials and workmanship under normal operating conditions. All units are tested prior to shipment to verify channel accuracy, HART communication functionality, and diagnostic reporting. For long-term maintenance planning, the CC-PAOH51 is stocked as a standard spare part for Experion PKS installed base systems, with availability for both immediate replacement and scheduled maintenance programs. Technical support for installation, commissioning, and Experion Control Builder configuration is available through our engineering team. Contact: +86 19859288691 | plc.sales@zyplc.com
