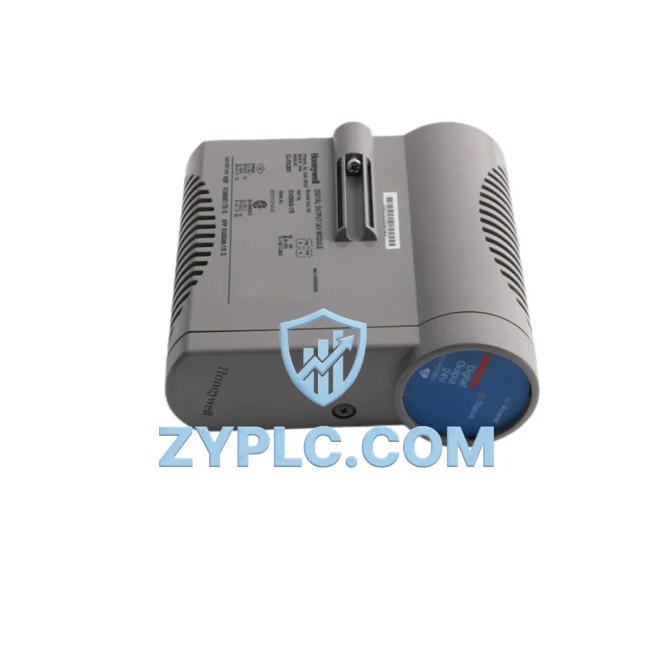

Honeywell CC-PDOB01 51405043-176 System-Ready Digital Output for C300 Architecture

Honeywell CC-PDOB01 51405043-176 System-Ready Digital Output for C300 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Honeywell CC-PDOB01 51405043-176 is a 24V DC digital output module engineered for seamless integration within the Experion PKS C300 distributed control system architecture. Rather than functioning as a standalone component, this module occupies a critical position in the layered automation hierarchy — bridging the controller layer and the field execution layer to deliver deterministic, high-integrity output signaling across demanding industrial environments. Its design philosophy centers on system consistency, scalable I/O expansion, redundancy support, and long-term maintainability, making it an essential building block for engineers designing or upgrading process control infrastructure in manufacturing, power generation, petrochemical, water treatment, mining, metallurgy, and packaging applications.

Within the Experion PKS C300 platform, the CC-PDOB01 51405043-176 connects directly to the C300 Controller via the Series C I/O Link, ensuring synchronized signal flow between the process controller and field devices. The module slots into standard FTA (Field Termination Assembly) backplanes, sharing rack space with complementary I/O modules such as the CC-PDIB01 digital input module and CC-PAOB01 analog output module, enabling a compact, high-density I/O architecture without sacrificing signal integrity or diagnostic capability. This modular co-location reduces wiring complexity, simplifies cabinet layout, and accelerates commissioning timelines on new installations.

Architecture Specification Table

Coordinated Control System Design

The CC-PDOB01 51405043-176 achieves its full value when considered within the complete Experion PKS C300 system architecture. At the controller layer, the C300 Controller (CC-PCNT01) serves as the primary processing unit, executing control strategies and issuing output commands to field devices through the I/O subsystem. The CC-PDOB01 receives these commands via the Series C I/O Link and translates them into 24V DC discrete signals that actuate solenoid valves, motor starters, relay coils, indicator lamps, and other field actuators.

For power distribution, the CC-PDOB01 relies on the Series C Power Supply modules (CC-PWR01 or equivalent) mounted within the same I/O chassis. Stable, conditioned 24V DC power is essential for consistent output switching performance, and Honeywell’s power architecture ensures that voltage fluctuations at the cabinet level do not propagate into the I/O signal layer. In redundancy-critical applications, dual power supply configurations with automatic failover protect against single-point power failures without interrupting process output states.

On the input side, the CC-PDIB01 digital input module works in tandem with the CC-PDOB01 to form a complete discrete I/O pair within the same chassis. This pairing is common in interlock and permissive logic applications, where field status signals (from limit switches, pressure switches, or flow detectors) are read by the CC-PDIB01 and the resulting control actions are executed by the CC-PDOB01 — all within a single scan cycle of the C300 Controller. For analog process variables, the CC-PAIB01 analog input module and CC-PAOB01 analog output module complement the discrete I/O layer, enabling mixed-signal architectures within a unified backplane environment.

At the network layer, the C300 Controller communicates upstream with the Experion PKS server via the Fault Tolerant Ethernet (FTE) network, using redundant network paths to ensure continuous data exchange between the field I/O layer and the supervisory control layer. This architecture supports real-time diagnostics, remote configuration, and live module status monitoring — all accessible through the Experion Station HMI or the Experion Configuration Studio engineering workstation. The CC-PDOB01’s channel-level diagnostics (open-wire detection, output verification) feed directly into the Experion alarm management system, enabling operators to identify field device faults without physical inspection.

For applications requiring controller redundancy, the CC-PDOB01 is fully compatible with redundant C300 Controller pairs (CC-PCNT01 with CC-PCNT01R redundancy module), where bumpless transfer between primary and secondary controllers preserves output states during controller switchover events. This redundancy architecture is particularly valuable in continuous process industries — such as refinery operations, power plant auxiliary systems, and chemical batch processes — where unplanned output state changes can trigger costly process upsets or safety system activations.

Terminal modules and marshalling components, including Honeywell’s XLNX-series or equivalent FTA terminal assemblies, provide the physical wiring interface between the CC-PDOB01’s output channels and field cable terminations. Proper selection of FTA models ensures compatibility with the specific output channel count, voltage rating, and field wiring configuration required by the project. Engineers should verify FTA compatibility during the detailed design phase to avoid rework during installation and commissioning.

Application in Layered Automation Systems

Manufacturing & Discrete Production Lines: In automotive assembly, electronics manufacturing, and consumer goods packaging lines, the CC-PDOB01 controls conveyor drive enables, pneumatic actuator solenoids, and machine status indicators. Its deterministic output response time supports high-speed sequencing applications where output latency directly affects throughput and product quality.

Power Generation & Utilities: In thermal power plants, combined-cycle facilities, and substation automation systems, the CC-PDOB01 interfaces with motor control centers (MCCs), circuit breaker trip coils, and auxiliary relay panels. The module’s 24V DC output standard aligns with IEC 61131-compliant field device interfaces commonly used in power utility applications, simplifying integration with third-party protection relays and switchgear control systems.

Petrochemical & Refinery Operations: In distillation column control, compressor anti-surge systems, and fired heater management, the CC-PDOB01 drives shutdown solenoids, blowdown valves, and emergency isolation actuators. Its integration with the Experion PKS Safety Manager (for SIL-rated applications) allows coordinated normal and safety output control within a unified engineering environment, reducing the complexity of dual-system architectures.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent systems use the CC-PDOB01 to control pump start/stop commands, valve open/close sequences, and chemical dosing system enables. The module’s diagnostic capabilities support remote monitoring of field device health, reducing the need for manual field inspections in geographically distributed water infrastructure.

Mining & Metallurgy: In ore processing plants, smelting operations, and conveyor network control systems, the CC-PDOB01 manages crusher interlocks, belt feeder enables, and dust suppression system activations. The module’s robust operating temperature range and vibration tolerance make it suitable for the harsh electrical environments typical of heavy industrial facilities.

Architecture Engineering FAQ

Q1: Is the CC-PDOB01 51405043-176 compatible with both simplex and redundant C300 Controller configurations?
Yes. The CC-PDOB01 is designed to operate with both simplex C300 Controller installations and fully redundant C300 Controller pairs. In redundant configurations, the module maintains its last commanded output state during controller switchover, ensuring bumpless transfer without field device disruption. Engineers should confirm the specific FTA and I/O chassis configuration supports the redundancy mode selected during system design.

Q2: Can the CC-PDOB01 be hot-swapped during live system operation?
The Experion PKS C300 I/O architecture supports online module replacement (hot-swap) for Series C I/O modules, including the CC-PDOB01, subject to proper system configuration and safety precautions. Before performing a hot-swap, operators should verify that the affected output channels are in a safe state (de-energized or held by the controller’s last-state logic) and that the replacement module carries the same firmware revision. ZYPLC recommends consulting the Experion PKS I/O Installation Guide and your site safety procedures before performing live module replacements.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions for the CC-PDOB01 51405043-176. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched to minimize system downtime. For Contextual Integration support — including assistance with Experion PKS configuration, FTA selection, I/O chassis layout, and C300 Controller parameter setup — ZYPLC’s engineering team is available via the contact details below. Pre-sales technical consultation is provided at no charge for qualified system integration projects.
