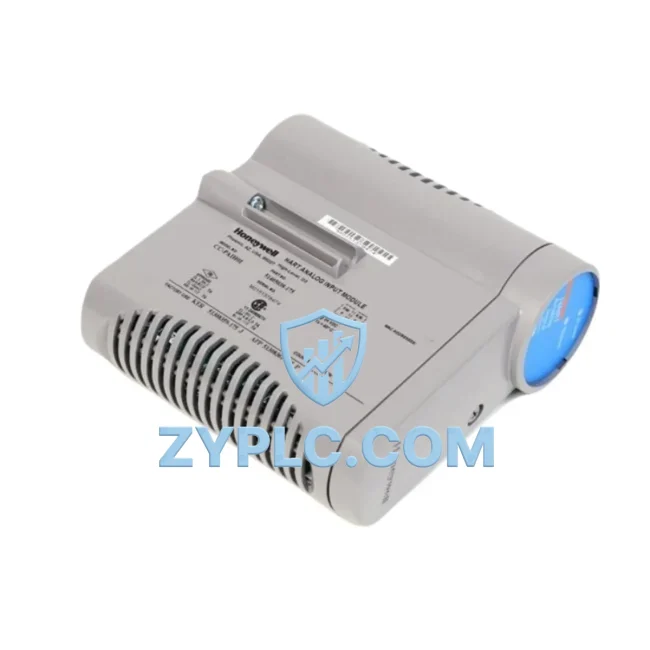

Honeywell CC-PUIO01 Energy-Saving DCS I/O Module Experion PKS

Honeywell CC-PUIO01 Energy-Saving DCS I/O Module for Optimized Experion PKS Automation

In modern process industries — from oil refining and chemical production to power generation and pharmaceutical manufacturing — the ability to precisely monitor and control field signals while minimizing energy overhead is no longer optional. The Honeywell CC-PUIO01 Universal Process I/O Module is engineered to meet this demand head-on, delivering flexible, high-density signal handling within the Experion PKS Distributed Control System architecture. By consolidating multiple signal types into a single, intelligent module, the CC-PUIO01 reduces wiring complexity, lowers cabinet heat dissipation, and enables tighter control loops — all of which translate directly into measurable energy savings and improved production efficiency.

The CC-PUIO01 is a universal I/O module, meaning it can be configured to accept analog inputs, analog outputs, digital inputs, and digital outputs without requiring dedicated hardware for each signal type. This universality is a cornerstone of energy-aware automation design: fewer module types mean fewer standby power draws, reduced spare inventory overhead, and faster reconfiguration when production lines change. In a typical Experion PKS cabinet, the CC-PUIO01 works in concert with the Honeywell CC-PCNT01 controller node and the CC-PWRR01 redundant power supply to form a tightly integrated control backbone that maintains stable operation even under fluctuating load conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The CC-PUIO01 does not operate in isolation — its energy optimization value is fully realized when integrated into a well-designed Experion PKS control architecture. At the field level, process transmitters and smart sensors feed 4–20 mA or HART signals directly into the CC-PUIO01’s universal channels. These signals represent real-time data on flow rates, pressure differentials, temperature gradients, and valve positions — the raw inputs that determine how efficiently a process is running.

Within the control cabinet, the CC-PUIO01 interfaces with the Honeywell C300 Process Controller, which executes advanced regulatory and model-predictive control strategies. When the C300 detects that a pump or compressor is operating outside its optimal efficiency curve, it issues corrective output signals through the CC-PUIO01 to adjust valve positions or modulate drive setpoints. This closed-loop correction happens in milliseconds, preventing the energy waste that accumulates when equipment runs at off-design conditions for extended periods.

For motor-driven loads — which account for the majority of energy consumption in most process plants — the CC-PUIO01 provides the analog output signals that command Honeywell variable frequency drives and third-party inverters such as the ABB ACS880 series. By enabling precise speed control rather than fixed-speed operation with throttling valves, this integration alone can reduce motor energy consumption by 20–50% depending on the load profile. The CC-PUIO01’s fast scan rate ensures that drive speed references are updated continuously, tracking process demand in real time rather than reacting to large deviations after the fact.

At the network layer, the CC-PUIO01 communicates with the Experion PKS server via the Honeywell FTE (Fault Tolerant Ethernet) backbone, a redundant, deterministic network that ensures control data reaches the Experion Station HMI without latency spikes. Operators monitoring the HMI can view real-time energy consumption trends, set efficiency targets, and receive alerts when specific I/O channels report values that indicate equipment degradation — such as a rising motor current draw that signals bearing wear before a failure occurs.

For remote monitoring and enterprise-level energy reporting, the CC-PUIO01’s data flows upward through the Experion PKS historian to Honeywell Uniformance PHD, where energy KPIs are trended, benchmarked, and reported. This integration supports ISO 50001 energy management compliance and provides the data foundation for continuous improvement initiatives. Additionally, the CC-SCMB01 serial communication module can bridge legacy field devices — older flow computers, analyzers, or motor protection relays — into the Experion PKS data fabric, ensuring no energy-relevant signal is left unmonitored.

Redundancy is built into the architecture at every level. The CC-PUIO01R redundant I/O module option, paired with the standard CC-PUIO01, ensures that a single module failure does not interrupt control of critical energy-consuming equipment. This eliminates the unplanned downtime events that force operators to run backup systems at full load — a common source of energy waste in process plants without redundant I/O infrastructure.

Power Optimization in Real Production Lines

Consider a typical refinery crude distillation unit where dozens of pumps, heat exchangers, and control valves must be coordinated to maintain product quality while minimizing fuel gas consumption. Before deploying the CC-PUIO01 within an Experion PKS upgrade, many such units rely on aging I/O hardware with fixed-type cards, slow scan rates, and limited diagnostic capability. The result is sluggish control response, frequent manual interventions, and energy consumption that runs 8–15% above theoretical minimum.

After replacing legacy I/O with CC-PUIO01 universal modules, the control system gains the ability to implement advanced strategies such as cascade control, feedforward compensation, and real-time optimization. The faster scan rate means that disturbances — a feed composition change, a cooling water temperature shift — are detected and corrected before they propagate through the process and cause energy-intensive upsets. Operators report fewer manual overrides, more stable column temperatures, and measurable reductions in steam and fuel consumption within the first months of operation.

In pharmaceutical batch manufacturing, the CC-PUIO01 supports precise temperature and pressure control during reaction and drying phases. By maintaining tighter setpoint adherence, the module reduces the duration of energy-intensive heating and cooling cycles, shortening batch times and improving equipment utilization. The universal channel configuration also simplifies validation documentation, as a single module type covers the full range of process signals required by FDA 21 CFR Part 11 compliant systems.

For power generation applications, the CC-PUIO01 integrates with turbine control and boiler management systems, providing the I/O backbone for heat rate optimization strategies. Every 0.1% improvement in heat rate at a 500 MW power plant translates to significant annual fuel savings — and the CC-PUIO01’s precision analog handling is a key enabler of the tight control margins required to achieve those improvements.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying channel accuracy, communication integrity, and power consumption within specification. Stock is available for immediate dispatch via DHL or FedEx, with a 12-month warranty covering all hardware defects. Our technical team provides configuration support to ensure seamless integration into your existing Experion PKS system.

Energy Optimization FAQ

Q1: How does the CC-PUIO01 contribute to measurable energy savings in a process plant?
The CC-PUIO01 enables tighter, faster control loops by providing accurate, low-latency I/O data to the Experion PKS C300 controller. This allows advanced control strategies — cascade, feedforward, model-predictive — to keep energy-consuming equipment operating at peak efficiency. Reduced process variability directly translates to lower steam, fuel, and electricity consumption.

Q2: Is the CC-PUIO01 compatible with my existing Experion PKS system version?
The CC-PUIO01 is compatible with Experion PKS R400 and later releases. For systems running earlier versions, a firmware or platform upgrade may be required. ZYPLC’s technical team can review your system version and advise on compatibility before shipment.

Q3: Can the CC-PUIO01 replace dedicated analog or digital I/O modules from older Honeywell systems?
Yes. The universal channel architecture of the CC-PUIO01 allows it to replace multiple fixed-type I/O cards, reducing cabinet complexity and standby power draw. Migration from older HC900 or TDC 3000 I/O hardware to CC-PUIO01 is a common upgrade path that ZYPLC supports with technical documentation and pre-tested hardware.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
Every CC-PUIO01 unit is functionally tested prior to shipment, verifying all channel types, communication interfaces, and power consumption within Honeywell’s published specifications. The 12-month warranty covers hardware defects under normal operating conditions. ZYPLC provides a test report upon request and offers post-sale technical support for integration and commissioning.
