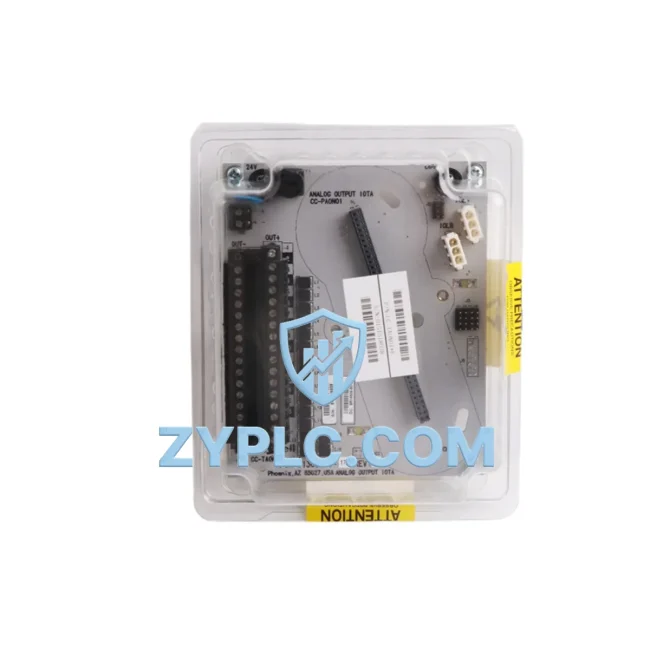

Honeywell CC-TAON01 51306519-175 Energy-Saving AO Module

Honeywell CC-TAON01 51306519-175 Energy-Saving Analog Output Module for Optimized Experion PKS Automation

The Honeywell CC-TAON01 51306519-175 is a high-precision analog output module engineered for the Experion PKS distributed control system (DCS). Designed to operate within the C300 Controller architecture, this module delivers stable, low-drift 4–20 mA output signals that directly govern field actuators, control valves, and variable-speed drives — enabling factories to achieve tighter process control, reduce energy waste, and extend equipment service life. Every unit shipped from ZYPLC undergoes full functional testing and is backed by a 12-month warranty.

In modern industrial facilities, analog output accuracy is the foundation of energy-efficient operation. When output signals drift or saturate, downstream actuators over-travel, motors run at non-optimal speeds, and heating or cooling systems consume excess power. The CC-TAON01 51306519-175 eliminates these inefficiencies by maintaining output resolution and linearity across the full operating range, ensuring that the C300 Controller’s setpoint commands are faithfully translated into precise field actions with minimal energy overhead.

Efficiency Performance Table

Energy-Aware Automation Architecture

The CC-TAON01 51306519-175 does not operate in isolation — it is one precision node within a broader energy-aware control architecture. In a typical Experion PKS deployment, the C300 Controller executes the control strategy and dispatches setpoint commands to field I/O modules. The CC-TAON01 receives these commands and converts them into calibrated 4–20 mA signals that drive control valves, positioners, and variable-frequency drives (VFDs) on the plant floor.

On the input side, the Honeywell CC-TAIN01 analog input module collects real-time process measurements — flow, pressure, temperature, and level — and feeds them back to the C300 for closed-loop PID regulation. This feedback loop is what makes energy optimization possible: the controller continuously adjusts output commands based on actual process conditions rather than fixed schedules. Pairing the CC-TAON01 with the CC-TAIN01 creates a complete analog I/O subsystem capable of sustaining tight control bands that minimize energy-wasting oscillation.

For digital field devices and on/off actuators, the Honeywell CC-TDOB01 digital output module works alongside the CC-TAON01 to coordinate sequenced operations — such as pump start/stop interlocks — that prevent simultaneous high-inrush events and reduce peak demand charges. Similarly, the CC-TDIB01 digital input module captures discrete status signals from motor contactors and valve limit switches, giving the C300 the feedback it needs to confirm that energy-consuming equipment has actually responded to its commands.

Communication between the C300 Controller and the plant’s supervisory layer relies on the Honeywell CC-PCNT01 Control Network Interface, which carries real-time I/O data over the FTE (Fault Tolerant Ethernet) backbone. This high-speed, redundant network ensures that energy setpoints are delivered without latency, preventing the control lag that causes actuators to hunt and consume excess power. At the supervisory level, the Experion PKS Operator Station HMI provides operators with live energy dashboards, trend displays, and alarm management — enabling rapid response to efficiency deviations before they escalate into costly process upsets.

For motor-driven loads, the CC-TAON01’s 4–20 mA output is the standard reference signal for variable-frequency drives integrated into Experion PKS via PROFIBUS DP or Modbus RTU gateways. By delivering a stable, noise-free analog reference, the CC-TAON01 allows VFDs to operate at precisely the speed required by the process — eliminating the energy waste of running motors at full speed when partial speed is sufficient. In pump and fan applications, this alone can reduce motor energy consumption by 20–50% compared to throttle-valve control.

Power quality monitoring is another dimension of the energy-aware architecture. Integrating a compatible Honeywell power monitoring module or a third-party power meter into the Experion PKS data highway allows the C300 to correlate analog output commands with actual power draw — identifying inefficient actuators, clogged filters, or worn bearings that cause motors to draw excess current. This predictive maintenance capability reduces unplanned downtime and avoids the energy spikes associated with emergency restarts.

For safety-instrumented applications, the CC-TAON01 can be deployed alongside Honeywell Safety Manager SC I/O modules in architectures where the basic process control system (BPCS) and safety instrumented system (SIS) share a common data infrastructure. In these configurations, the analog output module’s high signal fidelity is critical: a miscalibrated output that causes a safety valve to under-travel could trigger a spurious shutdown — wasting energy on restart sequences and losing production throughput. The CC-SCMB01 Safety Controller Module further reinforces this architecture by providing SIL-rated output supervision in parallel with the CC-TAON01’s process control channels.

Power Optimization in Real Production Lines

Consider a continuous chemical process where a reactor feed pump is controlled by a PID loop running on the C300 Controller. The CC-TAON01 51306519-175 delivers the flow setpoint to the pump’s VFD as a 4–20 mA signal. Because the module maintains output accuracy to within 0.025% of full scale, the VFD receives a clean, stable reference and runs the pump motor at exactly the speed needed to maintain the target flow rate. There is no hunting, no overshoot, and no unnecessary energy consumption from running the pump faster than required.

Now extend this to a plant with 200 analog output channels — a modest size for a refinery or power station. If each channel eliminates just 2% of wasted energy through improved output accuracy, the aggregate savings across all loops can be substantial. Multiply this by the number of operating hours per year, and the CC-TAON01’s contribution to the facility’s energy budget becomes significant — not as a marketing claim, but as a direct consequence of tighter control.

Beyond energy, output accuracy reduces mechanical wear. A control valve that receives a stable 4–20 mA signal does not hunt or chatter. Valve packing lasts longer, actuator diaphragms experience less fatigue, and maintenance intervals extend. This translates directly into lower spare-parts costs and fewer planned shutdowns — both of which improve overall equipment effectiveness (OEE) and reduce the indirect energy cost of maintenance activities.

The CC-TAON01 also supports loop diagnostics through the Experion PKS system. Operators can monitor output channel health, detect open-loop faults, and receive alerts when a channel’s output deviates from its commanded value — enabling rapid identification of wiring faults or actuator failures before they cause process upsets. This closed-loop visibility is a cornerstone of predictive maintenance strategies that keep production lines running at optimal efficiency. When combined with the Honeywell CC-PAIM01 Analog Input Module for high-density measurement and the CC-PWRR01 redundant power supply for uninterrupted chassis operation, the result is a resilient, energy-optimized I/O infrastructure that minimizes both downtime risk and operational energy cost.

ZYPLC maintains ready stock of the CC-TAON01 51306519-175 to support urgent replacement needs. All units are tested against Honeywell factory specifications before shipment, and each is covered by a 12-month warranty. Fast dispatch ensures that a failed output module does not become a prolonged production bottleneck.

Energy Optimization FAQ

Q1: How does the CC-TAON01 51306519-175 contribute to energy savings in a DCS-controlled process?
The module’s high output resolution (12-bit, 0.025% full scale) ensures that the C300 Controller’s setpoint commands are translated into precise field signals. This precision eliminates actuator over-travel and motor over-speed — two of the most common sources of wasted energy in analog-controlled processes. When paired with VFDs, the stable 4–20 mA reference allows drives to operate at the minimum speed required by the process, directly reducing motor power consumption.

Q2: Is the CC-TAON01 51306519-175 compatible with my existing Experion PKS C300 chassis?
Yes. The CC-TAON01 51306519-175 is designed for the Honeywell Experion PKS platform and is compatible with CC-PCNT01 and CC-PCNT02 series I/O chassis. It integrates directly with the C300 Controller without requiring additional interface hardware. If you are upgrading from an earlier Experion R-series system, please confirm your chassis revision with ZYPLC before ordering.

Q3: What is the recommended replacement procedure, and how long does it take?
The CC-TAON01 is a hot-swappable module in most Experion PKS configurations, allowing replacement without shutting down the controller or adjacent I/O channels. The replacement procedure involves removing the faulty module, inserting the new CC-TAON01, and allowing the C300 to automatically download the channel configuration — typically completing within minutes. ZYPLC recommends verifying loop calibration after replacement to confirm output accuracy.

Q4: What testing does ZYPLC perform before shipping, and what does the 12-month warranty cover?
Every CC-TAON01 51306519-175 unit shipped by ZYPLC undergoes functional output testing across all 8 channels, verifying signal accuracy, isolation integrity, and communication with a C300 test chassis. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Warranty claims are processed directly through ZYPLC’s technical support team.
