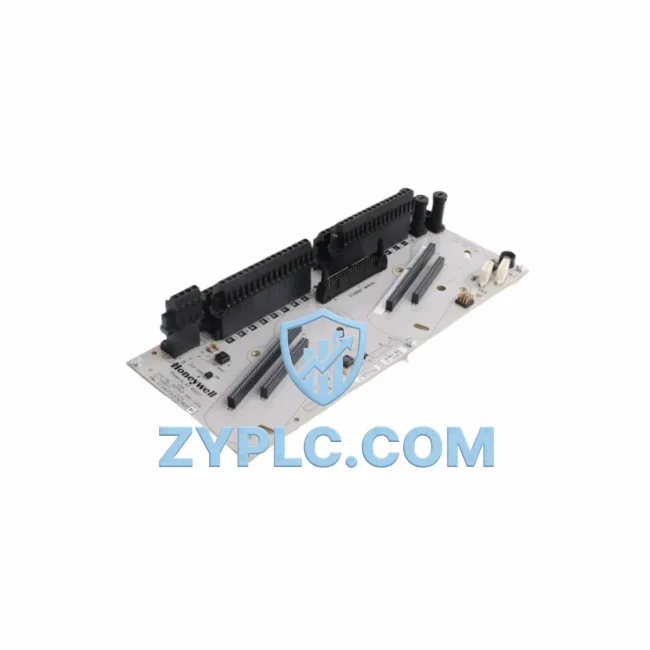

Honeywell DC-TAIL51 System-Ready Analog Output for IOTA DCS Architecture

Honeywell DC-TAIL51 System-Ready Analog Output for IOTA DCS Architecture

The Honeywell DC-TAIL51 is a 24V analog output IOTA (I/O Termination Assembly) module engineered for seamless integration within Honeywell’s distributed control system (DCS) architecture. As a critical component of the IOTA I/O subsystem, the DC-TAIL51 serves as the field-side termination point for analog output signals, bridging the control layer and the physical process environment with precision, reliability, and long-term serviceability. In modern industrial automation, no module operates in isolation — the DC-TAIL51 is designed from the ground up to function as part of a coherent, layered control system, and its value is best understood in the context of the full Experion PKS or TDC 3000 platform architecture.

Within a complete Honeywell DCS deployment, the DC-TAIL51 connects directly to the corresponding FIM (Field Interface Module) or AI/AO card, enabling structured signal routing from the controller to field-mounted actuators, control valves, and variable-speed drives. Its 24V operating design ensures compatibility with standard industrial field devices across a wide range of process industries, including oil and gas, petrochemical refining, power generation, water treatment, pharmaceutical manufacturing, and continuous process control environments.

Architecture Specification Table

Coordinated Control System Design

The DC-TAIL51 does not function as a standalone device — it is an integral node within a structured Honeywell DCS architecture. Understanding its role requires examining how it interacts with upstream and downstream components across every layer of the control hierarchy.

At the control layer, the Honeywell C300 Controller or the legacy LCN (Local Control Network) node issues setpoint commands that travel through the system backplane to the analog output card. The DC-TAIL51 serves as the physical termination point for this signal path, ensuring that the 4–20 mA output reaches field devices with minimal signal degradation. In redundant controller configurations, the DC-TAIL51 supports seamless switchover without interrupting field device operation.

At the I/O layer, the DC-TAIL51 pairs with Honeywell’s MC-TAOY22 or MC-TAOY12 analog output cards, which plug into the IOTA backplane. The IOTA architecture allows the I/O card to be replaced without disturbing field wiring — a critical advantage during live plant maintenance. Alongside the DC-TAIL51, the DC-TAIX11 and DC-TAIX51 analog input IOTA modules complete the signal acquisition and output loop, enabling full closed-loop process control within a single cabinet section.

At the network layer, the Honeywell FIM4 (Field Interface Module) or FIM8 manages communication between the IOTA I/O subsystem and the Experion PKS server infrastructure over the FTE (Fault Tolerant Ethernet) network. The DC-TAIL51’s analog output signals are coordinated through this network layer, ensuring that process variable updates and setpoint changes are synchronized across the entire control system in real time.

At the power layer, the DC-TAIL51 relies on a stable 24V DC supply, typically sourced from a Honeywell-compatible PS-IOTA power supply module or an equivalent redundant power distribution unit within the DCS cabinet. Proper power conditioning at this layer is essential to maintaining signal accuracy across all analog output channels.

At the human-machine interface (HMI) layer, operators interact with the process through Honeywell Experion PKS stations or legacy GUS (Global User Station) consoles. The analog output values managed by the DC-TAIL51 are displayed and adjusted in real time through these interfaces, enabling operators to fine-tune control valve positions, pump speeds, and actuator states without direct field intervention.

At the execution layer, the DC-TAIL51’s output channels connect to field devices such as electro-pneumatic positioners, variable frequency drives (VFDs), and motorized control valves. In many installations, the DC-TAIL51 also interfaces with DC-SCMX01 or similar signal conditioning modules to ensure compatibility with non-standard field device input ranges.

For cabinet-level integration, the DC-TAIL51 mounts alongside DC-TAIX51 input IOTA modules and DC-TDIX52 digital input termination assemblies on a shared IOTA mounting rail, creating a compact, organized I/O section that simplifies both initial commissioning and long-term maintenance. The modular IOTA design means that individual termination assemblies can be replaced or upgraded without rewiring the entire cabinet, significantly reducing planned maintenance downtime.

Application in Layered Automation Systems

The DC-TAIL51 is deployed across a broad spectrum of process industries where Honeywell DCS platforms form the backbone of plant-wide automation.

In petrochemical and refinery applications, the DC-TAIL51 manages analog output signals for control valves regulating crude distillation column temperatures, reactor feed rates, and fractionation tower pressure differentials. Its compatibility with the Experion PKS redundant I/O architecture ensures that critical process loops remain active even during partial system failures.

In power generation facilities, the DC-TAIL51 is used to control boiler feedwater control valves, turbine bypass valves, and combustion air dampers. The 24V analog output standard ensures compatibility with a wide range of electro-pneumatic positioners from major valve manufacturers, making the DC-TAIL51 a versatile choice for both new installations and retrofit projects.

In water and wastewater treatment plants, the DC-TAIL51 provides precise analog output control for chemical dosing pumps, aeration blowers, and sludge dewatering equipment. Its robust termination design and support for redundant I/O configurations make it well-suited for facilities that require continuous, uninterrupted operation.

In pharmaceutical and fine chemical manufacturing, the DC-TAIL51 supports GMP-compliant process control by providing stable, repeatable analog output signals for temperature, pressure, and flow control loops. Its integration within the validated Honeywell Experion PKS platform simplifies regulatory compliance documentation and system qualification activities.

In mining and metallurgical processing, the DC-TAIL51 is deployed in ore processing, flotation cell control, and smelter automation systems, where its rugged termination design and compatibility with the IOTA redundant architecture provide the reliability required in harsh industrial environments.

Architecture Engineering FAQ

Q1: Is the DC-TAIL51 compatible with both Experion PKS and legacy TDC 3000 DCS platforms?
The DC-TAIL51 is designed as part of Honeywell’s IOTA I/O termination family, which is primarily associated with the Experion PKS platform and its predecessor architectures. Compatibility with specific legacy TDC 3000 configurations depends on the I/O card type and backplane revision in use. We recommend verifying the paired analog output card model (such as MC-TAOY22 or MC-TAOY12) against your existing system documentation before ordering. Our technical team can assist with cross-referencing your system’s I/O card inventory to confirm compatibility.

Q2: Can the DC-TAIL51 be replaced during live plant operation without interrupting field device control?
The IOTA architecture is specifically designed to support I/O card hot-swap capability, meaning the analog output card can be removed and replaced without disturbing field wiring at the DC-TAIL51 termination assembly. However, replacing the DC-TAIL51 termination assembly itself typically requires de-energizing the associated field wiring loop. In redundant I/O configurations, the redundant channel can maintain field device control during the replacement procedure, minimizing process disruption. Always follow your site’s management of change (MOC) and permit-to-work procedures before performing any live maintenance activity.

Q3: What does the 12-Month Warranty cover for the DC-TAIL51, and how is it supported?
All DC-TAIL51 modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance to the published Honeywell specification. Warranty claims are processed through our technical support team, and replacement units are dispatched promptly to minimize system downtime. For warranty inquiries or technical support, contact us at +86 19859288691 or plc.sales@zyplc.com.
