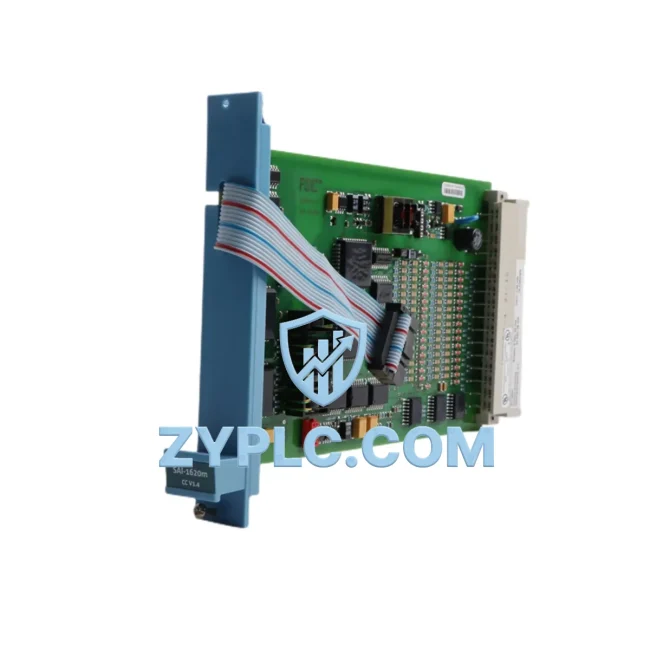

Honeywell FC-SAI-1620M System-Ready Fail-Safe Analog Input for FC Series

Honeywell FC-SAI-1620M System-Ready Fail-Safe Analog Input for FC Series Control Architecture

The Honeywell FC-SAI-1620M is a SIL-rated fail-safe analog input module purpose-built for the Honeywell Safety Manager FC Series platform. Designed to occupy a defined role within a layered safety instrumented system (SIS), this module processes 0/4–20mA field signals with high-integrity diagnostics, ensuring that process variables from pressure transmitters, flow meters, and temperature sensors are accurately represented at the safety logic solver level. Rather than functioning as a standalone component, the FC-SAI-1620M is engineered for Contextual Integration — meaning its value is fully realized when deployed within a coordinated FC Series rack architecture where signal fidelity, redundancy, and deterministic scan cycles are system-wide requirements.

In modern industrial safety architectures, the analog input layer is the first point of contact between the physical process and the control logic. The FC-SAI-1620M fulfills this role with internal channel diagnostics, open-wire detection, and range validation that feed directly into the FC Series safety CPU’s fault management routines. This level of integration reduces nuisance trips, accelerates fault isolation during commissioning, and supports long-term maintenance efficiency across the full system lifecycle.

Architecture Specification Table

Coordinated Control System Design

The FC-SAI-1620M does not operate in isolation. Its performance is defined by the components surrounding it within the FC Series safety architecture. At the processing core, the FC-CPU (Safety Manager Central Processing Unit) executes the safety logic and communicates with all I/O modules over the high-speed backplane. The FC-SAI-1620M feeds its validated analog values directly into this CPU’s scan cycle, where they are evaluated against configured safety functions and interlock conditions.

Power integrity is maintained by the FC-PSU (FC Series Power Supply Unit), which provides regulated, redundant DC power to the entire rack. In high-availability installations, a secondary FC-PSU operates in hot-standby mode, ensuring that a power supply fault does not interrupt the analog input acquisition cycle. This power redundancy is essential in SIL 2 applications where continuous process monitoring is a functional safety requirement.

On the output side, the FC-SAI-1620M works in coordination with FC-SAO (Fail-Safe Analog Output) modules and FC-SDO (Fail-Safe Digital Output) modules to form a complete signal chain from field sensor to final control element. In a typical shutdown loop, the analog input value from the FC-SAI-1620M triggers a logic condition in the FC-CPU, which then commands an FC-SDO channel to de-energize a solenoid valve or trip relay.

For digital field signals, the FC-SDI (Fail-Safe Digital Input) module complements the FC-SAI-1620M by handling discrete on/off signals from limit switches, pressure switches, and emergency stop buttons. Together, these I/O modules populate the FC Series rack alongside the FC-COM communication gateway module, which bridges the safety system to the plant DCS or SCADA network via Modbus TCP, PROFIBUS, or OPC-UA protocols.

In geographically distributed installations, FC-RIO (Remote I/O) modules extend the FC Series architecture to field junction boxes, reducing cable runs and enabling local diagnostics. The FC-SAI-1620M can be replicated across multiple remote racks, all synchronized to the central FC-CPU through the FC-COM gateway. This architecture supports modular expansion without requiring changes to the core safety logic program.

At the human-machine interface layer, Honeywell’s Safety Manager Station (SMS) or compatible HMI terminals display real-time analog values sourced from FC-SAI-1620M channels, providing operators with continuous visibility into process variables. Alarm management, trend logging, and diagnostic dashboards are all populated from the same data stream that the FC-SAI-1620M delivers to the FC-CPU.

Terminal modules and marshalling components, such as FC-TBK terminal blocks and field wiring accessories, complete the physical installation by providing organized, labeled connection points for the 16 analog input channels. Proper marshalling reduces wiring errors during commissioning and simplifies future maintenance when field instruments require replacement or recalibration.

Application in Layered Automation Systems

Oil, Gas & Petrochemical: In upstream and downstream process facilities, the FC-SAI-1620M monitors pressure, temperature, and flow transmitters across compressor trains, separator vessels, and pipeline segments. Its SIL 2 capability satisfies the functional safety requirements of IEC 61511, making it suitable for Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS). The module’s open-wire diagnostics are particularly valuable in hazardous area installations where field wiring integrity cannot be visually inspected without a permit-to-work.

Power Generation & Utilities: In thermal power plants and combined-cycle facilities, the FC-SAI-1620M integrates into turbine protection systems and boiler safety interlocks. Analog signals from vibration sensors, bearing temperature detectors, and steam pressure transmitters are processed with the deterministic scan times required by turbine OEM safety specifications. The module’s compatibility with the FC Series redundant CPU architecture ensures that a single module failure does not compromise the overall protection function.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the FC-SAI-1620M to monitor chemical dosing rates, tank levels, and pump discharge pressures. In chlorination and pH control loops, accurate analog input acquisition is critical to both process quality and regulatory compliance. The module’s long-term stability and 12-Month Warranty support the extended maintenance intervals typical of water utility operations.

Mining & Metallurgy: In mineral processing plants and smelting operations, the FC-SAI-1620M handles analog signals from conveyor load cells, furnace temperature sensors, and hydraulic pressure transmitters. The harsh electrical environment of mining facilities — characterized by high-voltage switching transients and ground loops — is managed by the module’s signal conditioning and isolation circuitry, which maintains measurement accuracy even under adverse EMC conditions.

Packaging & Discrete Manufacturing: In high-speed packaging lines and assembly systems, the FC-SAI-1620M monitors servo drive feedback signals, pneumatic pressure regulators, and web tension sensors. Its integration with the FC Series architecture allows safety functions to be embedded directly into the production control system, eliminating the need for separate standalone safety relays and simplifying the overall control cabinet design.

Architecture Engineering FAQ

Q1: Is the FC-SAI-1620M compatible with both new FC Series installations and existing Safety Manager systems?
Yes. The FC-SAI-1620M is designed for Contextual Integration within the Honeywell Safety Manager FC Series platform. It is backward-compatible with existing FC Series racks and CPUs, provided the system firmware meets the minimum version requirements specified in the Honeywell Safety Manager engineering manual. For legacy Safety Manager installations using earlier hardware generations, consult the compatibility matrix before ordering. ZYPLC can provide pre-sales technical verification to confirm fit within your existing architecture.

Q2: How does the FC-SAI-1620M support redundant architecture designs?
In redundant FC Series configurations, two FC-SAI-1620M modules can be installed in a 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting arrangement, depending on the SIL target and process demand rate. The FC-CPU manages the voting logic internally, comparing channel values from multiple modules and flagging discrepancies as diagnostic alarms. This architecture maintains the safety function even if one module develops a fault, supporting the high availability requirements of continuous process industries. Redundant power supply modules (FC-PSU) should be installed in parallel to complete the redundant architecture.

Q3: What does the 12-Month Warranty cover, and what support is available during commissioning?
All FC-SAI-1620M modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment. During commissioning, ZYPLC’s technical team is available to assist with rack configuration, channel addressing, and diagnostic verification via remote support. Replacement units are dispatched promptly in the event of a warranty claim, minimizing system downtime. For long-term maintenance planning, ZYPLC maintains stock of FC Series I/O modules to support multi-year service agreements.
