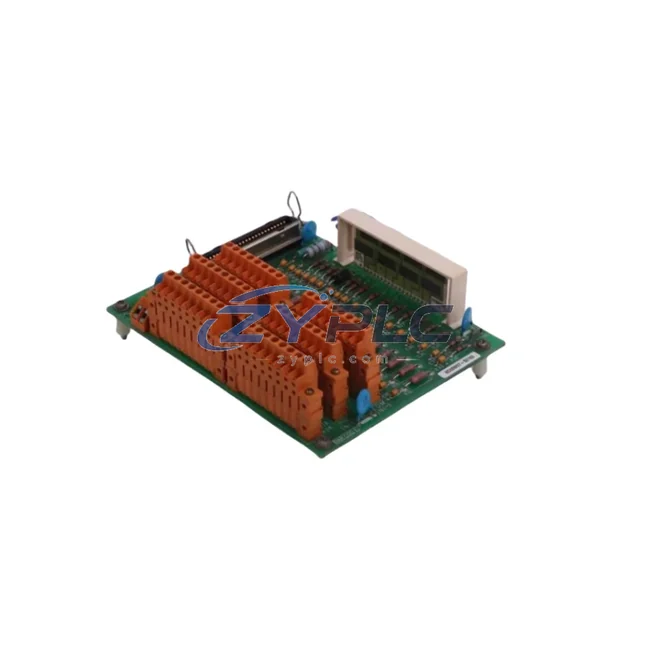

Honeywell FS-DO-1624 Safety Digital Output Module for Safety Manager Systems

Honeywell FS-DO-1624: Industrial Data Link for Safety Manager SIS Networks

The Honeywell FS-DO-1624 is a SIL3-rated 16-channel Digital Output Module engineered for the Honeywell Safety Manager (FSC) Safety Instrumented System platform. In modern process industries — oil & gas, petrochemical, power generation, and chemical manufacturing — the integrity of the safety data link between field actuators and the safety logic solver is non-negotiable. The FS-DO-1624 serves as the critical last-mile interface, converting safety-certified digital commands from the Safety Manager controller into reliable 24 VDC output signals that drive solenoid valves, motor starters, shutdown relays, and emergency isolation devices on the plant floor.

Within a fully integrated Safety Instrumented System, the FS-DO-1624 operates in close coordination with the FS-DI-1624 Digital Input Module, which collects field sensor states, and the FS-AI-1622 Analog Input Module, which handles 4–20 mA process variable signals from pressure transmitters and flow sensors. Together, these I/O modules feed real-time data into the Honeywell Safety Manager SC Controller, where the safety logic executes at deterministic scan rates to ensure sub-100 ms response to process deviations. The output commands generated by the controller are then transmitted through the certified safety backplane bus to the FS-DO-1624, which drives field devices with the precision and reliability demanded by IEC 61511 and IEC 61508 SIL3 standards.

The FS-DO-1624 integrates seamlessly into the broader plant automation architecture. Upstream, the Safety Manager communicates with the Honeywell Experion PKS DCS via the Safety Builder engineering environment and OPC DA/UA gateways, enabling SCADA and HMI operators to monitor safety system status in real time without compromising the independence of the SIS layer. The Honeywell Station Controller SC and C300 Controller in the Experion network exchange process data with the Safety Manager through certified peer-to-peer links, ensuring that normal process control and safety shutdown logic remain synchronized while maintaining the required independence mandated by functional safety standards.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Safety Instrumented System deployment, the data flow begins at the field level. Process sensors — including Honeywell STT850 Smart Temperature Transmitters and pressure transmitters wired to the FS-AI-1622 Analog Input Module — continuously stream process variable data into the Safety Manager SC controller. The controller evaluates these inputs against pre-configured safety setpoints defined in the Safety Builder engineering tool. When a deviation is detected — such as a high-high pressure condition in a reactor vessel — the Safety Manager generates a digital output command and transmits it via the certified backplane to the FS-DO-1624.

The FS-DO-1624 then energizes or de-energizes the corresponding output channel, triggering a solenoid valve or emergency shutdown relay in the field. Simultaneously, the Safety Manager reports the trip event to the Honeywell Experion PKS SCADA system via the OPC UA gateway, where operators at the Experion Station HMI receive real-time alarm notifications and can initiate remote diagnostic procedures without physically accessing the field panel. The FS-DO-1624 supports channel-level diagnostics, reporting open-circuit and short-circuit faults back to the controller, which in turn forwards these fault states to the SCADA historian for trend analysis and predictive maintenance scheduling.

For plants operating mixed automation architectures, the Safety Manager’s Modbus TCP gateway capability allows the FS-DO-1624’s output status to be shared with third-party Siemens S7-300 PLCs or ABB AC800M controllers managing the basic process control layer, ensuring that the ESD system status is visible across the entire plant network without creating unsafe data coupling between the SIS and BPCS layers. Edge gateways such as the Honeywell Uniformance PHD historian further aggregate FS-DO-1624 channel data for long-term performance analysis, regulatory compliance reporting, and remote diagnostics accessible from centralized control rooms or off-site engineering centers.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process plant automation is the data isolation that arises when safety systems operate as completely closed networks, invisible to the broader plant SCADA and MES infrastructure. While SIS independence is a functional safety requirement, the inability to monitor safety system health in real time creates blind spots that increase maintenance costs and slow incident response. The Honeywell FS-DO-1624, as part of the Safety Manager platform, addresses this challenge through its certified gateway architecture.

The Safety Manager’s built-in OPC DA/UA server exposes FS-DO-1624 channel status, diagnostic data, and output states to authorized SCADA clients without creating a direct control path that would compromise SIS independence. This means that plant engineers can monitor which output channels are active, which have detected wiring faults, and which have executed safety trips — all from the Experion PKS console or a remote engineering workstation — without any risk of inadvertent interference with the safety logic. For multi-unit plants with dozens of Safety Manager cabinets, this capability transforms what was once a manual, time-consuming inspection process into a continuous, automated monitoring workflow.

Protocol unification is another key value delivered by the FS-DO-1624 ecosystem. Legacy plants often operate a mix of Modbus RTU field devices, HART-enabled transmitters, and Profibus DP actuators alongside modern Ethernet/IP networks. The Safety Manager platform’s protocol gateway modules bridge these communication layers, allowing the FS-DO-1624’s output commands to be coordinated with data from legacy field devices without requiring a full network infrastructure upgrade. This makes the FS-DO-1624 an ideal choice for brownfield modernization projects where extending the life of existing field wiring while adding smart factory monitoring capabilities is the primary objective.

Industrial Connectivity FAQ

Q1: What is the communication latency of the FS-DO-1624 in a Safety Manager SIS?
The FS-DO-1624 operates on the Honeywell Safety Manager certified backplane bus, which supports deterministic scan cycles typically in the range of 50–100 ms depending on system configuration. This ensures that safety output commands are executed within the response time requirements defined in the Safety Requirements Specification (SRS) for SIL2 and SIL3 applications.

Q2: Is the FS-DO-1624 compatible with third-party SCADA systems beyond Honeywell Experion PKS?
Yes. The Safety Manager platform supports OPC DA and OPC UA server functionality, allowing FS-DO-1624 channel data and diagnostics to be integrated with any OPC-compatible SCADA system, including Wonderware InTouch, Ignition by Inductive Automation, and Siemens WinCC. Modbus TCP connectivity is also available for legacy SCADA integration.

Q3: How does the FS-DO-1624 maintain network stability in high-vibration or harsh industrial environments?
The FS-DO-1624 is designed to meet the environmental and EMC requirements of IEC 61131-2 and relevant ATEX/IECEx standards for use in hazardous areas. Its backplane communication architecture eliminates the need for external field bus wiring between I/O modules and the controller, reducing the risk of communication disruption due to cable degradation or connector failure in harsh plant environments.

Q4: What warranty and pre-shipment testing does the FS-DO-1624 include?
Every Honeywell FS-DO-1624 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output channel integrity, backplane communication, and diagnostic reporting. A warranty terms confirmed during quotation is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited DHL/FedEx global shipping is available with full export documentation support.
