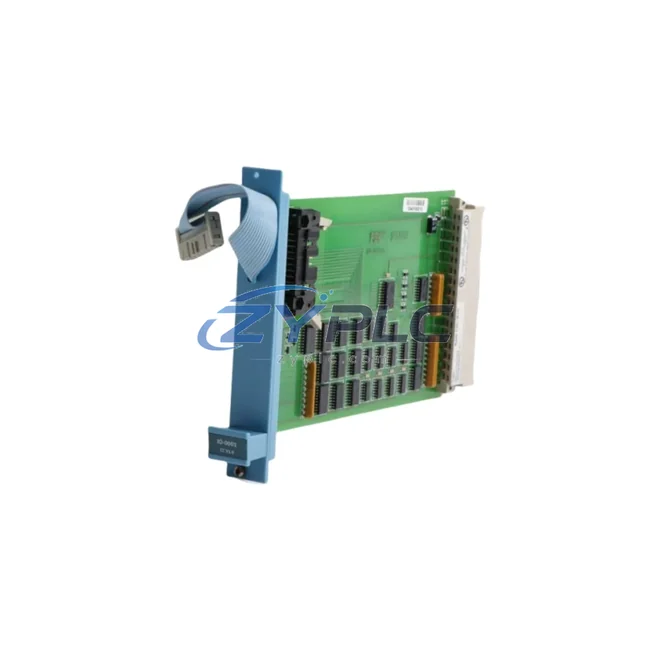

Honeywell FS-SAO-0220m Safety Analog Output Module for Safety Manager Systems

Honeywell FS-SAO-0220m: Industrial Data Link for Safety Manager Systems

In modern process automation and smart factory environments, the integrity of the safety instrumented system (SIS) data chain is non-negotiable. The Honeywell FS-SAO-0220m Safety Analog Output Module serves as a critical industrial network interface within the Honeywell Safety Manager and FSC (Fail-Safe Controller) platform, enabling precise, SIL-rated analog signal transmission from the safety controller to field actuators, control valves, and process equipment. As industrial sites evolve toward fully connected architectures — where field devices, PLC controllers, remote I/O, HMI panels, SCADA systems, variable frequency drives, and edge gateways must exchange real-time data without interruption — the FS-SAO-0220m anchors the output layer of the safety data loop with proven reliability.

The module integrates directly into the Honeywell Safety Manager SC chassis, operating alongside input modules such as the FS-SDI-0824m digital input module and the FS-SAI-0420m analog input module to form a complete I/O subsystem. Signal acquisition begins at the field level — pressure transmitters, temperature sensors, and flow meters feed live process values into the safety controller via the analog input layer. The FS-SAO-0220m then converts the controller’s computed output decisions into 4–20 mA analog signals, driving final control elements such as ESD valves, positioners, and shutdown actuators. This closed-loop data flow — from sensor to controller to actuator — is the backbone of any SIL 2 or SIL 3 certified safety loop in oil and gas, chemical, power generation, and offshore applications.

Within the broader network architecture, the Honeywell Safety Manager communicates upstream with the Experion PKS DCS via high-speed Ethernet or the proprietary FTE (Fault Tolerant Ethernet) network, ensuring that SCADA and HMI layers — including Honeywell Experion Station and third-party SCADA platforms — receive continuous, time-stamped safety status data. The FS-SAO-0220m’s output signals are simultaneously logged by the Honeywell Safety Manager Engineering Workstation, enabling remote diagnostics, loop testing, and alarm management without interrupting live production. Integration with Modbus TCP/IP gateways and OPC-UA servers further extends data visibility to MES and ERP layers, supporting full plant transparency and Industry 4.0 connectivity objectives.

Compatibility & Integration Notes

Connected Automation Data Flow

The FS-SAO-0220m does not operate in isolation — it is a node in a tightly integrated safety and process automation network. At the field level, Honeywell STT850 Smart Temperature Transmitters and Honeywell SPS pressure sensors deliver live process measurements to the FS-SAI-0420m analog input modules housed in the same Safety Manager chassis. The Safety Manager SC controller executes the safety logic at high-speed scan rates, and the FS-SAO-0220m translates the controller’s output commands into calibrated 4–20 mA signals that drive AUMA electric actuators and Emerson Fisher control valves in the field.

Upstream, the Safety Manager communicates with the Honeywell Experion PKS C300 Controller over the FTE network, synchronizing safety state data with the process DCS in real time. Operators monitor loop status, output values, and alarm conditions through the Honeywell Experion Station HMI, while the Safety Manager Engineering Workstation provides full diagnostic access — including forced output testing and partial stroke testing — without requiring a plant shutdown. For sites integrating legacy systems, a Modbus TCP/IP to serial gateway bridges the Safety Manager network to older Allen-Bradley PLC-5 or Siemens S7-300 controllers, ensuring protocol compatibility across mixed-vendor environments. Edge gateways running OPC-UA publish real-time safety output data to cloud-based SCADA platforms and MES systems, completing the digital data chain from field actuator to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process safety environments is data isolation — safety systems that operate as closed silos, disconnected from the broader plant automation network. When the Safety Manager cannot share real-time output status with the DCS, SCADA, or MES layers, operators lose visibility into safety loop performance, maintenance teams cannot perform remote diagnostics, and plant managers cannot generate the compliance reports required by IEC 61511 and IEC 61508 standards.

The Honeywell FS-SAO-0220m, deployed within a properly architected Safety Manager system, directly addresses these challenges. Its integration with the FTE network ensures that every analog output value, diagnostic flag, and fault condition is visible to the Experion PKS DCS in real time — eliminating the data gap between the safety layer and the process control layer. For remote monitoring, the Safety Manager’s built-in Ethernet communication interface allows engineering teams to access loop diagnostics, output calibration data, and alarm histories from any authorized workstation on the plant network, reducing the need for on-site intervention and cutting maintenance response times significantly.

Protocol unification is achieved through gateway integration: Modbus TCP/IP and OPC-UA servers translate the Safety Manager’s proprietary data into standard industrial formats, enabling seamless connectivity with third-party SCADA platforms, historian databases, and cloud analytics tools. Production line transparency is further enhanced by mapping FS-SAO-0220m output channel data to KPI dashboards in the Experion Operator Station, giving shift supervisors instant visibility into valve positions, actuator states, and safety loop health — all from a single screen. System expansion is straightforward: additional FS-SAO-0220m modules can be added to the Safety Manager chassis without reconfiguring the network architecture, supporting phased plant expansions and capacity upgrades with minimal engineering effort.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell FS-SAO-0220m support for SCADA and DCS integration?
The FS-SAO-0220m communicates natively over the Honeywell FTE (Fault Tolerant Ethernet) network, providing direct integration with the Experion PKS DCS and SCADA platforms. For third-party system connectivity, Modbus TCP/IP and OPC-UA gateways can be deployed to bridge the Safety Manager network with external historians, MES systems, and cloud-based monitoring platforms — ensuring full data visibility across the plant automation hierarchy.

Q2: How does the FS-SAO-0220m ensure network stability and minimize communication latency in safety-critical applications?
The module operates on the redundant FTE network architecture, which provides automatic failover and eliminates single points of network failure. The Safety Manager executes safety logic at deterministic scan rates, ensuring that analog output updates are delivered to field actuators within the response time requirements defined by the safety function. Online diagnostics continuously monitor output channel integrity, flagging faults before they can affect safety loop performance.

Q3: Is the Honeywell FS-SAO-0220m compatible with mixed-vendor PLC and DCS environments?
Yes. While the FS-SAO-0220m is designed for the Honeywell Safety Manager and FSC platform, its analog output signals (4–20 mA) are universally compatible with any field device or actuator that accepts standard analog inputs. For protocol-level integration with Allen-Bradley, Siemens, or ABB control systems, Modbus TCP/IP or OPC-UA gateways provide the necessary protocol conversion, enabling the Safety Manager to share data with third-party PLCs, DCS controllers, and SCADA systems without hardware modification.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the FS-SAO-0220m?
Every Honeywell FS-SAO-0220m supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify output channel performance, communication integrity, and module identification. Global stock is maintained to support urgent project timelines, with expedited shipping available to major industrial hubs worldwide. For volume orders or project-specific requirements, contact our technical sales team for lead time confirmation and application support.
